電源供應器
MSI 微星 MAG A1200PLS PCIE5 1200W 白金全模組電源供應器
MSI MAG A1200PLS PCIE5 1200W Platinum Fully Modular Power Supply
產品介紹

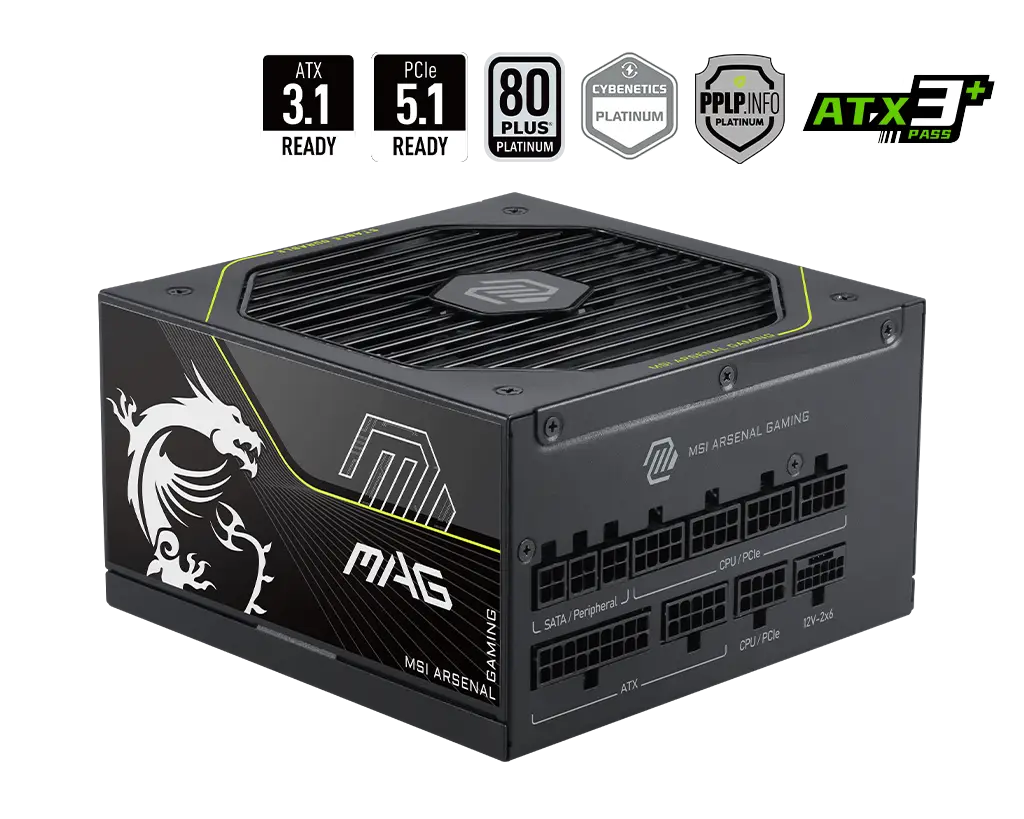

MAG A1200PLS PCIE5 提供 1200W 額定輸出，採全模組線材設計與 80 PLUS 白金效率認證，適合高階遊戲、實況與內容創作主機。ATX 3.1 與 PCIe 5.1 相容設計，搭配原生 12V-2x6 接頭，便於配置新世代顯示卡。
產品特色
• 顯卡電流監測與風扇異常警示，協助掌握供電及散熱狀態。

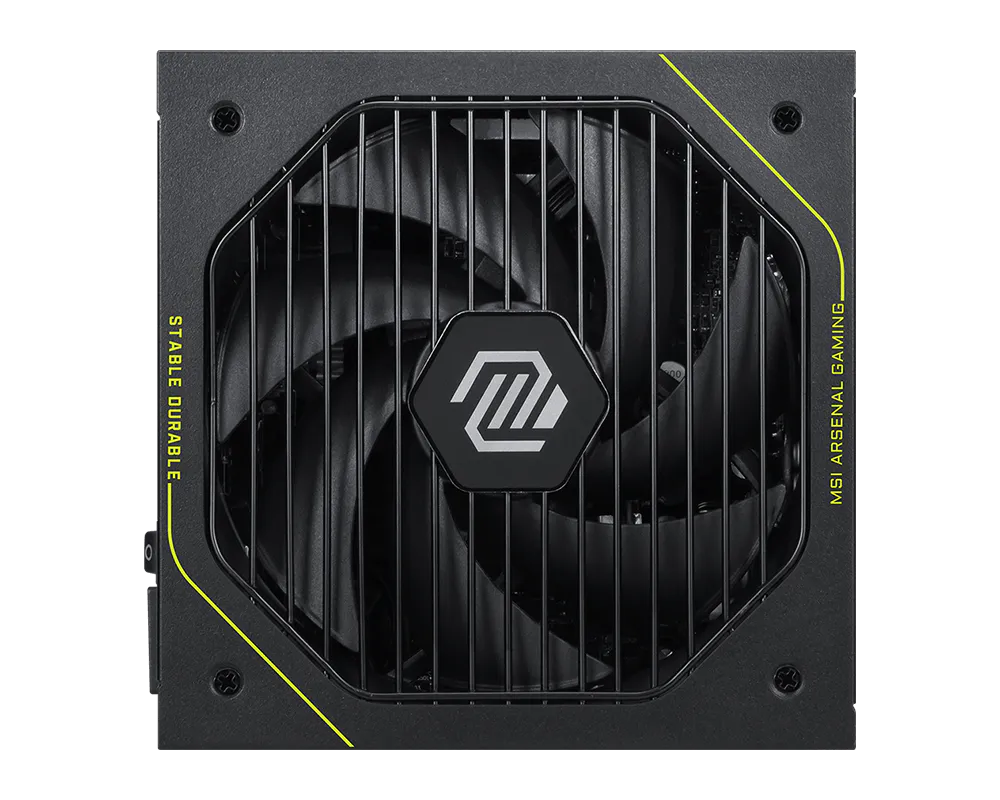

• 135mm FDB 液態動力軸承風扇兼顧散熱與低噪運轉。

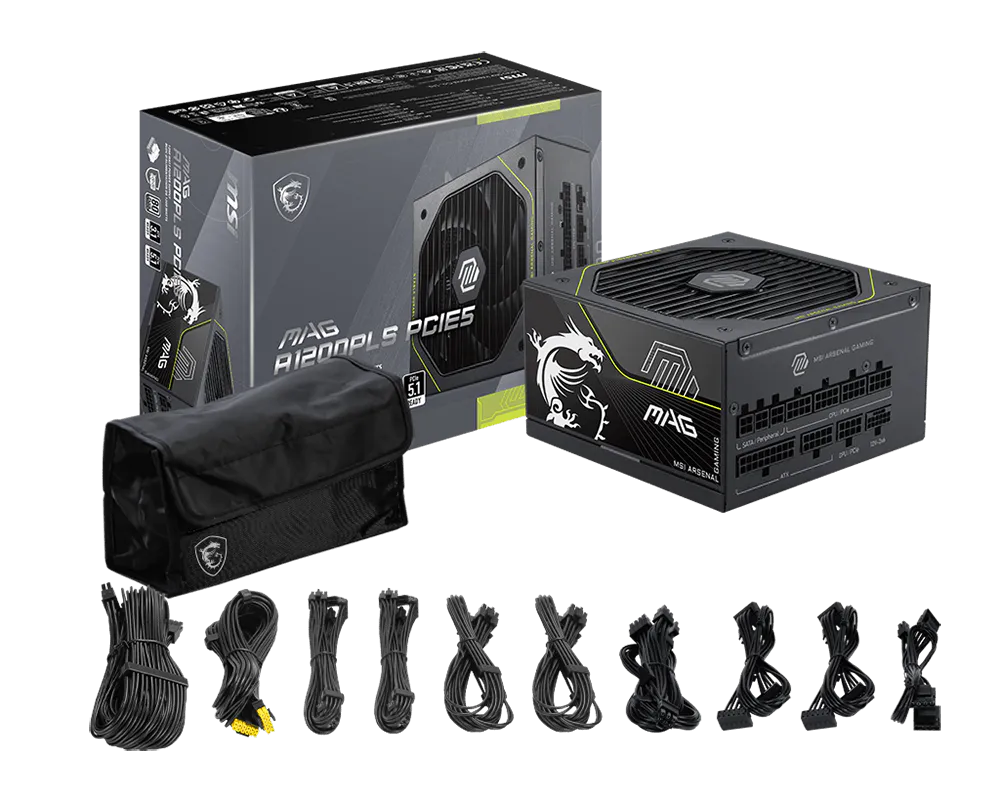

• 雙色 12V-2x6 接頭便於確認插入狀態；柔韌壓紋線材與整線器協助整理線路。
主要規格
• 額定功率：1200W；ATX 全模組；主動式 PFC。
• 效率認證：80 PLUS Platinum。
• 尺寸：150 × 150 × 86 mm。

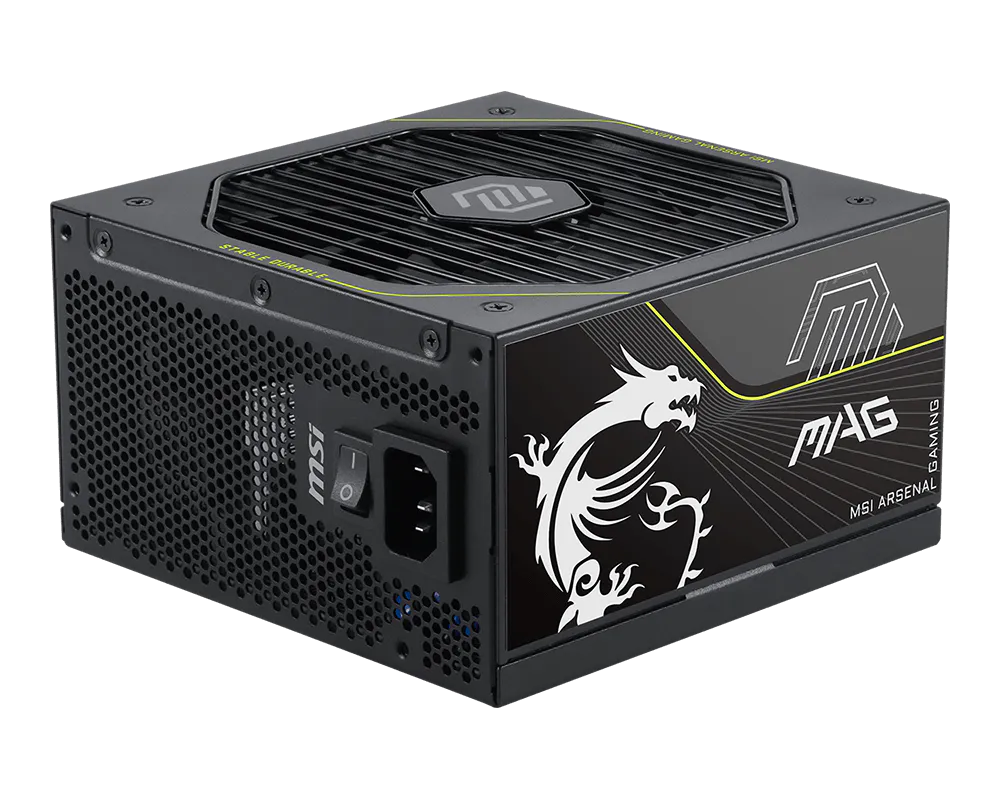

• 輸入：100–240 VAC，50–60 Hz。

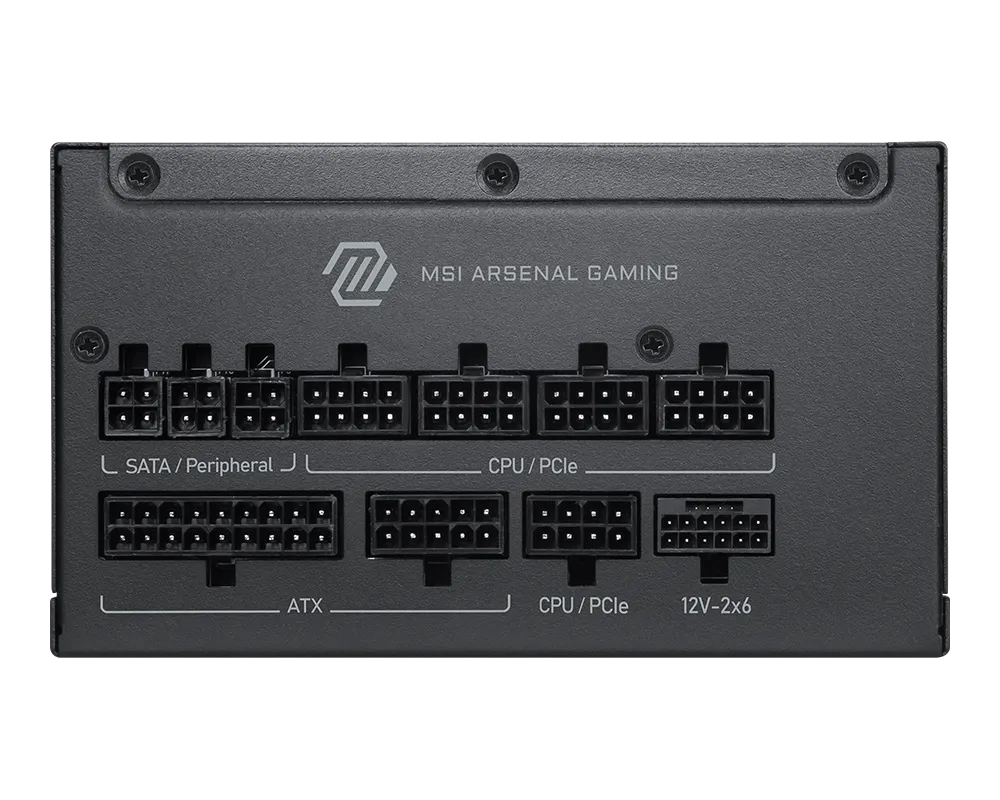

• 接頭：主機板 24-pin ×1、CPU 4+4-pin ×1、CPU 8-pin ×1、PCIe 5 12+4-pin（600W）×1、PCIe 6+2-pin ×4、SATA ×6、周邊 4-pin ×3。
• 保護：OVP、OCP、OTP、OPP、SCP、UVP、SIP、NLO。
安裝說明
先確認機殼電源艙空間及整機供電需求。關機斷電後固定電源，再依主機板與顯示卡需求接妥相應線材。利用雙色接頭檢查 12V-2x6 是否插到底，整理線材並保持風扇進排氣暢通後再通電。
Overview
MAG A1200PLS PCIE5 is a 1200W fully modular PSU with 80 PLUS Platinum certification. ATX 3.1 and PCIe 5.1 support, including a native 12V-2x6 connector, suit demanding gaming, streaming and creative systems.
Features
GPU current monitoring and fan fault alerts help identify abnormal operation. A 135mm FDB fan provides cooling, while the dual-color GPU connector helps confirm seating. Flexible embossed cables and organizers simplify cable routing.
Specifications
• Rated output: 1200W. ATX; active PFC; fully modular.
• Efficiency certification: 80 PLUS Platinum.
• Dimensions: 150 × 150 × 86 mm.
• Input: 100–240 VAC, 50–60 Hz.
• Connectors: 24-pin motherboard ×1; CPU 4+4-pin ×1 and 8-pin ×1; PCIe 5 12+4-pin, 600W ×1; PCIe 6+2-pin ×4; SATA ×6; peripheral 4-pin ×3.
• Protection: OVP/OCP/OTP/OPP/SCP/UVP/SIP/NLO.
Installation
Check PSU-bay clearance and total system power requirements. Disconnect power before mounting and wiring, then connect the cables required by the motherboard and graphics card. Fully seat the dual-color 12V-2x6 connector and keep ventilation clear before powering on.
