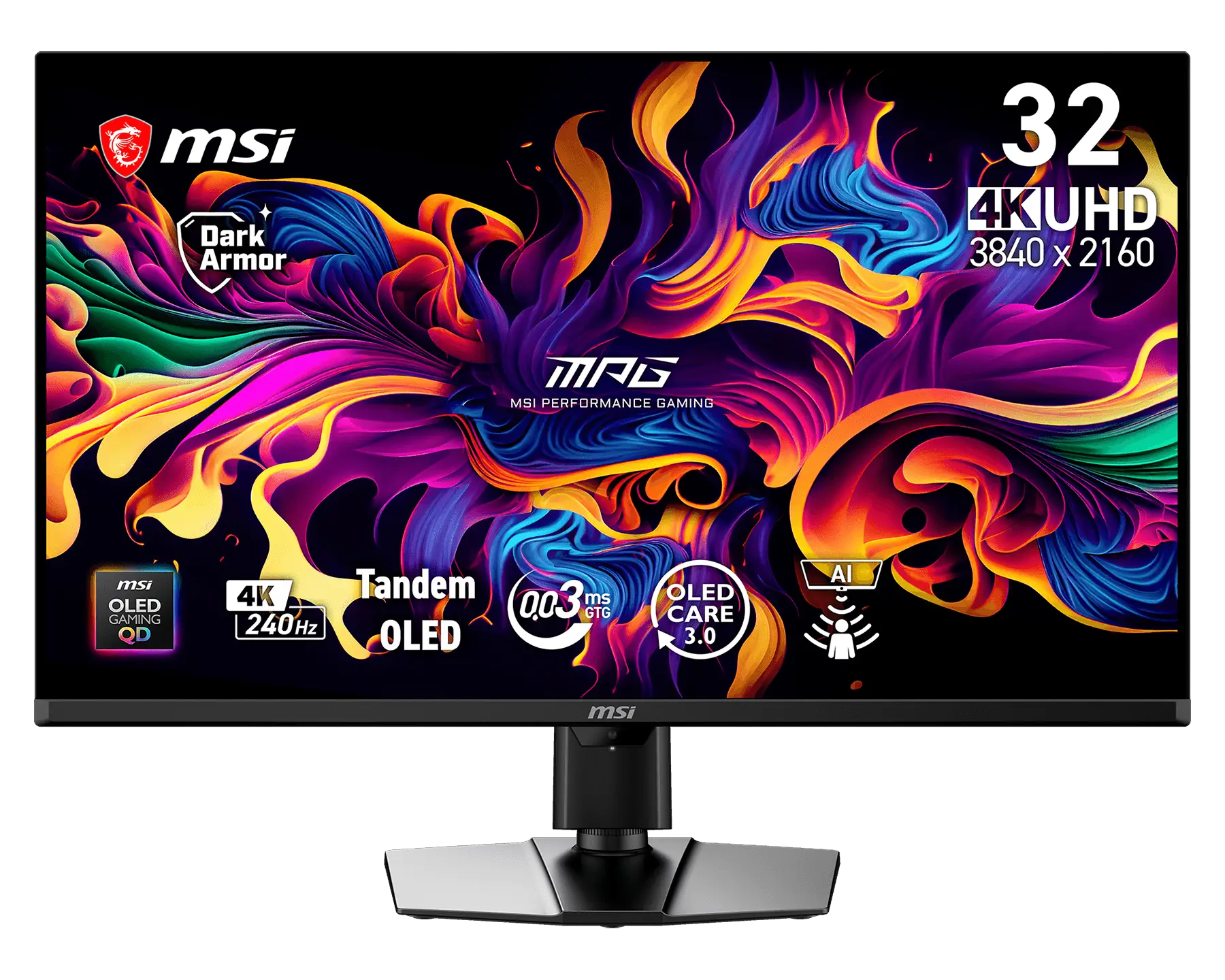

MSI 微星 MPG 322UR QD-OLED X24 31.5 吋 4K 240Hz QD-OLED 電競螢幕

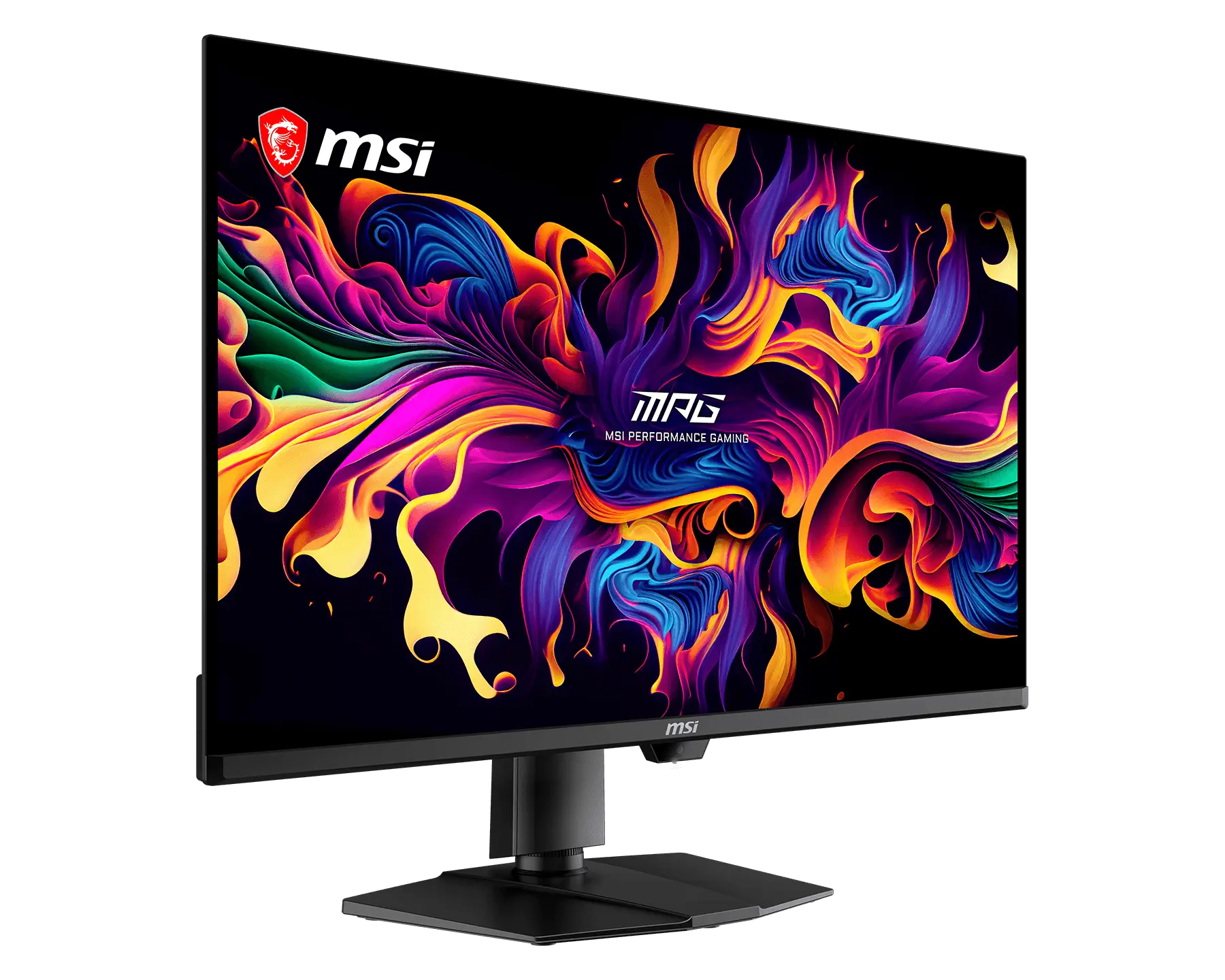

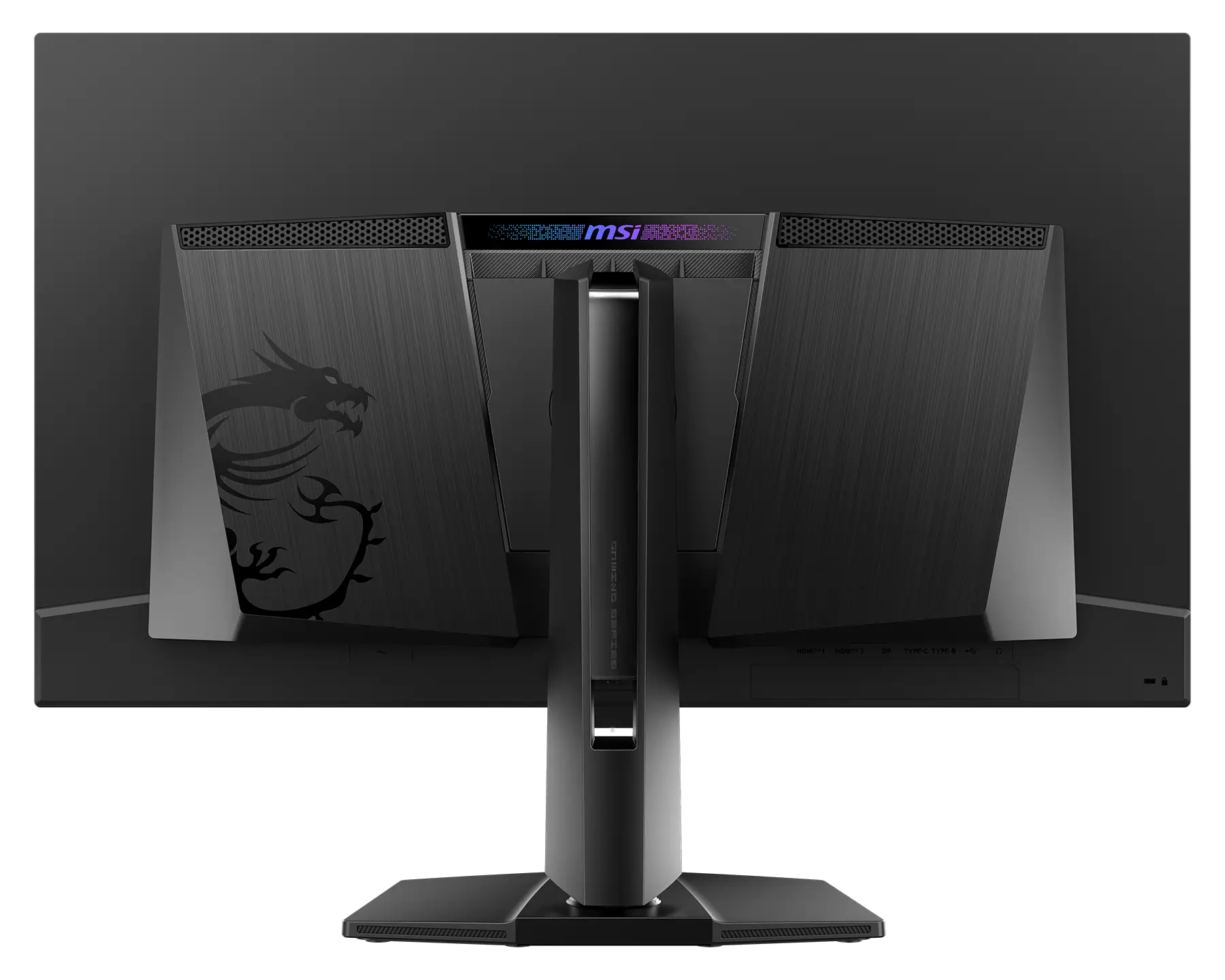

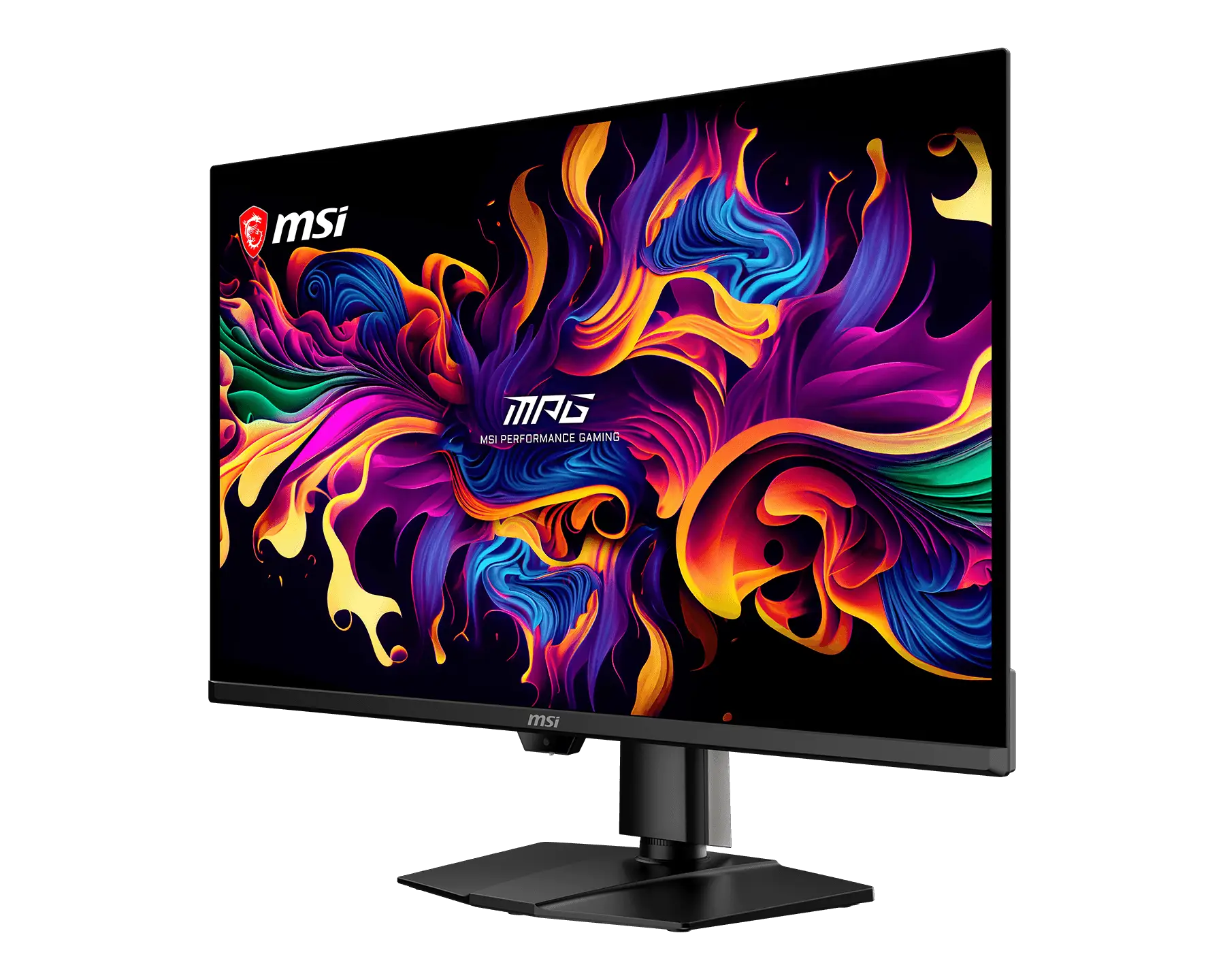

MSI MPG 322UR QD-OLED X24 31.5-inch 4K 240Hz QD-OLED Gaming Monitor
產品介紹
31.5 吋平面 4K QD-OLED 面板提供寬裕工作空間與細緻影像，240Hz 更新率及 0.03ms GtG 反應時間則兼顧高速遊戲。第四代 Tandem QD-OLED 結合 EL Gen 3 技術，適合在同一張桌面處理遊戲、影音與內容創作。
產品特色
DarkArmor 薄膜加強環境光下的黑階表現與表面耐用性；Uniform Luminance 可調 HDR 亮度曲線。AI Care Sensor 與 OLED Care 3.0 提供面板保護。具備 DisplayHDR True Black 500、ClearMR 13000、KVM 及 PIP／PBP。
主要規格
• 顯示技術：QD-OLED；10-bit、10.7 億色；防反射表面
• 對比／視角：1,500,000:1（典型值）；可視角度 178°／178°
• 面板／解析度：31.5 吋平面；3840 × 2160；16:9
• 更新率／反應時間：240Hz；0.03ms GtG；VRR 48–240Hz
• 亮度：SDR 300 nits；HDR 峰值 1000 nits
• 色域：Adobe RGB／DCI-P3／sRGB：97%／99%／138%（CIE1976）
• 影像連接埠：HDMI 2.1 ×2、DisplayPort 2.1a UHBR20 ×1、USB-C DP Alt Mode ×1（PD 98W）
• USB／音訊：USB 5Gbps Type-A ×2、Type-B ×1；耳機輸出 ×1
• 支架／壁掛：升降 110mm；俯仰 -5°～15°；左右 ±30°；垂直旋轉 ±10°；VESA 100 × 100mm
• 尺寸／重量：含支架 717.3 × 241.9 × 587.1mm；不含支架 717.3 × 71.8 × 434.8mm；淨重 9.4kg，不含支架 6.6kg
• 同步技術：NVIDIA G-SYNC Compatible、AMD FreeSync Premium Pro
• 電源：100–240V、50／60Hz
• 保固：3 年（包含面板烙印），依原廠保固條款。
使用與安裝
固定底座或相容的 VESA 支架後，再連接電源及影像線。高更新率需由顯示卡、線材與所選介面共同支援，並在系統顯示設定中選擇。USB-C 影像需裝置支援 DP Alt Mode。依 OLED Care 提示完成面板保養，避免長時間固定顯示高亮度圖樣；清潔時勿對面板施壓。HDR 峰值不等於全畫面持續亮度。
Overview
The 31.5-inch flat 4K QD-OLED panel offers detailed imagery and generous workspace, while 240Hz and 0.03ms GtG suit fast gaming. Fourth-generation Tandem QD-OLED with EL Gen 3 technology supports mixed gaming, media and creative use.
Features
DarkArmor film improves ambient-light black levels and surface durability. Uniform Luminance enables HDR curve adjustment. AI Care Sensor and OLED Care 3.0 protect the panel. Features include True Black 500, ClearMR 13000, KVM and PIP/PBP.
Specifications
Display: QD-OLED; 10-bit, 1.07 billion colors; anti-reflection surface
Contrast/viewing: 1,500,000:1 typical; viewing angles 178°/178°
Panel/resolution: 31.5-inch flat; 3840 × 2160; 16:9
Refresh/response: 240Hz; 0.03ms GtG; VRR 48–240Hz
Brightness: SDR 300 nits; HDR peak 1000 nits
Gamut: Adobe RGB/DCI-P3/sRGB: 97%/99%/138% (CIE1976)
Video: HDMI 2.1 ×2; DisplayPort 2.1a UHBR20 ×1; USB-C DP Alt Mode ×1, 98W PD
USB/audio: USB 5Gbps Type-A ×2, Type-B ×1; headphone output ×1

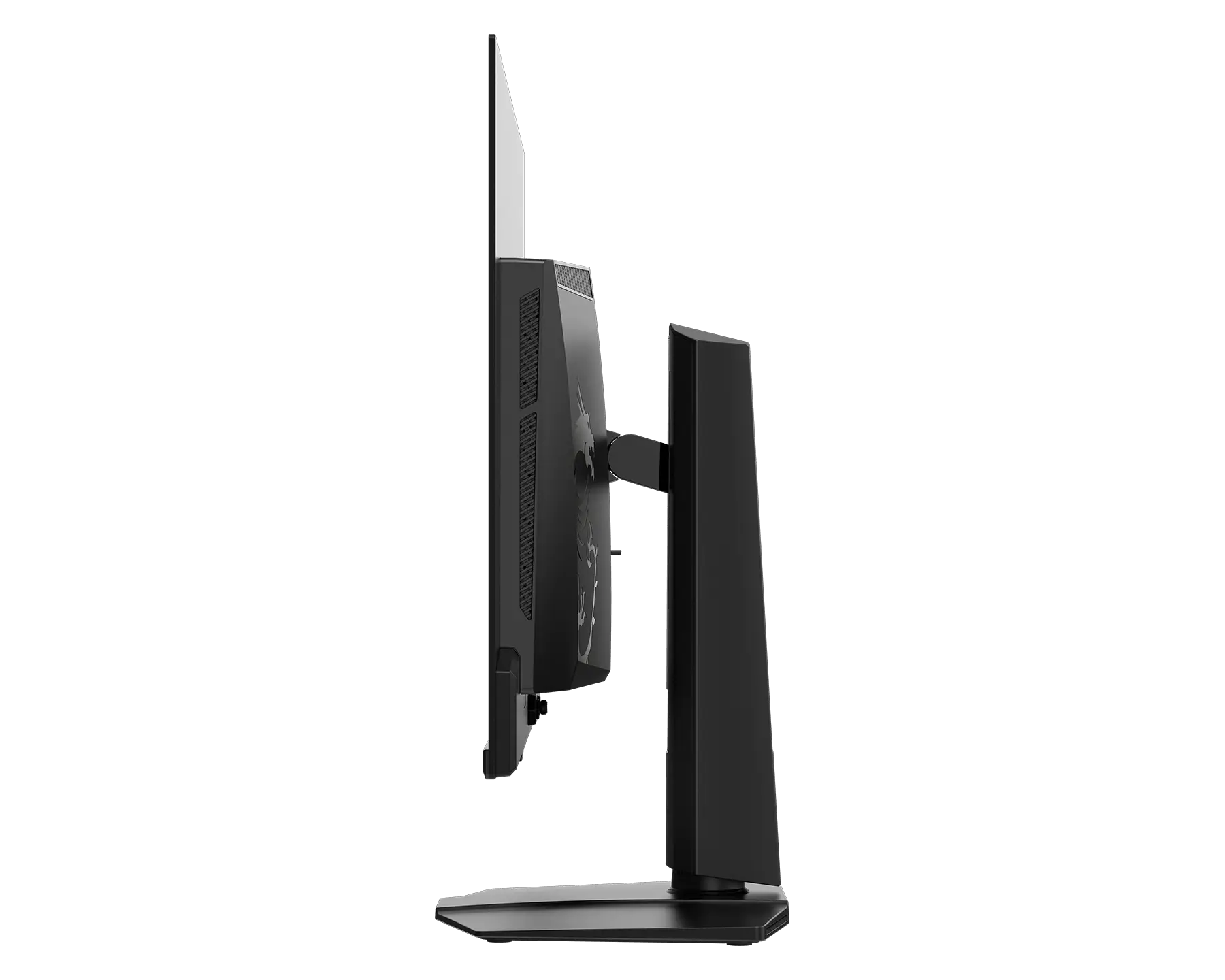

Stand/mount: 110mm height; tilt -5° to 15°; swivel ±30°; pivot ±10°; VESA 100 × 100mm
Dimensions/weight: With stand 717.3 × 241.9 × 587.1mm; without 717.3 × 71.8 × 434.8mm; net 9.4kg, panel 6.6kg
Sync: NVIDIA G-SYNC Compatible and AMD FreeSync Premium Pro
Power: 100–240V, 50/60Hz
Warranty: 3 years including panel burn-in, subject to manufacturer terms.
Setup and care
Secure the stand or compatible VESA arm before wiring. Select the desired refresh rate in system settings; GPU, cable and input support must match. USB-C video requires DP Alt Mode. Follow OLED Care prompts and avoid prolonged bright static content. Do not press on the panel when cleaning. HDR peak brightness is not sustained full-screen brightness.
