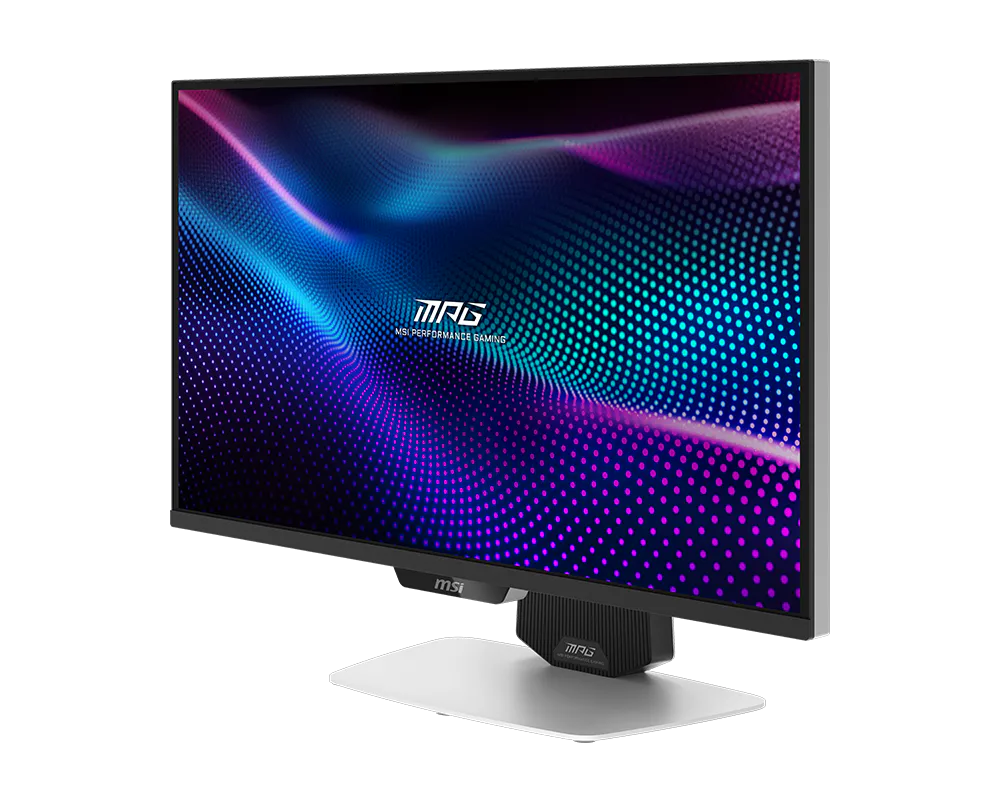

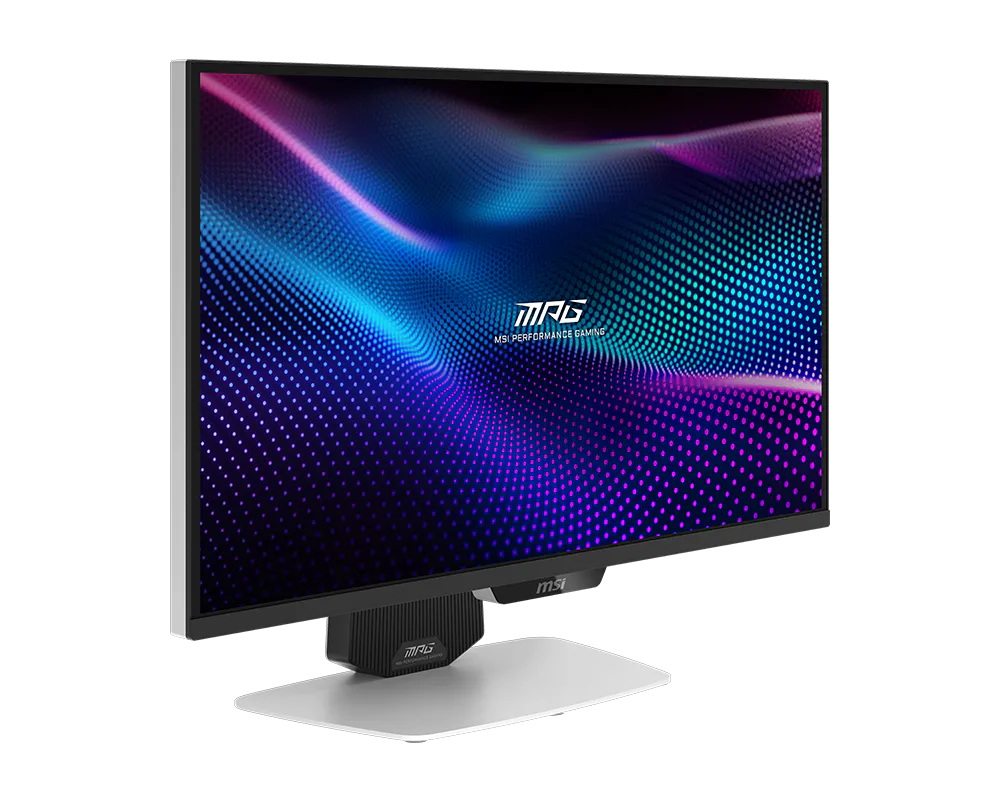

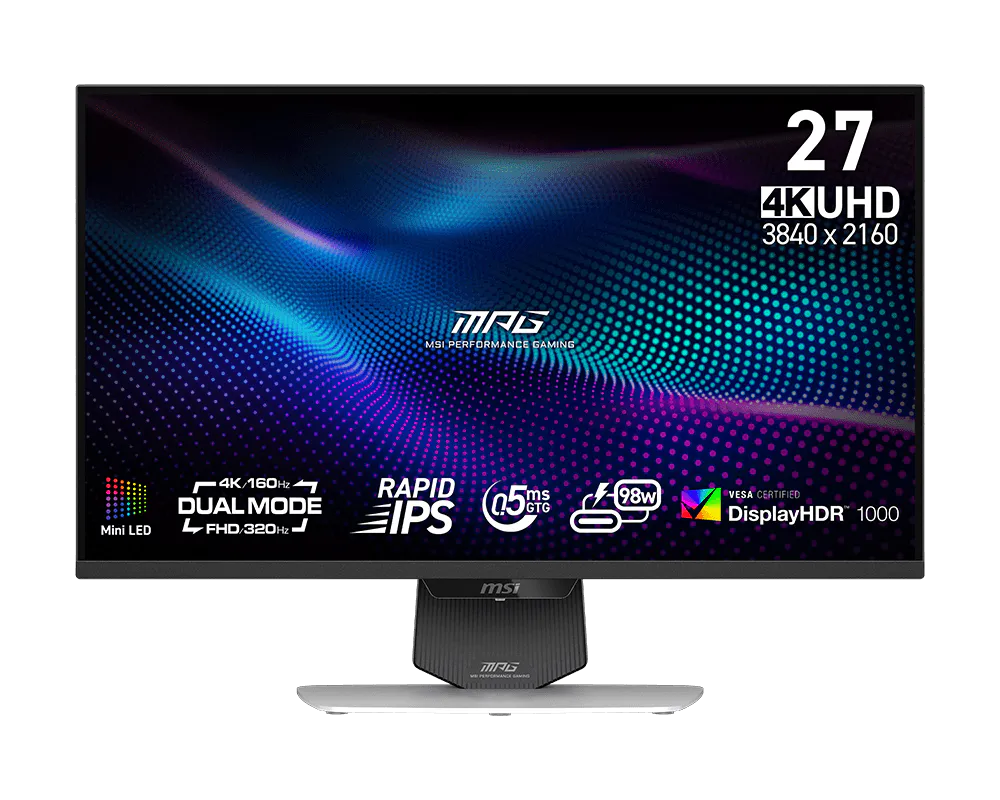

MSI 微星 MPG 274URDFW E16M 27 吋 4K 160Hz／FHD 320Hz Mini-LED 雙模式電競螢幕
MSI MPG 274URDFW E16M 27-inch 4K 160Hz / FHD 320Hz Mini-LED Dual-Mode Gaming Monitor
產品介紹
27 吋 Rapid IPS 搭配量子點及 1152 區 Mini-LED 背光，提供適合遊戲與影音的細緻 HDR 畫面。Dual Mode 可在 4K 160Hz 與 FHD 320Hz 之間切換，依內容選擇解析度或高速動態表現。
產品特色
VESA DisplayHDR 1000 與局部調光加強亮暗層次。AI Dual Mode 可配合解析度切換更新率；AI Menu、AI Crosshair 與 AI Vision 提供遊戲設定輔助。USB-C 98W PD、KVM 與 PIP／PBP 方便整合多台裝置。
主要規格
• 面板／背光：27 吋平面 Rapid IPS；量子點；Mini-LED 1152 區局部調光
• 雙模式／反應：3840 × 2160 160Hz，或 1920 × 1080 320Hz；0.5ms GtG（最小值）
• 亮度／HDR：SDR 400 nits；HDR 峰值 1000 nits；VESA DisplayHDR 1000
• 對比／色彩：1000:1（典型值）；10.7 億色、10-bit（8-bit + FRC）；防眩光
• 色域／視角：Adobe RGB／DCI-P3／sRGB：100%／98%／140%（CIE1976）；178°／178°
• 影像／音訊：DisplayPort 1.4a HBR3 ×1、HDMI 2.1 ×2、USB-C DP Alt Mode／PD 98W ×1；耳機輸出 ×1
• 同步／多工：Adaptive-Sync；KVM、PIP／PBP；各影像介面均支援 UHD 160Hz／FHD 320Hz

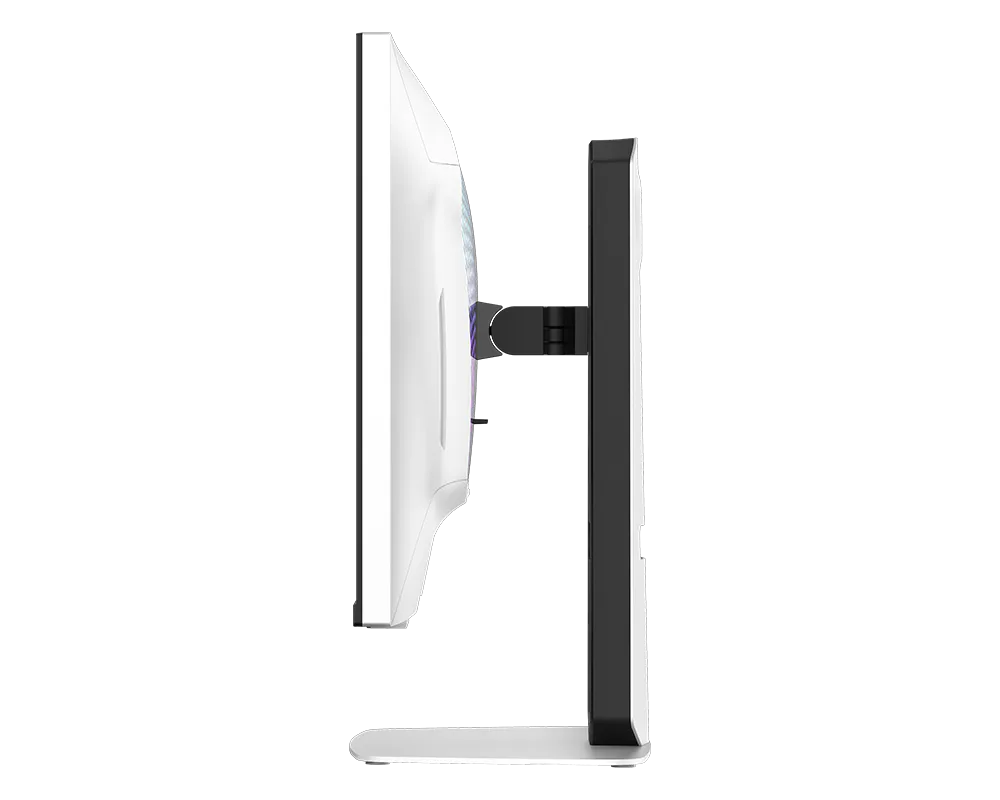

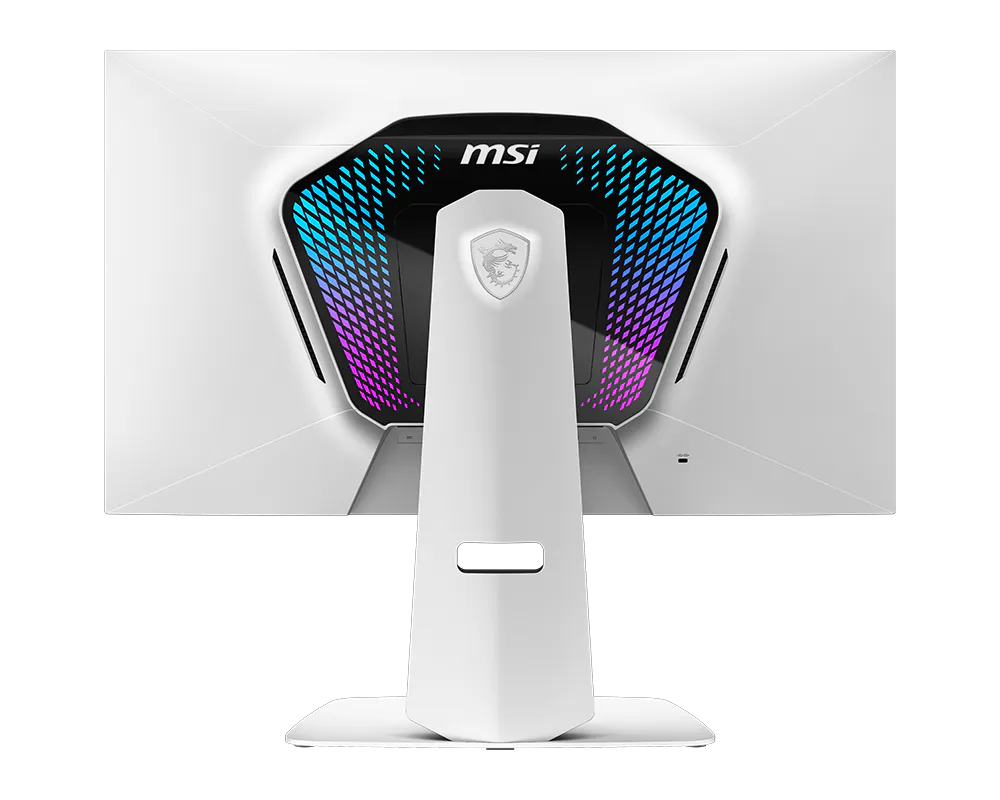

• 支架／壁掛：升降 110mm；俯仰 -5°～20°；VESA 100 × 100mm
• 尺寸／重量：含支架 613.1 × 202.38 × 400.85mm；不含支架 613.1 × 68.77 × 375.31mm；淨重 8.2kg
• 電源：100–240V、50／60Hz
安裝與使用
先固定底座或適當承重的 VESA 支架，再接妥電源及影像線。使用 Dual Mode 時確認輸出解析度與更新率；320Hz 對應 FHD，不是 4K。USB-C 影像需裝置支援 DP Alt Mode，供電功率依裝置需求及協議而定。KVM 需完成對應 USB 連接。HDR 峰值不是全畫面持續亮度；請依環境調整亮度，清潔時避免按壓面板。
Overview
The 27-inch Rapid IPS panel combines quantum dots with 1152-zone Mini-LED backlighting for detailed HDR gaming and media. Dual Mode switches between 4K 160Hz and FHD 320Hz, balancing image detail with fast motion.
Features
DisplayHDR 1000 and local dimming enhance highlight and shadow detail. AI Dual Mode adjusts refresh behavior with resolution changes; AI Menu, AI Crosshair and AI Vision assist gaming setup. USB-C 98W PD, KVM and PIP/PBP simplify multi-device use.
Specifications
Panel/backlight: 27-inch flat Rapid IPS; quantum dot; 1152-zone Mini-LED local dimming
Dual mode/response: 3840 × 2160 at 160Hz or 1920 × 1080 at 320Hz; 0.5ms GtG minimum
Brightness/HDR: SDR 400 nits; HDR peak 1000 nits; VESA DisplayHDR 1000
Contrast/color: 1000:1 typical; 1.07 billion colors, 10-bit (8-bit + FRC); anti-glare
Gamut/viewing: Adobe RGB/DCI-P3/sRGB: 100%/98%/140% (CIE1976); 178°/178°
Video/audio: DP 1.4a HBR3 ×1; HDMI 2.1 ×2; USB-C DP Alt Mode/98W PD ×1; headphone output ×1
Sync/multitasking: Adaptive-Sync; KVM and PIP/PBP; each video input supports UHD 160Hz/FHD 320Hz
Stand/mount: 110mm height; tilt -5° to 20°; VESA 100 × 100mm
Dimensions/weight: With stand 613.1 × 202.38 × 400.85mm; without 613.1 × 68.77 × 375.31mm; net 8.2kg
Power: 100–240V, 50/60Hz
Setup and use
Secure the stand or suitable VESA arm before wiring. Verify resolution and refresh settings when switching modes: 320Hz is FHD, not 4K. USB-C video requires DP Alt Mode; charging depends on device support. Connect the required USB links for KVM. HDR peak brightness is not sustained full-screen output. Adjust brightness for the room and avoid pressing on the panel.
