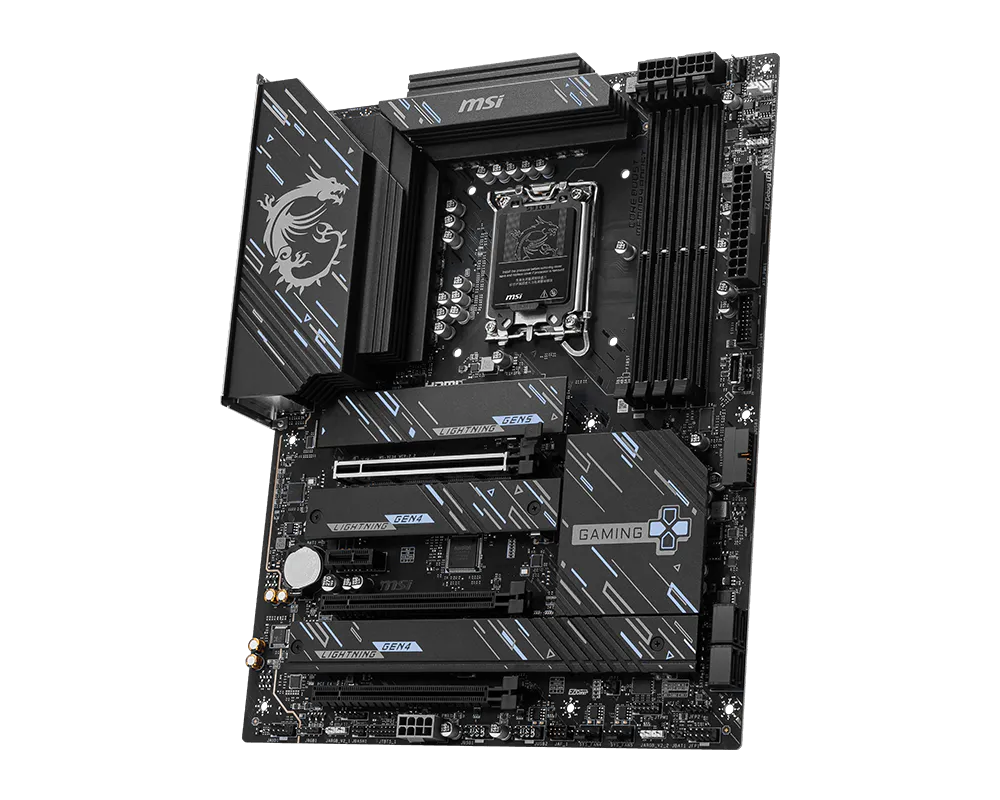

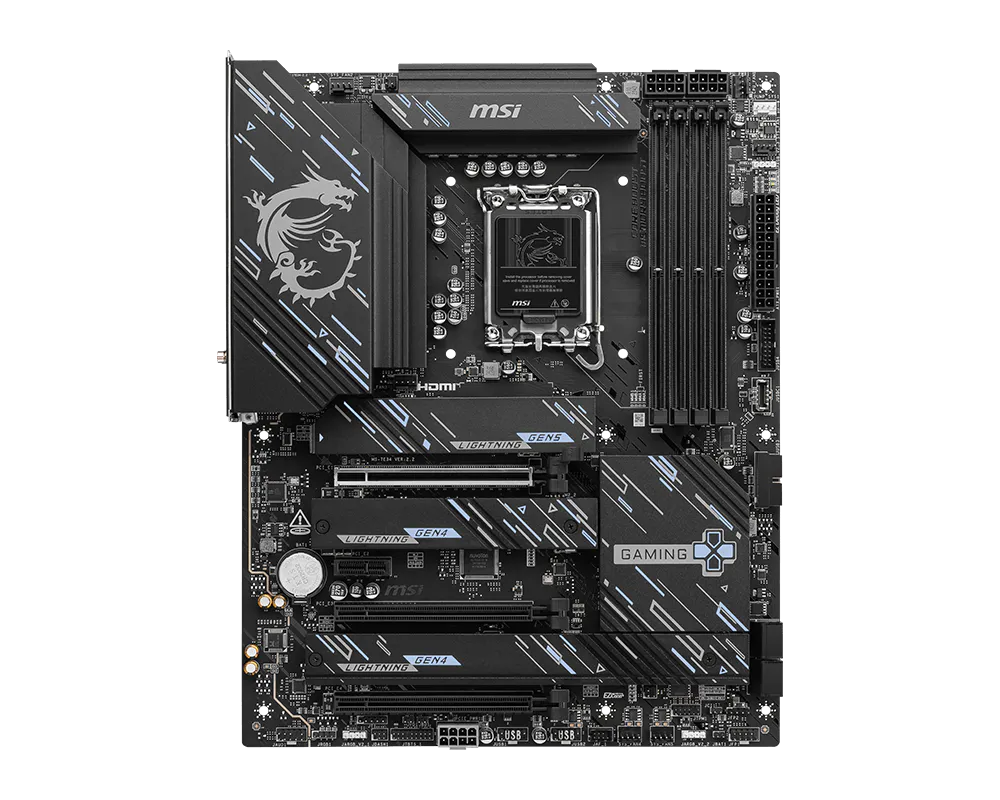

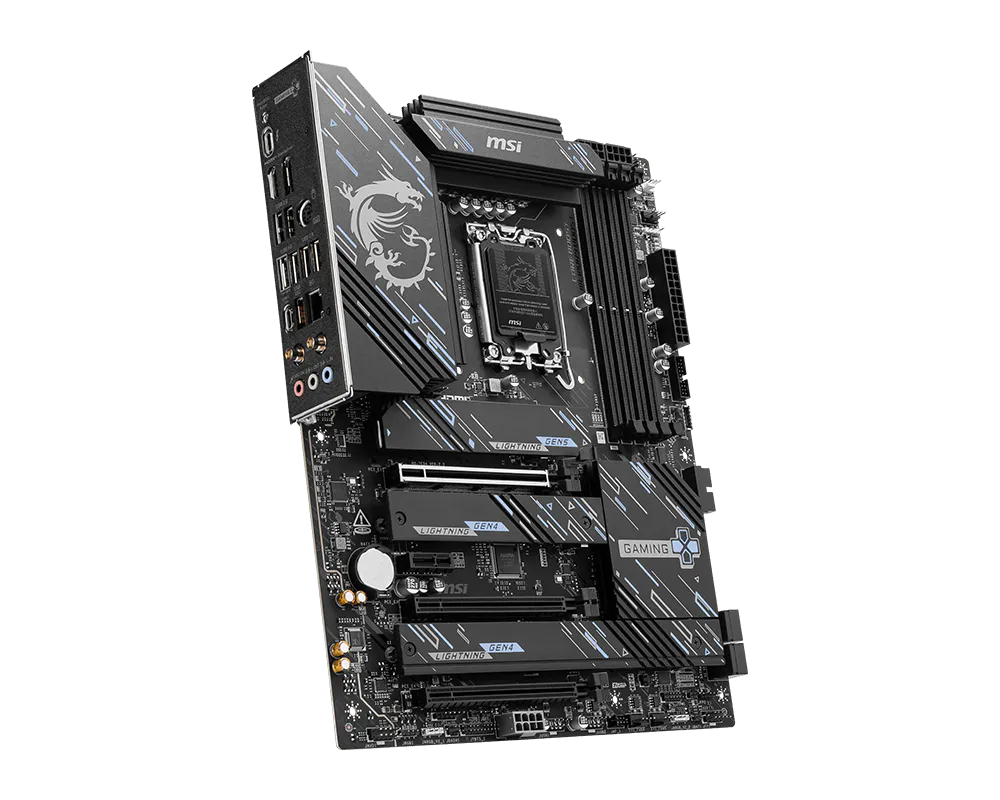

MSI 微星 Z890 GAMING PLUS WIFI 主機板
MSI Z890 GAMING PLUS WIFI Motherboard
Z890 GAMING PLUS WIFI 是 MSI 微星主機板，以下整理此型號的處理器平台、記憶體、擴充與連接規格，方便搭配 CPU、記憶體、SSD 與機殼。
規格摘要
晶片組：INTEL Z890
處理器：支援 Intel® Core™ Ultra 處理器 (系列 2)
LGA 1851
記憶體：4x DDR5 UDIMM, 最大記憶體容量 256GB
內建顯示輸出：1x HDMI™
1x DisplayPort
1x Type-C DisplayPort
擴充插槽：3x PCI-E x16 插槽 （數量）
1x PCI-E x1 插槽 （數量）
音效：Realtek® ALC897 音效編解碼器
儲存裝置：4x M.2 （數量）
4x SATA 6G （數量）
內建 Thunderbolt：1x Thunderbolt4 ports (後置)
支援 最高 40Gbps 傳輸速率，搭配 Thunderbolt 裝置
支援 最高 20Gbps 傳輸速率，搭配 USB4 裝置
支援 最高 10Gbps 傳輸速率，搭配 USB 3.2 裝置
支援 最高 5V/3A,15W power 充電
每個連接埠最多可串接 3 個 Thunderbolt 4 裝置或 5 個 Thunderbolt 3 裝置
支援 最高 8K 顯示輸出

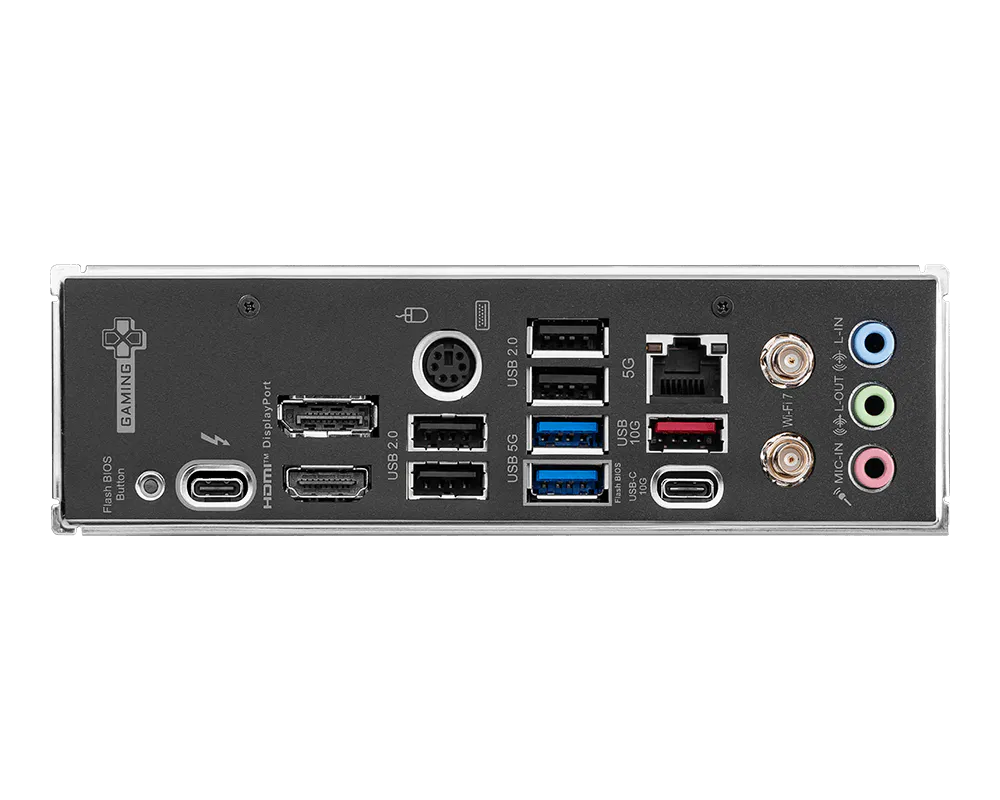

USB 連接埠：4x USB 2.0 (後置)
4x USB 2.0 (前置)
2x USB 5Gbps Type A (後置)
4x USB 5Gbps Type A (前置)
1x USB 10Gbps Type A (後置)
1x USB 10Gbps Type C (後置)
1x USB 20Gbps Type C (前置)
有線網路：Intel® Killer™ E5000 5Gbps LAN
無線網路與藍牙：Intel® Killer™ BE1750x Wi-Fi 7
支援 Bluetooth® 5.4, MLO, 4KQAM
電路板資訊：ATX
243.84mmx304.8mm
搭配與安裝
處理器支援取決於 CPU 型號與 BIOS 版本；購買前請核對相容清單。記憶體最大容量及超頻頻率會依 CPU、模組與插槽配置而異。PCIe、M.2、SATA 與 USB 可能共享通道，實際速率與可同時使用的介面須依組裝配置確認。主機板影像輸出須搭配具有內建顯示核心的相容處理器。前置 USB 數量包含由主機板接針擴充的連接能力，使用時需搭配機殼或擴充配件。無線功能僅適用於配備該功能的型號，頻段及功能支援亦受所在地、作業系統與驅動程式影響。安裝前請確認主機板尺寸、機殼固定孔位與散熱器空間。
The MSI Z890 GAMING PLUS WIFI motherboard provides the following processor-platform, memory, expansion and connectivity specifications for planning a compatible PC build.
Specification summary
Chipset: INTEL Z890
Processor: Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Onboard graphics: 1x HDMI™
1x DisplayPort
1x Type-C DisplayPort
Expansion slots: 3x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
Audio: Realtek® ALC897 Codec
Storage: 4x M.2 (Qty)
4x SATA 6G (Qty)
Onboard Thunderbolt: 1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB ports: 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN: Intel® Killer™ E5000 5Gbps LAN
Wireless LAN and Bluetooth: Intel® Killer™ BE1750x Wi-Fi 7
Supports Bluetooth® 5.4, MLO, 4KQAM
PCB information: ATX
243.84mmx304.8mm
Compatibility and installation
CPU support depends on the processor model and BIOS version; check compatibility before purchase. Maximum memory capacity and overclocked speeds depend on the CPU, DIMMs and slot configuration. PCIe, M.2, SATA and USB may share lanes, so available speeds and simultaneous operation depend on the installed hardware. Motherboard video outputs require a compatible processor with integrated graphics. Front USB counts include connectivity provided through internal headers and require suitable chassis connections or accessories. Wireless features apply only to equipped models and depend on region, operating system and drivers. Check the motherboard dimensions, chassis mounting points and cooler clearance before installation.
