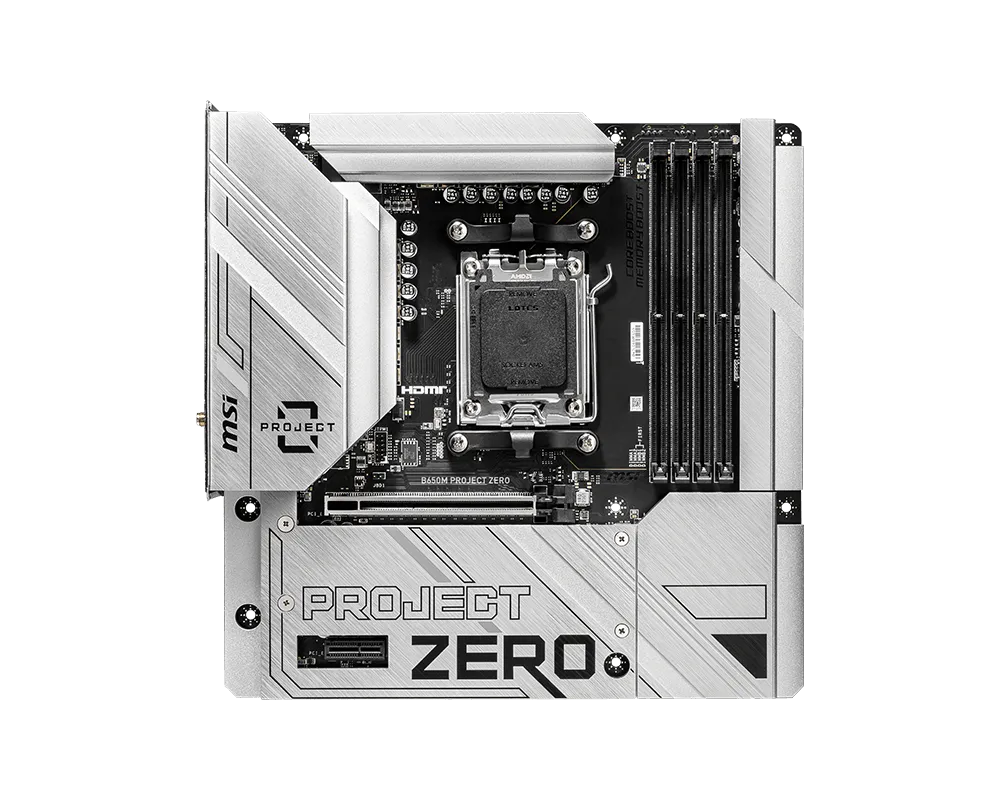

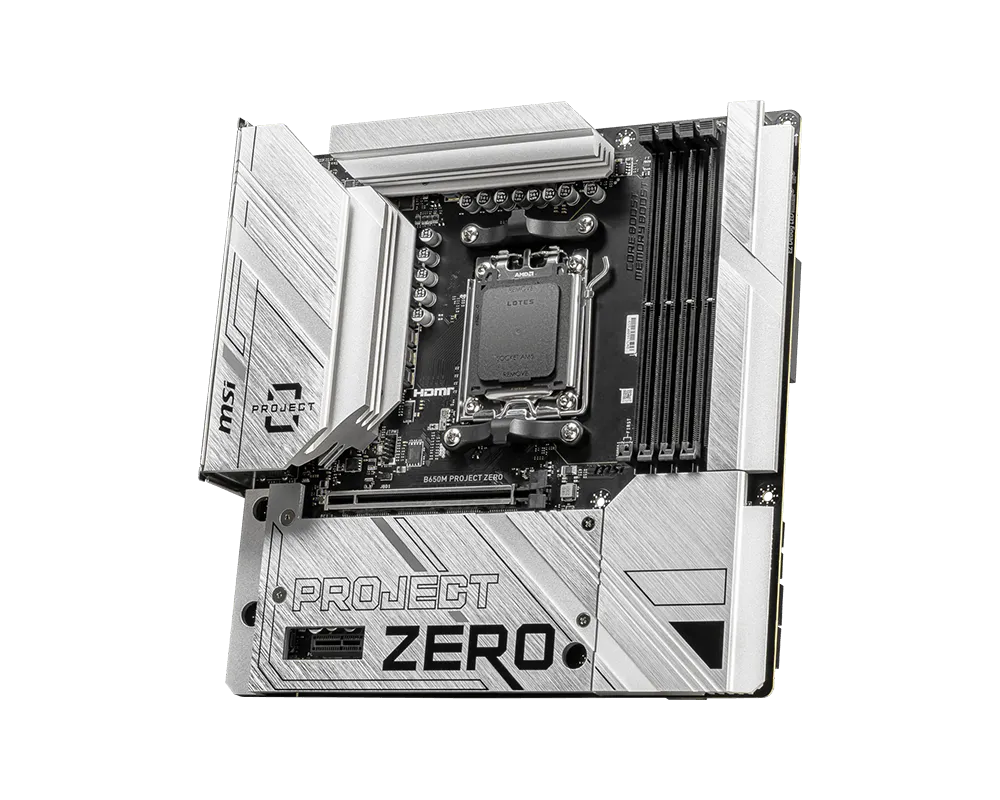

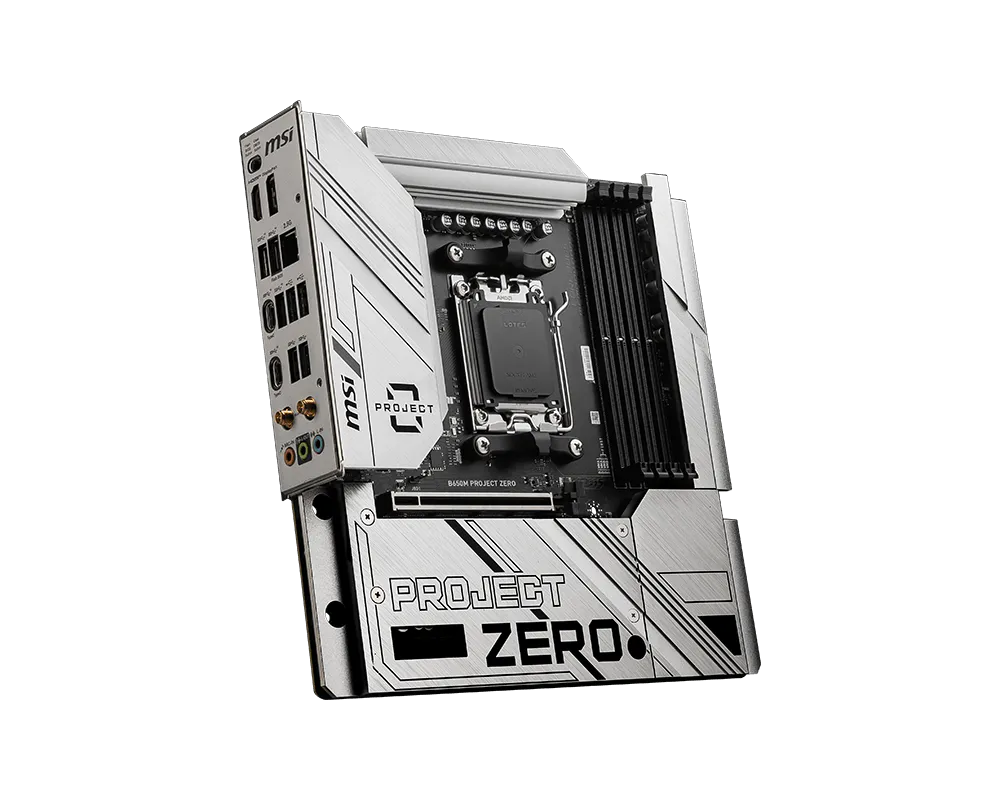

MSI 微星 B650M PROJECT ZERO 主機板

The MSI B650M PROJECT ZERO motherboard provides the following processor-platform, memory, expansion and connectivity specifications for planning a compatible PC build. Specification summary Chipset: AMD B650 Processor: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 Memory: 4x DDR5, Maximum Memory Capacity 256GB Onboard graphics: 1x HDMI™ 1x DisplayPort Expansion slots: 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) Audio: Realtek® ALC897 Codec Storage: 2x M.2 (Qty) 4x SATA 6G (Qty) USB ports: 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) LAN: Realtek® RTL8125BG 2.5Gbps LAN Wireless LAN and Bluetooth: AMD Wi-Fi 6E Supports Bluetooth® 5.3 PCB information: Back-connect mATX 243.84mmx243.84mm Compatibility and installation CPU support depends on the processor model and BIOS version; check compatibility before purchase. Maximum memory capacity and overclocked speeds depend on the CPU, DIMMs and slot configuration. PCIe, M.2, SATA and USB may share lanes, so available speeds and simultaneous operation depend on the installed hardware. Motherboard video outputs require a compatible processor with integrated graphics. Front USB counts include connectivity provided through internal headers and require suitable chassis connections or accessories. Wireless features apply only to equipped models and depend on region, operating system and drivers. Check the motherboard dimensions, chassis mounting points and cooler clearance before installation.
