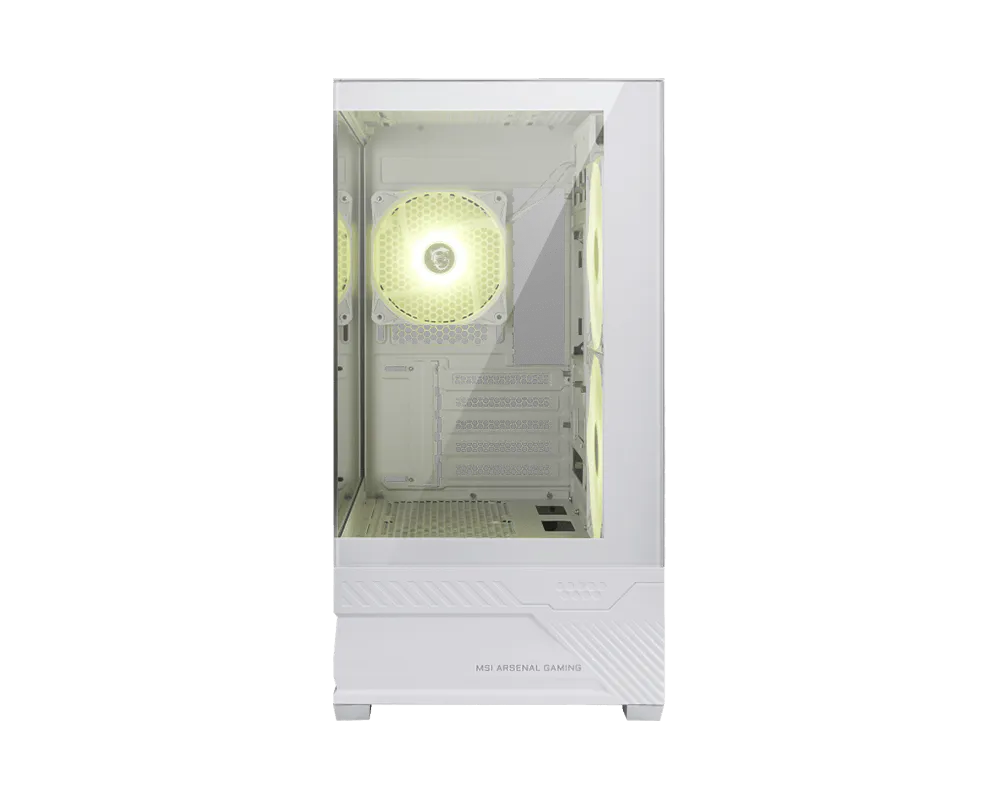

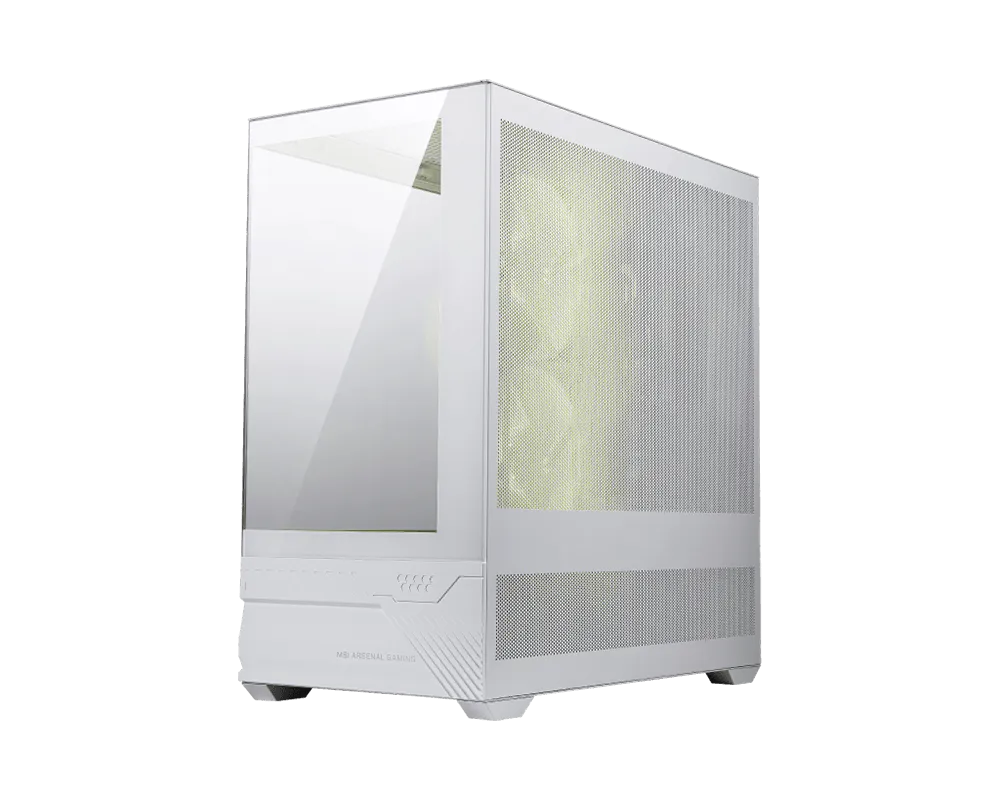

MSI 微星 MAG PANO M110R 白色 電腦機殼

MSI MAG PANO M110R White Computer Case. Plan a desktop build around the motherboard, graphics card and cooling configuration. Case Form Factor: Mini Tower Motherboard Form Factor Support: Micro-ATX, Mini-ITX I/O ports: 1 x USB 20Gbps (Type-C) 1 x Mic In / Audio Out 1 x USB 5Gbps (Type-A) 1 x LED Switch Button 1 x Power Button Drive Mount Support: 1 x 2.5” 1 x 3.5” 2 x 2.5” / 3.5” Combo Expansion slots: 5 Maximum GPU Length: 410 mm / 16.14 inches Maximum CPU Cooler Height: 165 mm / 6.50 inches Power Supply Support: ATX Maximum PSU Length: 200 mm / 7.87 inches Fan Size Support: Top: 3 x 120 mm / 2 x 140 mm Front: N/A Rear: 1 x 120 mm Side: 2 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm Pre-installed Fan Type: Side: 2 x 140 mm ARGB Fan (Reverse Blades Fan) Rear: 1 x 120 mm ARGB Fan Dimensions (DxWxH): 434 x 225 x 444 mm / 17.09 x 8.86 x 17.48 inches Net Weight: 5.7 kg / 12.57 lbs Gross Weight: 8.0 kg / 17.64 lbs Radiator Size Support: Top: 120 / 140 / 240 / 280 / 360 mm Front: N/A Rear: 120 mm Side: 120 / 240 mm Bottom: N/A Before assembly, check motherboard support, GPU length, CPU cooler height and PSU clearance. Plan fan, radiator and drive-tray placement together and observe the size and configuration limits for each position.
