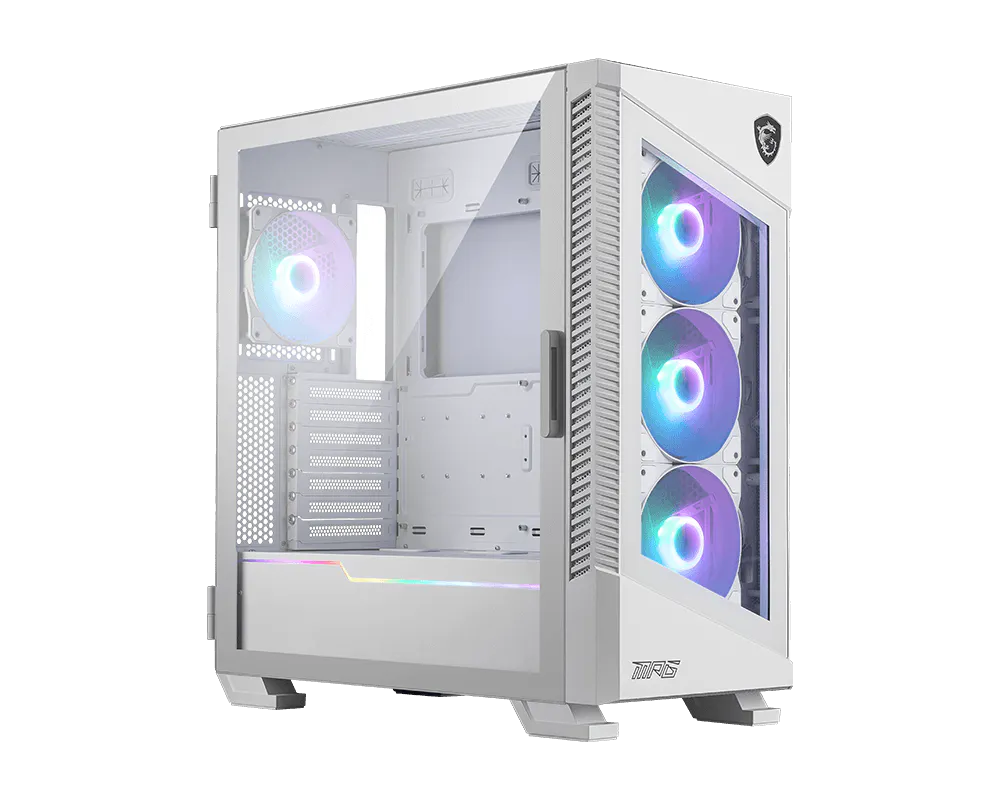

MSI 微星 MPG VELOX 100R WHITE 電腦機殼

MSI MPG VELOX 100R WHITE Computer Case. Plan a desktop build around the motherboard, graphics card and cooling configuration. Model: MPG VELOX 100R WHITE Case Form Factor: Mid-Tower Motherboard Form Factor Support: ATX / Micro-ATX / Mini-ITX I/O ports: 2 x USB 3.2 Gen 1 Type A (5Gbps) 1 x USB 3.2 Gen 2x2 Type C (20Gbps) 1 x Audio-out 1 x Mic-in 1 x LED Switch Button Drive Mount Support: 2 x 2.5" 2 x 3.5" Expansion slots: 7 Maximum GPU Length: 380 mm / 15 inches Maximum CPU Cooler Height: 175 mm / 6.9 inches Power Supply Support: ATX Maximum PSU Length: 220 mm / 8.66 inches (without 3.5'' HDD tray installed) Fan Size Support: Front: 3 x 120 mm / 3 x 140 mm Top: 3 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm Side: 2 x 120 mm Pre-installed Fan Size: Front: 3 x 120 mm Rear: 1 x 120 mm Pre-installed Fan Type: Front: 3 x ARGB Fan Rear: 1 x ARGB Fan Dimensions (DxWxH): 474 x 231 x 490 mm / 18.7 x 9.1 x 19.3 inches Net Weight: 8.64 kg / 19.05 lbs Gross Weight: 10.31 kg / 22.73 lbs Radiator Size Support: Front: 120 / 140 / 240 / 280 / 360 mm Top: 120 / 140 / 240 / 280 / 360 mm Rear: 120 mm Side: 120 / 240 mm Before assembly, check motherboard support, GPU length, CPU cooler height and PSU clearance. Plan fan, radiator and drive-tray placement together and observe the size and configuration limits for each position.
