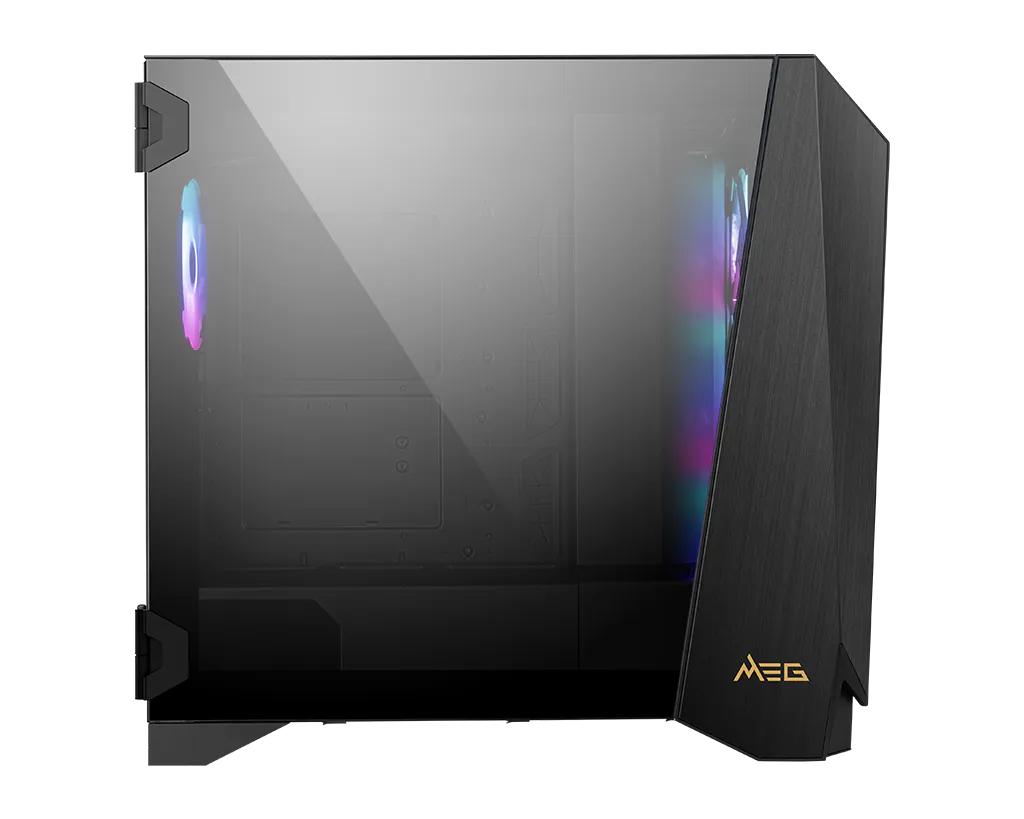

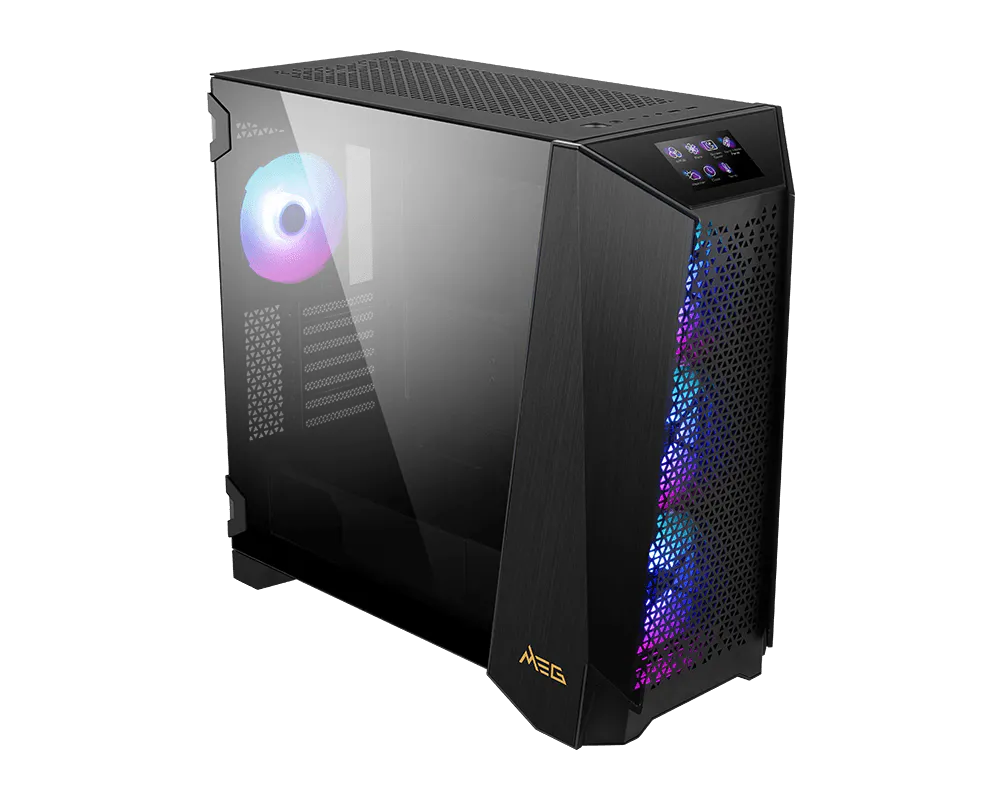

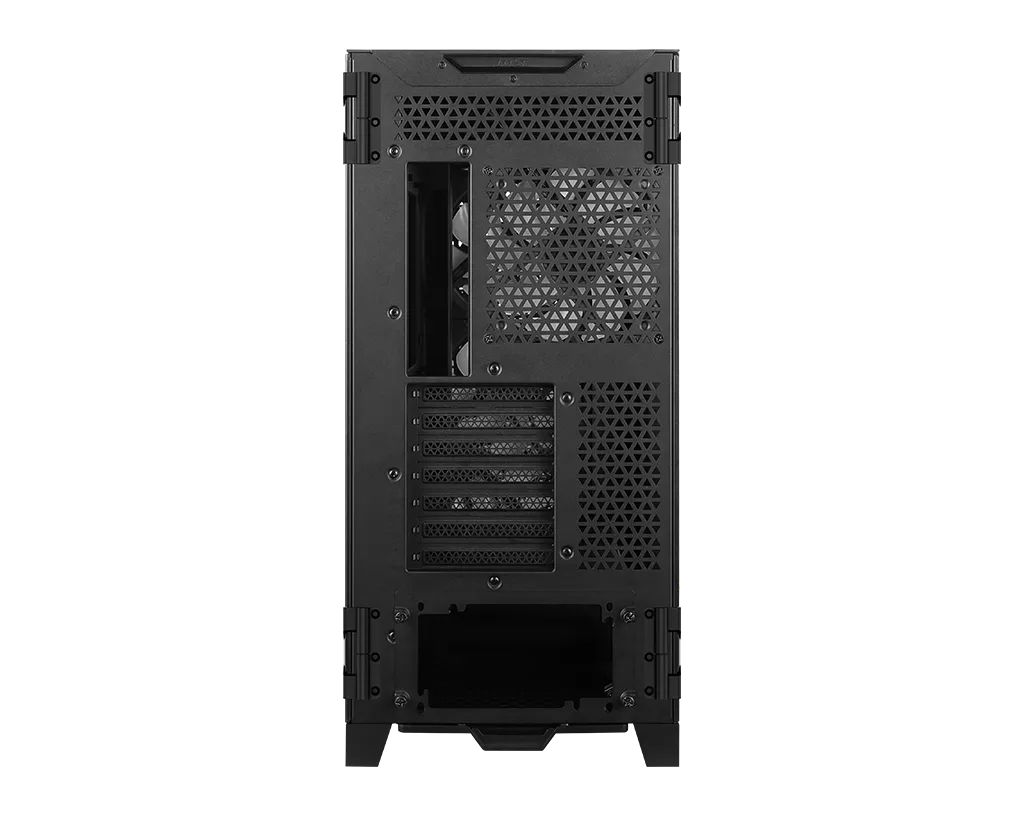

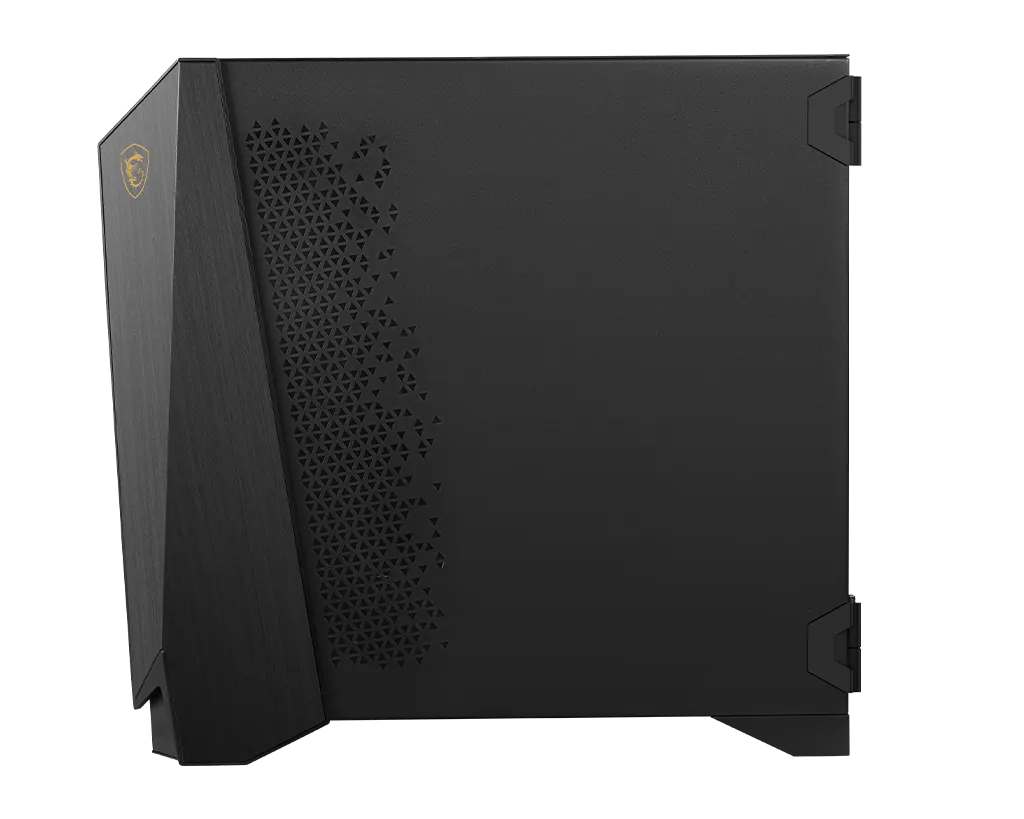

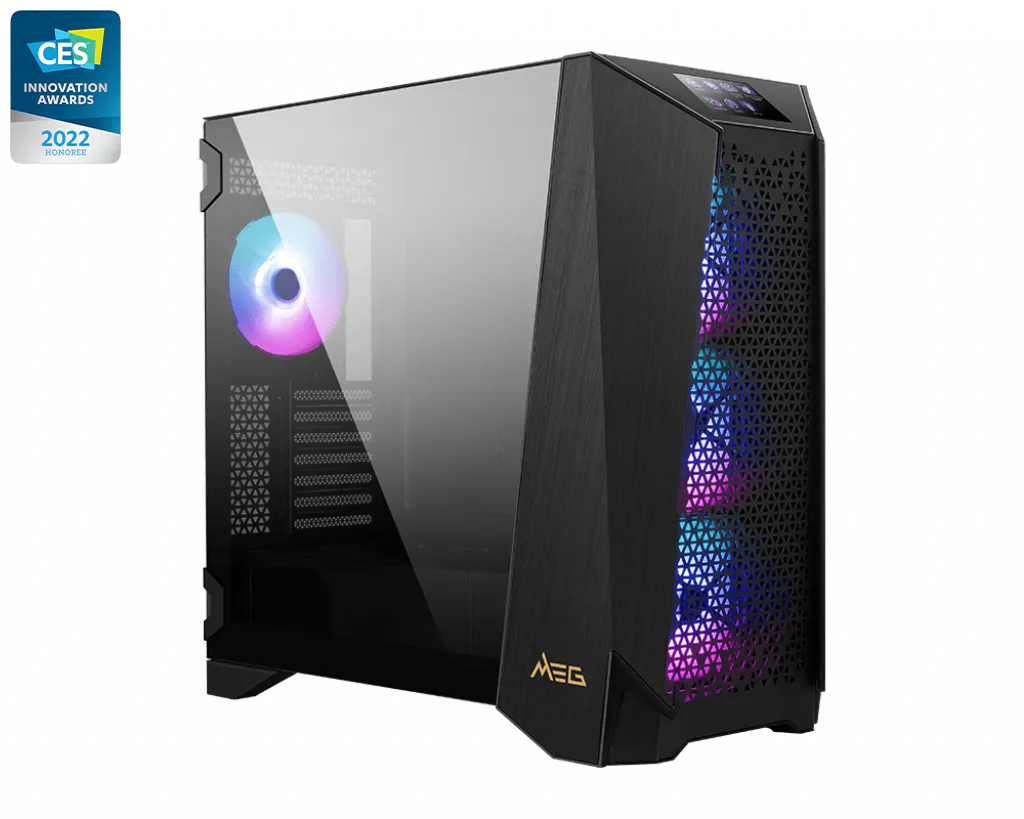

MSI 微星 MEG PROSPECT 700R 電腦機殼

MSI MEG PROSPECT 700R Computer Case. Plan a desktop build around the motherboard, graphics card and cooling configuration. Model: MEG PROSPECT 700R Dimensions: 585(D) x 257(W) x 537(H) mm 23.03 (D) x 10.12 (W) x 21.14 (H) inch Radiator mounting support: Front: 120 / 140 / 240 / 280 / 360mm Top: 120 / 140 / 240 / 280 / 360mm Rear: 120 / 140 mm Fan mounting support: Front: 120mm x 3 or 140mm x 3 Top: 120mm x 2 or 140mm x3 Rear: 120mm x 1 or 140mm x 1 Pre-installed fans: Front: 140mm ARGB Fan x 3 Top: X Rear: 140mm ARGB Fan x 1 Power supply mounting support: Standard ATX, up to 220 mm (8.66 inch) CPU cooler clearance: up to 185mm / 7.28 in Graphics card clearance: up to 400mm / 15.75 inches Drive mounting support: 2 x 2.5” SSD mounting brackets ( 2.5” SSD mounting brackets ) 2 x 3.5” drive bays ( 3.5”drive bays ) Input/output ports: 2 x USB 3.2 Gen 1 Type-A / 1 x USB 3.2 Gen 2*2 Type-C / 1 x Audio / 1 x Mic Supported motherboard form factors: E-ATX (up to 310mm x 304.8mm) / ATX / Micro-ATX / Mini-ITX Case form factor: Mid-Tower Model: MEG PROSPECT 700R Before assembly, check motherboard support, GPU length, CPU cooler height and PSU clearance. Plan fan, radiator and drive-tray placement together and observe the size and configuration limits for each position.
