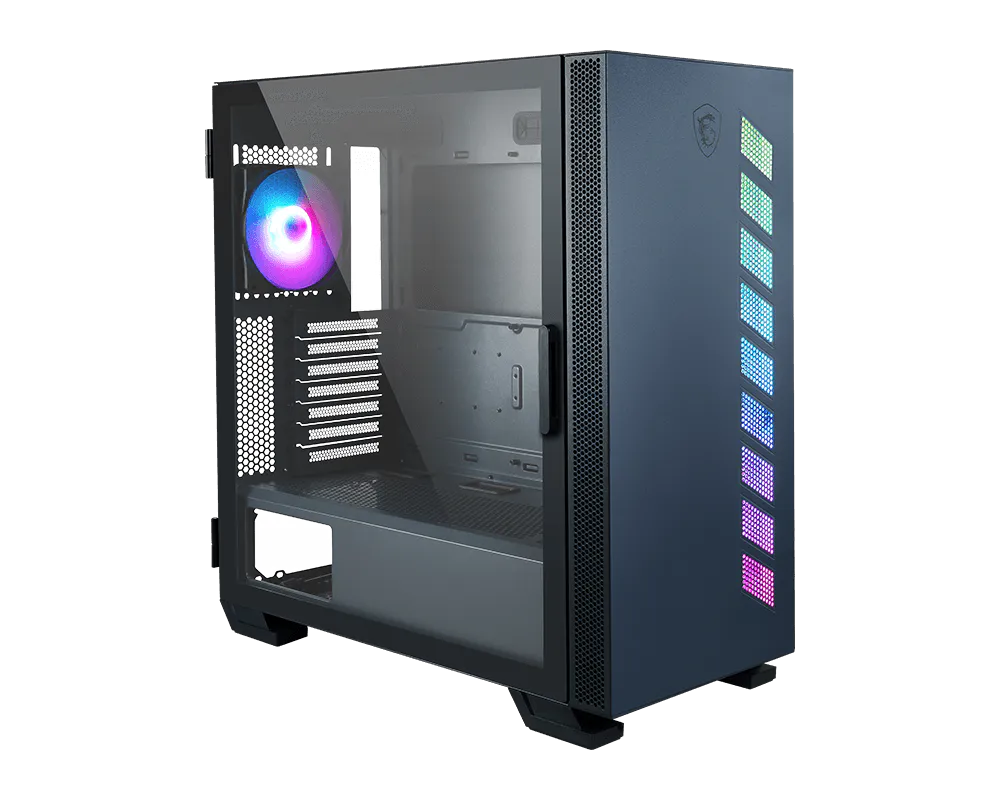

MSI 微星 MAG VAMPIRIC 300R PACIFIC BLUE 電腦機殼

MSI MAG VAMPIRIC 300R PACIFIC BLUE Computer Case. Plan a desktop build around the motherboard, graphics card and cooling configuration. Model: MAG VAMPIRIC 300R PACIFIC BLUE Case Form Factor: Mid-Tower Motherboard Form Factor Support: ATX / Micro-ATX / Mini-ITX I/O ports: 2 x USB 3.2 Gen 1 Type-A (5Gbps) 1 x USB 3.2 Gen 2x2 Type-C (20Gbps) 1 x Audio-out 1 x Mic-in Drive Mount Support: 2 x 2.5” / 2 x 3.5” Expansion slots: 7 Maximum GPU Length: 380 mm / 15 inches Maximum CPU Cooler Height: 175 mm / 6.89 inches Power Supply Support: ATX Maximum PSU Length: 220 mm / 8.66 inches Fan Size Support: Front: 3 x 120 mm / 3 x 140 mm Top: 3 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm Pre-installed Fan Size: Rear: 1 x 120 mm Pre-installed Fan Type: 1 x ARGB Fan Dimensions (DxWxH): 471 x 231 x 497 mm / 18.5 x 9.1 x 19.6 inches Net Weight: 7.5 kg / 16.53 lbs Gross Weight: 9.38 kg / 20.68 lbs Radiator Size Support: Front: 120 / 140 / 240 / 280 / 360 mm Top: 120 / 140 / 240 / 280 / 360 mm Rear: 120 mm Before assembly, check motherboard support, GPU length, CPU cooler height and PSU clearance. Plan fan, radiator and drive-tray placement together and observe the size and configuration limits for each position.
