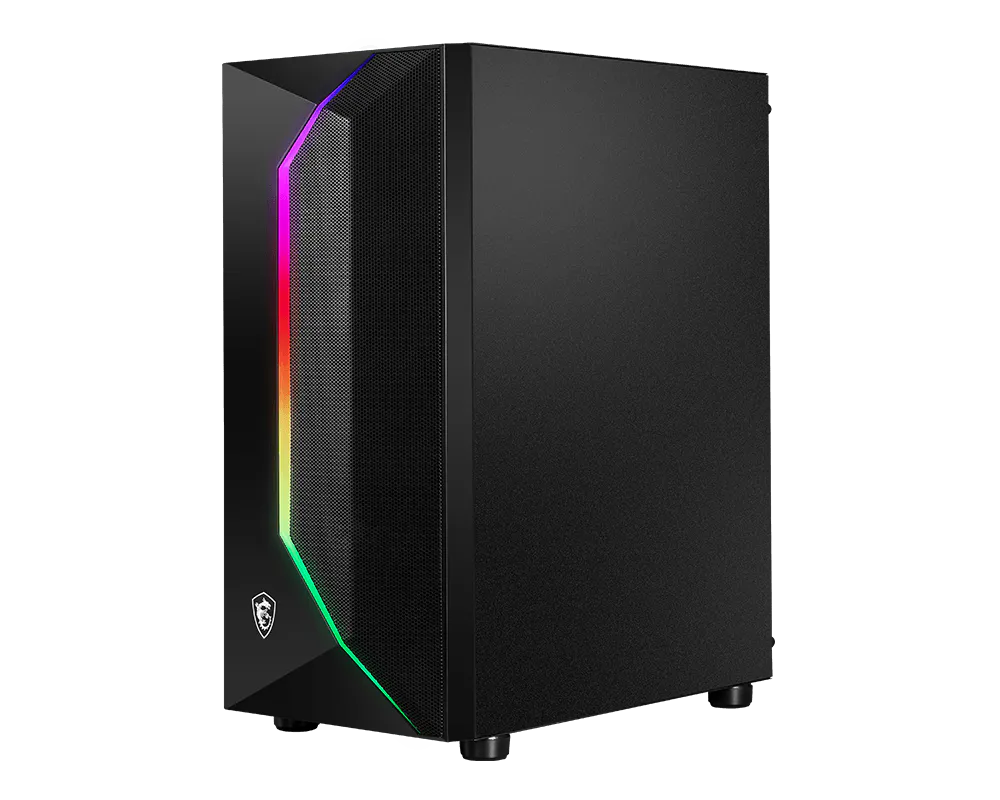

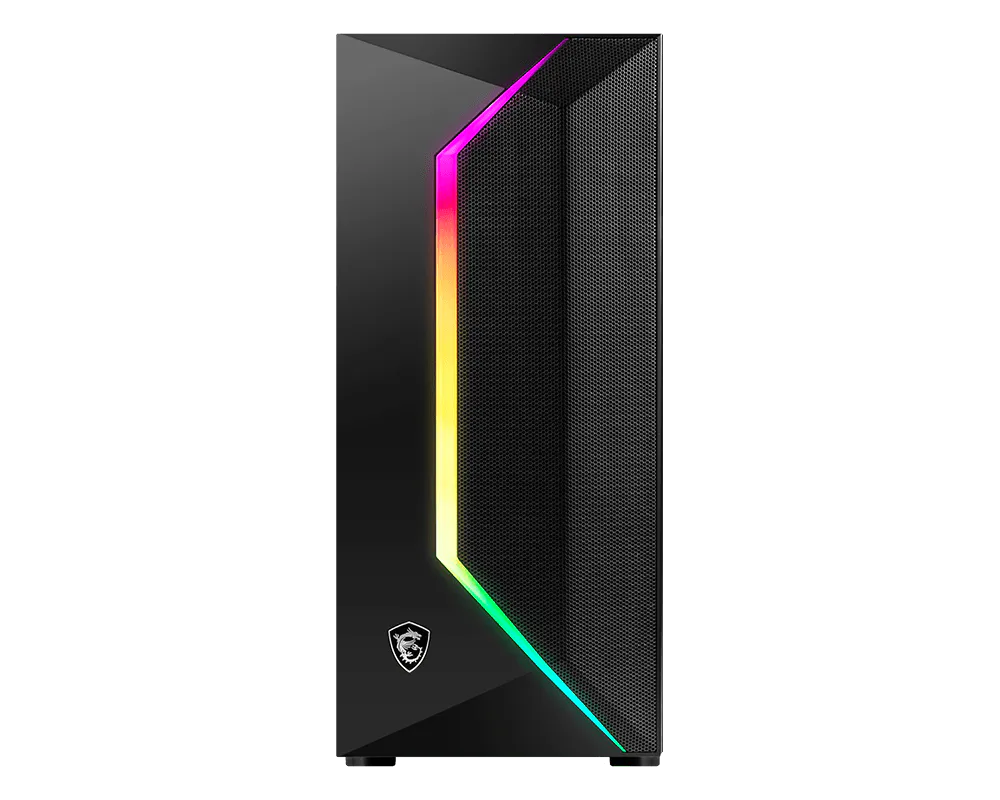

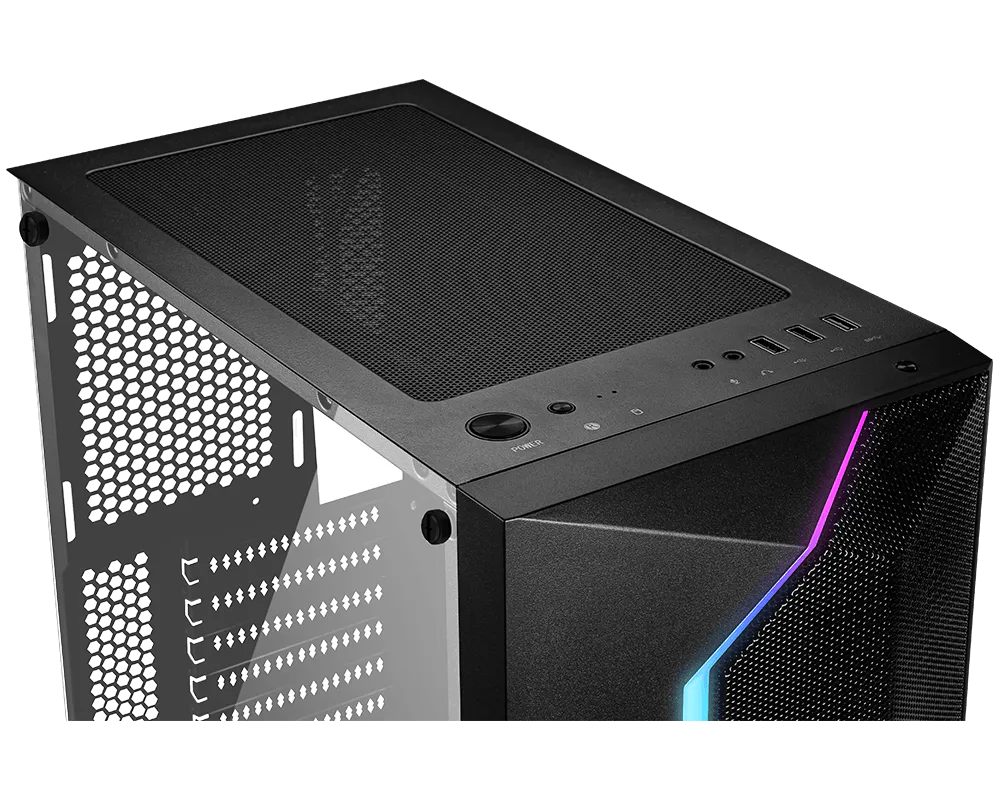

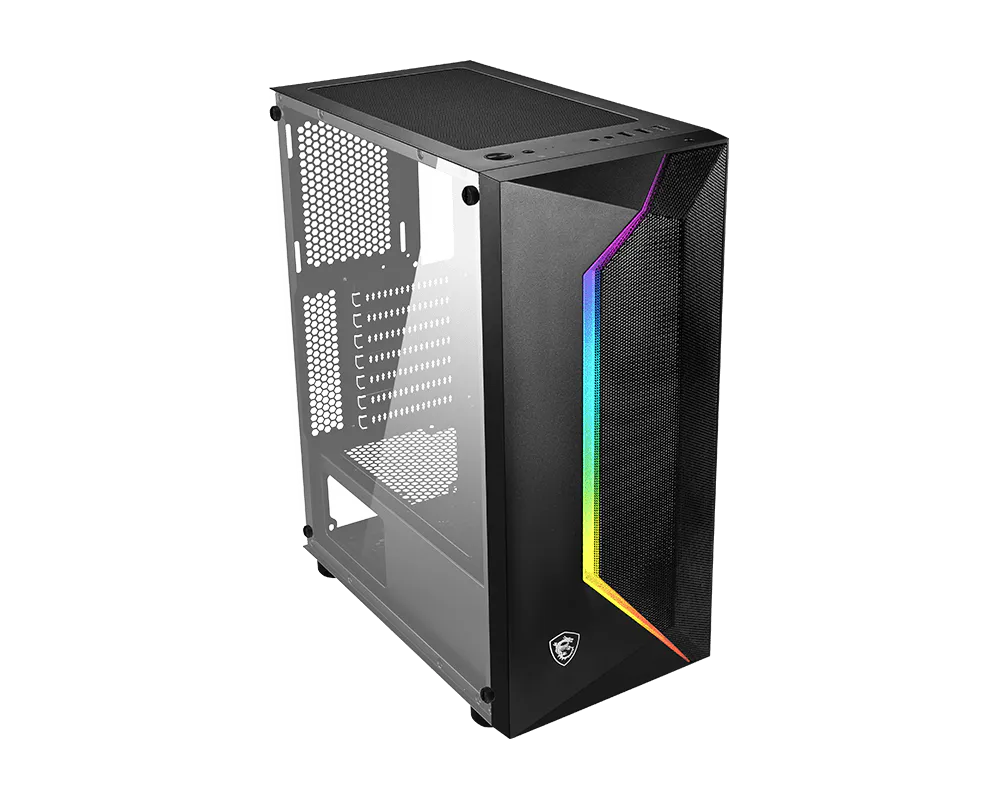

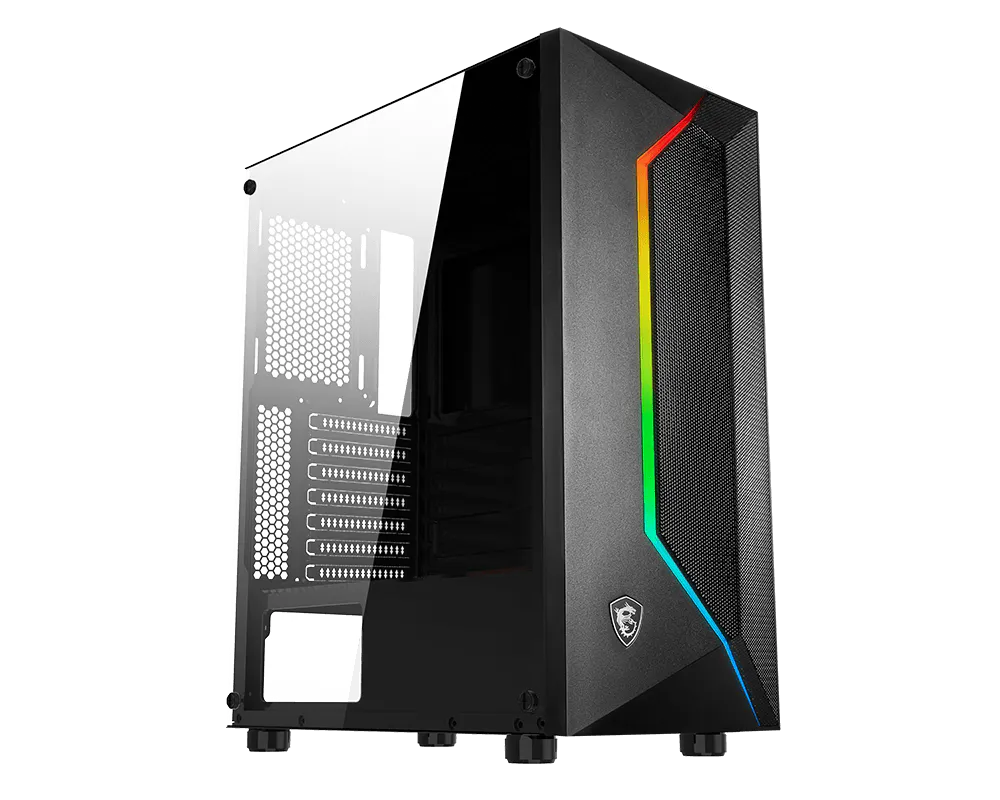

MSI 微星 MAG VAMPIRIC 100L 電腦機殼

MSI MAG VAMPIRIC 100L Computer Case. Plan a desktop build around the motherboard, graphics card and cooling configuration. Model: MAG VAMPIRIC 100L Case Form Factor: Mid-Tower Motherboard Form Factor Support: ATX / Micro-ATX / Mini-ITX I/O ports: 1 x USB 3.2 Gen 1 Type A (5Gbps) 2 x USB 2.0 (480 Mbps) 1 x Audio-out 1 x Mic-in Drive Mount Support: 2 x 2.5” / 2 x 3.5” Expansion slots: 7 Maximum GPU Length: 300 mm / 11.81 inches Power Supply Support: ATX Maximum PSU Length: 270 mm / 10.63 inches Fan Size Support: Front: 3 x 120 mm / 2 x 140 mm Top: 2 x 120 mm Rear: 1 x 120 mm Radiator Size Support: Front: 120 / 240 mm Rear: 120 mm Dimensions (DxWxH): 390 x 205 x 457 mm / 15.35 x 8.07 x 17.99 inches Net Weight: 4.7 kg / 10.36 lbs Before assembly, check motherboard support, GPU length, CPU cooler height and PSU clearance. Plan fan, radiator and drive-tray placement together and observe the size and configuration limits for each position.
