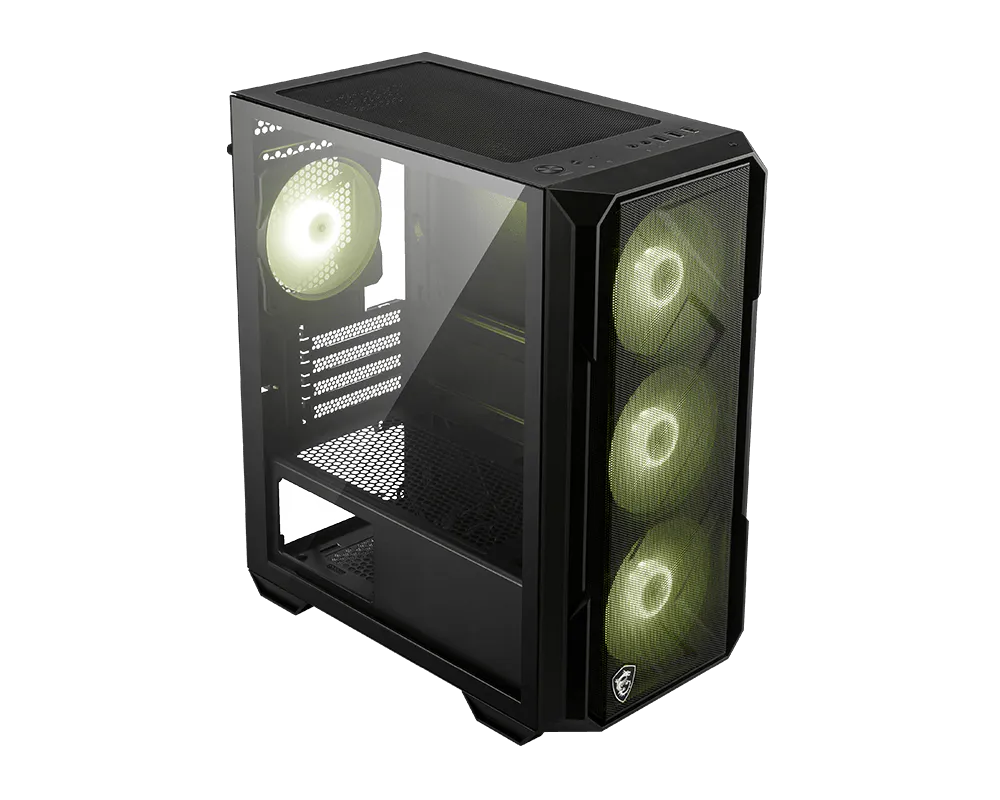

MSI 微星 MAG FORGE M120R AIRFLOW 電腦機殼

MSI MAG FORGE M120R AIRFLOW Computer Case. Plan a desktop build around the motherboard, graphics card and cooling configuration. Model: MAG FORGE M120R AIRFLOW Case Form Factor: Mini Tower Motherboard Form Factor Support: Micro-ATX, Mini-ITX I/O ports: 1 x Power Button 1 x Reset Button 1 x Mic In 1 x Audio Out 2 x USB 2.0 (Type-A) 1 x USB 5Gbps (Type-A) 1 x LED Switch Button Drive Mount Support: 2 x 2.5” 1 x 3.5” 1 x 2.5” / 3.5” Expansion slots: 4 Maximum GPU Length: 300 mm / 11.81 inches Maximum CPU Cooler Height: 160 mm / 6.3 inches Power Supply Support: ATX Maximum PSU Length: 180 mm / 7.09 inches or 300 mm / 11.81 inches (without 3.5'' HDD tray installed) Fan Size Support: Top: 2 x 120 mm Front: 3 x 120 mm Rear: 1 x 120 mm Side: N/A Bottom: N/A Pre-installed Fan Type: Front: 3 x 120 mm ARGB Fan Rear: 1 x 120 mm ARGB Fan Dimensions (DxWxH): 388 x 200 x 423 mm / 15.28 x 7.87 x 16.65 inches Net Weight: 4.27 kg / 9.41 lbs Gross Weight: 5.01 kg / 11.05 lbs Radiator Size Support: Top: 120 / 240 mm Front: 120 / 240 mm Rear: 120 mm Side: N/A Bottom: N/A Before assembly, check motherboard support, GPU length, CPU cooler height and PSU clearance. Plan fan, radiator and drive-tray placement together and observe the size and configuration limits for each position.
