水冷散熱器

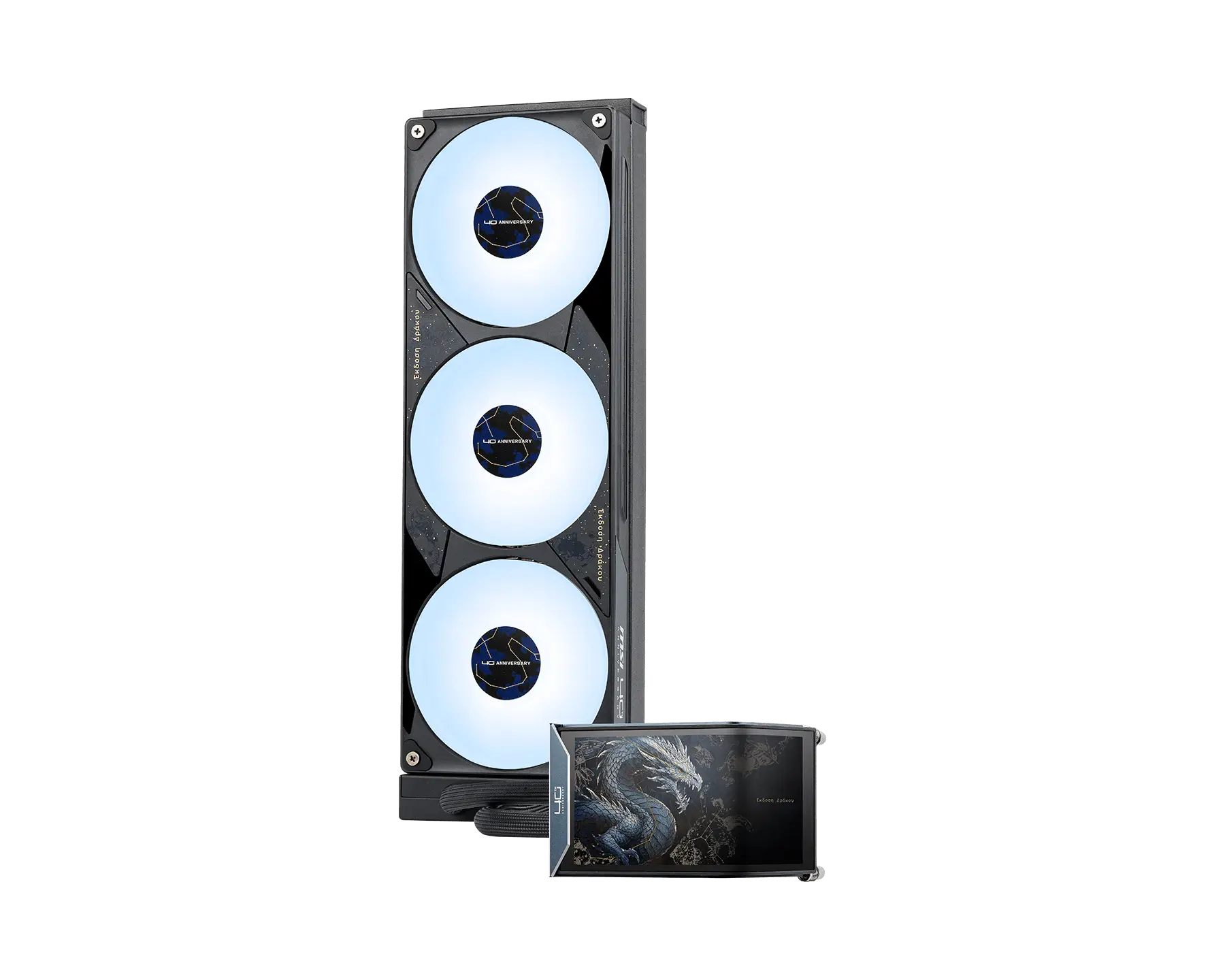

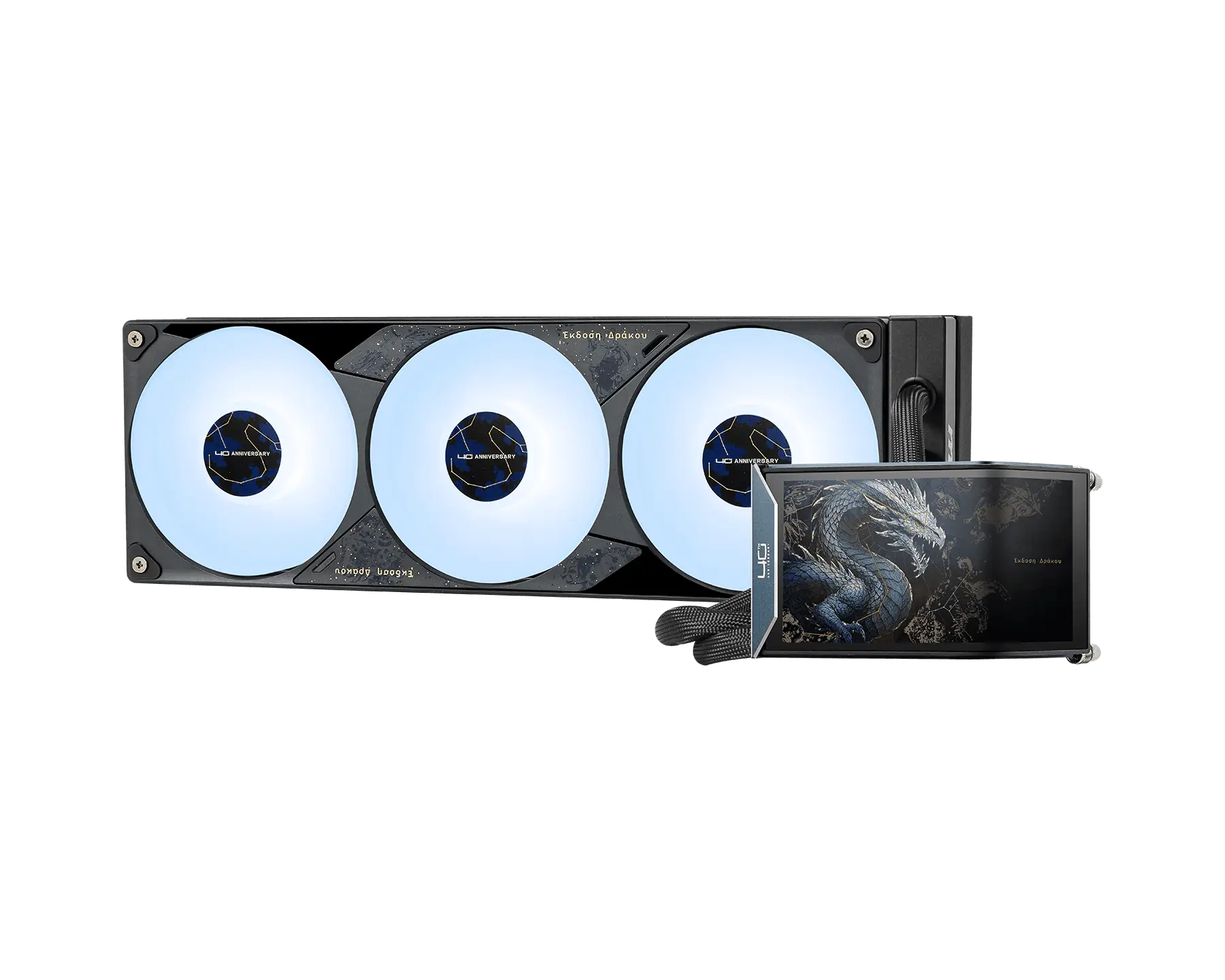

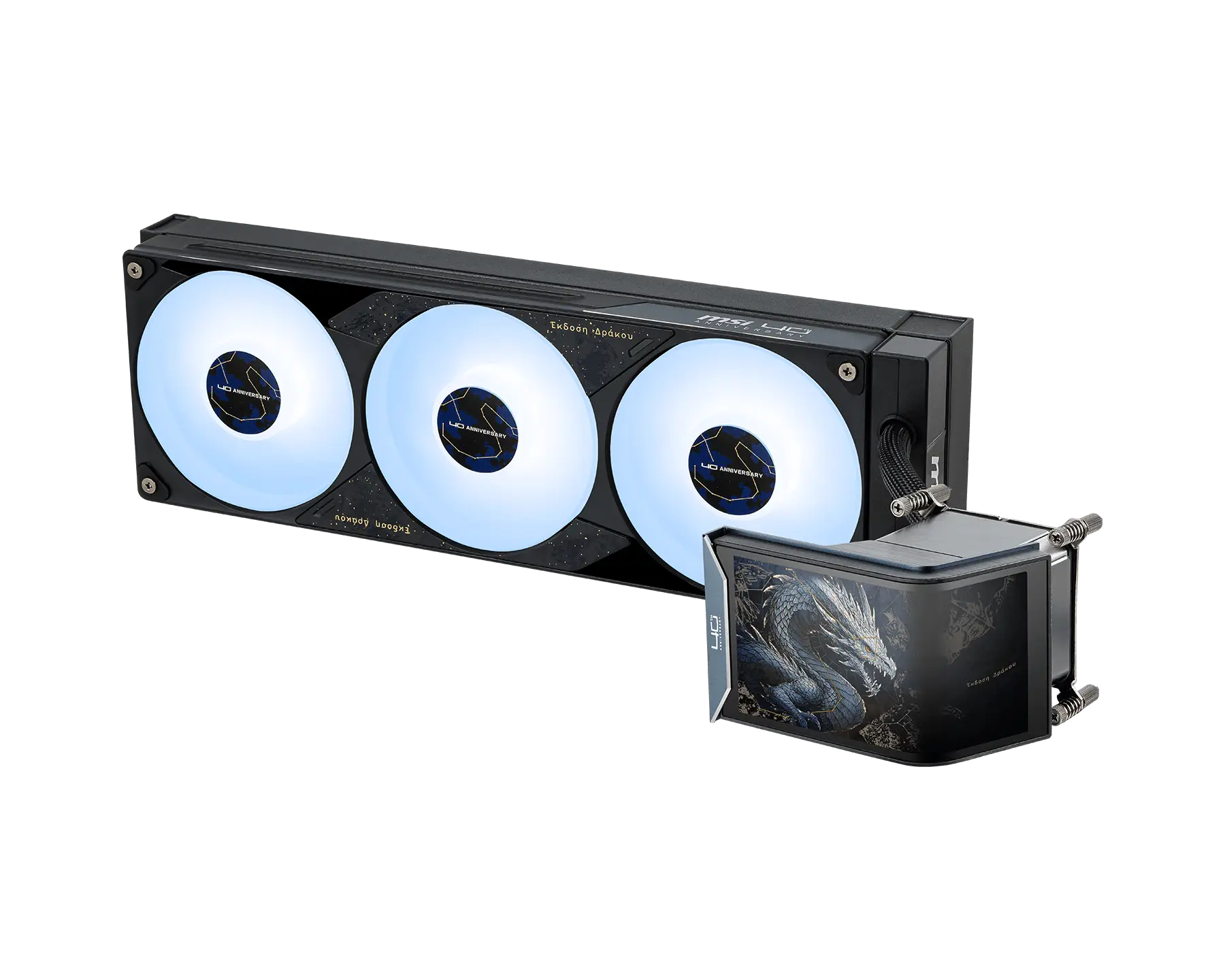

MSI 微星 MEG CORELIQUID E15 DRACO EPIC EDITION 一體式 CPU 水冷散熱器
MSI MEG CORELIQUID E15 DRACO EPIC EDITION Liquid CPU Cooler
MSI 微星 MEG CORELIQUID E15 DRACO EPIC EDITION 一體式 CPU 水冷散熱器。供桌上型 CPU 散熱配置使用，可依處理器插槽與機殼空間選配。
幫浦：速度: 3000± 300 RPM
負載電流: 0.52±0.104 A
功耗: 6.24±1.248 W
預期壽命: 40℃, 50000 小時

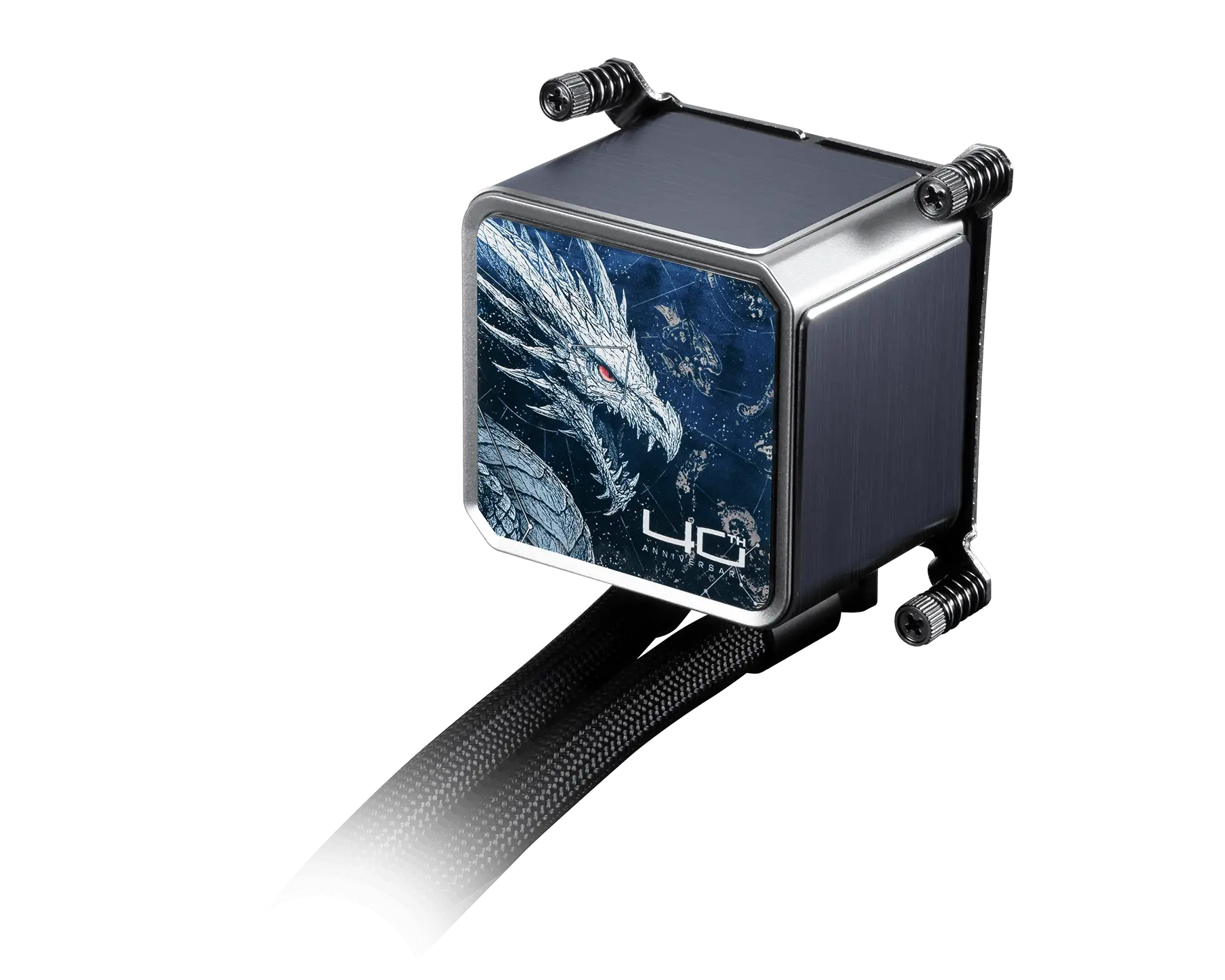

水冷頭：尺寸: 71.63 X 68.5 X 64.97 mm

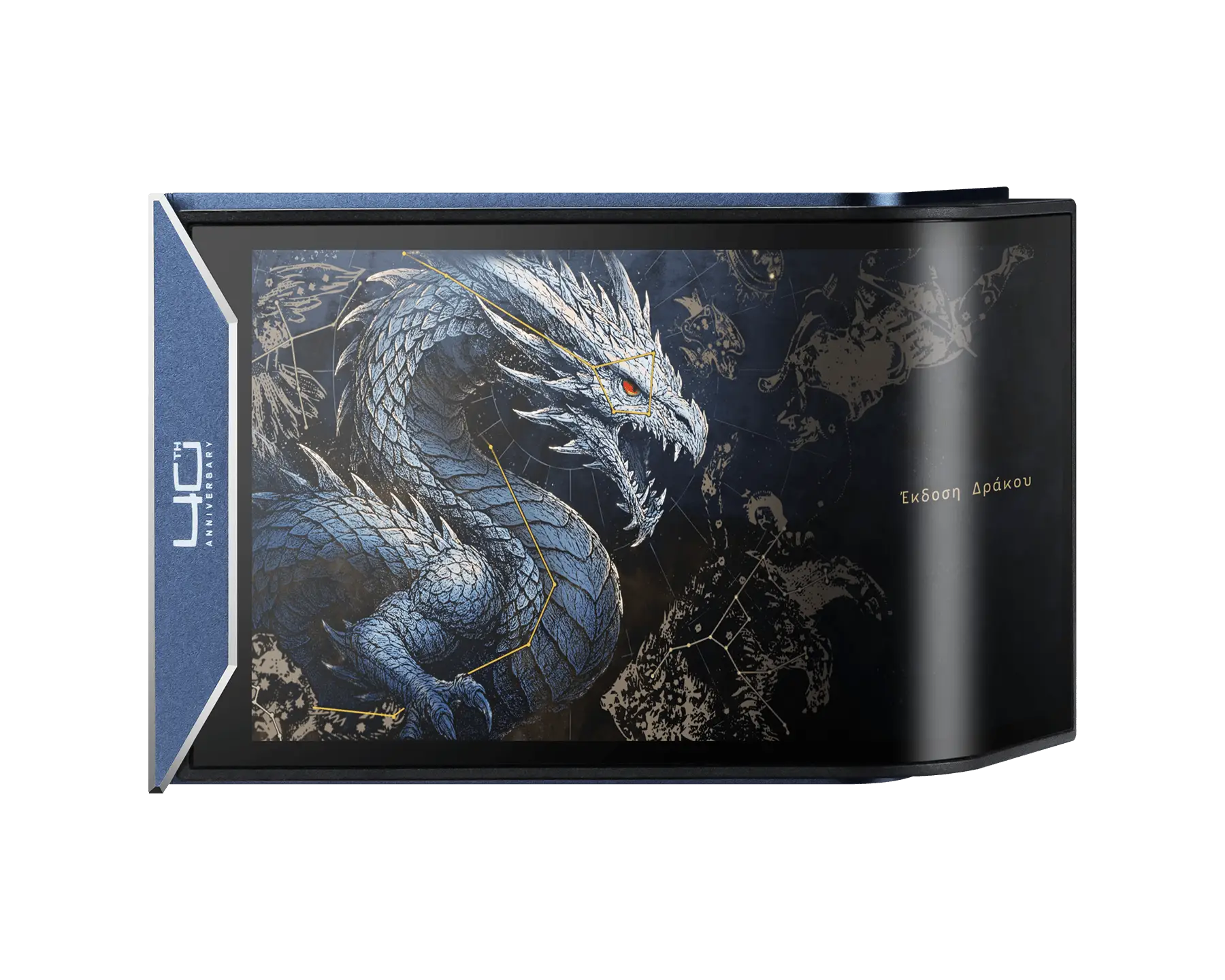

面板尺寸: 6.67”
面板類型: OLED
面板解析度: 2240 x 1080
冷排：尺寸: 360 mm
尺寸: 397 x 124.5 x 30 mm
材質: 鋁
水管：長度: 390 mm
材質: EPDM+IIR
風扇：尺寸: 362 x 125 x 28.4 mm
數量: 3
速度: 800~2300 ± 230 RPM
風量: 217.91 CFM
風壓: 3.84 mm-H2O
噪音: 39.58 dBA
軸承: FDB
預期壽命: 40°C，40000 小時
額定電流: 0.68± 0.15 A (整組)
功耗: 8.16 W (整組)
LED: ARGB GEN2
相容性：Intel: LGA 1700 / 1851
AMD: AM5/AM4
安裝前請確認處理器插槽、扣具、散熱器尺寸與供電接頭相容。冷排與風扇需預留共同安裝空間，水管配置也應避免干涉。
MSI MEG CORELIQUID E15 DRACO EPIC EDITION Liquid CPU Cooler. For desktop CPU cooling; select it according to CPU socket compatibility and case clearance.
Pump: Speed: 3000± 300 RPM
Load Current: 0.52±0.104 A
Power Consumption: 6.24±1.248 W
Life Expectancy: 40℃, 50000 hours
Water Block: Dimensions: 71.63 X 68.5 X 64.97 mm
Panel Size: 6.67”
Panel Type: OLED
Panel Resolution: 2240 x 1080
Radiator: Size: 360 mm
Dimensions: 397 x 124.5 x 30 mm
Material: Aluminum
Tube: Length: 390 mm
Material: EPDM+IIR
Fan: Size: 362 x 125 x 28.4 mm
Quantity: 3
Speed: 800~2300 ± 230 RPM
Air Flow: 217.91 CFM
Air Pressure: 3.84 mm-H2O
Noise: 39.58 dBA
Bearing: FDB
Life Expectancy: 40°C, 40000 hours
Rated Current: 0.68± 0.15 A (Set)
Power Consumption: 8.16 W (Set)
LED: ARGB GEN2
Compatibility: Intel: LGA 1700 / 1851
AMD: AM5/AM4
Before installation, confirm compatibility of the CPU socket, mounting hardware, cooler dimensions and power connectors. Allow space for both the radiator and fans, and plan tube routing to avoid interference.
洽詢商品 歡迎透過 LINE 或來電，與我們確認規格及供貨資訊。
