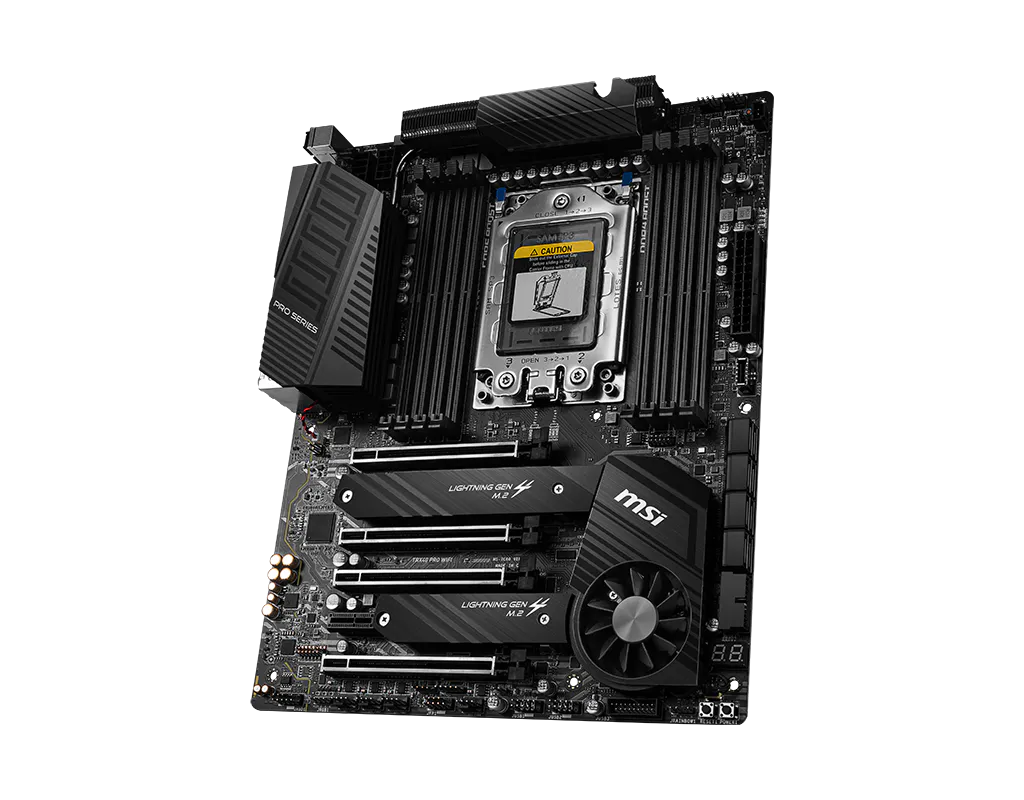

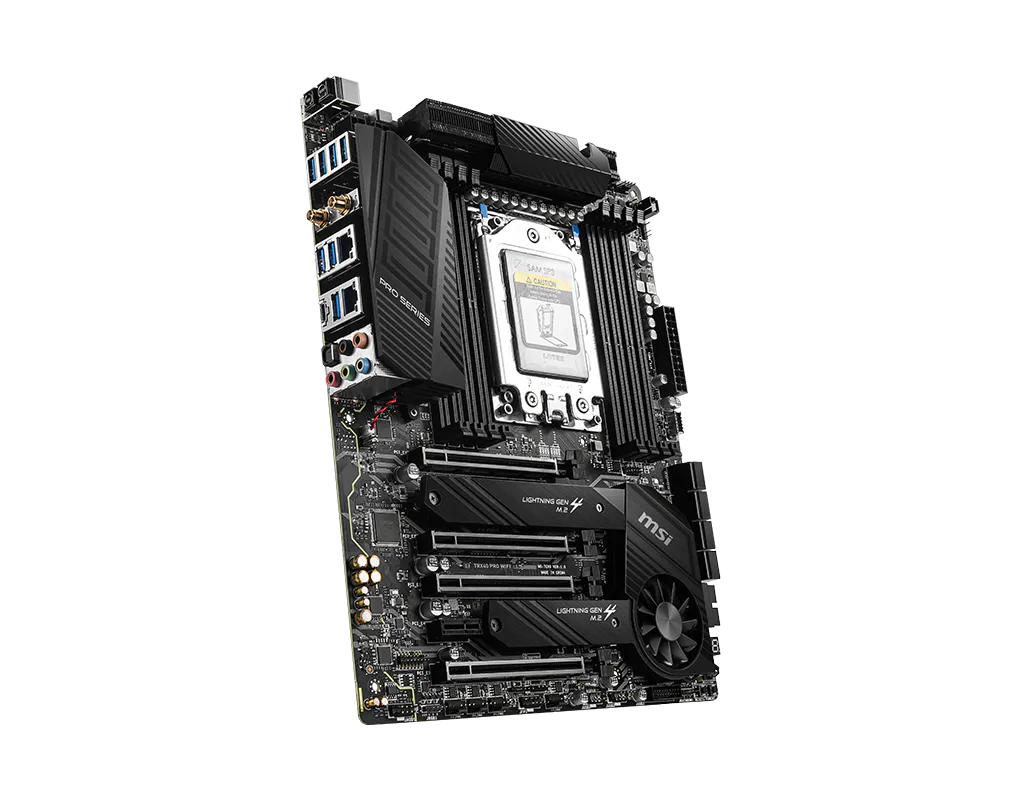

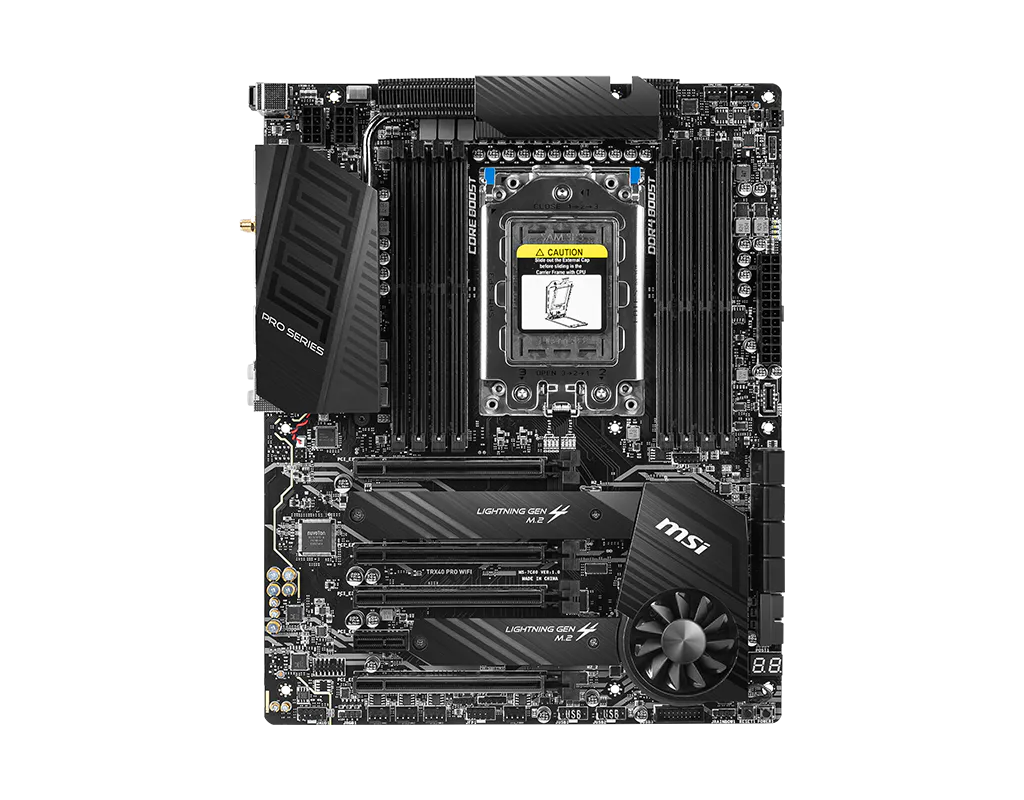

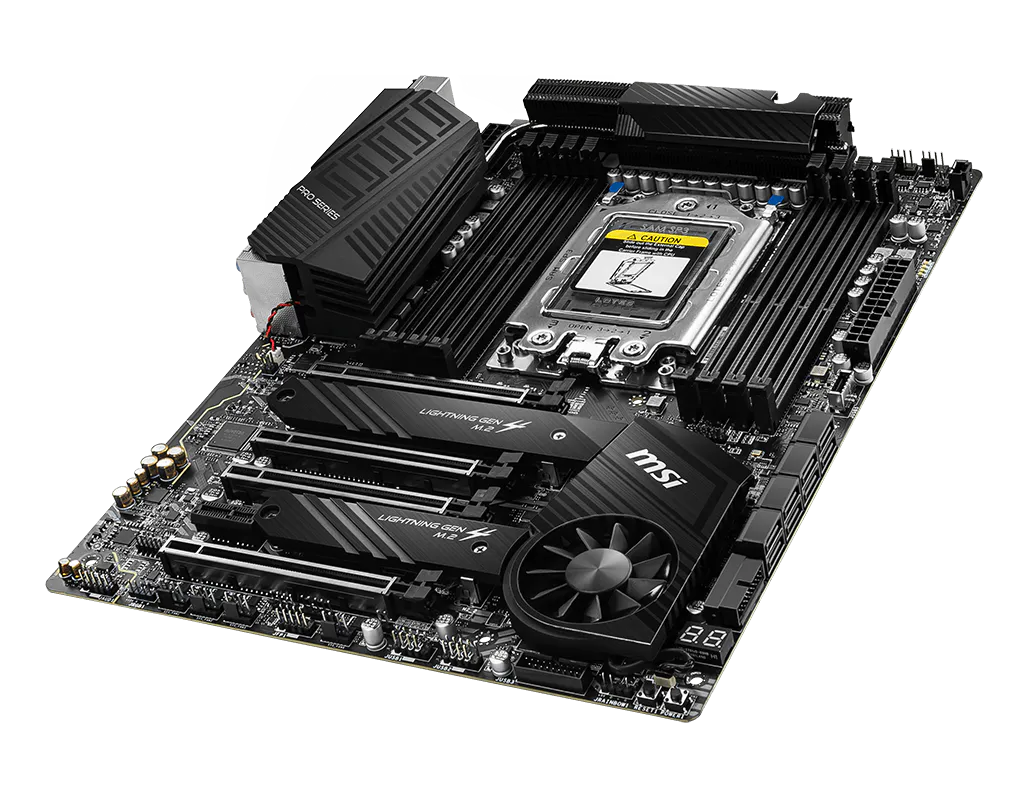

MSI 微星 TRX40 PRO WIFI 主機板

The MSI TRX40 PRO WIFI motherboard provides the following processor-platform, memory, expansion and connectivity specifications for planning a compatible PC build. Specification summary CPU socket: sTRX4 CPU (maximum support): 3rd Gen Ryzen® ThreadriiperTM Series Processors Chipset: AMD® TRX40 Chipset DDR4 memory: 2133/2400/2666/3200MHz by JEDEC; 2666/2800/2933/3000/3200/3466/3600/3733/3866/4000/4266/4400/4600/4666 by A-XMP OC MODE Memory channels: Quad Memory slots: 8 Maximum memory capacity (GB): 256 PCIe x16 slots: 4 PCIe generation: Gen4 PCIe x1 slots: 1 M.2 slots: 2 SATA III: 8 RAID support: 0/1/10 Network interface: 2 x Intel® I211AT USB 3.2 ports (front): 1(Gen2, Type C), 4(Gen1, Type A) USB 3.2 ports (rear): 1(Gen2x2, Type C), 3(Gen2, Type A), 4(Gen1, Type A) USB 2.0 ports (front): 4 Audio ports (rear): Realtek® ALC1220 Codec Dimensions: ATX SLI support: Y 3-way SLI: Y CrossFire support: Y Supported operating systems: Support for Windows® 10 64-bit Compatibility and installation CPU support depends on the processor model and BIOS version; check compatibility before purchase. Maximum memory capacity and overclocked speeds depend on the CPU, DIMMs and slot configuration. PCIe, M.2, SATA and USB may share lanes, so available speeds and simultaneous operation depend on the installed hardware. Motherboard video outputs require a compatible processor with integrated graphics. Front USB counts include connectivity provided through internal headers and require suitable chassis connections or accessories. Wireless features apply only to equipped models and depend on region, operating system and drivers. Check the motherboard dimensions, chassis mounting points and cooler clearance before installation.
