固態硬碟

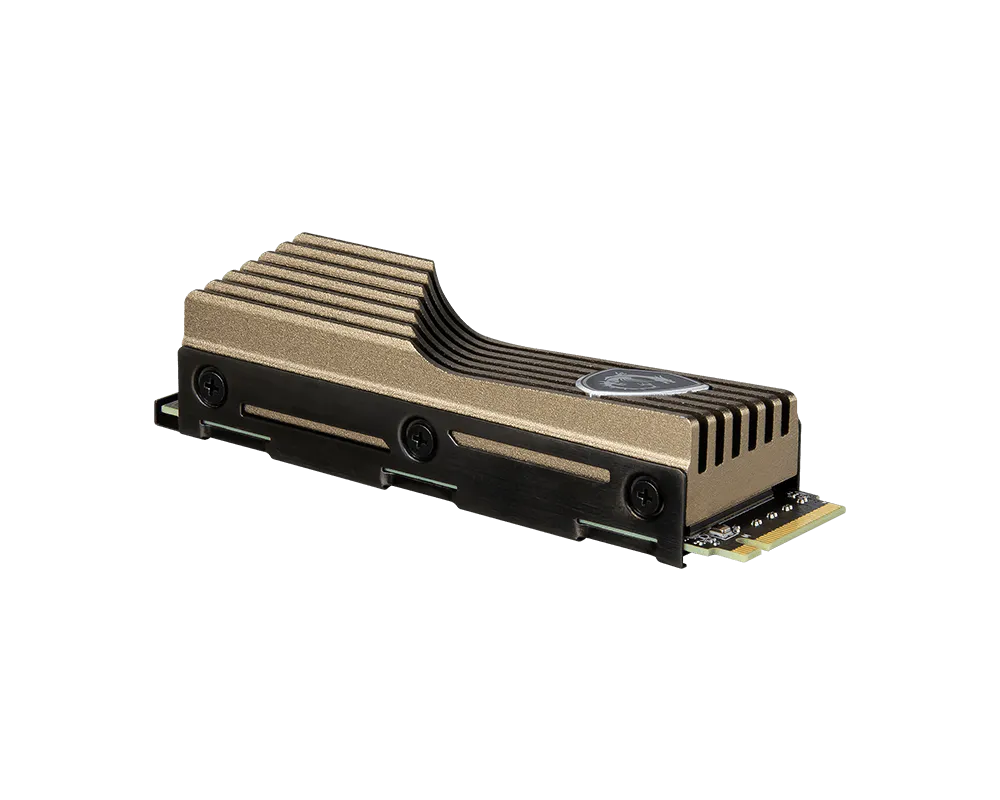

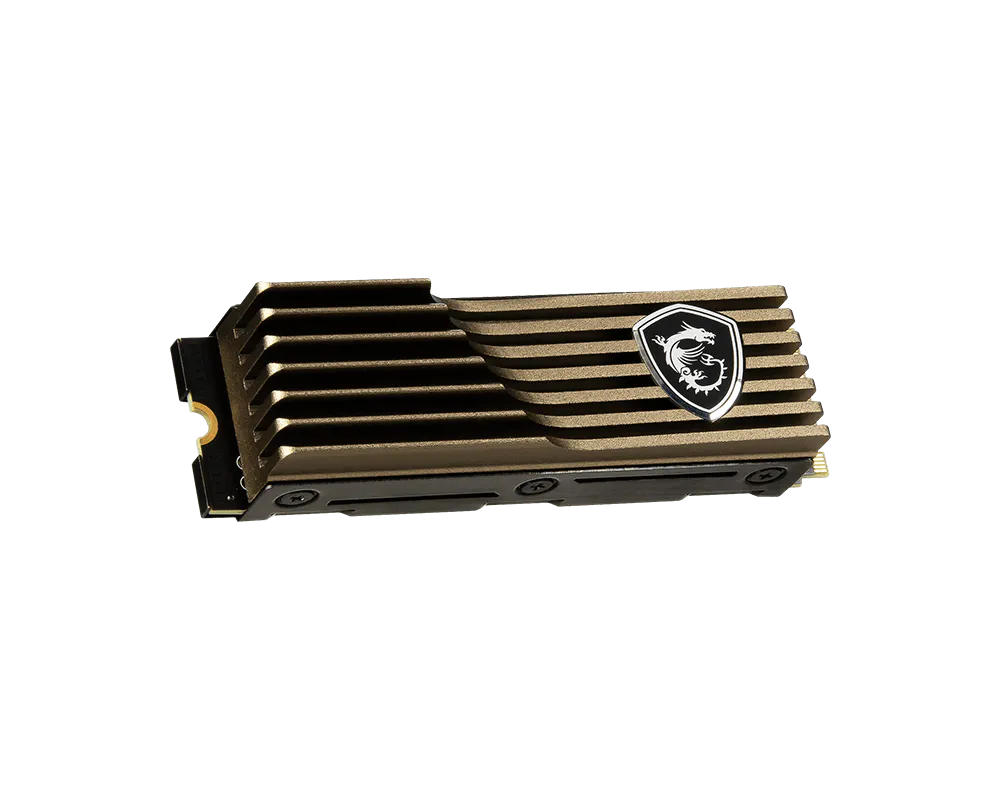

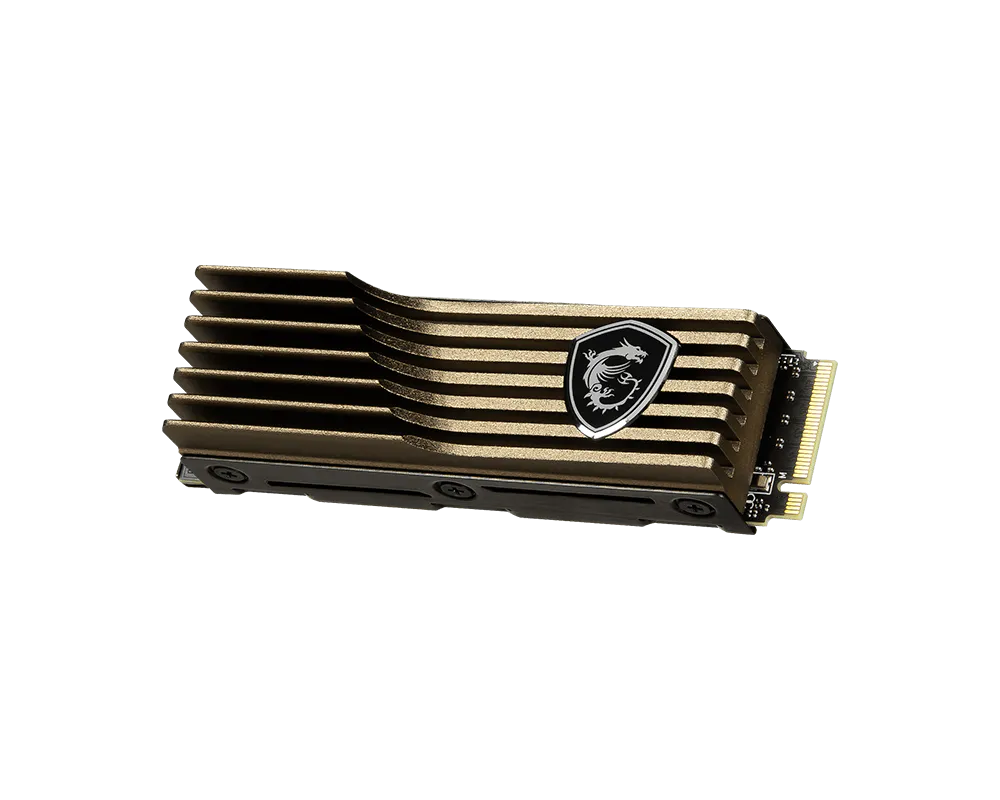

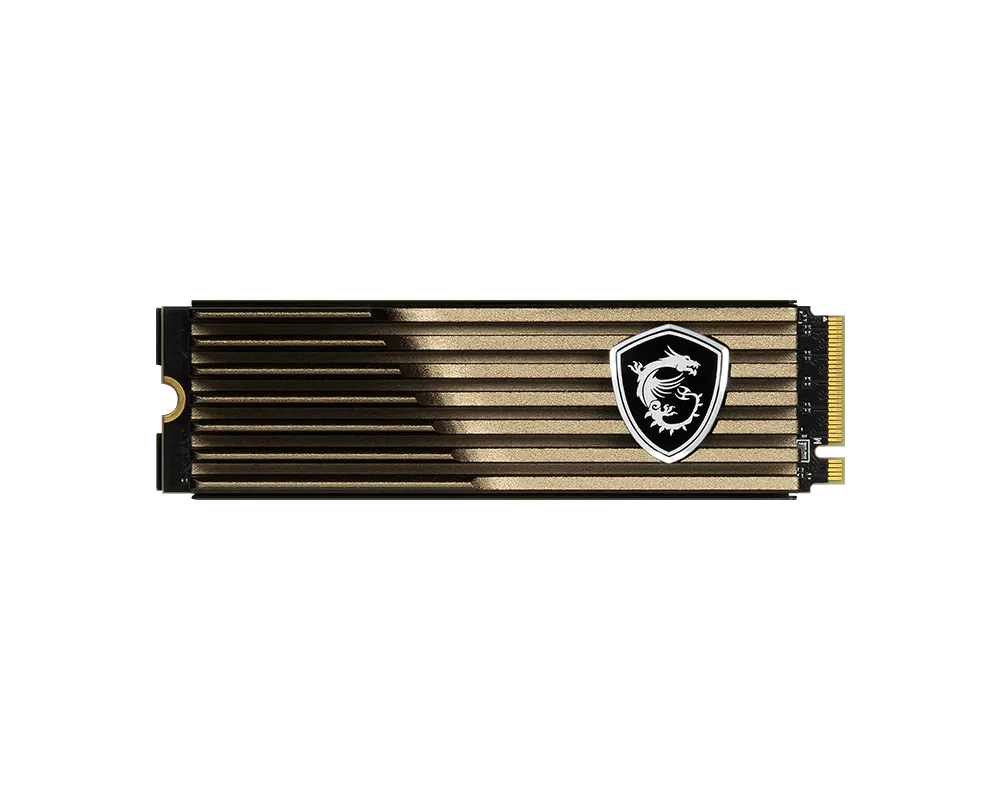

MSI 微星 SPATIUM M570 PCIe 5.0 NVMe M.2 2TB HS 固態硬碟
MSI SPATIUM M570 PCIe 5.0 NVMe M.2 2TB HS SSD
MSI 微星 SPATIUM M570 PCIe 5.0 NVMe M.2 2TB HS 固態硬碟。可用於相容電腦的作業系統、軟體與檔案儲存升級。
型號：SPATIUM M570 PCIe 5.0 NVMe M.2 HS
容量：2TB
控制器：PHISON E26
快閃記憶體：3D NAND
DRAM 快取：4GB LPDDR4
外形規格：M.2 2280
介面：PCIe Gen5x4, NVMe 2.0
相容性：PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
尺寸：80.00mm (L) x 22.00mm (W) x 3.5mm (H) (不含散熱片)
80.40mm (L) x 23.00mm (W) x 20.40mm (H) (含散熱片)
循序讀取最高速度（MB/s）：10,000
循序寫入最高速度（MB/s）：10,000
4KB 隨機讀取最高速度（IOPS）：1,400,000
4KB 隨機寫入最高速度（IOPS）：1,500,000
最大工作功耗（W）：11
工作溫度：0°C – 70°C
儲存溫度：-40°C – 85°C
總寫入耐久度（TBW）：1400
平均故障間隔時間（MTBF）：最高可達 1,600,000 小時
進階功能：TRIM (效能最佳化，需作業系統支援)
SMART (自我監控、分析與回報技術)
LDPC (低密度同位檢查) ECC 演算法
端到端資料路徑保護
APST (自主電源狀態切換)
安裝前請確認主機板或裝置支援所列介面與外形尺寸，並核對散熱與安裝空間。標示的最高效能須搭配相容平台；不同容量版本的速度與耐久度以本款規格為準。
MSI SPATIUM M570 PCIe 5.0 NVMe M.2 2TB HS SSD. For operating-system, application and file-storage upgrades in a compatible computer.
Model name: SPATIUM M570 PCIe 5.0 NVMe M.2 HS
Capacity: 2TB
Controller: PHISON E26
Flash Memory: 3D NAND
DRAM Cache: 4GB LPDDR4
Form Factor: M.2 2280
Interface: PCIe Gen5x4, NVMe 2.0
Compatibility: PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
Dimensions: 80.00mm (L) x 22.00mm (W) x 3.5mm (H) (w/o heatsink)
80.40mm (L) x 23.00mm (W) x 20.40mm (H) (w/ heatsink)
Sequential Read up to (MB/s): 10,000
Sequential Write up to (MB/s): 10,000
Random Read 4KB up to (IOPS): 1,400,000
Random Write 4KB up to (IOPS): 1,500,000
Maximum Operating Power (W): 11
Operating Temperatures: 0°C – 70°C
Storage Temperatures: -40°C – 85°C
Terabytes Written (TBW): 1400
Mean Time Between Failure (MTBF): Up to 1,600,000 Hours
Advanced Features: TRIM (Performance Optimization, OS Support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
Before installation, confirm support for the listed interface and form factor, and check cooling and mounting clearance. Maximum rated performance requires a compatible platform; speed and endurance figures here apply to this capacity variant.
洽詢商品 歡迎透過 LINE 或來電，與我們確認規格及供貨資訊。
