MSI 微星 HERALD BE9400 WiFi 7 PCIe Card PCIe 無線網路卡

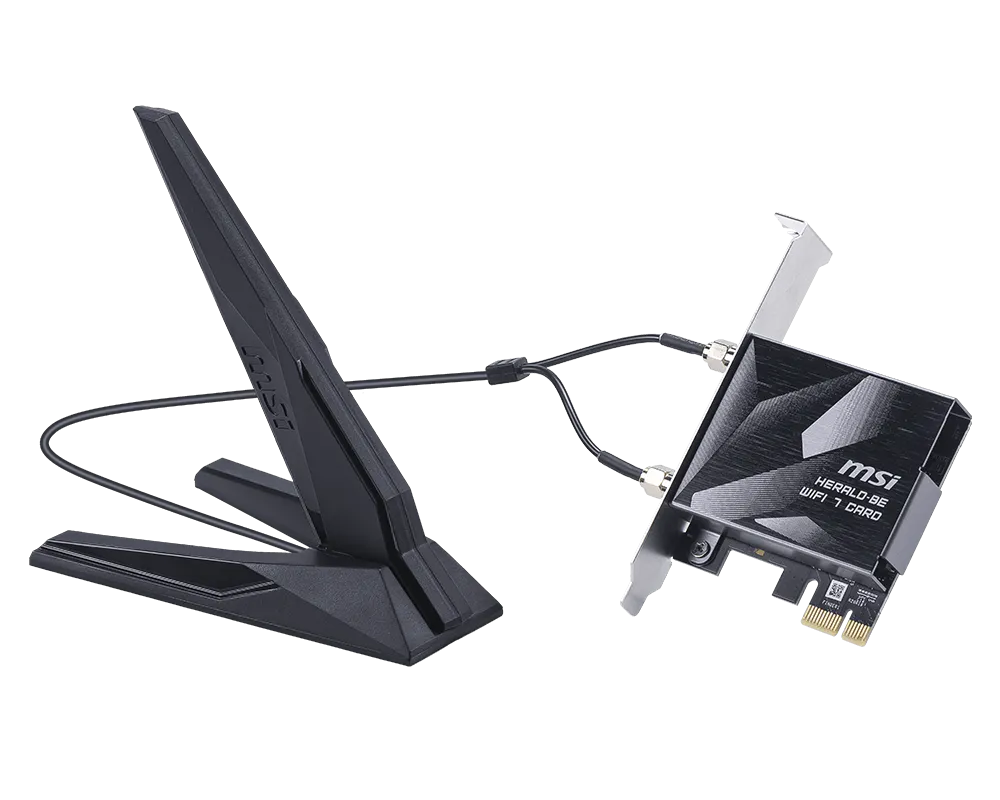

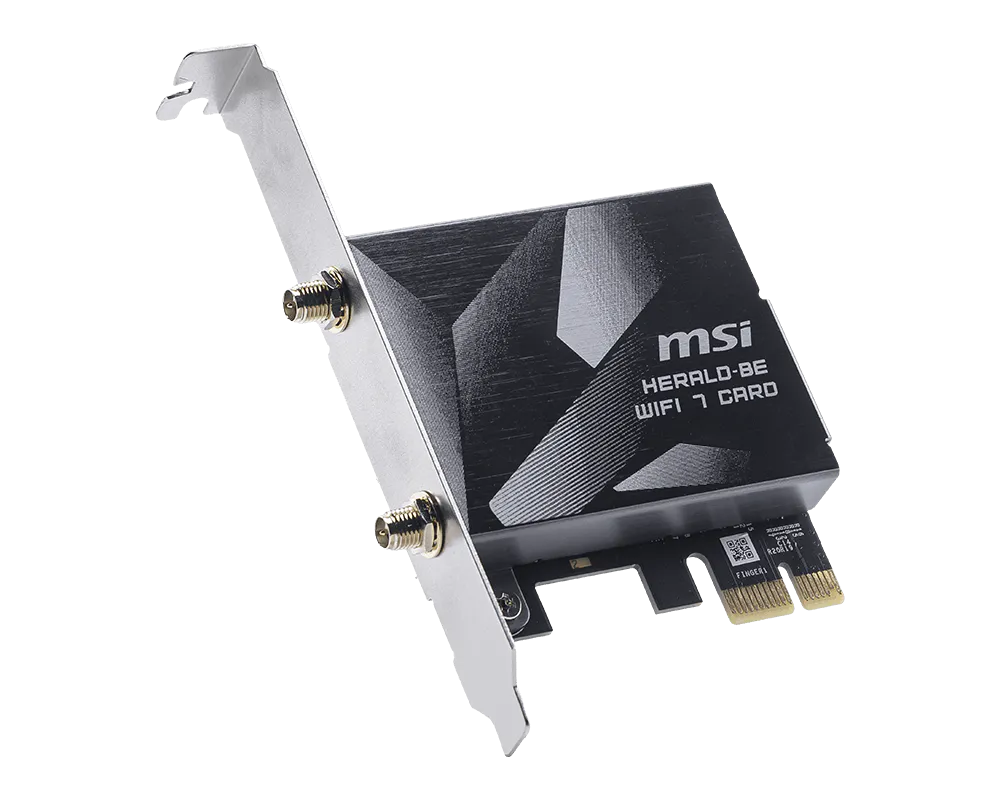

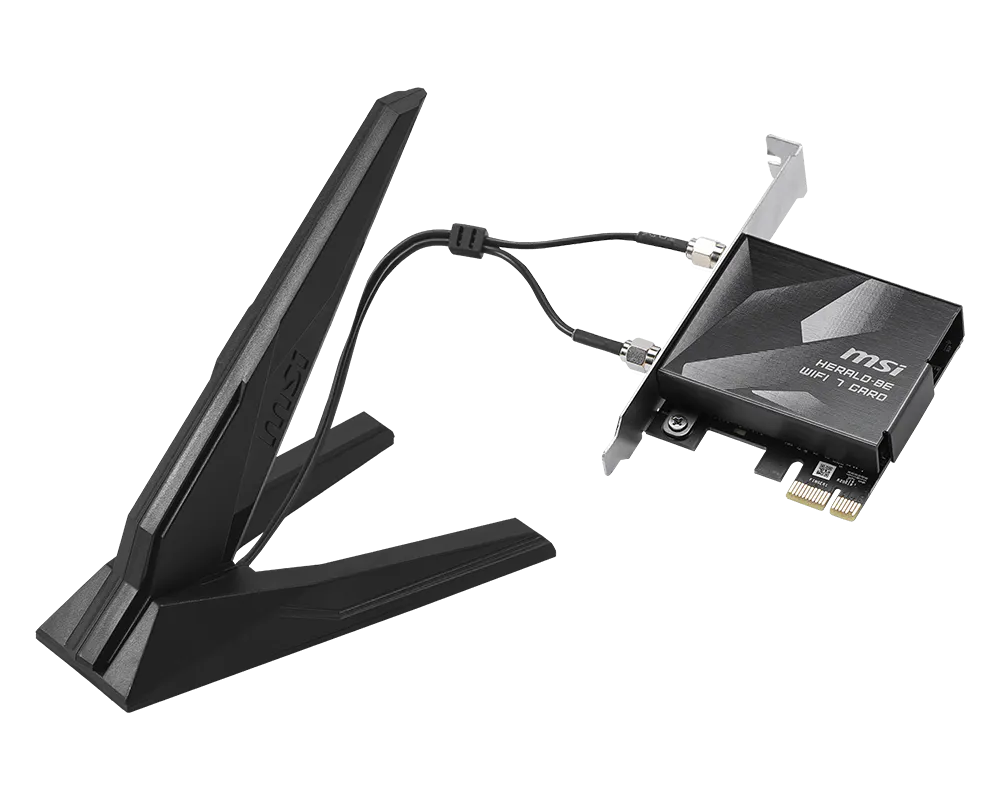

MSI HERALD BE9400 WiFi 7 PCIe Card
HERALD BE9400 WiFi 7 PCIe Card
用於相容設備的網路連接。無線速率為連線規格，實際傳輸依路由器、終端設備、頻段、距離及環境而異；請核對介面、作業系統與可用頻段。
產品規格
Bluetooth：BT 5.4
網路協定：WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
802.11g
802.11b
802.11a
無線速率：2.4GHz BE: 2x2(Tx/Rx) 最高 688Mbps
5GHz BE: 2x2(Tx/Rx) 最高 2882 Mbps
6GHz BE: 2x2(Tx/Rx) 最高 5764 Mbps
無線頻段：2.4GHz / 5GHz / 6GHz
WiFi 加密：WPA-PSK, WPA2-PSK / 企業, WPA3-個人 / 企業
介面：PCI-Express x 1 插槽
支援作業系統：Windows 11
產品尺寸：120 x 70 mm

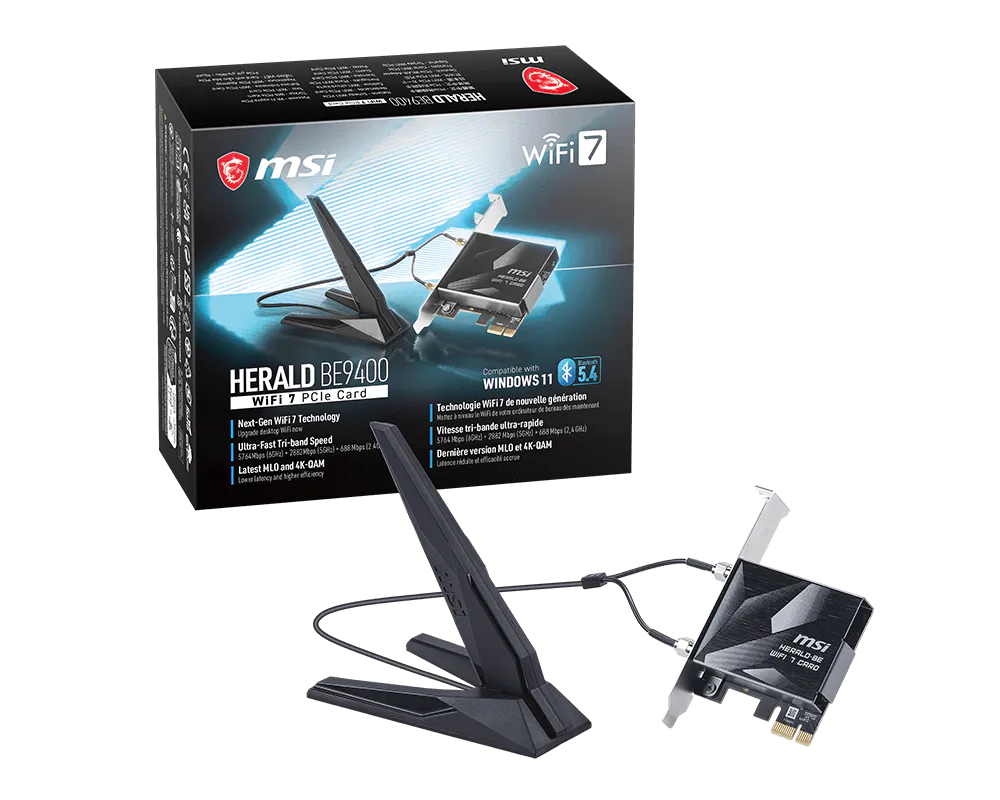

產品內容物：HERALD BE9400 WiFi 7 PCIe Card
天線
安裝指南
USB 線材

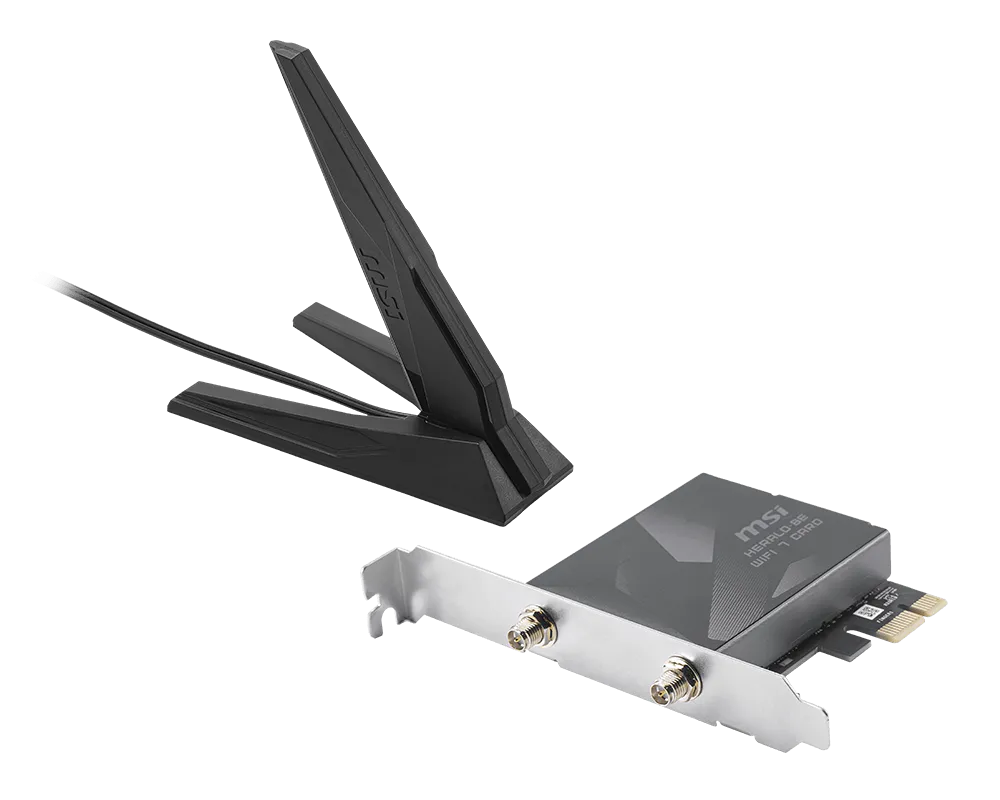

天線：2x 高增益三頻天線
HERALD BE9400 WiFi 7 PCIe Card
For networking with compatible equipment. Wireless rates are link specifications; actual transfer depends on the router, client device, band, distance and environment. Check interfaces, operating systems and available bands.
Specifications
BLUETOOTH: BT 5.4
Network standards: WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
802.11g
802.11b
802.11a
Wireless data rates: 2.4GHz BE: 2x2(Tx/Rx) up to 688Mbps
5GHz BE: 2x2(Tx/Rx) up to 2882 Mbps
6GHz BE: 2x2(Tx/Rx) up to 5764 Mbps
Wireless bands: 2.4GHz / 5GHz / 6GHz
WiFi encryption: WPA-PSK, WPA2-PSK / Enterprise, WPA3-Personal / Enterprise
Interface: PCI-Express x 1 slot
Supported OS: Windows 11
Product dimensions: 120 x 70 mm
Package contents: HERALD BE9400 WiFi 7 PCIe Card
Antenna
Installation Guide
USB Cable
Antennas: 2x High-Gain Tri-Band Antennas
