螢幕

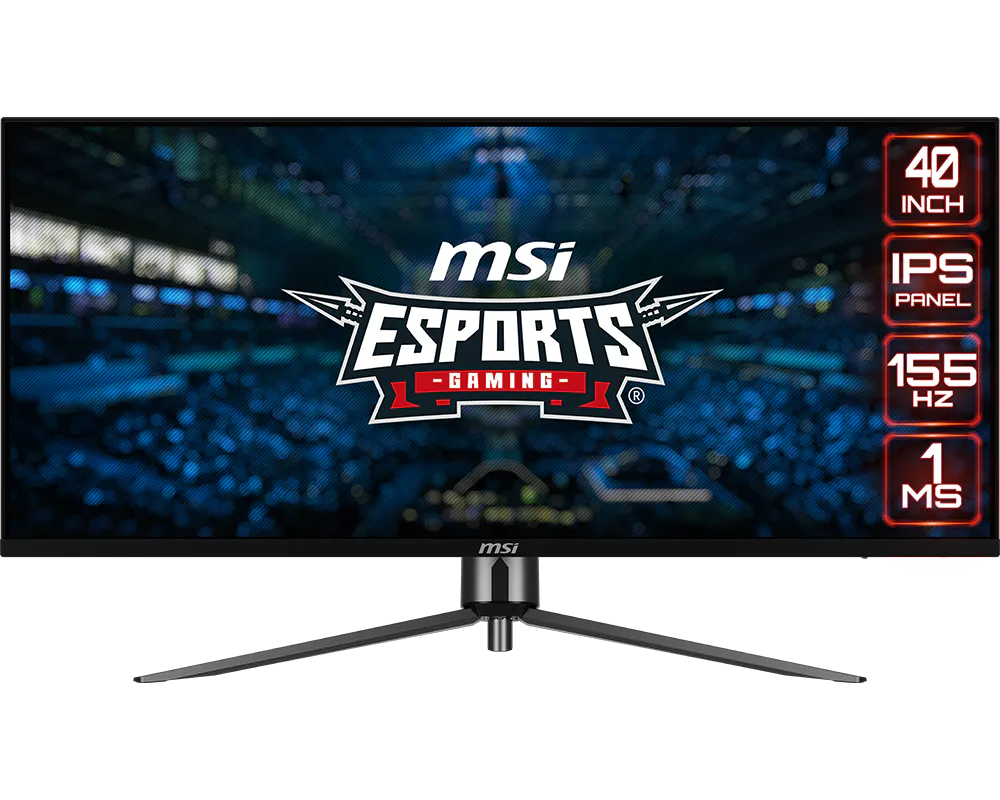

MSI 微星 MAG401QR 螢幕
MSI MAG401QR Monitor
MSI 微星 MAG401QR 螢幕，適合依畫面尺寸、解析度與更新率選擇顯示設備。面板與連接埠規格如下；不同輸入端子的最高解析度及更新率請依各項限制搭配。
產品特色
面板尺寸：40" (101.6 cm)
面板類型：IPS
面板解析度：3440x1440 (UWQHD)
更新率：155Hz
反應時間：1ms (MPRT)
HDR 支援：VESA DisplayHDR 400
完整規格
面板尺寸：40" (101.6 cm)
有效顯示區域（mm）：926.22(H)x387.72(V)
曲率：平面
面板類型：IPS
面板解析度：3440x1440 (UWQHD)
像素間距：0.2697(H)x0.2697(V)
螢幕比例：21:9
亮度：400 (典型值), 400 (HDR 峰值)
靜態對比度：1000:1
動態對比度：100000000:1
訊號頻率：30~160 KHz(H) / 60~144 Hz(V)
更新率：155Hz
反應時間：1ms (MPRT)
動態更新率技術：AMD FreeSync™ Premium
HDR 支援：VESA DisplayHDR 400
影像連接埠：2 x HDMI™ (支援 3440x1440@100Hz 依據規格 HDMI™ 2.0b)
1 x DisplayPort (支援 3440x1440@155Hz 依據規格 DisplayPort 1.4a)
1 x Type-C (DP alt. 含 PD 65W)
音訊連接埠：1x 耳機輸出
可視角度：178° (H) / 178° (V)
Adobe RGB／DCI-P3／sRGB：90% / 94% / 118%
表面處理：防眩光
顯示色彩：1.07B (8 bits + FRC)
電源規格：電源線
電源輸入：100~240V, 50/60Hz
俯仰調整：-5° ~ 20°
Kensington 鎖孔：支援
尺寸（寬×深×高）：945.22 x 289.63 x 530.29 mm / 945.22 x 83.32 x 416.12 mm (不含底座)
窄邊框設計：支援
VESA 安裝：100x100mm
USB 連接埠：2 x USB 2.0 Type-A
1 x USB 2.0 Type-B 上行
1 x USB 2.0 Type-C (PD 65W)
操作方式：5 向導覽搖桿
可變更新率範圍：48~155Hz
遊戲主機模式：2K 解析度 PS5™ 最佳化
FHD @ 120Hz
* 所有商標及註冊商標均屬其各自擁有者。
PIP／PBP 功能：支援
淨重／毛重：10.3 kg / 12.4 kg
8 kg (不含底座)
備註：DisplayPort: 3440X1440 (最高可達 155Hz)
Type-C: 3440 x 1440 (最高可達 155Hz)
HDMI™: 3440 x 1440 (最高可達 100Hz)
Adobe RGB, DCI-P3 與 sRGB 依據 CIE1976 標準
使用與安裝
將底座固定於穩固桌面，或依列示的 VESA 孔距選擇相容支架。連接適用的電源及影像線材，在作業系統與螢幕選單設定所需解析度、更新率及 HDR。最高更新率可能因輸入端子、解析度、顯示卡及線材而受限；超頻或雙模式數值須使用對應設定。USB 與 Type-C 功能依本型號列示的規格使用。
The MSI MAG401QR monitor offers the panel and connectivity specifications below. Choose it by screen size, resolution and refresh rate, and match your connection to the stated resolution and refresh-rate limits for each input.
Features
Panel size: 40" (101.6 cm)
Panel type: IPS
Panel resolution: 3440x1440 (UWQHD)
Refresh rate: 155Hz
Response time: 1ms (MPRT)
HDR support: VESA DisplayHDR 400
Full specifications
Panel size: 40" (101.6 cm)
Active display area (mm): 926.22(H)x387.72(V)
Curvature: Flat
Panel type: IPS
Panel resolution: 3440x1440 (UWQHD)
Pixel pitch: 0.2697(H)x0.2697(V)
Aspect ratio: 21:9
Brightness: 400 (Typ.), 400 (HDR peak)
Contrast ratio: 1000:1
Dynamic contrast ratio: 100000000:1
Signal frequency: 30~160 KHz(H) / 60~144 Hz(V)
Refresh rate: 155Hz
Response time: 1ms (MPRT)
Dynamic refresh-rate technology: AMD FreeSync™ Premium
HDR support: VESA DisplayHDR 400

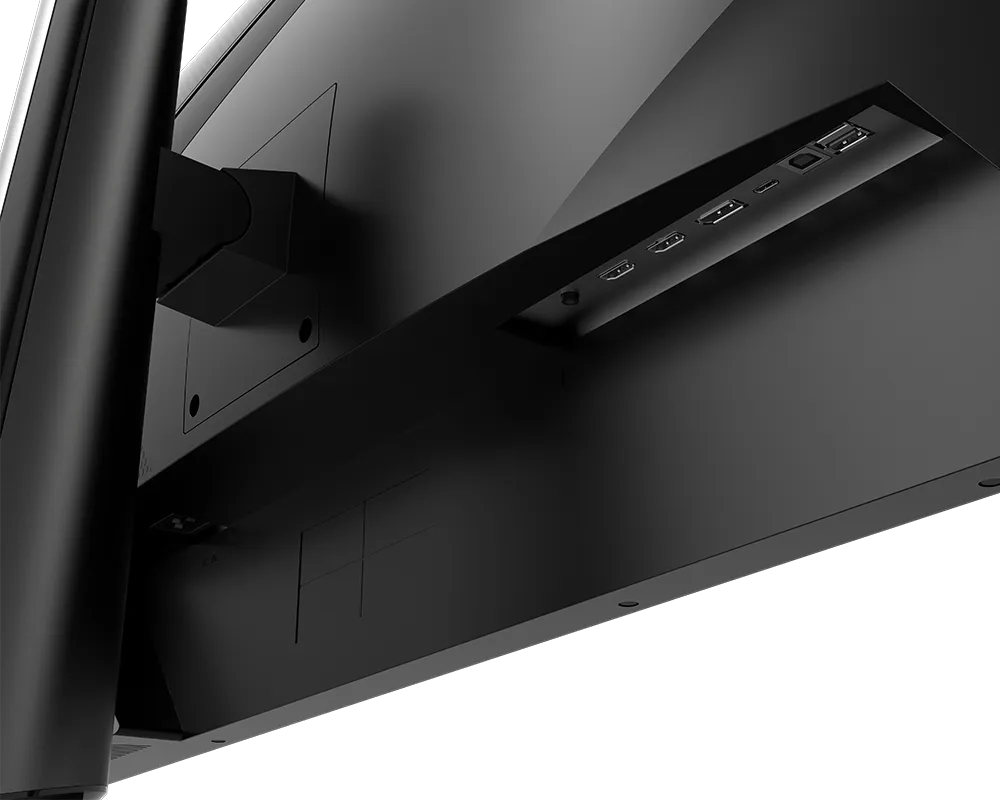

Video ports: 2 x HDMI™ (Supports 3440x1440@100Hz as specified in HDMI™ 2.0b)
1 x DisplayPort (Supports 3440x1440@155Hz as specified in DisplayPort 1.4a)
1 x Type-C (DP alt. with PD 65W)
Audio ports: 1x Headphone out
Viewing angle: 178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB: 90% / 94% / 118%
Surface treatment: Anti-glare
Display colors: 1.07B (8 bits + FRC)
Power: Power Cable
Power input: 100~240V, 50/60Hz
Tilt adjustment: -5° ~ 20°
Kensington lock: Yes
Dimensions (W × D × H): 945.22 x 289.63 x 530.29 mm / 945.22 x 83.32 x 416.12 mm (without stand)
Frameless design: Yes
VESA mounting: 100x100mm
USB ports: 2 x USB 2.0 Type-A
1 x USB 2.0 Type-B Upstream
1 x USB 2.0 Type-C (PD 65W)
Controls: 5-Way Navigator Joystick
Variable refresh-rate range: 48~155Hz
Console mode: 2K Resolution PS5™ Optimization
FHD @ 120Hz
* All trademarks and the registered trademarks are the property of their respective owners.
PIP/PBP function: Yes
Net/gross weight: 10.3 kg / 12.4 kg
8 kg (Without stand)
Notes: DisplayPort: 3440X1440 (Up to 155Hz)
Type-C: 3440 x 1440 (Up to 155Hz)
HDMI™: 3440 x 1440 (Up to 100Hz)
Adobe RGB, DCI-P3 and sRGB follow CIE1976 Standard
Setup and use
Secure the stand on a stable desk, or choose a compatible mount using the listed VESA pattern. Connect compatible power and video cables, then set resolution, refresh rate and HDR in the operating system and monitor menu. Maximum refresh rate can depend on the input, resolution, graphics hardware and cable; overclocked or dual-mode rates require the corresponding settings. Use USB and Type-C functions according to the specifications listed for this model.
