固態硬碟

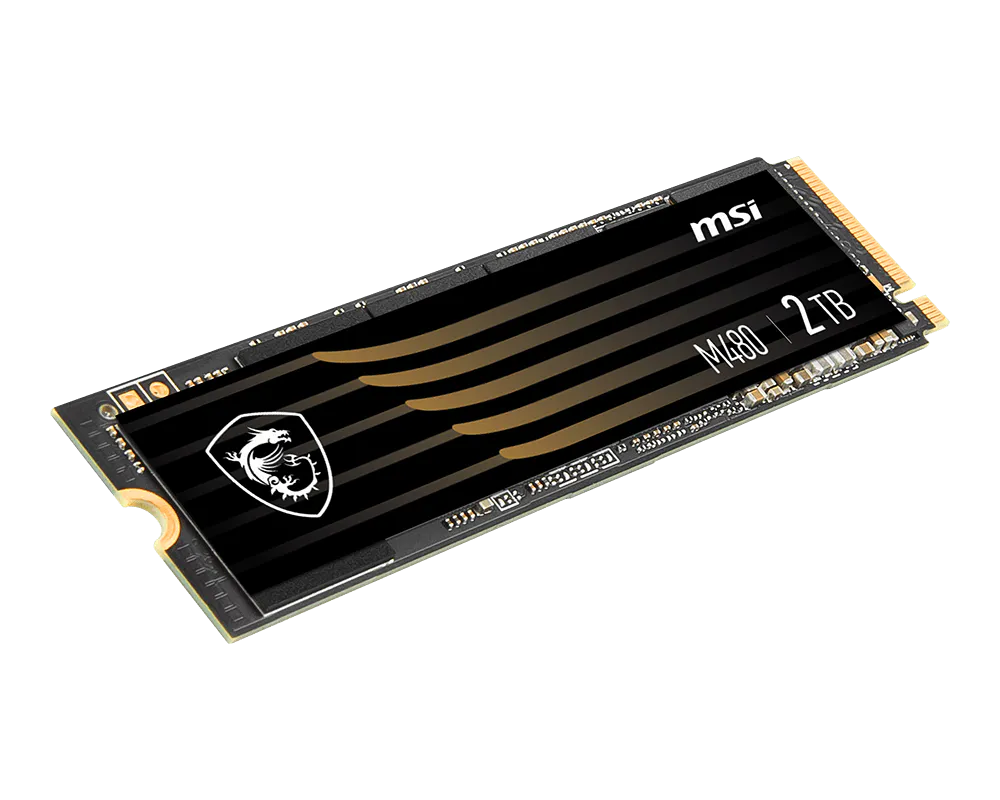

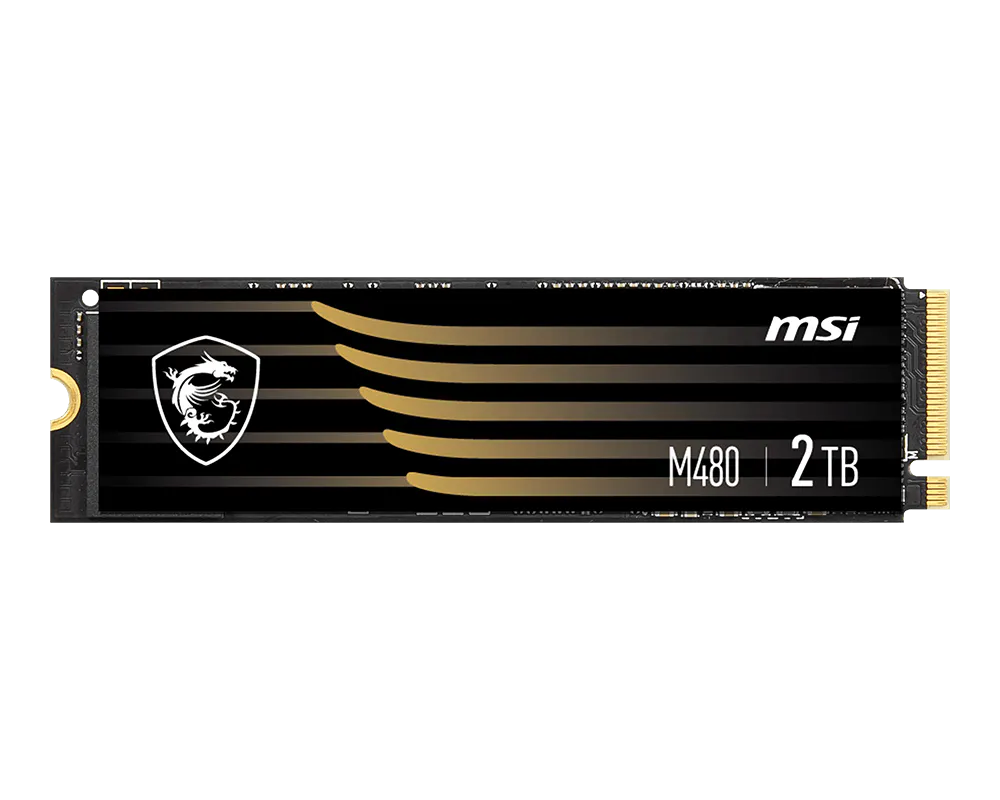

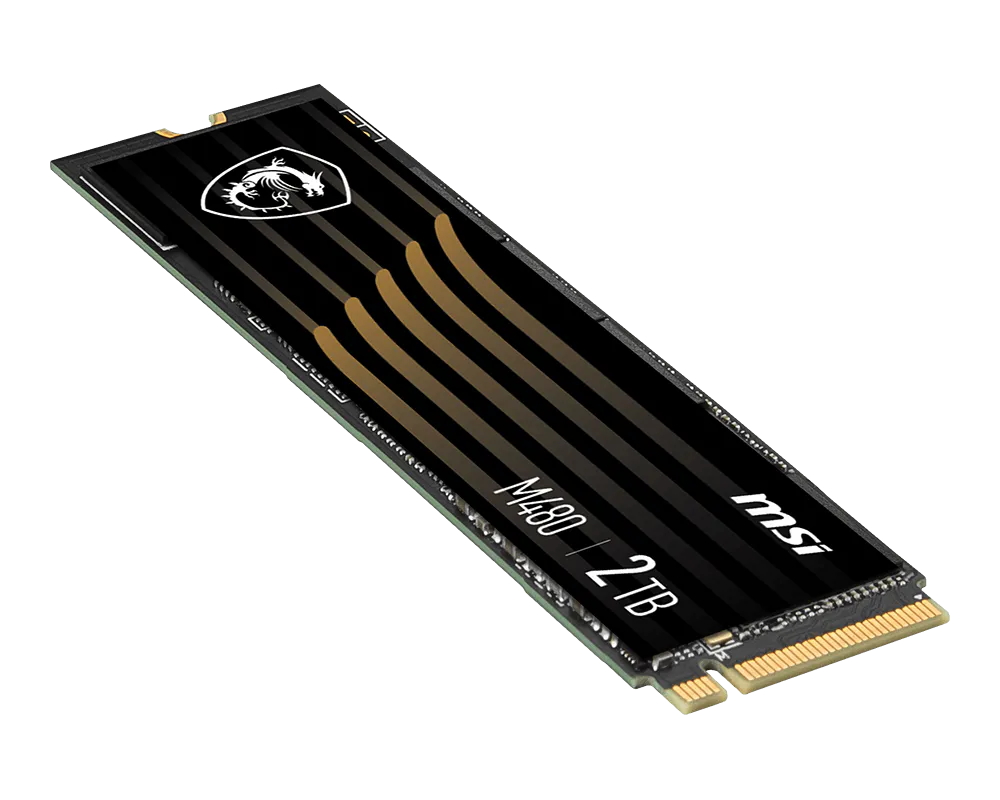

MSI 微星 M480 PCIe 4.0 NVMe M.2 500GB 固態硬碟
MSI M480 PCIe 4.0 NVMe M.2 500GB SSD
MSI 微星 M480 PCIe 4.0 NVMe M.2 500GB 固態硬碟。可用於相容電腦的作業系統、軟體與檔案儲存升級。
型號:M480 PCIe 4.0 NVMe M.2
容量:500GB
控制器:PHISON E18
快閃記憶體:3D NAND
DRAM 快取:512MB DDR4
外形規格:M.2 2280
介面:PCIe Gen4x4, NVMe 1.4
相容性:PCIe Gen4 / Gen3 / Gen2 / Gen1
尺寸:80.00mm (L) x 22.00mm (W) x 2.15mm (H)
循序讀取最高速度(MB/s):6500
循序寫入最高速度(MB/s):2850
4KB 隨機讀取最高速度(IOPS):170,000
4KB 隨機寫入最高速度(IOPS):600,000
最大工作功耗(W):6.0
PS3 閒置功耗(mW):10
L1.2 低功耗(mW):3
工作溫度:0°C – 70°C
儲存溫度:-40°C – 85°C
總寫入耐久度(TBW):350
平均故障間隔時間(MTBF):最高可達 1,600,000 小時
進階功能:TRIM (效能最佳化,需作業系統支援)
SMART (自我監控、分析與回報技術)
LDPC (低密度同位檢查) ECC 演算法
端到端資料路徑保護
APST (自主電源狀態切換)
AES256/Pyrite (加密、資料安全)
安裝前請確認主機板或裝置支援所列介面與外形尺寸,並核對散熱與安裝空間。標示的最高效能須搭配相容平台;不同容量版本的速度與耐久度以本款規格為準。
MSI M480 PCIe 4.0 NVMe M.2 500GB SSD. For operating-system, application and file-storage upgrades in a compatible computer.
Model name: M480 PCIe 4.0 NVMe M.2
Capacity: 500GB
Controller: PHISON E18
Flash Memory: 3D NAND
DRAM Cache: 512MB DDR4
Form Factor: M.2 2280
Interface: PCIe Gen4x4, NVMe 1.4
Compatibility: PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions: 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s): 6500
Sequential Write up to (MB/s): 2850
Random Read 4KB up to (IOPS): 170,000
Random Write 4KB up to (IOPS): 600,000
Maximum Operating Power (W): 6.0
Idle Power PS3 (mW): 10
Low Power L1.2 (mW): 3
Operating Temperatures: 0°C – 70°C
Storage Temperatures: -40°C – 85°C
Terabytes Written (TBW): 350
Mean Time Between Failure (MTBF): Up to 1,600,000 Hours
Advanced Features: TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/Pyrite (Encryption, Data Security)
Before installation, confirm support for the listed interface and form factor, and check cooling and mounting clearance. Maximum rated performance requires a compatible platform; speed and endurance figures here apply to this capacity variant.
洽詢商品 歡迎透過 LINE 或來電,與我們確認規格及供貨資訊。
