螢幕

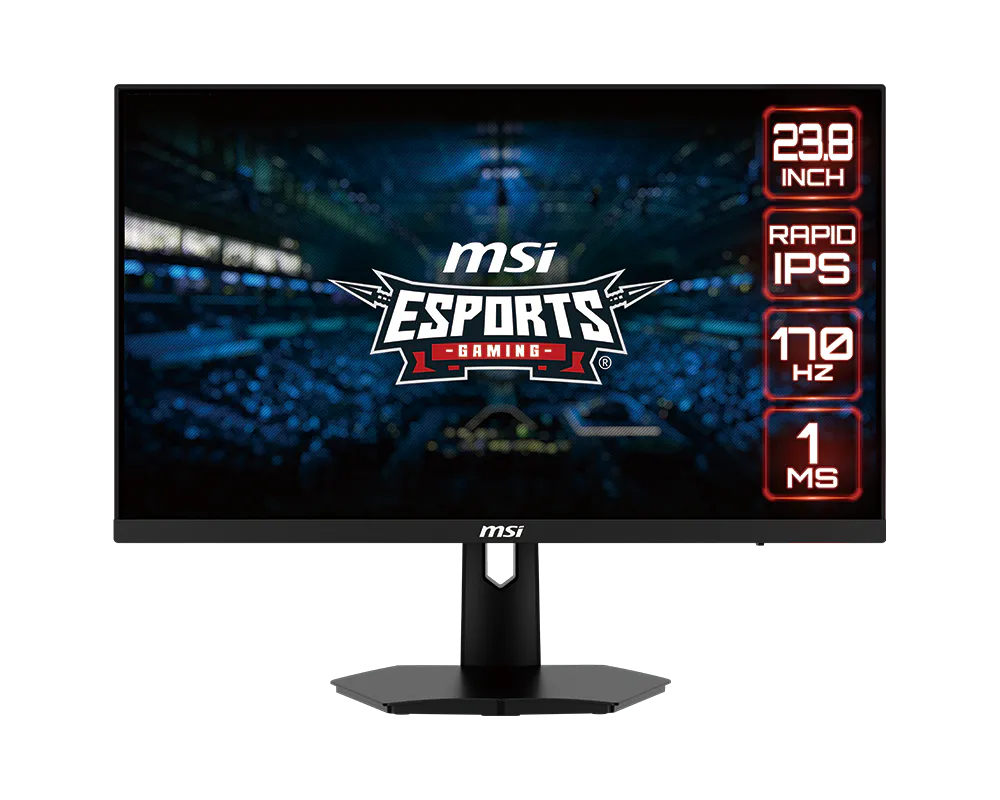

MSI 微星 G244F 螢幕
MSI G244F Monitor
MSI 微星 G244F 螢幕，適合依畫面尺寸、解析度與更新率選擇顯示設備。面板與連接埠規格如下；不同輸入端子的最高解析度及更新率請依各項限制搭配。
產品特色
面板尺寸：23.8” (60cm)
面板類型：Rapid IPS
面板解析度：1920 x 1080 (FHD)
更新率：170Hz
反應時間：1ms (GtG)
完整規格
面板尺寸：23.8” (60cm)
有效顯示區域（mm）：527.04(H) x 296.46(V)
曲率：平面
面板類型：Rapid IPS
面板解析度：1920 x 1080 (FHD)
像素間距：0.2745(H)x0.2745(V)
螢幕比例：16:9
亮度：250
靜態對比度：1000:1
動態對比度：100000000:1
訊號頻率：56.8~186.8 KHz(H) / 48~170 Hz(V)
更新率：170Hz
反應時間：1ms (GtG)
動態更新率技術：FreeSync Premium
影像連接埠：2x HDMI™ (支援 1920x1080P@165Hz 依據規格 HDMI™ 2.0b)
1x DP (支援 1920x1080P@170Hz 依據規格 DisplayPort 1.2a 含 超頻)
音訊連接埠：1x 耳機輸出
可視角度：178° (H) / 178° (V)
Adobe RGB／DCI-P3／sRGB：94.4% / 92.05% / 122.88%
表面處理：防眩光
顯示色彩：16.7M
電源規格：外接電源供應器 12V 3A
電源輸入：110~240V, 50/60Hz
俯仰調整：-5° ~ 20°
Kensington 鎖孔：支援
尺寸（寬×深×高）：541.9 x 231.9 x 424.3 mm
541.9 x 59.7 x 322.3 mm (不含底座)
包裝尺寸（寬×深×高）：WW: 622 x 160 x 409
JP: 637 x 174 x 433
窄邊框設計：支援
VESA 安裝：75 x 75 mm
操作方式：5 向 OSD 導覽搖桿
可變更新率範圍：48 轉 170Hz
耗電量：開機模式: 18 (KWh/1000h) / 關機模式: 0.3 (KWh/1000h)
色彩位元：8 Bits
遊戲主機模式：支援 FHD@120Hz
淨重／毛重：4.2kg / 5.6kg
不含底座: 2.7kg
備註：Display Port: 1920 x 1080 (最高可達 170Hz 透過 DP 超頻)
HDMI™: 1920 x 1080 (最高可達 165Hz)
Adobe RGB, DCI-P3 與 sRGB 依據 CIE1976 標準
使用與安裝
將底座固定於穩固桌面，或依列示的 VESA 孔距選擇相容支架。連接適用的電源及影像線材，在作業系統與螢幕選單設定所需解析度、更新率及 HDR。最高更新率可能因輸入端子、解析度、顯示卡及線材而受限；超頻或雙模式數值須使用對應設定。USB 與 Type-C 功能依本型號列示的規格使用。
The MSI G244F monitor offers the panel and connectivity specifications below. Choose it by screen size, resolution and refresh rate, and match your connection to the stated resolution and refresh-rate limits for each input.
Features
Panel size: 23.8” (60cm)
Panel type: Rapid IPS
Panel resolution: 1920 x 1080 (FHD)
Refresh rate: 170Hz
Response time: 1ms (GtG)
Full specifications
Panel size: 23.8” (60cm)
Active display area (mm): 527.04(H) x 296.46(V)
Curvature: Flat
Panel type: Rapid IPS
Panel resolution: 1920 x 1080 (FHD)
Pixel pitch: 0.2745(H)x0.2745(V)
Aspect ratio: 16:9
Brightness: 250
Contrast ratio: 1000:1
Dynamic contrast ratio: 100000000:1
Signal frequency: 56.8~186.8 KHz(H) / 48~170 Hz(V)
Refresh rate: 170Hz
Response time: 1ms (GtG)
Dynamic refresh-rate technology: FreeSync Premium
Video ports: 2x HDMI™ (Supports 1920x1080P@165Hz as specified in HDMI™ 2.0b)
1x DP (Supports 1920x1080P@170Hz as specified in DisplayPort 1.2a with overclocking)
Audio ports: 1x Earphone out
Viewing angle: 178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB: 94.4% / 92.05% / 122.88%
Surface treatment: Anti-glare
Display colors: 16.7M
Power: External Adaptor 12V 3A
Power input: 110~240V, 50/60Hz
Tilt adjustment: -5° ~ 20°
Kensington lock: Yes
Dimensions (W × D × H): 541.9 x 231.9 x 424.3 mm
541.9 x 59.7 x 322.3 mm (Without stand)
Carton dimensions (W × D × H): WW: 622 x 160 x 409
JP: 637 x 174 x 433
Frameless design: Yes
VESA mounting: 75 x 75 mm
Controls: 5-way OSD navigation joystick
Variable refresh-rate range: 48 to 170Hz
Power consumption: On-mode: 18 (KWh/1000h) / Off-mode: 0.3 (KWh/1000h)
Color depth: 8 Bits
Console mode: Support FHD@120Hz
Net/gross weight: 4.2kg / 5.6kg
without Stand: 2.7kg
Notes: Display Port: 1920 x 1080 (Up to 170Hz By DP Over Clocking)
HDMI™: 1920 x 1080 (Up to 165Hz)
Adobe RGB, DCI-P3 and sRGB follow CIE1976 Standard
Setup and use
Secure the stand on a stable desk, or choose a compatible mount using the listed VESA pattern. Connect compatible power and video cables, then set resolution, refresh rate and HDR in the operating system and monitor menu. Maximum refresh rate can depend on the input, resolution, graphics hardware and cable; overclocked or dual-mode rates require the corresponding settings. Use USB and Type-C functions according to the specifications listed for this model.
