機殼
JONSBO 喬思伯 V12 白色 機殼
JONSBO V12 White PC Case
V12 結合鋼板、北美胡桃木與玻璃，支援 M-ATX 及 ITX 主機板。前方隨附兩個 120mm 風扇，後方風扇可另外選配。
技術規格
• 產品型號：V12 白色
• 產品尺寸：280mm(W) * 301mm(D) * 275.5mm(H)（含腳墊）
• 材質：1.0mmSGCC鋼板 / 8mm北美胡桃木 / 4mm玻璃
• 硬碟位：3.5HDD*2+2.5SSD*1 / 3.5HDD*1+2.5SSD*2
• 相容主機板：M-ATX / ITX
• 前 I/O 端口：USB3.2 Gen2 Type-C*1 / USB3.0*1 / AUDIO*1+MIC*1(2合1)
• 電源: ATX≤140-220mm
• 散熱器: ≤140mm
• 顯示卡: ≤ 260mm
• 風扇: 後窗 92mm*1+80mm*1風扇（選配） 前板 120mm*2（隨附）
• 重量: 淨重 5.52kg

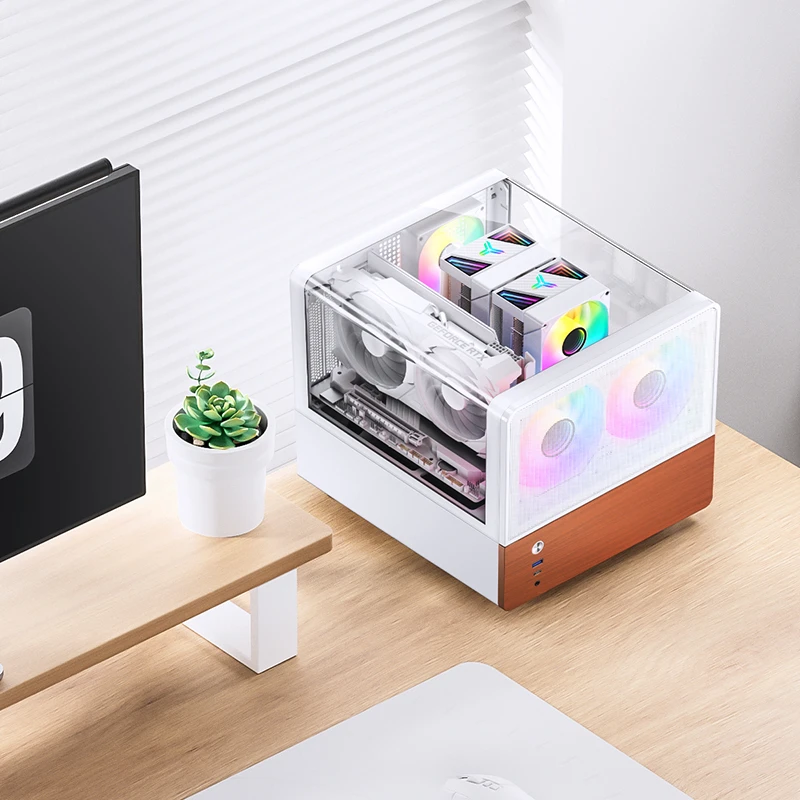

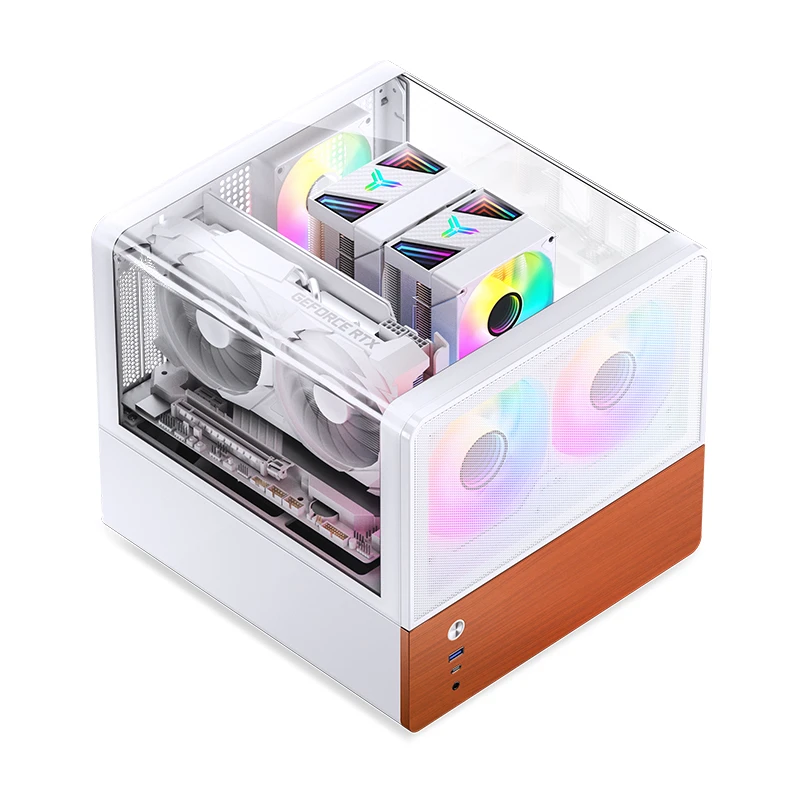

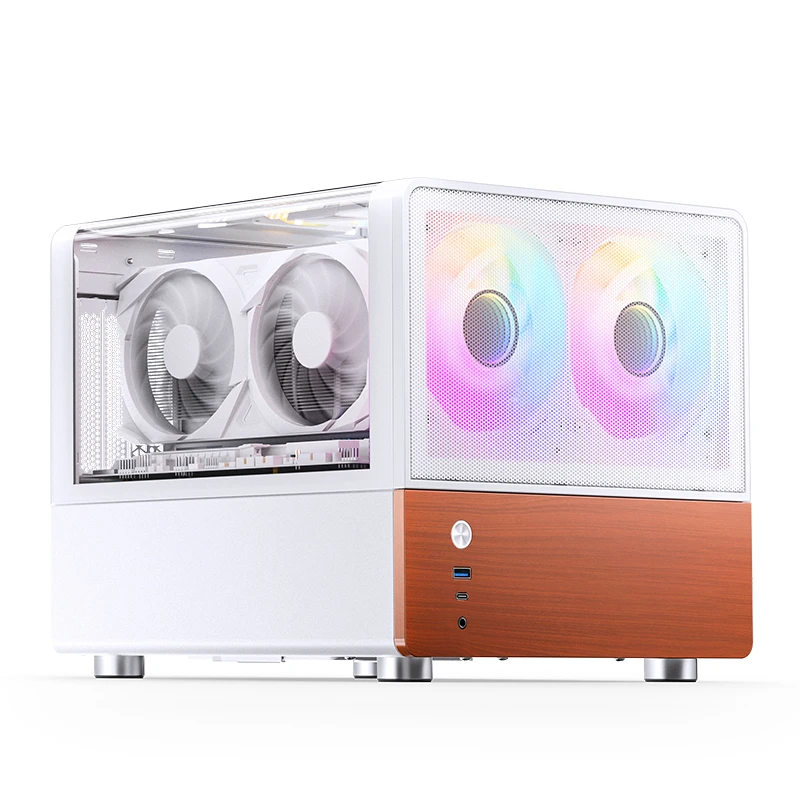

圖片為裝機示意；電腦硬體及未列為隨附的配件需另購。
V12 combines steel, North American walnut and glass with support for M-ATX and ITX motherboards. Two front 120mm fans are included, while rear fans are optional.
Technical specifications
• Model: V12 White
• Dimensions: 280mm(W) * 301mm(D) * 275.5mm(H) (including feet)
• Materials: 1.0mmSGCC steel plate / 8mm North American walnut / 4mm Glass
• Drive bays: 3.5HDD*2+2.5SSD*1 / 3.5HDD*1+2.5SSD*2
• Motherboard support: M-ATX / ITX
• Front I/O: USB3.2 Gen2 Type-C*1 / USB3.0*1 / AUDIO*1+MIC*1(2-in-1)
• PSU: ATX≤140-220mm
• Cooler: ≤140mm
• GPU: ≤ 260mm
• Fans: rear opening 92mm*1+80mm*1 Fans (optional, not included) front panel 120mm*2(included)
• Weight: Net weight 5.52kg
Images show example builds. Computer hardware and accessories not listed as included are sold separately.
