JONSBO 喬思伯 BO400 機殼
JONSBO BO400 PC Case
BO400 結合鋼板與鋁合金，支援 ATX 及背插式主機板。頂部、側邊和底部皆可配置水冷排，方便依硬體規劃散熱。
技術規格
• 產品型號：BO400
• 機殼材料： SPCC鋼板 & SGCC鋼板，鋁合金
• 機殼尺寸(含腳座)：474mm * 311mm* 489mm(深/寬/高)
• 相容主機板：MINI-ITX / MICRO-ATX / ATX，相容背插式主機板
• 儲存裝置安裝位： 2.5 〞 SSD：至多2個（與2個3.5吋安裝位共用） 3.5〞HDD：至多4個
• 前置連接埠： USB3.2 Gen1 Type-A*2/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1
• 風扇：頂部：3* 120mm/2*140mm；後部：1*120mm; 底部：3*120mm/2*140mm；側部：3*120mm
• 水冷支援：頂部 240mm/280mm/360mm規格冷排；側部：360mm規格冷排；底部：240mm/280mm/360mm規格冷排
• ATX PS2電源相容： ≤ 200mm
• CPU散熱器支援高度：限高173mm
• GPU相容尺寸： 限長435mm
• 重量：淨重12.9kg / 毛重18.4kg

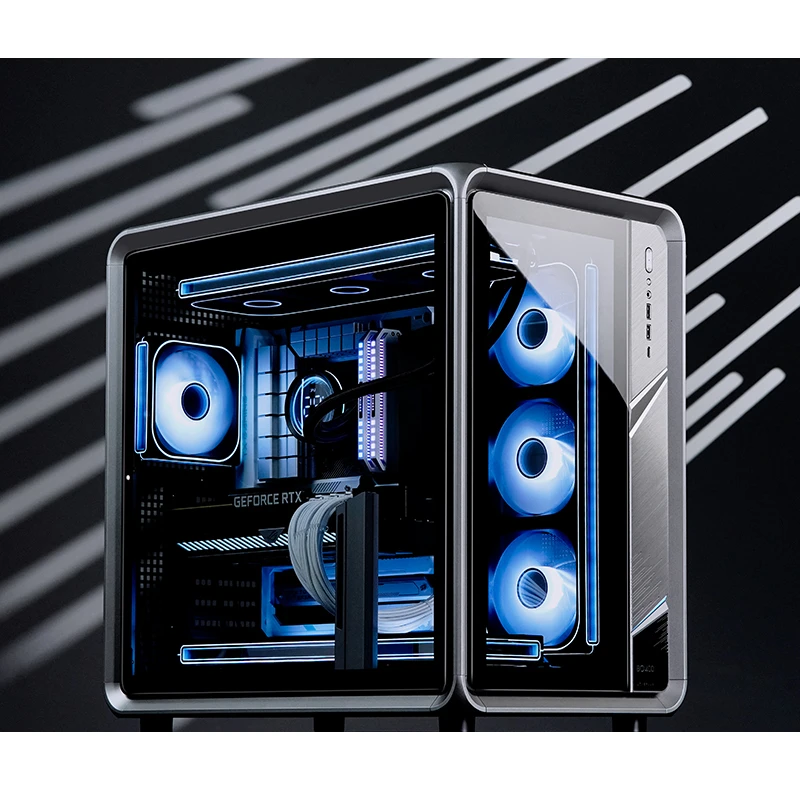

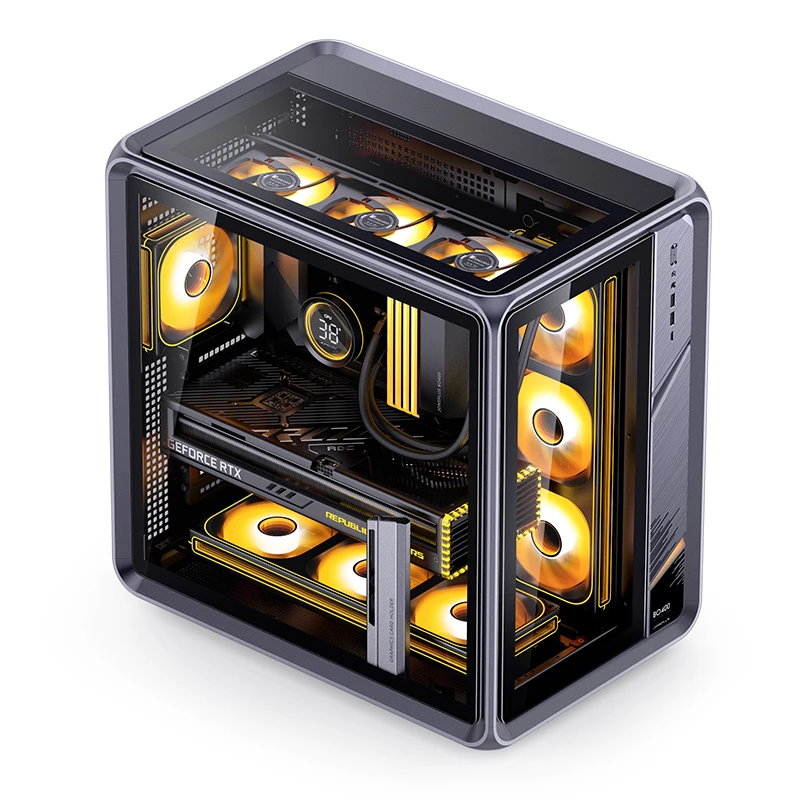

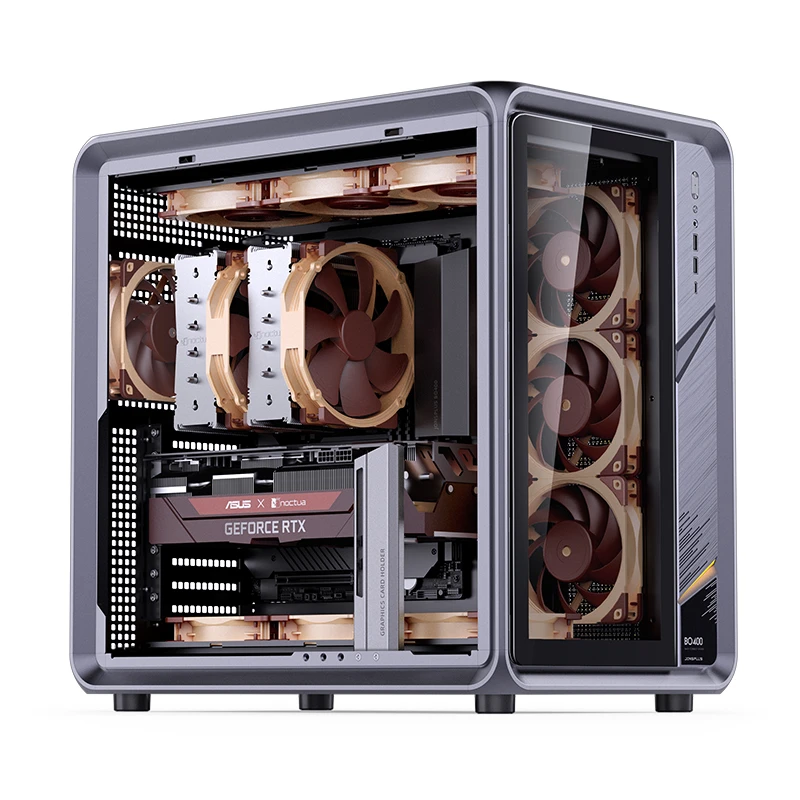

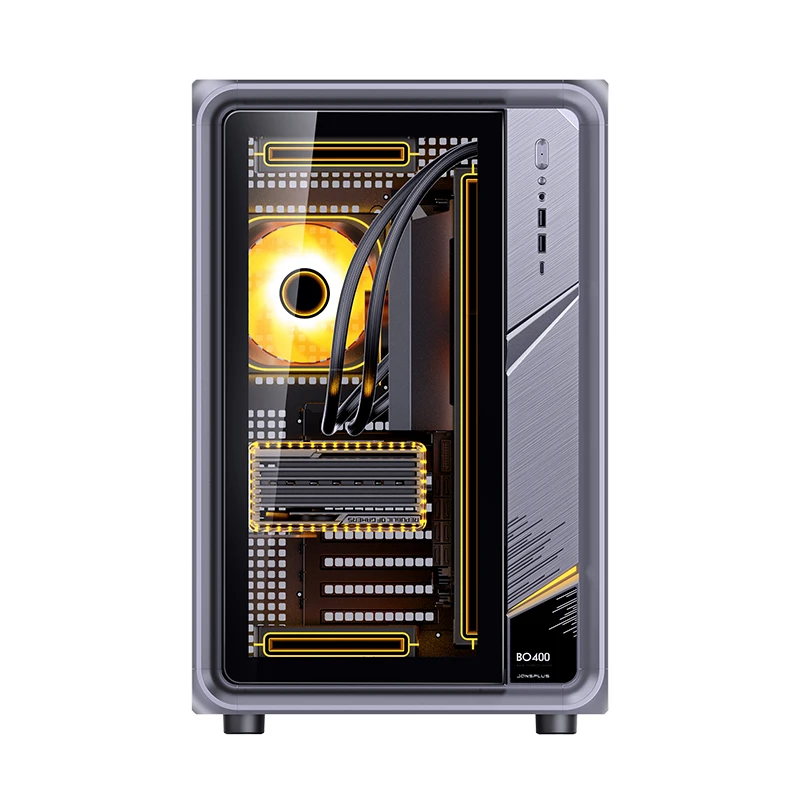

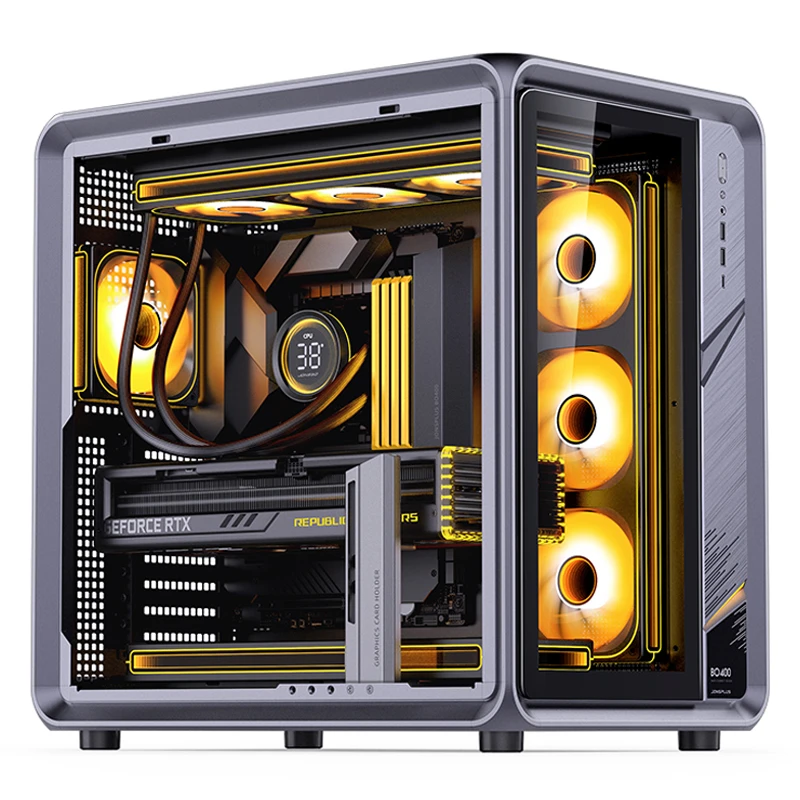

圖片為裝機示意；電腦硬體及未列為隨附的配件需另購。
BO400 combines steel and aluminum alloy with support for ATX and rear-connector motherboards. Radiator positions at the top, side and bottom offer several ways to arrange cooling.
Technical specifications
• Model: BO400
• Case materials: SPCC steel plate & SGCC steel plate , aluminum alloy
• Case dimensions (including feet): 474mm * 311mm* 489mm (D/W/H)
• Motherboard support: MINI-ITX / MICRO-ATX / ATX, supports rear-connector motherboards
• Drive bays: 2.5 " SSD: up to 2 (shared with two 3.5-inch mounting positions) 3.5"HDD: up to 4
• Front I/O: USB3.2 Gen1 Type-A*2/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1
• Fans: top: 3* 120mm/2*140mm; rear: 1*120mm; bottom: 3*120mm/2*140mm; side: 3*120mm
• Radiator support: top 240mm/280mm/360mm radiator ; side: 360mm radiator ; bottom: 240mm/280mm/360mm radiator
• ATX PS2 PSU support: ≤ 200mm
• CPU cooler height: maximum 173mm
• GPU clearance: maximum 435mm
• Weight: Net weight 12.9kg / Gross weight 18.4kg
Images show example builds. Computer hardware and accessories not listed as included are sold separately.
洽詢商品 歡迎透過 LINE 或來電，與我們確認規格及供貨資訊。
