JONSBO 喬思伯 D32 PRO 黑色 機殼
JONSBO D32 PRO Black PC Case
D32 PRO 以小型機身提供 A／B 主機板安裝模式，B 模式可搭配背插式 Micro-ATX 主機板。支援頂部 240mm 水冷與多組風扇配置，電源供應器及儲存裝置的可用空間須依整機配置確認。
產品規格
產品型號：D32 PRO
顏色：黑色
機殼尺寸(不含腳座等外凸料件)：384mm * 207mm* 302mm(深/寬/高)
機殼尺寸(含腳座等尺寸)： 395mm * 207mm* 314mm(深/寬/高)
機殼材料： SPCC鋼板（厚度0.7mm+0.8mm）
相容主機板：MINI-ITX / MICRO-ATX標準型 / MICRO-ATX背插型(機殼需切換至B模式)
驅動器位： 2.5 〞 SSD：至多4個，具體可裝配數量取決於其餘硬體配置 3.5〞HDD：至多2個(與2個2.5英寸安裝位共用)，具體可裝配數量取決於其餘硬體配置
前置連接埠： USB3.2 Gen1 Type-A*2 / USB3.2 Gen 2 Type-C*1 / AUDIO*1 & MIC*1
風扇：頂部：2* 120mm/2*140mm；後部：1*120mm; 底部：3*120mm/2*140mm，具體可裝配數量取決於其餘硬體配置
水冷支援：頂部 240mm
ATX PS2電源供應器相容：（不相容16A插頭電源供應器） 當 GPU 安裝于機殼第一條 PCI-E 檔位，電源供應器限長 150mm ，建議長度≤ 140mm ； 當 GPU 安裝于機殼第二條 PCI-E 檔位，電源供應器限長 170mm ，建議長 度 ≤ 160mm ； * 此安裝位取決於主機板，請查閱主機板規格 當 GPU 長度≤ 288mm ，電源供應器限長 200mm SFX 電源供應器相容： SFX/SFX-L
CPU散熱器支援高度：限高164mm (Intel CPU) 限高163mm (AMD CPU)
GPU相容尺寸： 限長365mm
重量：淨重4.6kg / 毛重5.8kg
圖片為裝機示意；電腦硬體及未列為隨附的配件需另購。
The D32 PRO offers A/B motherboard mounting modes in a compact case, with rear-connector Micro-ATX support in mode B. It supports a top-mounted 240mm radiator and multiple fan layouts; PSU and drive capacity depend on the complete build.
Technical specifications
Model: D32 PRO
Color: Black
Case dimensions (excluding feet and other protrusions): 384mm * 207mm* 302mm(D/W/H)
Case dimensions (including feet and other protrusions): 395mm * 207mm* 314mm(D/W/H)
Case materials: SPCC steel (thickness 0.7mm+0.8mm)
Motherboard support: MINI-ITX / MICRO-ATX standard / MICRO-ATX rear-connector (case must be switched to mode B)
Drive bays: 2.5-inch SSD: up to 4, actual capacity depends on the other installed components 3.5-inch HDD: up to 2 (shared with 2 2.5-inch mounting positions), actual capacity depends on the other installed components
Front I/O: USB3.2 Gen1 Type-A*2 / USB3.2 Gen 2 Type-C*1 / AUDIO*1 & MIC*1
Fans: Top: 2* 120mm/2*140mm; Rear: 1*120mm; Bottom: 3*120mm/2*140mm, actual capacity depends on the other installed components
Radiator support: Top 240mm
ATX PS2 PSU compatibility: PSUs with a 16A plug are not supported. With the GPU in the first PCI-E slot position: maximum PSU length 150mm, recommended ≤140mm. With the GPU in the second PCI-E slot position: maximum PSU length 170mm, recommended ≤160mm. Slot position depends on the motherboard; check its specifications. With GPU length ≤288mm: maximum PSU length 200mm. SFX PSU compatibility: SFX/SFX-L.
CPU cooler height limit: maximum height 164mm (Intel CPU) maximum height 163mm (AMD CPU)
GPU size limit: maximum length 365mm
Weight: Net weight 4.6kg / Gross weight 5.8kg

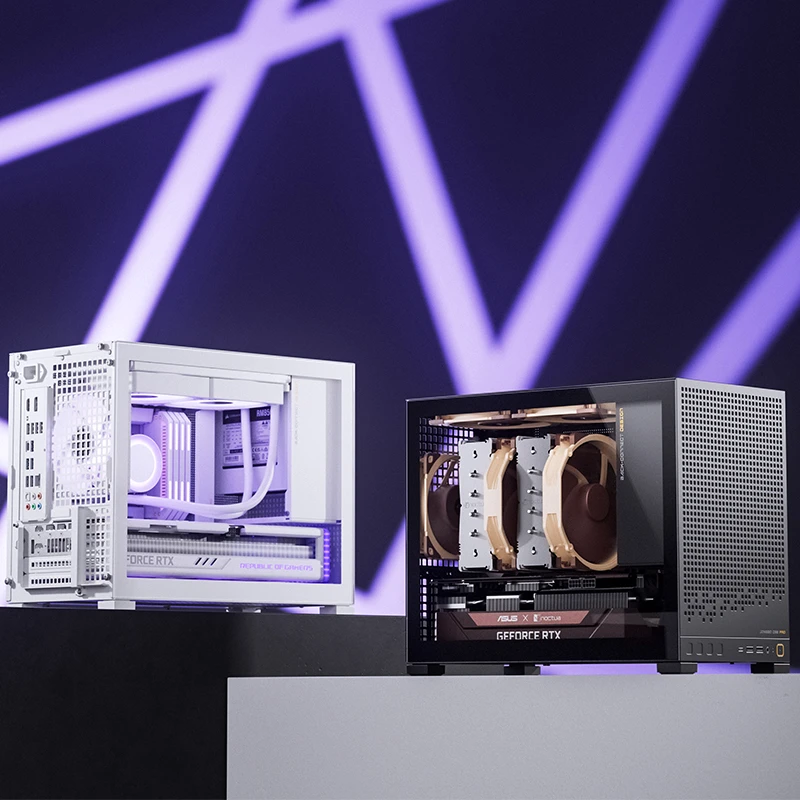

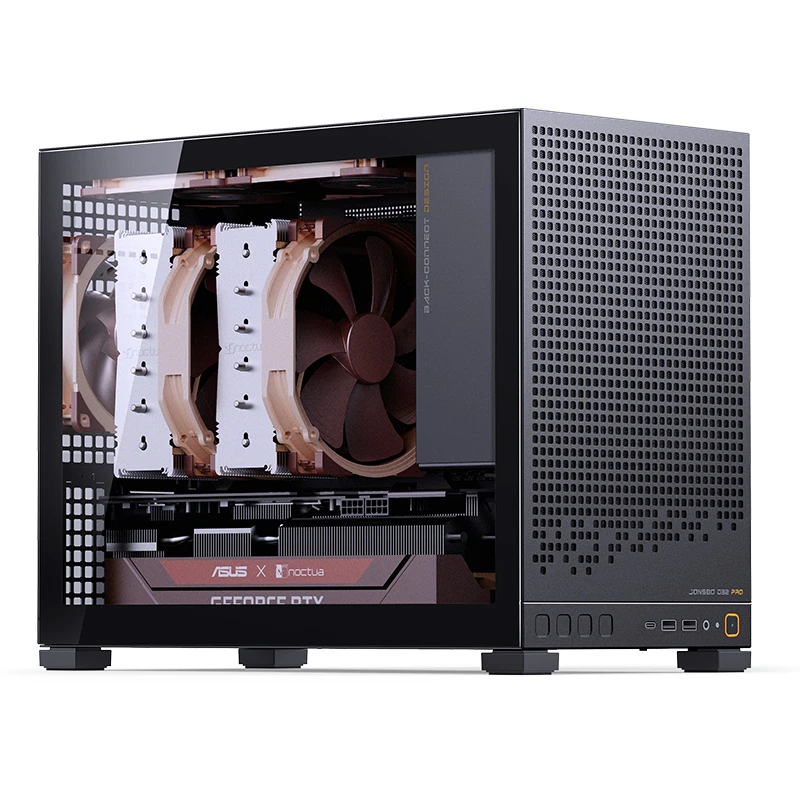

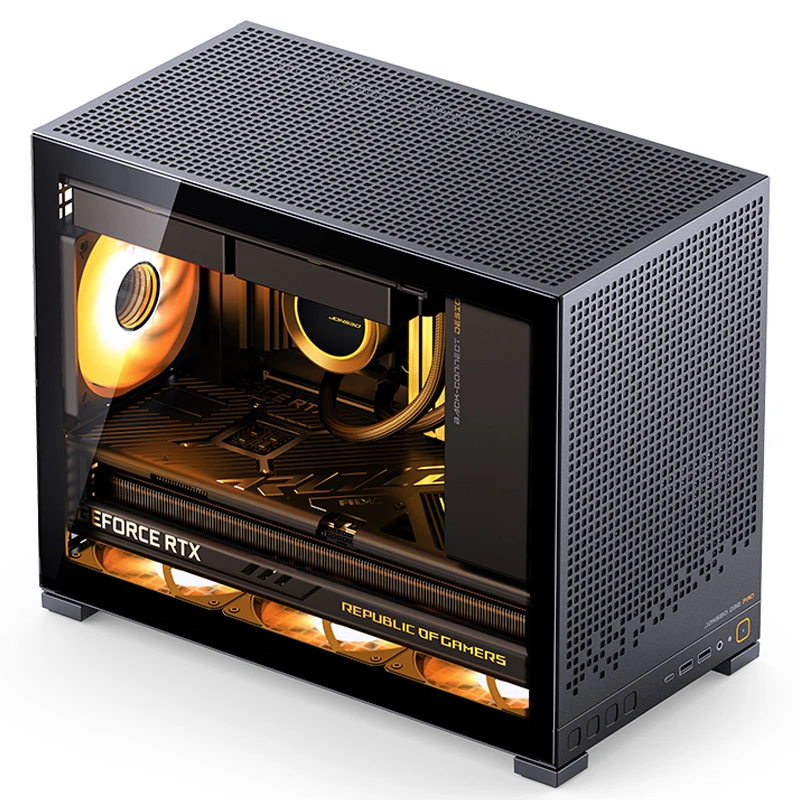

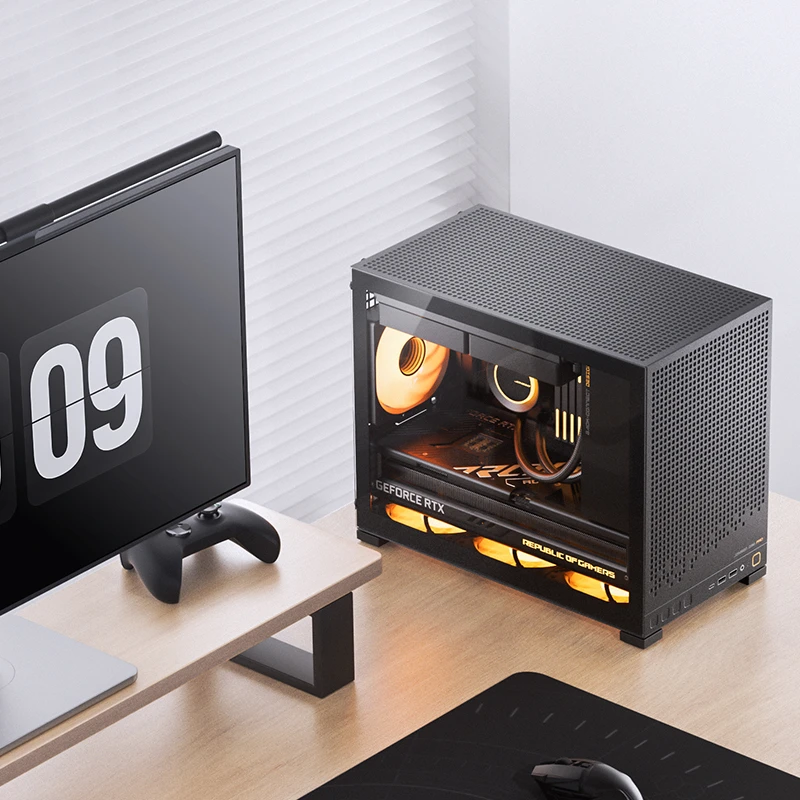

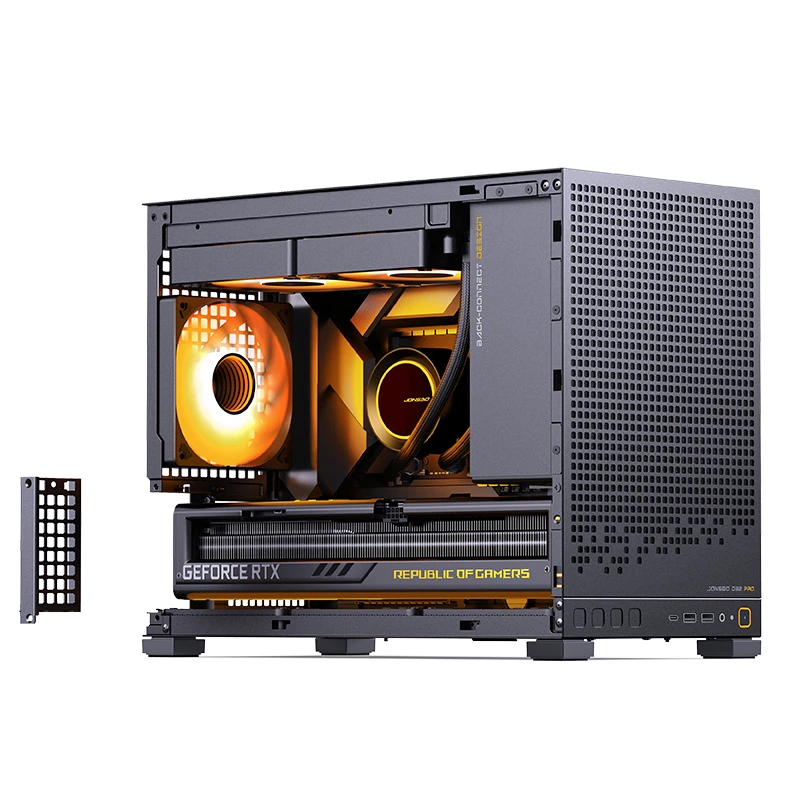

Images show example builds. Computer hardware and accessories not listed as included are sold separately.
