JONSBO 喬思伯 TK-0 白色 機殼
JONSBO TK-0 White PC Case
TK-0 將鋁合金、鋼板與北美胡桃木結合於 ITX 機身。支援 SFX 電源供應器與最長 230mm 顯示卡，頂部、底部及後方可另配風扇。
產品規格
產品型號：TK-0 白色
產品尺寸：235mm(W) * 250mm(D) * 280mm(H)
材質：2.5mm鋁合金/1mm鋼板/16mm北美胡桃木
硬盤位： 3.5"HDD*1/2.5"SSD*1
相容主機板：ITX
前 I/O 端口： USB3.2 Gen2 Type-C*1/USB3.0*1/AUDIO*1+MIC*1(2合1)
電源供應器: SFX≤160mm
散熱器: ≤137mm
顯示卡: ≤ 230mm
風扇（選配）: 頂板120mm*1/140mm*1(選配) 底板120mm*1/140mm*1(選配) 后板90mm*2(選配)
重量: 淨重 4.3kg 毛重 5.32kg

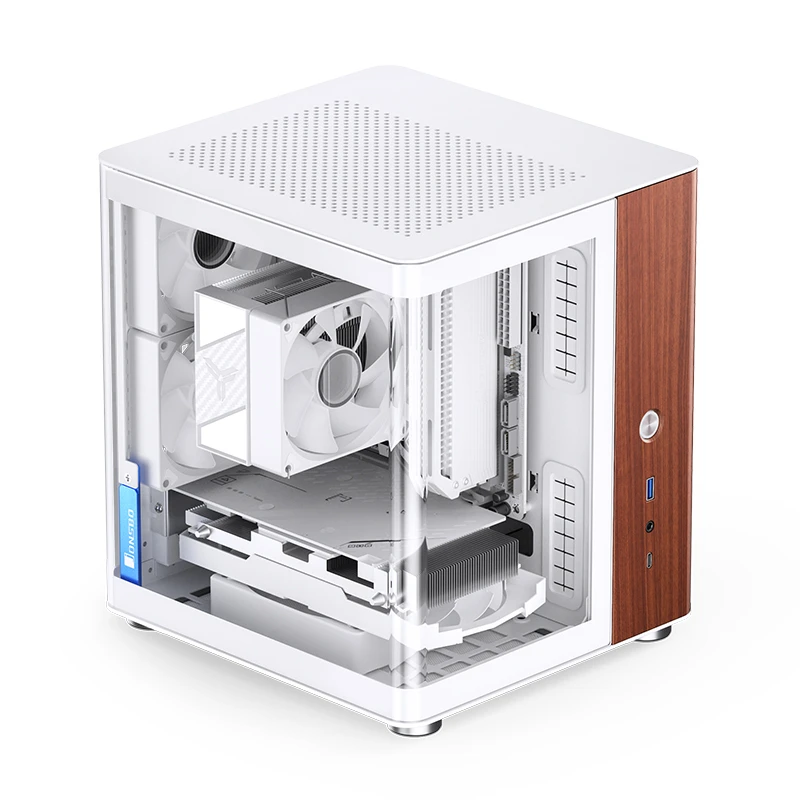

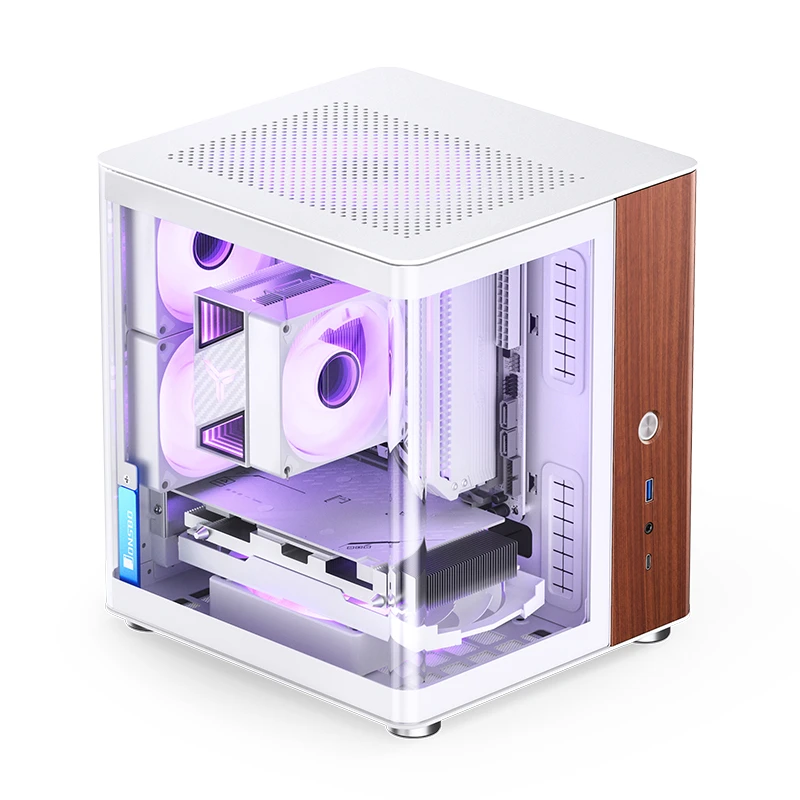

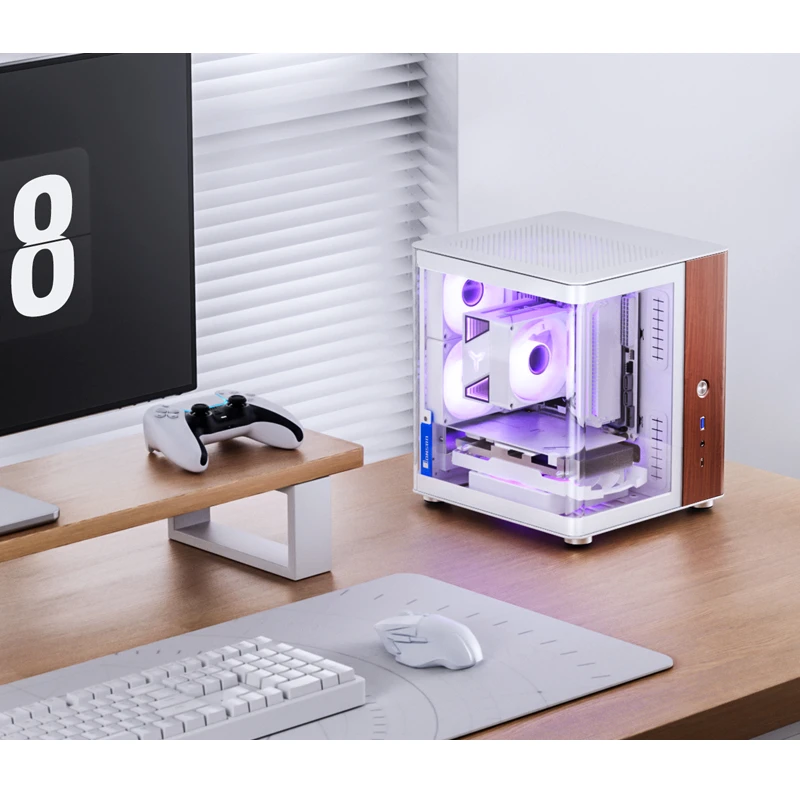

圖片為裝機示意；電腦硬體及未列為隨附的配件需另購。
The TK-0 combines aluminum alloy, steel and North American walnut in an ITX case. It supports SFX power supplies and GPUs up to 230mm, with optional fans at the top, bottom and rear.
Technical specifications
Model: TK-0 White
Dimensions: 235mm(W) * 250mm(D) * 280mm(H)
Materials: 2.5mm aluminum alloy /1mm steel /16mm North American walnut
Drive bays: 3.5"HDD*1/2.5"SSD*1
Motherboard support: ITX
Front I/O: USB3.2 Gen2 Type-C*1/USB3.0*1/AUDIO*1+MIC*1(2-in-1)
PSU: SFX≤160mm
CPU cooler height limit: ≤137mm
GPU: ≤ 230mm
Fans (optional, not included): Top 120mm*1/140mm*1(optional, not included) Bottom 120mm*1/140mm*1(optional, not included) Rear 90mm*2(optional, not included)
Weight: Net weight 4.3kg Gross weight 5.32kg
Images show example builds. Computer hardware and accessories not listed as included are sold separately.
