JONSBO 喬思伯 Z20 MESH 黑色 機殼

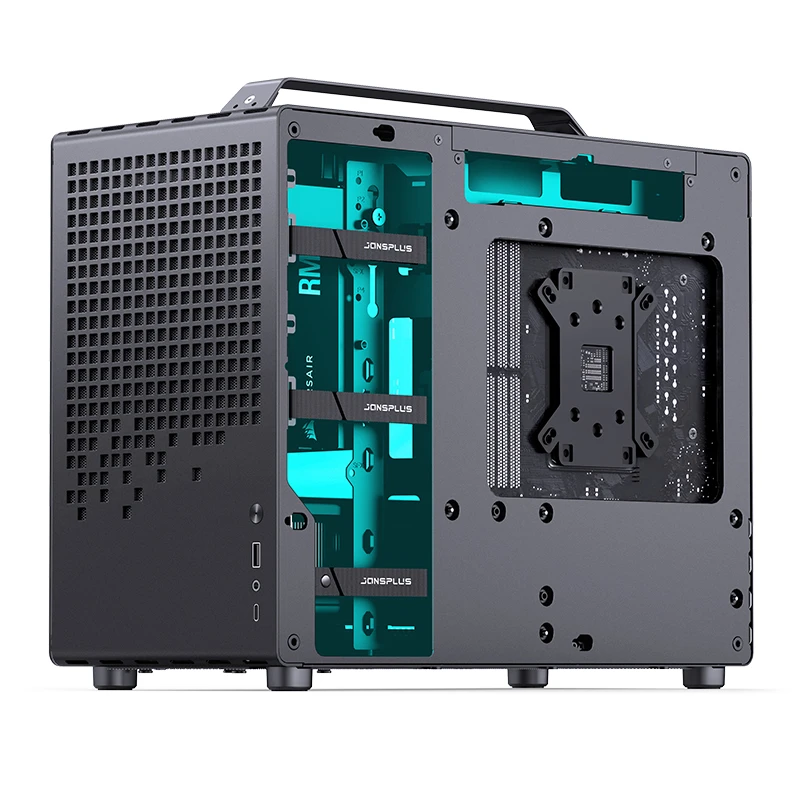

The Z20 supports Mini-ITX and Micro-ATX motherboards, a top-mounted 240mm radiator and multiple fan positions. Available GPU, PSU and drive space depends on the other installed components and should be checked together before assembly. Technical specifications Model: Z20 Color: MESH Edition Black Dimensions (excluding handle, feet and other protrusions): 370mm * 186mm* 295mm(D/W/H) Dimensions (including handle, feet and other protrusions): 382mm * 198mm* 335mm(D/W/H) Case materials: SPCC steel Motherboard support: Mini-ITX / Micro-ATX Drive bays: 2.5-inch SSD: up to 3, actual capacity depends on the other installed components 3.5-inch HDD: up to 1, actual capacity depends on the other installed components Front I/O: USB3.2 Gen1 Type-A*1/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1 Fans: Top: 120mm*2/140mm*2; Rear: 120mm*1/92mm*1; Bottom: 120mm*2/140mm*2, actual capacity depends on the other installed components Radiator support: Top 240mm ATX PS2 PSU compatibility: maximum length 180mm, recommended length ≤ 140mm, depending on the other installed components SFX PSU compatibility: SFX/SFX-L CPU cooler height limit: maximum height 164mm MAX (Intel CPU) maximum height 163mm MAX (AMD CPU) GPU length limit: ≤363mm, depending on the other installed components Weight: Net weight 5kg / Gross weight 6.5kg Images show example builds. Computer hardware and accessories not listed as included are sold separately.
