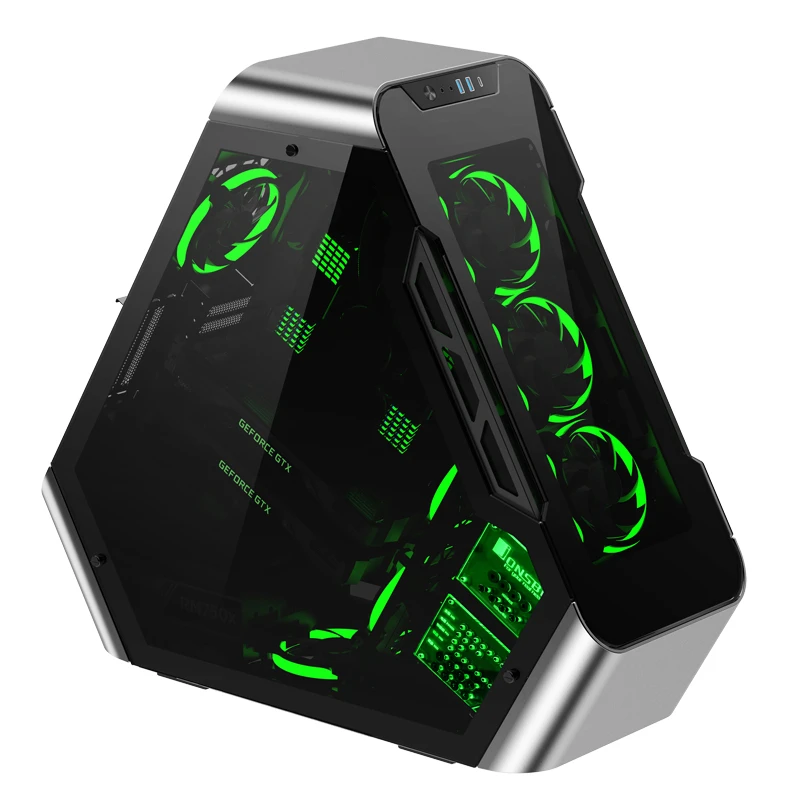

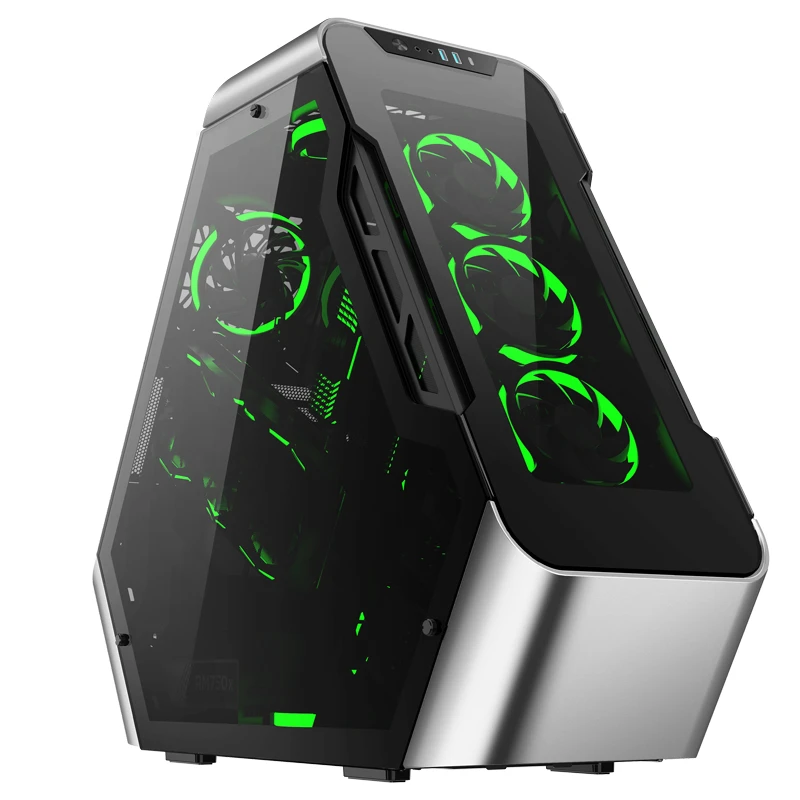

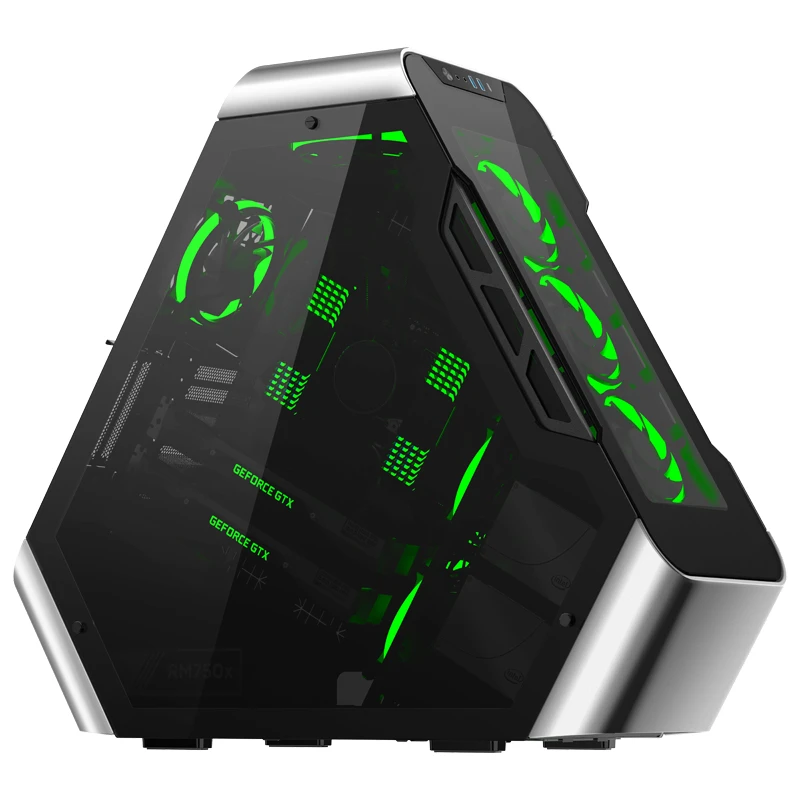

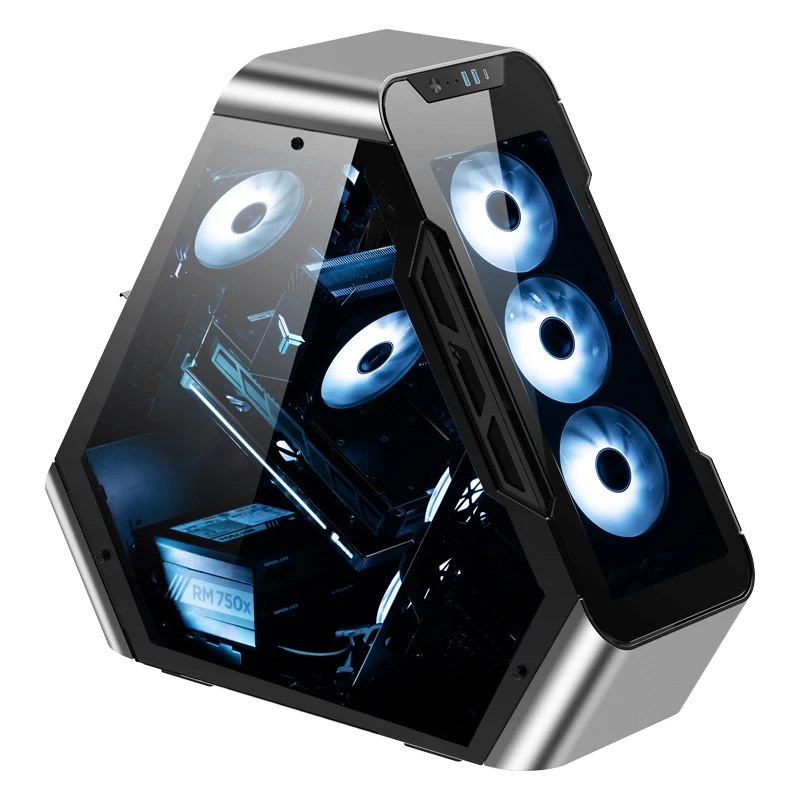

JONSBO 喬思伯 TR03-G 玻璃面板 銀色 機殼
JONSBO TR03-G Glass Panel Silver PC Case
TR03-G 以三角形金屬結構與玻璃面板呈現 ATX 主機的硬體配置。隨附兩顆不發光風扇，移除風牆組件後可將顯示卡長度空間由 320mm 增至 460mm。
產品規格
產品型號：TR03-G 玻璃面板 銀色
產品尺寸：238mm(W)*673mm(H)*595mm(D)
材質：機殼架構1.0+0.8MM鋼板；鎂鋁合金4MM（外觀三角件）；鋼化玻璃4MM（雙側板及面板）
主機板支援類型： ITX、M-ATX、ATX
驅動器位：2.5SSD*3、3.5HDD*3或2.5SSD*5、3.5HDD*1
風扇：前板：3*120mm非標配（內外壁皆可安裝）；底部：2*120mm非標配；后板：1*120mm非標配；中隔板：2*120mm非標配； 頂部：1*120mm標配黑框白葉不發光風扇；前下角：1*120mm標配黑框白葉不發光風扇
冷排：前板360/240/120； 底板240； 后板120
CPU散熱器支援高度：175mm
顯示卡支援長度：320mm、拆除風墻部件后增加到460MM
前置連接埠：USB*2、AUDIO*1、MIC*1
可支援PCI擴展槽：7個
電源供應器支援：標準ATX、電源供應器長度支援180MM
重量：淨重 15kg 毛重 17.28kg

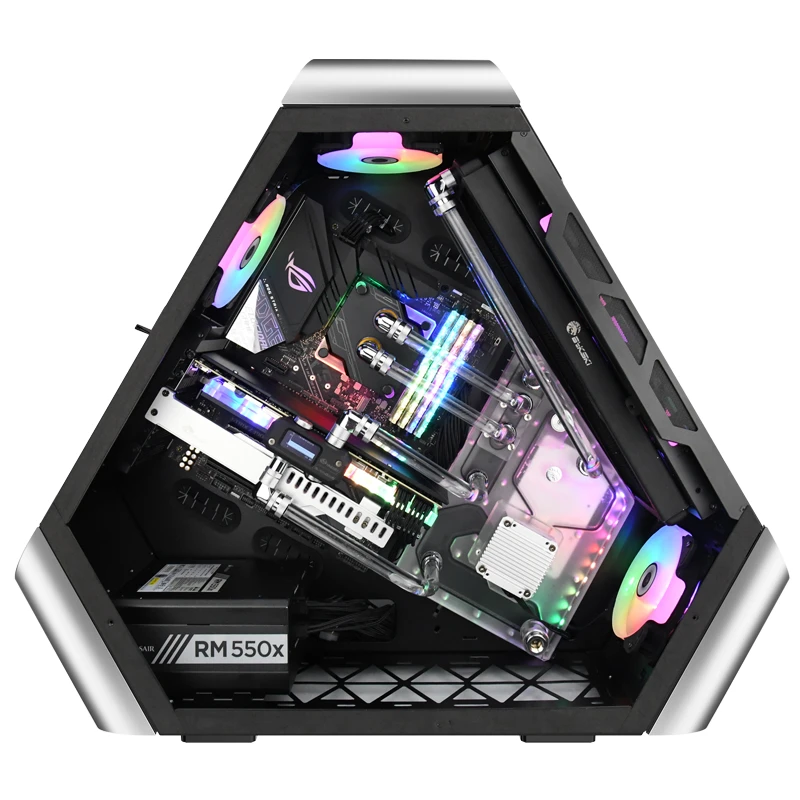

圖片為裝機示意；電腦硬體及未列為隨附的配件需另購。
The TR03-G combines a triangular metal structure and glass panels for an ATX hardware display. Two non-illuminated fans are included, and removing the fan-wall assembly increases GPU clearance from 320mm to 460mm.
Technical specifications
Model: TR03-G Glass Panel Silver
Dimensions: 238mm(W)*673mm(H)*595mm(D)
Materials: Chassis structure 1.0+0.8MM steel; magnesium-aluminum alloy 4MM (exterior triangular pieces); tempered glass 4MM (both side panels and front panel)
Motherboard support: ITX, M-ATX, ATX
Drive bays: 2.5SSD*3, 3.5HDD*3 or 2.5SSD*5, 3.5HDD*1
Fans: Front: 3*120mm not included (can be installed on either the inner or outer wall); Bottom: 2*120mm not included; Rear: 1*120mm not included; middle partition: 2*120mm not included; Top: 1*120mm included non-illuminated fans with black frames and white blades; lower front corner: 1*120mm included non-illuminated fans with black frames and white blades
Radiator support: Front 360/240/120; Bottom 240; Rear 120
CPU cooler height limit: 175mm
GPU length limit: 320mm, increases to 460mm after removing the fan-wall assembly
Front I/O: USB*2, AUDIO*1, MIC*1
PCI expansion slots: 7
PSU support: standard ATX, PSU supported length 180MM
Weight: Net weight 15kg Gross weight 17.28kg
Images show example builds. Computer hardware and accessories not listed as included are sold separately.
