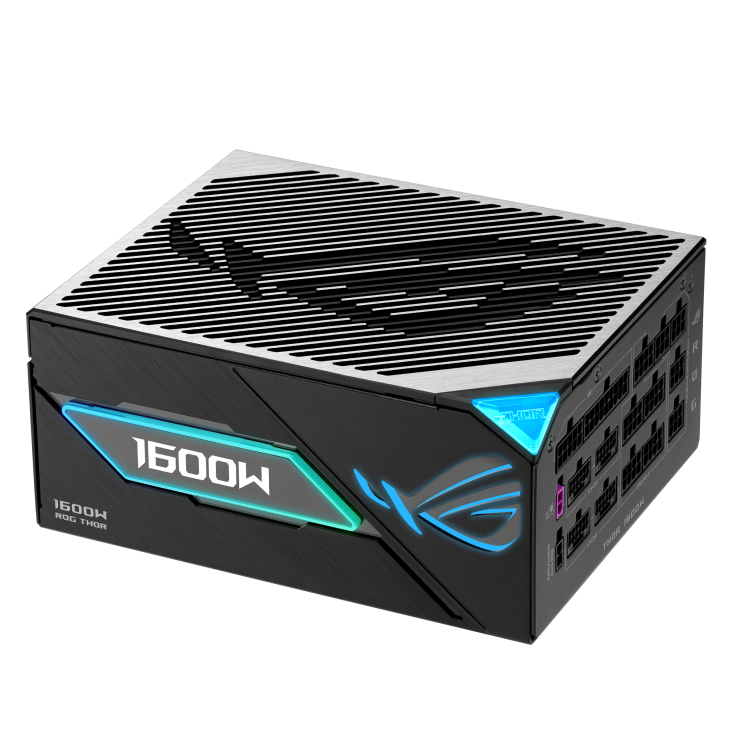

ASUS 華碩 ROG THOR III 1600W 鈦金牌 EVO 電源供應器

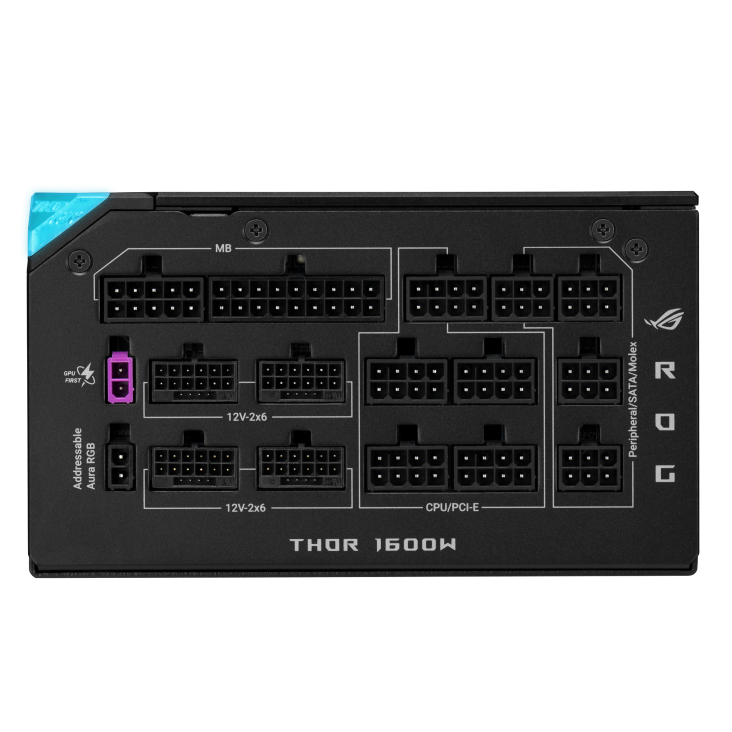

ROG THOR III 1600W Titanium EVO provides a rated output of 1600W (115V-240V). 1300W (100V-115V) with 80 Plus Titanium efficiency certification. It follows the ATX 3.1 power standard; connector counts and DC rail ratings are detailed below. Full specifications Intel form factor: ATX12V Power factor correction (PFC): Active PFC ATX standard: ATX 3.1 80 PLUS certification: 80 Plus Titanium Protection features: OPP/OVP/SCP/OCP/OTP/UVP Environmental certification: ROHS AC input voltage: 100-240Vac DC output rails: +3.3V +5V +12V -12V +5Vsb Maximum current (in DC rail order): 30A 25A 133.3A 0.3A 3A Combined output (in DC rail order): 125W 125W 1600W 3.6W 15W Rated output power: 1600W (115V-240V). 1300W (100V-115V) Connectors: MB 24/20-pin x 1 CPU 4+4-pin x 3 PCI-E 6+2-pin x 3 PCI-E 16-pin x 2 (12V-2x6/ROG EQUALIZER) SATA x 9 PERIPHERAL x 3 Package contents: Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 3 (1000mm) ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm) ROG EQUALIZER 12V-2x6 PCI-E Cable x1 (750mm) PCI-E Cable 1-to-1 x 3 (750mm) SATA Cable 1-to-3 x 3 (400+120+120mm) Peripheral 1-to-3 x 1 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG OLED stand x 1 ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 Dimensions: 190 x 150 x 86 mm Weight: 2.5 kg (single PSU) Aura Sync: Yes Mean time between failures (MTBF): >120,000 hrs @ 25°C 0dB fan button: Yes. ON: the fan starts only when the system reaches a certain load. OFF: the fan runs continuously at all loads.
