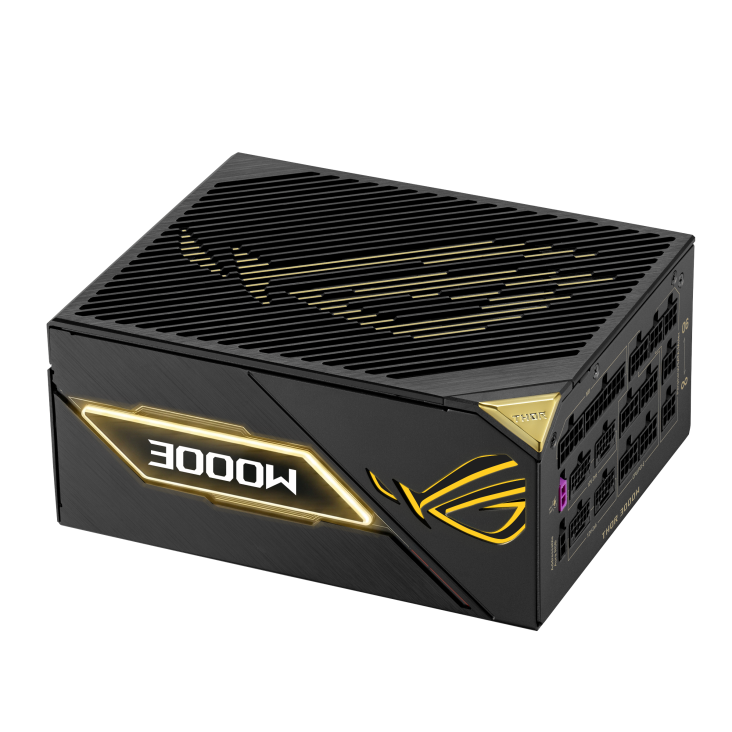

ASUS 華碩 ROG THOR 3000W III Edition 20 (ROG Equalizer) 鈦金牌 電源供應器
ASUS ROG THOR 3000W III Edition 20 (ROG Equalizer) Titanium Power Supply
ROG THOR 3000W III Edition 20 (ROG Equalizer) 鈦金牌電源供應器 在 220–240Vac 輸入下最高提供 3000W 輸出，具備 80 Plus 鈦金 效率認證。採用 ATX 3.1 供電標準，接頭配置及各路輸出如下。
完整規格
Intel 外型規格：ATX12V
功率校正 PFC：主動式 PFC
ATX 供電標準：ATX 3.1
80 PLUS 效率認證：80 Plus 鈦金
多重技術保護：OPP/OVP/SCP/OCP/OTP/UVP
環保認證：ROHS
輸入電壓(AC)：220-240Vac｜115-240Vac｜100-115Vac
輸出電壓(DC)：+3.3V +5V +12V -12V +5Vsb
最大負載：30A 25A 250A 0.3A 3A｜30A 25A 133.3A 0.3A 3A｜30A 25A 108.3A 0.3A 3A
綜合負載：125W 125W 3000W 3.6W 15W｜125W 125W 1600W 3.6W 15W｜125W 125W 1300W 3.6W 15W
額定輸出功率：3000W

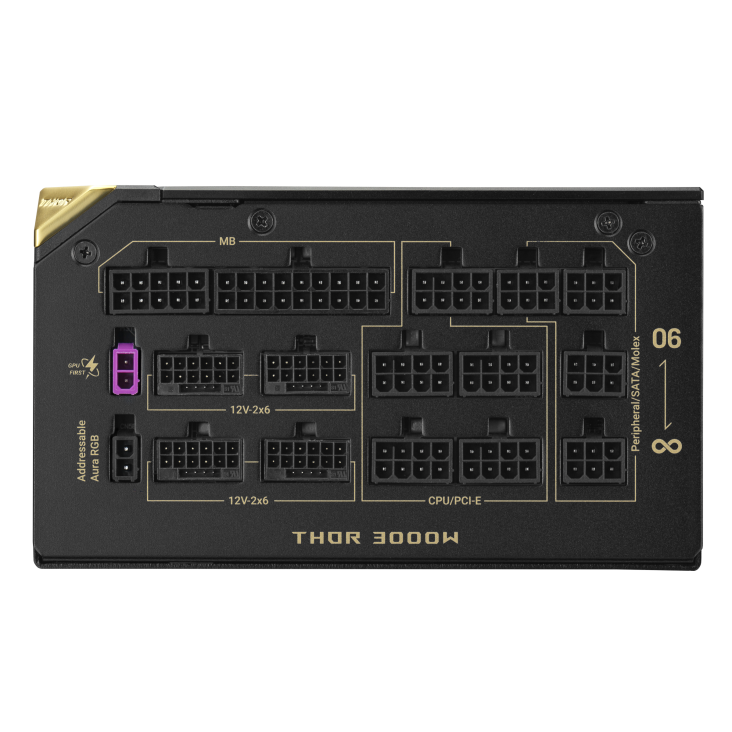

連接埠：主機板 24/20-pin x 1
CPU 4+4-pin x 3
PCI-E 6+2-pin x 3
PCI-E 16-pin x 4 (12V-2x6/ROG EQUALIZER)
SATA x 9
周邊設備 x 3
包裝內容：電源線 x 1
主機板電源線 x 1 (610mm)
CPU 線材 x 3 (1000mm)
ROG EQUALIZER 12V-2x6 PCI-E 線材 with GPU-First x1 (750mm)
ROG EQUALIZER 12V-2x6 PCI-E 線材 x3 (750mm)
PCI-E 線材 1-to-1 x 3 (750mm)
SATA 線材 1-to-3 x 3 (400+120+120mm)
周邊設備 1-to-3 x 1 (400+150+150mm)
可定址 RGB 線材 x 1 (800mm)
ROG OLED 支架 x 1
ROG 20TH 感謝卡 x 1
ROG 貼紙 x 1
ROG 束線帶 x 6
機殼螺絲包 x 1
束線帶 x 12
使用手冊 x 1
產品尺寸：190 x 150 x 86 mm
重量：2.5 kg (電源本體)

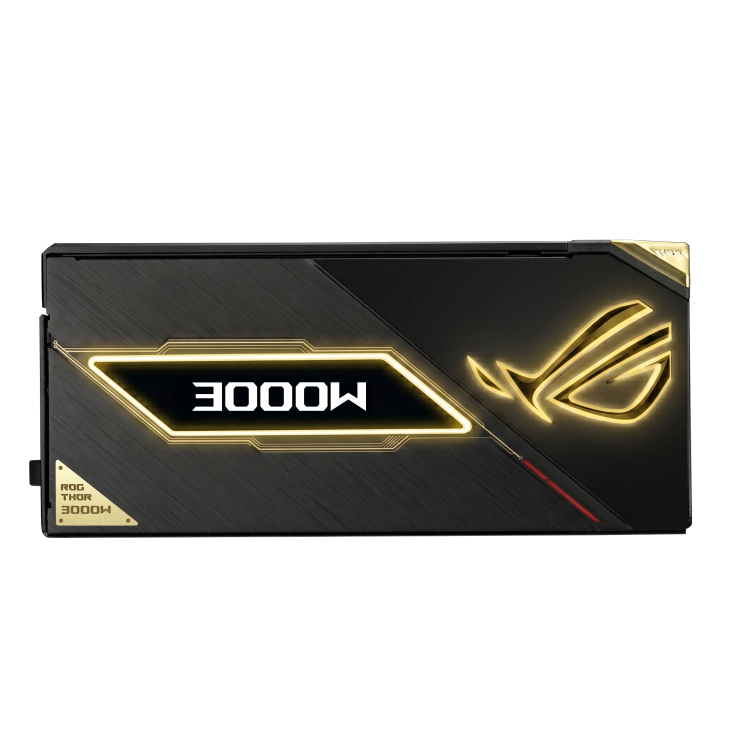

AURA SYNC：支援
平均故障間隔(MTBF)：>120,000 小時 @ 25°C

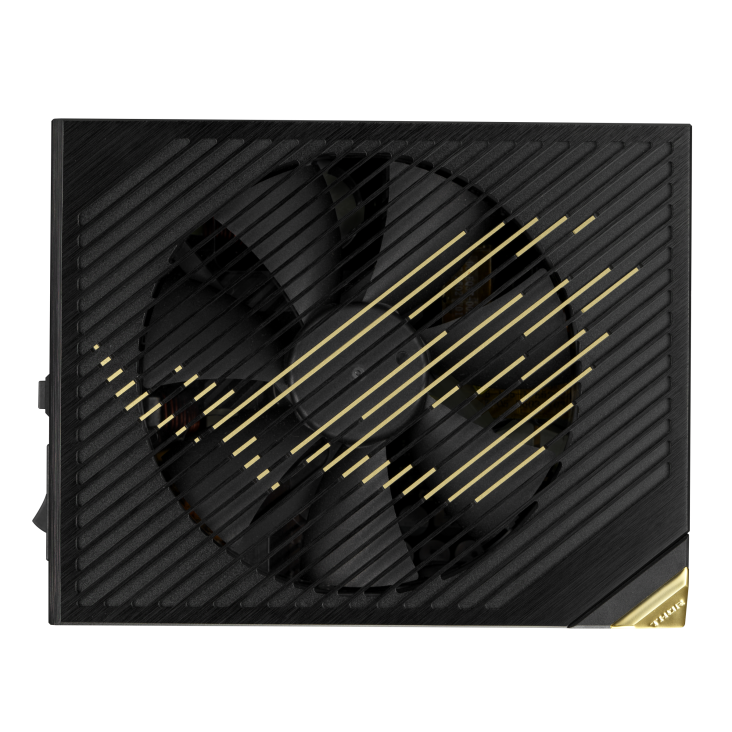

0dB 風扇按鈕：支援。
當按鈕開啟（ON）時，風扇只會在系統達到一定負載時才開始運轉。
當按鈕關閉（OFF）時，風扇會在所有負載情況下持續運轉。
保固：10 年有限保固（核心產品運作保固 10 年；RGB LED 保固 3 年。）
ROG THOR 3000W III Edition 20 (ROG Equalizer) Titanium delivers up to 3000W at 220–240Vac input with 80 Plus Titanium efficiency certification. It follows the ATX 3.1 power standard; connector counts and DC rail ratings are detailed below.
Full specifications
Intel form factor: ATX12V
Power factor correction (PFC): Active PFC
ATX standard: ATX 3.1
80 PLUS certification: 80 Plus Titanium
Protection features: OPP/OVP/SCP/OCP/OTP/UVP
Environmental certification: ROHS
AC input voltage: 220-240Vac｜115-240Vac｜100-115Vac
DC output rails: +3.3V +5V +12V -12V +5Vsb
Maximum current (in DC rail order): 30A 25A 250A 0.3A 3A｜30A 25A 133.3A 0.3A 3A｜30A 25A 108.3A 0.3A 3A
Combined output (in DC rail order): 125W 125W 3000W 3.6W 15W｜125W 125W 1600W 3.6W 15W｜125W 125W 1300W 3.6W 15W
Rated output power: 3000W
Connectors: MB 24/20-pin x 1
CPU 4+4-pin x 3
PCI-E 6+2-pin x 3
PCI-E 16-pin x 4 (12V-2x6/ROG EQUALIZER)
SATA x 9
PERIPHERAL x 3
Package contents: Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 3 (1000mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable x3 (750mm)
PCI-E Cable 1-to-1 x 3 (750mm)
SATA Cable 1-to-3 x 3 (400+120+120mm)
Peripheral 1-to-3 x 1 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)
ROG OLED stand x 1
ROG 20TH Thank You Card x 1
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Dimensions: 190 x 150 x 86 mm
Weight: 2.5 kg (single PSU)
Aura Sync: Yes
Mean time between failures (MTBF): >120,000 hrs @ 25°C
0dB fan button: Yes.
ON: the fan starts only when the system reaches a certain load.
OFF: the fan runs continuously at all loads.
Warranty: 10-year limited(Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.)
