電源供應器
ASUS 華碩 TUF-GAMING-1000P 電源供應器
ASUS TUF-GAMING-1000P Power Supply
TUF-GAMING-1000P 提供 1000W 額定輸出，具備 80Plus 白金 效率認證。採用 ATX 3.1 供電標準，接頭配置及各路輸出如下。
完整規格
功率校正 PFC：主動式 PFC
ATX 供電標準：ATX 3.1
80 PLUS 效率認證：80Plus 白金
Cybenetics 效率認證：白金 (230V) ; 白金 (115V)
多重技術保護：OPP/OVP/UVP/SCP/OCP/OTP
環保認證：ROHS
輸入電壓(AC)：100-240Vac
輸出電壓(DC)：+3.3V +5V +12V -12V +5Vsb
最大負載：25A 25A 83.3A 0.3A 3A
綜合負載：125W 125W 1000W 3.6W 15W
額定輸出功率：1000W

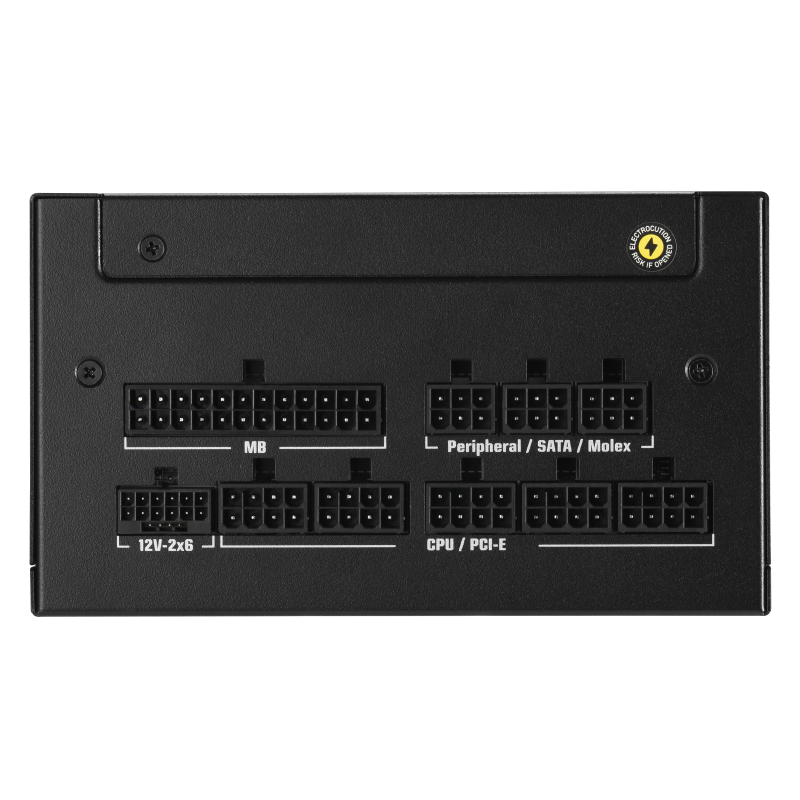

連接埠：主機板 20+4-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (12V-2x6)
PCI-E 6+2-pin x 3
SATA x 6
周邊設備 x 3

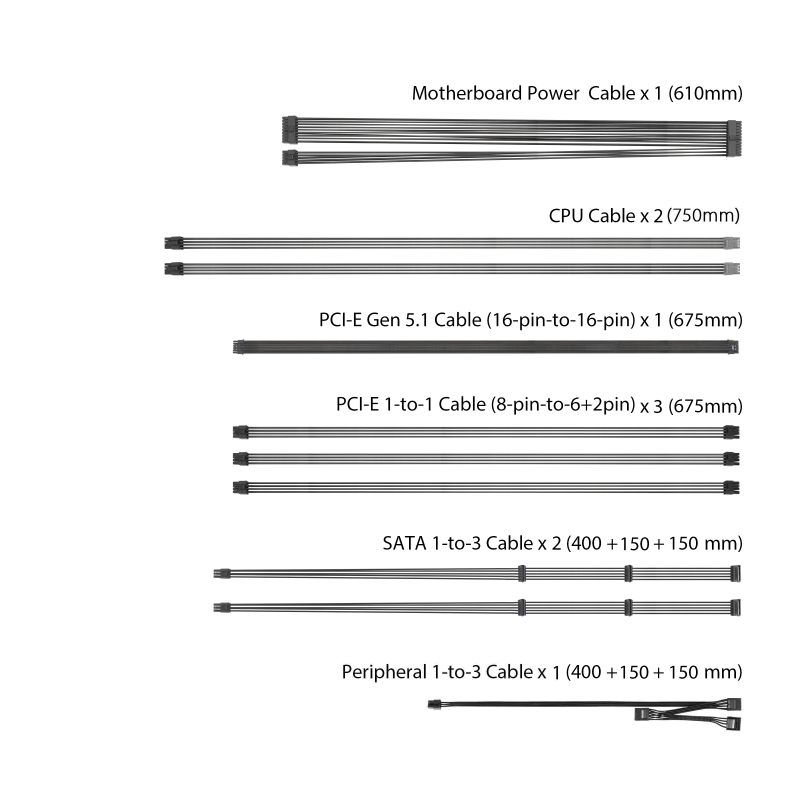

包裝內容物：電源線 x 1
主機板電源線 x 1 (610mm)
CPU 1-to-1 線材 x 2 (750mm)
PCI-E Gen 5.1 線材 (16-pin-to-16-pin) x 1 (675mm)
PCI-E 1-to-1 線材 (8-pin-to-6+2pin) x 3 (675mm)
SATA 1-to-3 線材 x 2 (400+150+150mm)
周邊設備 1-to-3 線材 x 1 (400+150+150mm)
TUF Gaming 束線帶 x 3
使用手冊 x 1
產品尺寸：150 x 150 x 86 mm
重量：1.51 kg (電源本體)
Cybenetics 噪音等級認證：A+
AURA SYNC：不支援
平均故障間隔(MTBF)：>120,000 小時 @ 40°C
0dB 風扇按鈕：無，此產品不支援 0dB 技術。
保固：8 年
TUF-GAMING-1000P provides a rated output of 1000W with 80Plus Platinum efficiency certification. It follows the ATX 3.1 power standard; connector counts and DC rail ratings are detailed below.
Full specifications
Power factor correction (PFC): Active PFC
ATX standard: ATX 3.1
80 PLUS certification: 80Plus Platinum
Cybenetics efficiency certification: Platinum (230V) ; Platinum (115V)
Protection features: OPP/OVP/UVP/SCP/OCP/OTP
Environmental certification: ROHS
AC input voltage: 100-240Vac
DC output rails: +3.3V +5V +12V -12V +5Vsb
Maximum current (in DC rail order): 25A 25A 83.3A 0.3A 3A
Combined output (in DC rail order): 125W 125W 1000W 3.6W 15W
Rated output power: 1000W
Connectors: MB 20+4-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (12V-2x6)
PCI-E 6+2-pin x 3
SATA x 6
PERIPHERAL x 3
Package contents: Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU 1-to-1 Cable x 2 (750mm)
PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (675mm)
PCI-E 1-to-1 Cable (8-pin-to-6+2pin) x 3 (675mm)
SATA 1-to-3 Cable x 2 (400+150+150mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Dimensions: 150 x 150 x 86 mm
Weight: 1.51 kg (single PSU)
Cybenetics noise certification: A+
Aura Sync: No
Mean time between failures (MTBF): >120,000 hrs @ 40°C
0dB fan button: No; this product does not support 0dB technology.
Warranty: 8-year
