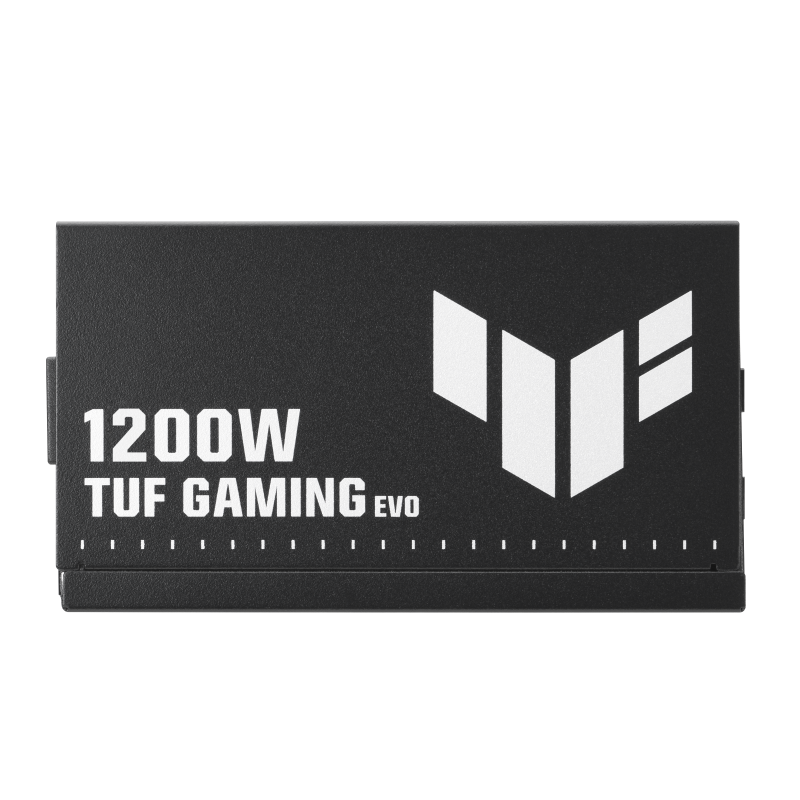

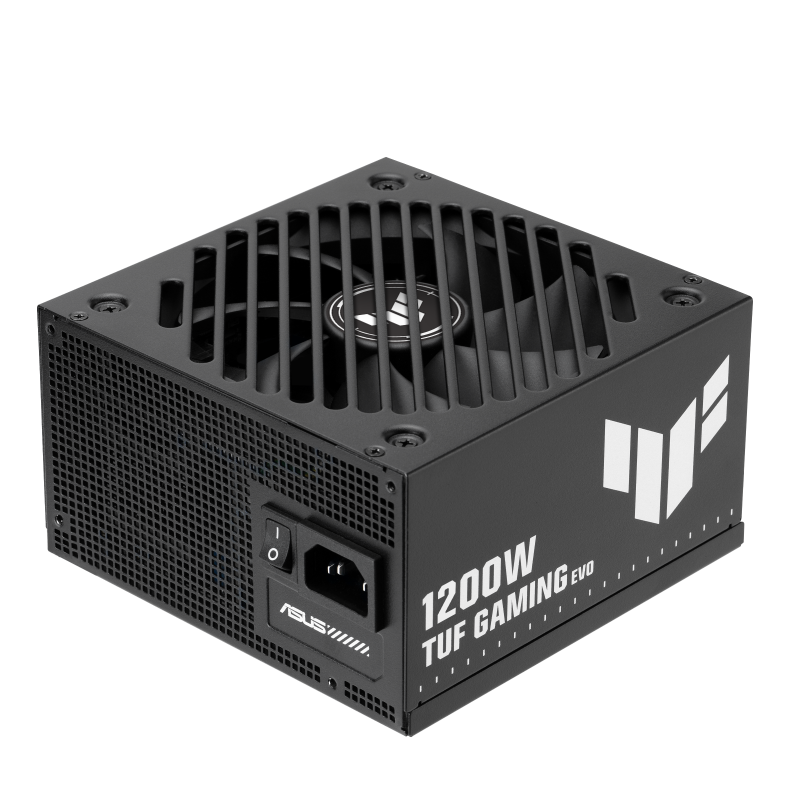

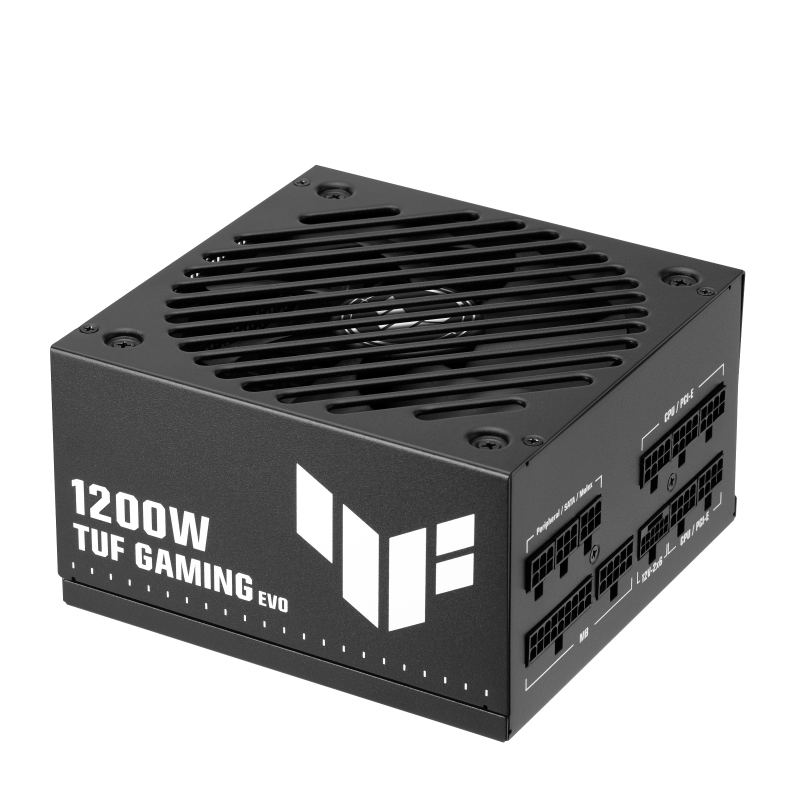

ASUS 華碩 TUF-GAMING-1200G-EVO 電源供應器
ASUS TUF-GAMING-1200G-EVO Power Supply
TUF-GAMING-1200G-EVO 提供 1200W 額定輸出，具備 80Plus 金 效率認證。採用 ATX 3.1 供電標準，接頭配置及各路輸出如下。
完整規格
功率校正 PFC：主動式 PFC
ATX 供電標準：ATX 3.1
80 PLUS 效率認證：80Plus 金
多重技術保護：OPP/OVP/UVP/SCP/OCP/OTP
環保認證：ROHS
輸入電壓(AC)：100-240Vac
輸出電壓(DC)：+3.3V +5V +12V -12V +5Vsb
最大負載：25A 25A 100A 0.3A 3A
綜合負載：125W 125W 1200W 3.6W 15W
額定輸出功率：1200W
連接埠：主機板 20+4pin x 1
CPU 4+4pin x 2
PCI-E 16pin x 1 (12V-2x6)
PCI-E 6+2pin x 3
SATA x 6
周邊設備 x 3
包裝內容物：電源線 x 1
主機板電源線 x 1 (610mm)
CPU 線材 x 2 (750mm)
PCI-E Gen 5.1 線材 (16-pin-to-16-pin) x 1 (500mm)
PCI-E 1-to-1 線材 (8-pin-to-6+2pin) x 3 (500mm)
SATA 1-to-3 線材 x 2 (400+120+120mm)
周邊設備 1-to-3 線材 x 1 (400+120+120mm)
TUF Gaming 束線帶 x 3
機殼螺絲包 x 1
使用手冊 x 1
產品尺寸：150 x 150 x 86 mm
重量：1.867 kg (電源本體)
AURA SYNC：不支援
平均故障間隔(MTBF)：>120,000 小時 @ 40°C
TUF-GAMING-1200G-EVO provides a rated output of 1200W with 80Plus Gold efficiency certification. It follows the ATX 3.1 power standard; connector counts and DC rail ratings are detailed below.
Full specifications
Power factor correction (PFC): Active PFC
ATX standard: ATX 3.1
80 PLUS certification: 80Plus Gold
Protection features: OPP/OVP/UVP/SCP/OCP/OTP
Environmental certification: ROHS
AC input voltage: 100-240Vac
DC output rails: +3.3V +5V +12V -12V +5Vsb
Maximum current (in DC rail order): 25A 25A 100A 0.3A 3A
Combined output (in DC rail order): 125W 125W 1200W 3.6W 15W
Rated output power: 1200W

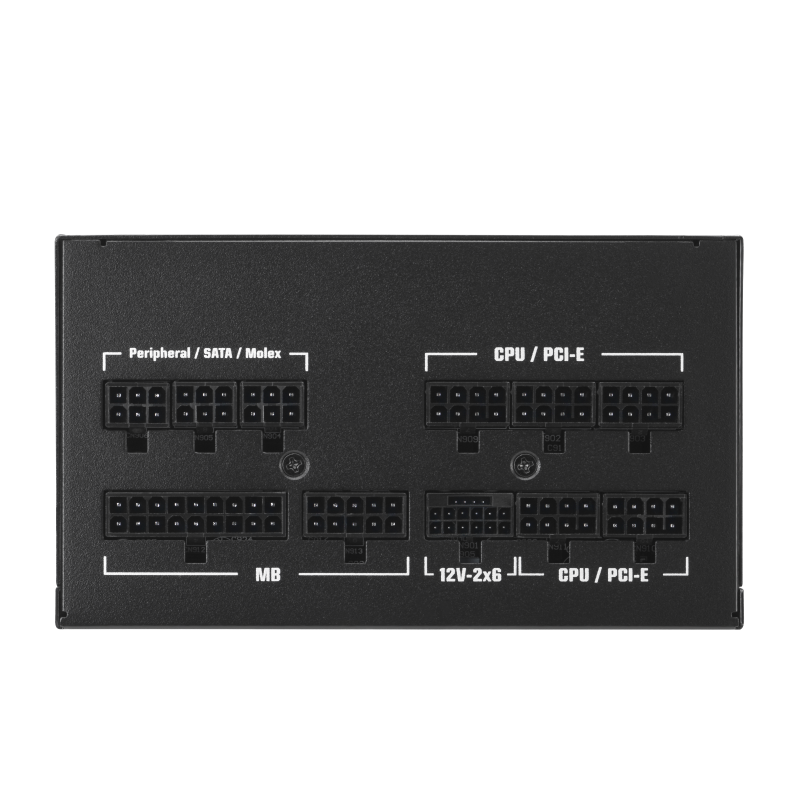

Connectors: MB 20+4pin x 1
CPU 4+4pin x 2
PCI-E 16pin x 1 (12V-2x6)
PCI-E 6+2pin x 3
SATA x 6
PERIPHERAL x 3

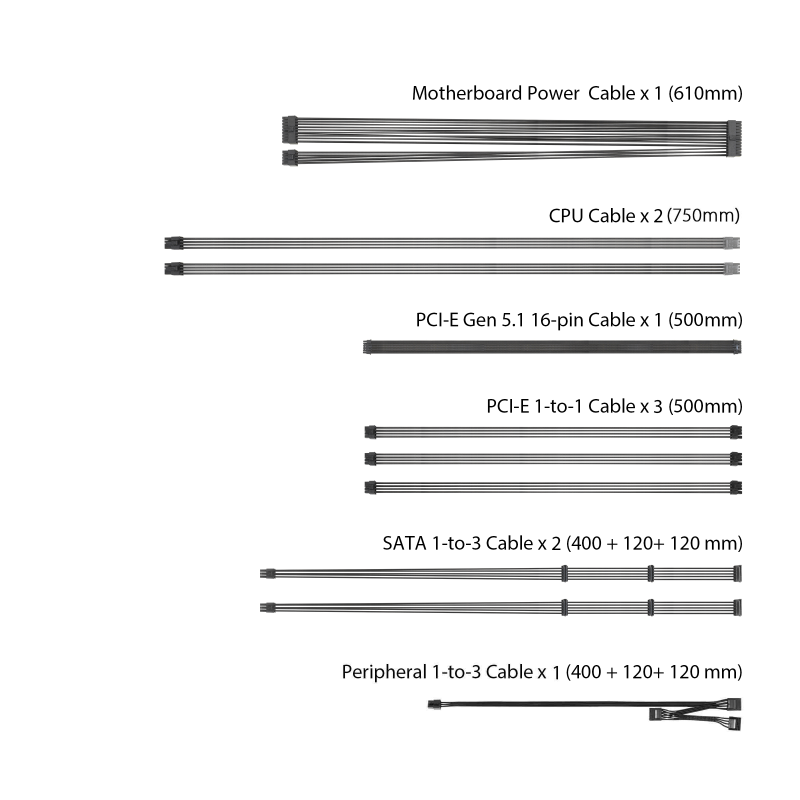

Package contents: Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (750mm)
PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (500mm)
PCI-E 1-to-1 Cable (8-pin-to-6+2pin) x 3 (500mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+120+120mm)
TUF Gaming Cable Tie x 3
Chassis screws package x 1
User Manual x 1
Dimensions: 150 x 150 x 86 mm
Weight: 1.867 kg (single PSU)
Aura Sync: No
Mean time between failures (MTBF): >120,000 hrs @ 40°C
