電源供應器

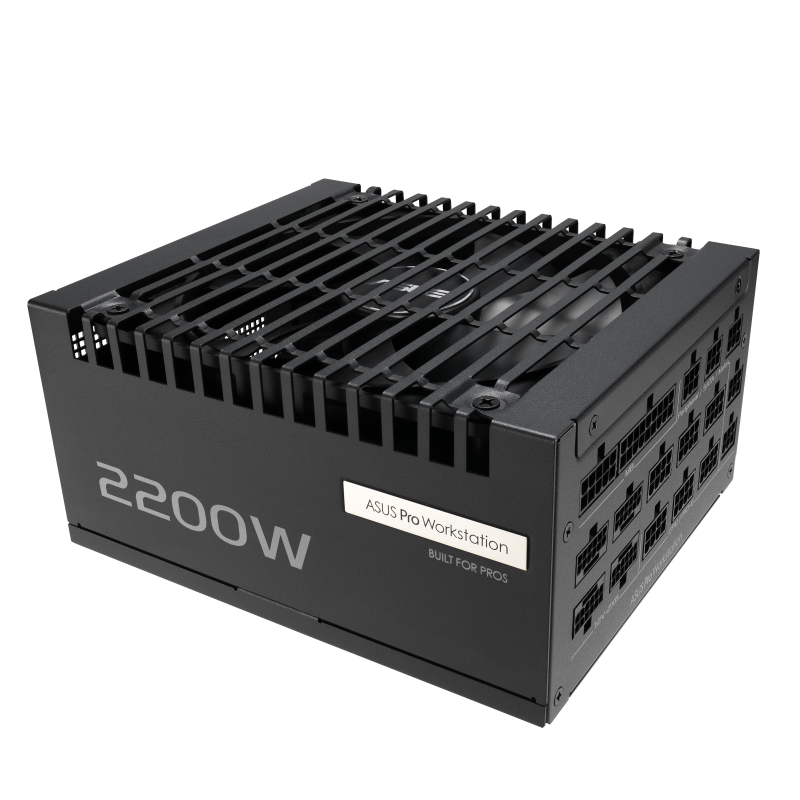

ASUS 華碩 PRO-WS-2200P 電源供應器
ASUS PRO-WS-2200P Power Supply
ASUS-PRO-WS-2200P 提供 2200W 額定輸出，具備 80Plus 白金 效率認證。輸入電壓限定為 200-240Vac，安裝前需確認供電環境。
完整規格
功率校正 PFC：主動式 PFC
ATX 供電標準：ATX 3.1
80 PLUS 效率認證：80Plus 白金
多重技術保護：OPP/OVP/UVP/SCP/OCP/OTP
環保認證：ROHS
輸入電壓(AC)：200-240Vac
輸出電壓(DC)：+3.3V +5V +12V -12V +5Vsb
最大負載：25A 25A 183.3A 0.8A 3A
綜合負載：130W 130W 2200W 9.6W 15W
額定輸出功率：2200W
連接埠：主機板 24/20-pin x 1
CPU 4+4-pin x 2
PCIE 5.1 16-pin x 4
PCIE 6+2-pin x 4
SATA x 12
周邊設備 x 3
包裝內容物：電源線 x 1
主機板電源線 x 1 (610mm)
CPU 線材 x 2 (1000mm)
PCI-E Gen 5.1 16-pin 線材 x 4 (750mm)
PCI-E 1-to-1 線材 x 4 (750mm)
SATA 1-to-3 線材 x 4 (400+120+120mm)
周邊設備 1-to-3 線材 x 1 (400+150+150mm)
機殼螺絲包 x 1
束線帶 x 6
使用手冊 x 1
產品尺寸：175 x 150 x 86 mm
重量：2.13 kg (電源本體)
AURA SYNC：不支援
0dB 風扇按鈕：無，此產品不支援 0dB 技術。
ASUS-PRO-WS-2200P provides a rated output of 2200W with 80Plus Platinum efficiency certification. Its input is limited to 200-240Vac; confirm the available mains supply before installation.
Full specifications
Power factor correction (PFC): Active PFC
ATX standard: ATX 3.1
80 PLUS certification: 80Plus Platinum
Protection features: OPP/OVP/UVP/SCP/OCP/OTP
Environmental certification: ROHS
AC input voltage: 200-240Vac
DC output rails: +3.3V +5V +12V -12V +5Vsb
Maximum current (in DC rail order): 25A 25A 183.3A 0.8A 3A
Combined output (in DC rail order): 130W 130W 2200W 9.6W 15W
Rated output power: 2200W
Connectors: MB 24/20-pin x 1
CPU 4+4-pin x 2
PCIE 5.1 16-pin x 4
PCIE 6+2-pin x 4
SATA x 12
PERIPHERAL x 3
Package contents: Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 4 (750mm)
PCI-E 1-to-1 Cable x 4 (750mm)
SATA 1-to-3 Cable x 4 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
Chassis Screws Package x 1
Cable Tie x 6
User Manual x 1
Dimensions: 175 x 150 x 86 mm
Weight: 2.13 kg (single PSU)
Aura Sync: No
0dB fan button: No; this product does not support 0dB technology.
