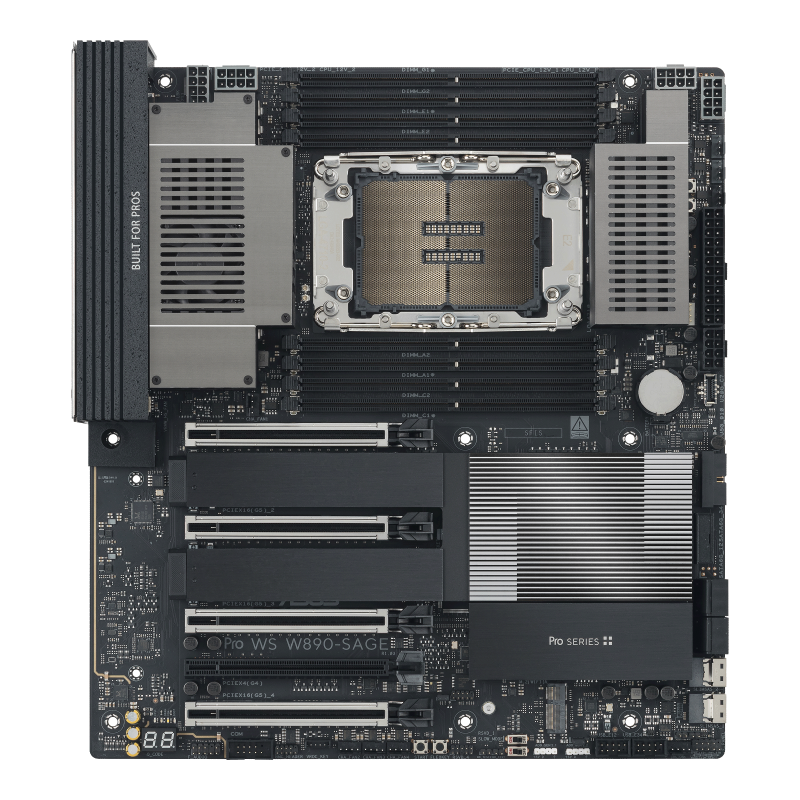

ASUS 華碩 Pro WS W890-SAGE 主機板

Pro WS W890-SAGE combines the Intel® W890 chipset with a CEB layout and DDR5 memory support. It offers 4 M.2 storage slots and 10Gb/2.5Gb wired networking; the slot and bandwidth conditions below guide component placement. Full specifications News & Updates: LGA4710-2 CPU: Intel® Socket LGA4710-2 for Xeon® 600 Processors for Workstation Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to the ASUS support page for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset: Intel® W890 Chipset Memory: 8 x DIMM slots, DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)* 4-channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit the ASUS support page Adjustments will be made based on the specifications of mass-produced memory products available on the market. Graphics: 2 x USB 40Gbps (USB4®) ports support USB Type-C® display outputs* * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Output at USB4® Type-C® 40G USB 1 or USB4® Type-C® 40G USB 2 ports, each requires a DisplayPort IN to DisplayPort adapter cable. For more information on display connection and video output configuration using the DisplayPort IN ports, please refer to the user manual. *** The display function of the Type-C® port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual. Expansion Slots: Intel® Xeon® 690/670/650/630 Series Processors* 4 x PCIe 5.0 x16 slots (supports x16 mode) Intel® W890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (the ASUS support page). ** CXL (Compute Express Link) is supported in PCIEX16(G5)_1, PCIEX16(G5)_2, PCIEX16(G5)_3, and PCIEX16(G5)_4 - To ensure compatibility of the device installed, please refer to the ASUS support page for the list of supported peripherals. Storage: Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports Intel® Xeon® 690/670/650/630 Series Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® W890 Chipset SlimSAS_1 connector supports PCIe 4.0 x4 mode SlimSAS_2 connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an SFF-8654 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports * Supports Intel® Virtual RAID on CPU (Intel® VROC) and Intel Volume Management Device (Intel®VMD) ** Intel® VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately. Ethernet: 1 x Realtek 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. USB: Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Back Panel I/O Ports: 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x Realtek 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet 2 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button 2 x DP IN ports Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 5 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 4-pin VRM Fan header (with VRM fan onboard) Power Related 1 x 24-pin Main Power connector 1 x 4-pin to 24-pin Main Power connectors 2 x 8-pin +12V CPU Power connector 2 x 8-pin PCIe to CPU power connectors 1 x 8-pin PCIe Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS connector USB 1 x USB 20Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable RGB Gen 2 header(s) 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over voltage jumper 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x M.2 slot (Key E) 1 x ReTry button 2 x RSVD header(s)/switch(es) 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin Front Panel System header 1 x VROC header 1 x Thermal Sensor header Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design - Fan-based active cooling design for VRM heatsink ASUS EZ DIY - Backplate - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - Dual DIMM clips - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable RGB Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 reliability - Overcurrent protection Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 ASUS DriverHub - ASUS CPU-Z Adobe Creative Cloud (Free Trial)** Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey * For more software features, please visit the asus support site or refer to the ASUS support page for additional information. ** For detailed information on the supported models and restricted regions for this redemption offer, please refer to the ASUS Adobe offer page Remote Management Features: IT Management software supported - ASUS Control Center Express (ACCE) Intel W890 Chipset Intel vPro® Ready for IPMI Expansion Card* 1 x BMC header * IPMI Expansion Card is sold separately. BIOS: 512 Mb Flash ROM, UEFI AMI BIOS(text-based) Manageability: WOL by PME, PXE Accessories: Cables 2 x SATA 6Gb/s cables 1 x Thermistor cable pack 1 x DisplayPort cable 1 x 4-pin to 24-pin adapter cable for ATX power connector Additional Cooling Kit 1 x detachable VRM/memory fan bracket kit Miscellaneous 1 x Q-connector 2 x M.2 Q-Slide package 2 x M.2 backplate rubber packages 1 x Screw package for M.2 Key E 1 x E2A CPU carrier (for Intel® Xeon® 690 Series Processors) 1 x E2B CPU carrier (for Intel® Xeon® 670/650/630 Series Processors) Documentation 1 x ACC Express activation key card 1 x Quick start guide Operating System: Windows 11 Form Factor: CEB Form Factor 12 inch x 11 inch (30.5 cm x 28 cm)
