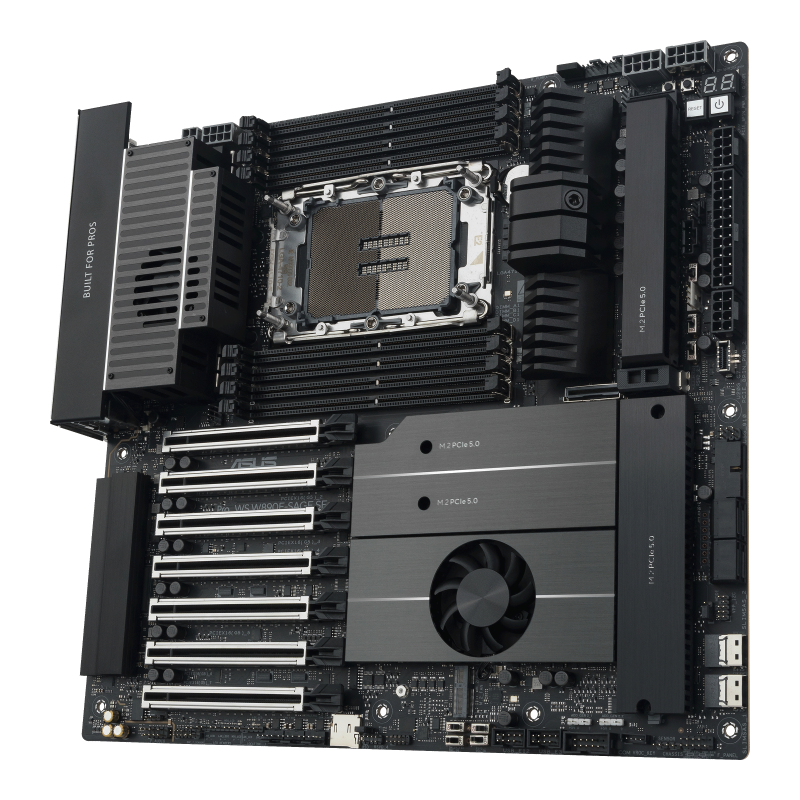

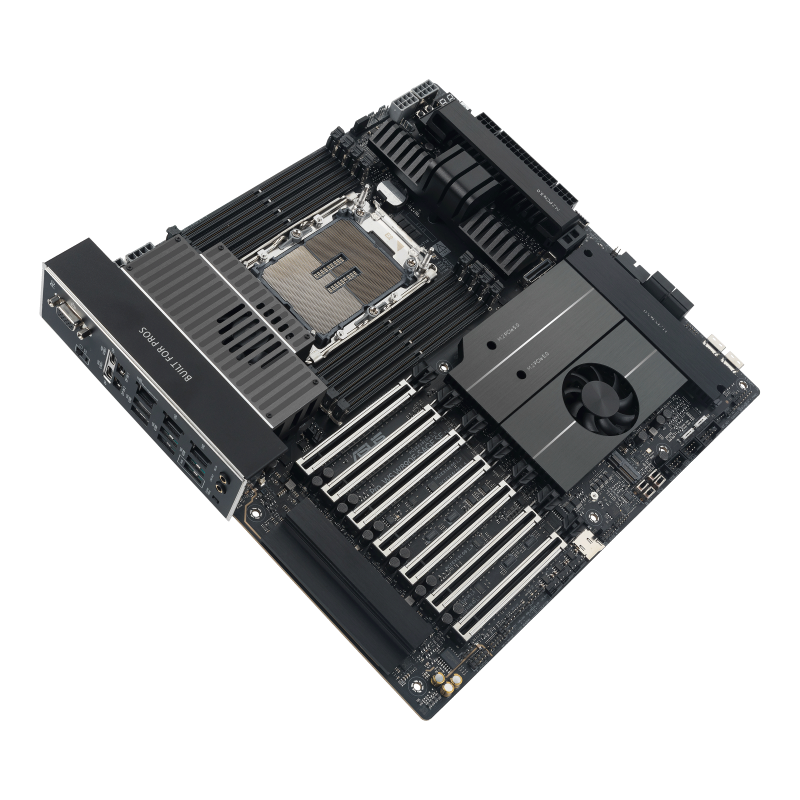

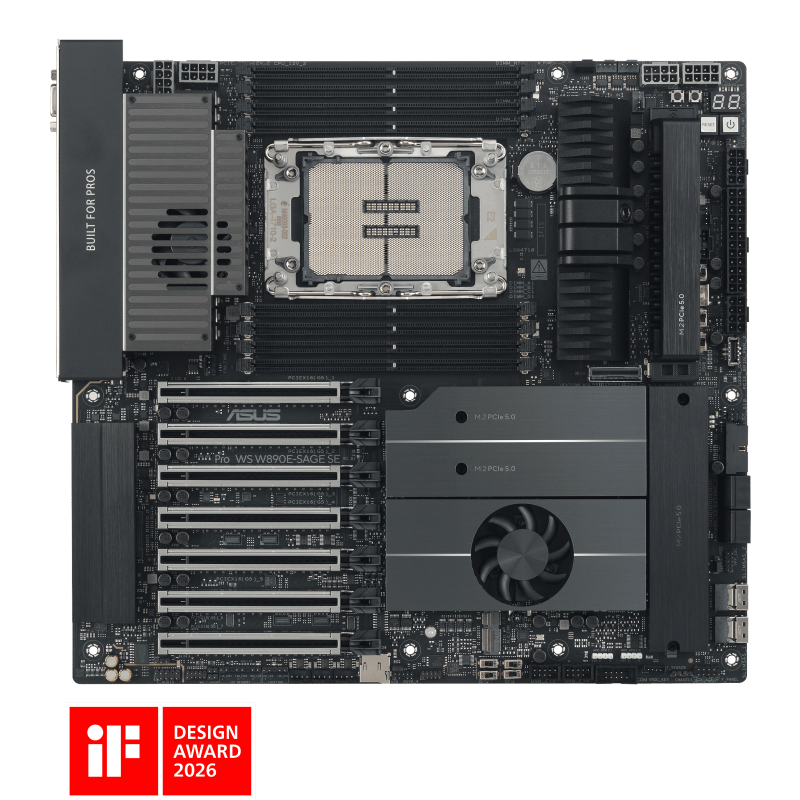

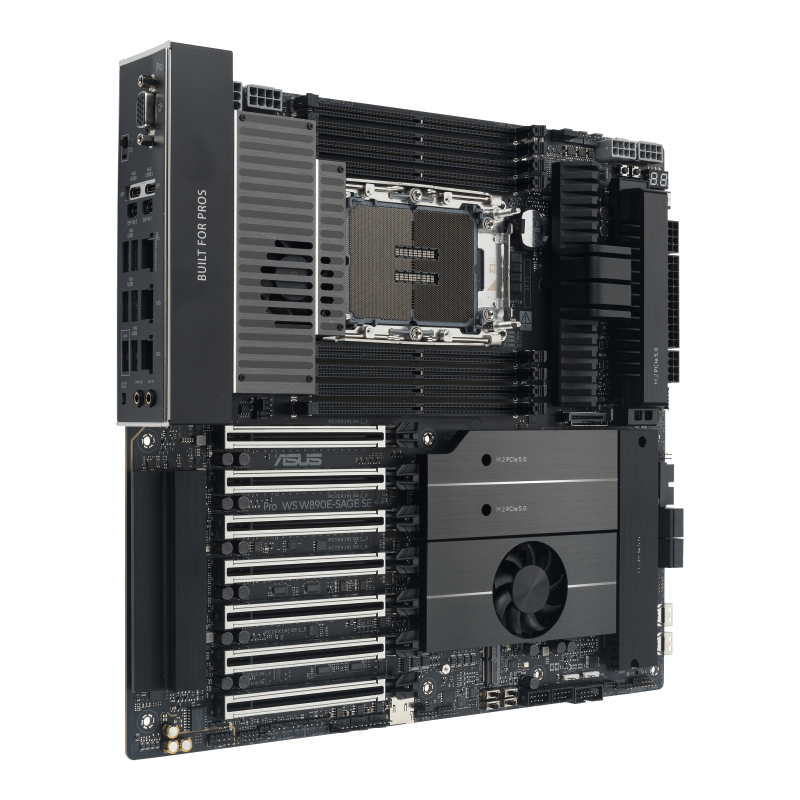

ASUS 華碩 Pro WS W890E-SAGE SE 主機板

ASUS Pro WS W890E-SAGE SE Motherboard

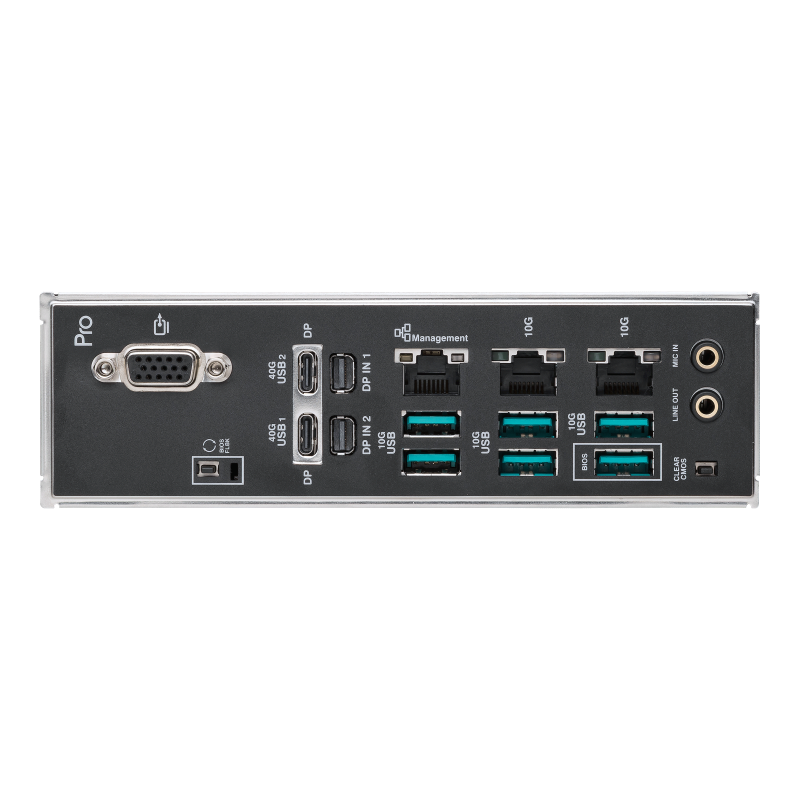

Pro WS W890E-SAGE SE 搭載 Intel® W890 晶片組，採用 EEB 配置並支援 DDR5 記憶體。提供 4 組 M.2 儲存擴充與 10Gb 有線網路，可依下列插槽及共用頻寬條件安排裝機配置。完整規格最新消息與更新： LGA4710-2 CPU： Intel® LGA4710-2 插槽，適用於 Xeon® 600 工作站處理器支援 Intel® Turbo Boost 技術 2.0 與 Intel® Turbo Boost Max 技術 3.0** * 請參閱 ASUS 支援頁以查閱 CPU 支援清單。 ** Intel® Turbo Boost Max 技術 3.0 的支援取決於 CPU 型號。晶片組： Intel® W890 晶片組記憶體： 8 x DIMM 插槽, DDR5, ECC 暫存式 DIMM (RDIMM), 3DS-RDIMM, 與多工合併 Rank DIMM (MRDIMM)* 8 通道記憶體架構支援 Intel® Extreme Memory Profile (XMP) 記憶體模組 * 使用 Intel® Xeon® 630 系列處理器時，只有 A、C、E、G 通道可運作。 ** 支援的記憶體類型、資料率（速度）及 DRAM 模組數量依 CPU 與記憶體配置而異；詳情請查閱產品資訊頁「支援」中的 CPU／記憶體支援清單，或造訪 ASUS 支援頁支援規格會依市場上量產記憶體產品的規格調整。顯示： 1 x VGA 埠來自 AST2600 2 x USB 40Gbps (USB4®) 埠支援 USB Type-C® 顯示輸出* * 支援最高 8K@60Hz ，依規範： DisplayPort 1.4. ** 透過 USB4® Type-C® 40G USB 1 或 USB4® Type-C® 40G USB 2 連接埠輸出時，各需一條 Mini DisplayPort IN 轉 DisplayPort 轉接線。使用 Mini DisplayPort IN 連接埠的螢幕連接與影像輸出配置，請參閱使用手冊。 *** Type-C® 連接埠的顯示功能取決於處理器或顯示卡支援的解析度。更多詳細資訊請參閱產品手冊。擴充插槽： Intel® Xeon® 690/670/650 系列處理器* 7 x PCIe 5.0 插槽 (七組分別為 x16/x16/x16/x16/x16/x8/x16)** Intel® Xeon® 630 系列處理器* 7 x PCIe 5.0 插槽 (七組分別為 x16/x0/x16/x0/x16/x0/x16)** * 請查閱支援網站的 PCIe 通道拆分表 (ASUS 支援頁). * 規格依 CPU 型號而異。 ** 詳情請參閱附錄中的方塊圖。 *** CXL (Compute Express Link) 僅支援於 PCIEX16(G5)_1, PCIEX16(G5)_3, PCIEX16(G5)_5, 與 PCIEX16(G5)_7 - 為確保所安裝裝置的相容性，請參閱 ASUS 支援頁的支援周邊設備清單。儲存：總計支援 4 x M.2 插槽, 2 x SlimSAS 埠, 1 x MCIO 連接埠, 與 4 x SATA 6Gb/s 埠* Intel® Xeon® 690/670/650 系列處理器** M.2_1 插槽 (Key M), 尺寸 2242/2260/2280/22110 (支援 PCIe 5.0 x4 模式) M.2_2 插槽 (Key M), 尺寸 2242/2260/2280/22110 (支援 PCIe 5.0 x4 模式) M.2_3 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 5.0 x4 模式) M.2_4 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 5.0 x4 模式) MCIO 連接埠 (支援 PCIe 5.0 x8, 與運作於 x4/x4) Intel® Xeon® 630 系列處理器** M.2_1 插槽 (Key M), 尺寸 2242/2260/2280/22110 (支援 PCIe 5.0 x4 模式) M.2_2 插槽 (Key M), 尺寸 2242/2260/2280/22110 (支援 PCIe 5.0 x4 模式) M.2_3 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 5.0 x4 模式) M.2_4 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 5.0 x4 模式) Intel® W890 晶片組* 2 x SlimSAS 埠支援 PCIe 4.0 x4 模式 NVMe 裝置 4 x SATA 6Gb/s 埠 * 規格依 CPU 型號而異。 ** 支援 Intel® Virtual RAID on CPU (Intel® VROC) 與 Intel Volume Management Device (Intel®VMD) *** Intel® VROC 技術支援 PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key 需另購。乙太網路： 1 x Intel® 雙 10Gb 乙太網路 1 x Realtek 1Gb 乙太網路* ASUS LANGuard * 此專用 LAN 連接埠僅供 BMC 及 IPMI 連線使用，不支援網際網路存取。無線網路與 Bluetooth：僅提供 M.2 插槽 (Key E, CNVi & PCIe)* * Wi-Fi 模組需另購。 USB：背板 USB (總計 8 埠) 2 x USB4® (40Gbps) 埠 (2 x USB Type-C®) 6 x USB 10Gbps 埠 (6 x Type-A) 前置 USB (總計 7 埠) 1 x USB 20Gbps 連接埠 (支援 USB Type-C®) 1 x USB 5Gbps 接頭可額外支援 2 組 USB 5Gbps 埠 2 x USB 2.0 接頭可額外支援 4 組 USB 2.0 埠 * USB Type-C® 供電輸出: 最高 5V/3A 音效： Realtek ALC1220P 7.1 聲道環繞高傳真音訊編解碼器* - 前後耳機輸出阻抗偵測 - 內建音訊擴大機，提升耳機及喇叭的音質 - 支援插孔偵測、多串流及前面板插孔重新指定功能 - 高品質 120 dB SNR 立體聲播放輸出與 113 dB SNR 錄音輸入 (Line-in) - 支援最高 32-Bit/192 kHz 播放* 音效功能 - 音效隔離設計 - 高品質音效電容 - 獨立音效 PCB 分層 - 專用爆音抑制電路 * 受 HDA 頻寬限制，7.1 環繞音效不支援 32-Bit/192 kHz。背板 I/O 連接埠： 2 x USB4® (40Gbps) (2 x USB Type-C®) 6 x USB 10Gbps 埠 (6 x Type-A) 1 x VGA 埠 2 x Mini DisplayPort IN 2 x Intel® 雙 10Gb 乙太網路埠 1 x Realtek 1Gb 乙太網路 (AST2600 專用管理網路) 2 x 音訊插孔 1 x BIOS FlashBack™ 按鈕 1 x 清除 CMOS 按鈕內部 I/O 接頭：風扇與散熱相關 1 x 4-pin CPU 風扇接頭 1 x 4-pin CPU OPT 風扇接頭 5 x 4-pin 機殼風扇接頭 1 x W_PUMP+ 接頭 2 x 4-pin VRM 風扇接頭 (其中一個 VRM 風扇已裝於板上) 1 x 4-pin M.2 風扇接頭 (M.2 風扇已裝於板上) 電源相關 1 x 24-pin 主電源連接埠 1 x 4-pin 至 24-pin 主電源連接埠 2 x 8-pin +12V CPU 電源連接埠 2 x 8-pin PCIe 至 CPU 電源連接埠 2 x 8-pin PCIe 電源連接埠儲存相關 4 x M.2 插槽 (Key M) 1 x MCIO 連接埠 4 x SATA 6Gb/s 埠 2 x SlimSAS 連接埠 USB 1 x USB 20Gbps 連接埠 (支援 USB Type-C® ) 1 x USB 5Gbps 接頭可額外支援 2 組 USB 5Gbps 埠 2 x USB 2.0 接頭可額外支援 4 組 USB 2.0 埠其他 2 x 可定址 RGB Gen 2 接頭 1 x 機殼入侵偵測接頭 1 x COM 埠接頭 1 x CPU 過電壓跳線 1 x Reset(FlexKey) 按鈕 1 x 前面板音訊接頭 (F_AUDIO) 1 x LN2 模式跳線 1 x M.2 插槽 (Key E) 7 x Probelt 量測點 1 x ReTry 重試按鈕 3 x RSVD 接頭/開關 1 x 安全開機按鈕 1 x Slow 模式切換開關 1 x 啟動按鈕 1 x 10-1 pin 前面板系統接頭 1 x RTC 電池接頭 1 x VROC key 接頭 1 x 溫度感測器接頭特色功能： ASUS 5X PROTECTION III - DIGI+ VRM (- 採用 DrMOS 的數位供電設計) - ESD Guards - LANGuard - 過電壓保護 - SafeSlot - 不鏽鋼背板 I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (搭配 PCIe SafeSlot) - Q-Code - Q-Connector - Q-LED (CPU [紅色], DRAM [黃色], VGA [白色], 開機裝置 [黃綠色]) - Q-Slot ASUS 散熱方案 - M.2 散熱背板 - M.2 散熱片 - 鋼製背板 - VRM 散熱片設計 - VRM 及 M.2 的風扇主動散熱設計：散熱片 ASUS EZ DIY - BIOS FlashBack™ 按鈕 - BIOS FlashBack™ LED - 清除 CMOS 按鈕 - 雙側 DIMM 卡扣 - ProCool II - 預裝 I/O 擋板 - SafeDIMM Aura Sync - 可定址 RGB Gen 2 接頭商務主機板設計與功能 - 24/7 穩定運作設計 - 過電流保護軟體功能： ASUS 專屬軟體 Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 ASUS DriverHub - ASUS CPU-Z Adobe Creative Cloud (免費試用)** Norton 360 Deluxe (60 天免費試用) WinRAR (40 天免費試用) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey * 更多軟體功能請參閱 ASUS 支援網站或 ASUS 支援頁。 ** 本兌換優惠的適用型號及地區限制，請參閱 ASUS Adobe 優惠頁遠端管理功能：支援 IT 管理軟體 - ASUS Control Center Express(ACCE) BMC 相關 1 x BMC 開關 1 x BMC LAN 固定 IP 開關 1 x 訊息指示燈接頭 1 x microSD 卡插槽 2 x LAN LED 接頭 1 x 定位指示燈接頭 1 x 定位按鈕接頭 1 x PSU_SMB 接頭 1 x SMART_PSU 開關 1 x VGA 開關 1 x VPP_I2C 接頭 BMC 指示燈設計 - 1 x BMC LED - 1 x 訊息指示燈 - 1 x 定位指示燈 - 1 x 定位按鈕 LED BIOS： 512Mb Flash ROM, UEFI AMI BIOS(文字介面) 管理功能： WOL by PME, PXE 配件：線材 2 x SATA 6Gb/s 線材 1 x 熱敏電阻線材包 1 x 4-pin 至 24-pin ATX 電源接頭轉接線附加散熱套件 1 x AngleBoost Fan Kit 2 x M.2 導熱墊 22110 其他 1 x Q-連接埠 1 x M.2 Q-Latch 配件包 1 x M.2 Key E 螺絲包 1 x AMI 授權貼紙 1 x M.2 背板橡膠墊包 1 x E2A CPU 固定座 (用於 Intel® Xeon® 690 系列處理器) 1 x E2B CPU 固定座 (用於 Intel® Xeon® 670/650/630 系列處理器) 文件 1 x ACC Express 啟用序號卡 1 x 快速入門指南作業系統： Windows 11 外型規格與尺寸： EEB 外型規格 12 吋 x 13 吋 (30.5 cm x 33 cm)

Pro WS W890E-SAGE SE combines the Intel® W890 chipset with a EEB layout and DDR5 memory support. It offers 4 M.2 storage slots and 10Gb wired networking; the slot and bandwidth conditions below guide component placement. Full specifications News & Updates: LGA4710-2 CPU: Intel® Socket LGA4710-2 for Xeon® 600 Processors for Workstation Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to the ASUS support page for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset: Intel® W890 Chipset Memory: 8 x DIMM slots, DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)* 8-channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module * Only channels A, C, E, and G will function when an Intel® Xeon® 630 Series Processor is in use. ** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit the ASUS support page Adjustments will be made based on the specifications of mass-produced memory products available on the market. Graphics: 1 x VGA port from AST2600 2 x USB 40Gbps (USB4®) ports support USB Type-C® display outputs* * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Output at USB4® Type-C® 40G USB 1 or USB4® Type-C® 40G USB 2 ports, each requires a Mini DisplayPort IN to DisplayPort adapter cable. For more information on display connection and video output configuration using the Mini DisplayPort IN ports, please refer to the user manual. *** The display function of the Type-C® port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual. Expansion Slots: Intel® Xeon® 690/670/650 Series Processors* 7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)** Intel® Xeon® 630 Series Processor* 7 x PCIe 5.0 slot(s) (Seven at x16/x0/x16/x0/x16/x0/x16)** * Please check the PCIe bifurcation table on the support site (the ASUS support page). * Specifications vary by CPU types. ** Please refer to the block diagrams in the Appendix for more details. *** CXL (Compute Express Link) is only supported in PCIEX16(G5)_1, PCIEX16(G5)_3, PCIEX16(G5)_5, and PCIEX16(G5)_7 - To ensure compatibility of the device installed, please refer to the ASUS support page for the list of supported peripherals. Storage: Total supports 4 x M.2 slots, 2 x SlimSAS ports, 1 x MCIO connector, and 4 x SATA 6Gb/s ports* Intel® Xeon® 690/670/650 Series Processors** M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) MCIO connector (supports PCIe 5.0 x8, and runs at x4/x4) Intel® Xeon® 630 Series Processor** M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® W890 Chipset* 2 x SlimSAS ports that support PCIe 4.0 x4 mode NVMe device 4 x SATA 6Gb/s ports * Specifications vary by CPU types. ** Supports Intel® Virtual RAID on CPU (Intel® VROC) and Intel Volume Management Device (Intel®VMD) *** Intel® VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately. Ethernet: 1 x Intel® dual 10Gb Ethernet 1 x Realtek 1Gb Ethernet* ASUS LANGuard * This dedicated LAN port is for BMC and IPMI connections only; internet access is not supported. Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. USB: Rear USB (Total 8 ports) 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) 6 x USB 10Gbps port(s) (6 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Back Panel I/O Ports: 2 x USB4® (40Gbps) (2 x USB Type-C®) 6 x USB 10Gbps port(s) (6 x Type-A) 1 x VGA port 2 x Mini DisplayPort IN 2 x Intel® dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) 2 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 5 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s) 2 x 4-pin VRM Fan header (with one of the VRM fans onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard) Power Related 1 x 24-pin Main Power connector 1 x 4-pin to 24-pin Main Power connectors 2 x 8-pin +12V CPU Power connector 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe Power connector Storage Related 4 x M.2 slots (Key M) 1 x MCIO connector 4 x SATA 6Gb/s ports 2 x SlimSAS connector USB 1 x USB 20Gbps connector (support(s) USB Type-C® ) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 2 x Addressable RGB Gen 2 header(s) 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over voltage jumper 1 x Reset(FlexKey) button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 1 x M.2 slot (Key E) 7 x Probelt measurement points 1 x ReTry button 3 x RSVD header(s)/switch(s) 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin Front Panel System header 1 x RTC Battery header 1 x VROC key header 1 x Thermal Sensor header Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design - Fan-based active cooling design for VRM and M.2 heatsinks ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - Dual DIMM clips - ProCool II - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable RGB Gen 2 header(s) Bespoke Motherboard Design & Business Focused Features - 24/7 reliability - Overcurrent protection Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 ASUS DriverHub - ASUS CPU-Z Adobe Creative Cloud (Free Trial)** Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey * For more software features, please visit the asus support site or refer to the ASUS support page for additional information. ** For detailed information on the supported models and restricted regions for this redemption offer, please refer to the ASUS Adobe offer page Remote Management Features: IT Management software supported - ASUS Control Center Express(ACCE) BMC Related 1 x BMC switch 1 x BMC LAN fixed IP switch 1 x Message LED header 1 x microSD card socket 2 x LAN LED header(s) 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VPP_I2C header BMC LED Design - 1 x BMC LED - 1 x Message LED - 1 x Location LED - 1 x Location button LED BIOS: 512Mb Flash ROM, UEFI AMI BIOS(text-based) Manageability: WOL by PME, PXE Accessories: Cables 2 x SATA 6Gb/s cables 1 x Thermistor cable pack 1 x 4-pin to 24-pin adapter cable for ATX power connector Additional Cooling Kit 1 x AngleBoost Fan Kit 2 x Thermal pad for M.2 22110 Miscellaneous 1 x Q-connector 1 x M.2 Q-Latch package(s) 1 x Screw package for M.2 Key E 1 x AMI license sticker 1 x M.2 backplate rubber package(s) 1 x E2A CPU carrier (for Intel® Xeon® 690 Series Processors) 1 x E2B CPU carrier (for Intel® Xeon® 670/650/630 Series Processors) Documentation 1 x ACC Express activation key card 1 x Quick start guide Operating System: Windows 11 Form Factor: EEB Form Factor 12 inch x 13 inch (30.5 cm x 33 cm)
