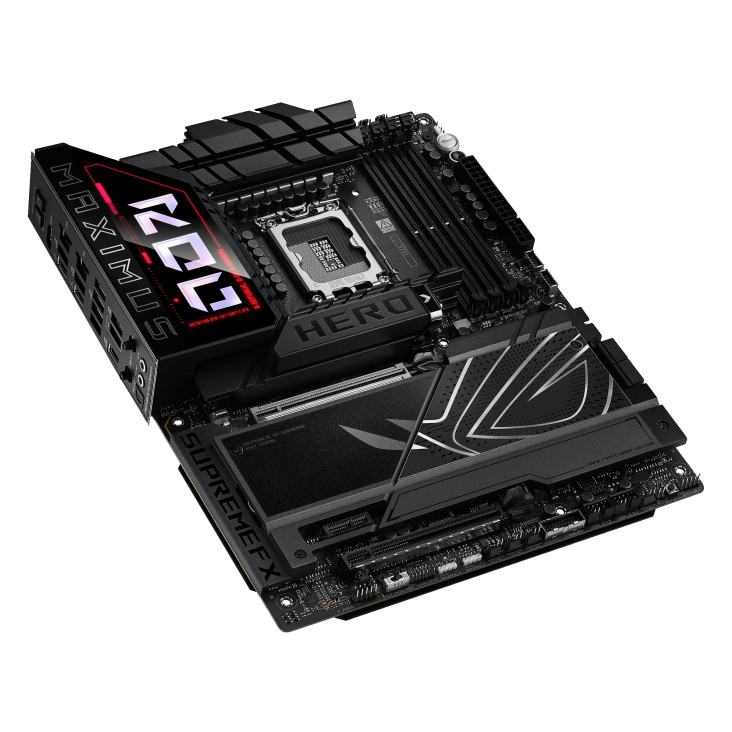

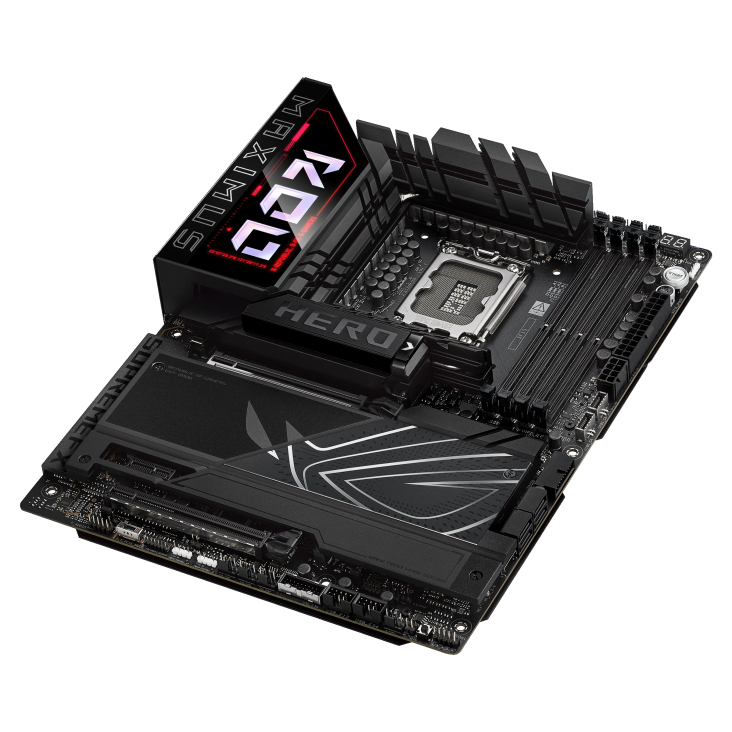

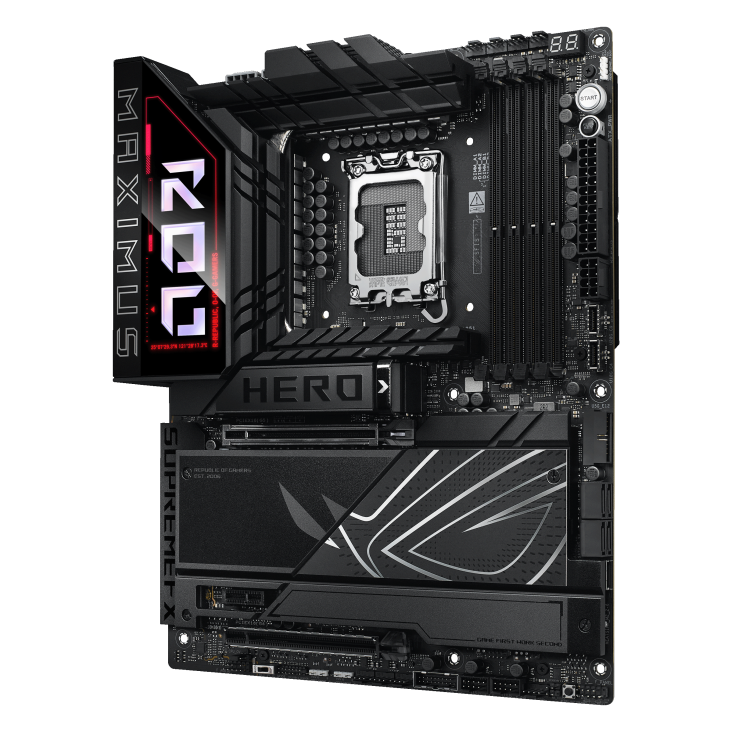

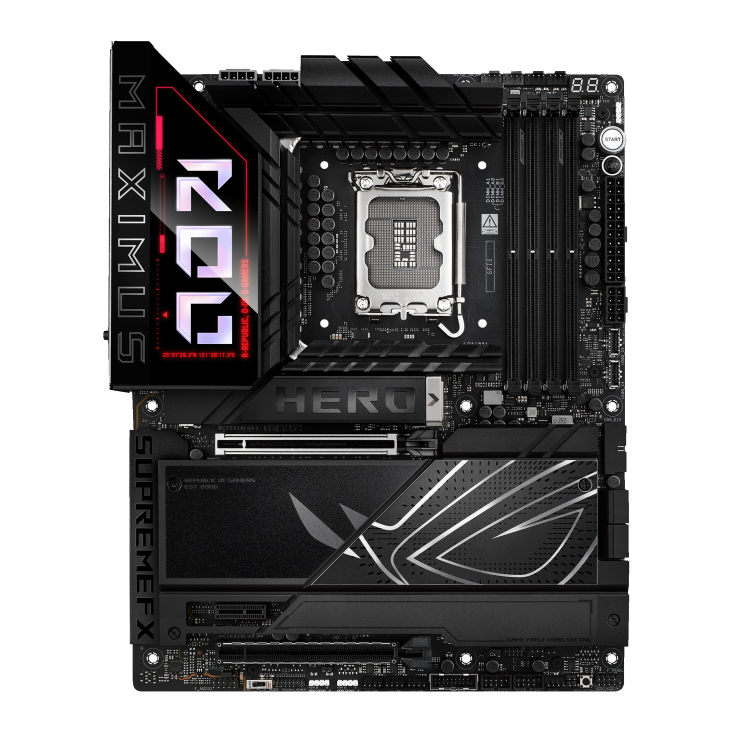

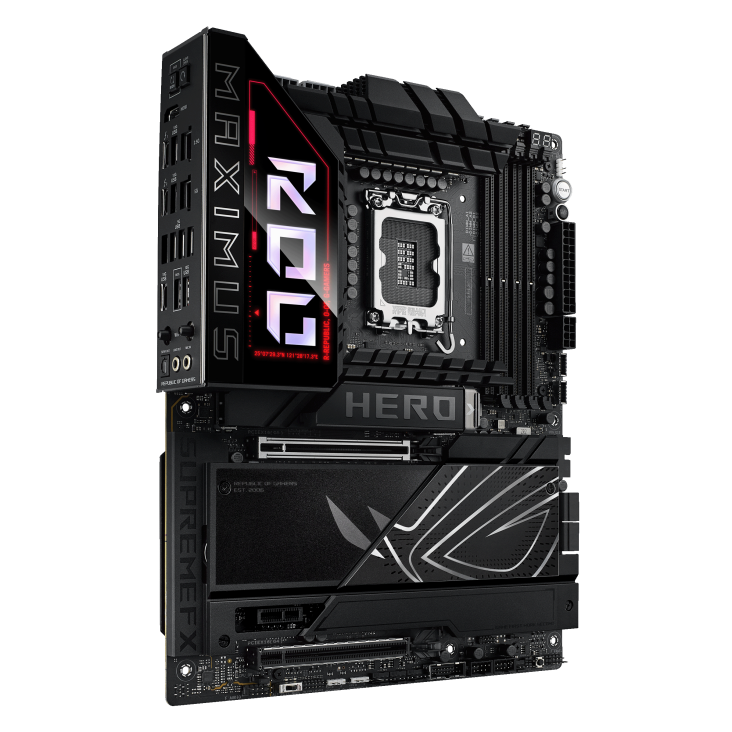

ASUS 華碩 ROG MAXIMUS Z890 HERO 主機板
ASUS ROG MAXIMUS Z890 HERO Motherboard
ROG MAXIMUS Z890 HERO 搭載 Intel® Z890 晶片組，採用 ATX 配置並支援 DDR5 記憶體。提供 6 組 M.2 儲存擴充與 Wi-Fi 7 連線，可依下列插槽及共用頻寬條件安排裝機配置。
完整規格
最新消息與更新：
Intel® Core Ultra 200S 系列更新後的作業系統支援需求如下：
•Intel® Core Ultra 200S Series: 支援 Windows 10 (版本 21H2 或更新版本) 與 Windows 11 (版本 22H2 或更新版本).
•Intel® Core Ultra 200S Plus Series: Windows 11 (版本 25H2 或更新版本) 以達完整相容性.
,
請至 ASUS 全球官網確認並下載最新更新。
CPU：
支援 Intel® Core™ Ultra 處理器 (Series 2) , LGA1851*
支援 Intel® Turbo Boost 技術 2.0 與 Intel® Turbo Boost Max 技術 3.0**
* 請參閱 ASUS 支援頁 以查閱 CPU 支援清單。
** Intel® Turbo Boost Max 技術 3.0 的支援取決於 CPU 型號。
晶片組：
Intel® Z890 晶片組
記憶體：
4 x DIMM 插槽, 最高 256GB, DDR5
支援 最高 9200+MT/s (OC), Non-ECC, 無緩衝, 時脈無緩衝 DIMM (CUDIMM)*
雙通道記憶體架構
支援 Intel® Extreme Memory Profile (XMP) 記憶體模組
支援 DIMM Flex
NitroPath DRAM 技術
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)
* 支援的記憶體類型、資料率（速度）及 DRAM 模組數量依 CPU 與記憶體配置而異；詳情請查閱產品資訊頁「支援」中的 CPU／記憶體支援清單，或造訪 ASUS 支援頁
* Non-ECC 無緩衝 DDR5 記憶體支援 On-Die ECC 功能。
顯示：
1 x HDMI™ 埠**
2 x Intel® Thunderbolt™ 4 埠 (USB Type-C®) 支援 DisplayPort 及 Thunderbolt™ 影像輸出***
* 顯示規格依 CPU 型號而異；最新資訊請參閱 Intel 官網
** 支援 最高 8K@60Hz （使用 DSC） ，依規範： HDMI 2.1.
*** 在 Thunderbolt™ 4 模式下, 支援 最高 8K@60Hz x1 （使用 DSC） 或 4K@60Hz x2, 總頻寬最高 23.8Gbps 或 16Gbps/16Gbps, 解析度支援請查閱 DisplayPort 2.1 規範。
**** 在 DP Alt 模式下, 同一時間僅有一個 USB Type-C® 連接埠支援最高 UHBR20。
***** VGA 解析度支援取決於處理器或顯示卡的解析度規格。
******安裝作業系統時，請確認螢幕連接至背板 I/O 的 HDMI 連接埠，或連接至獨立顯示卡。
擴充插槽：
Intel® Core™ Ultra 處理器 (Series 2)*
1 x PCIe 5.0 x16 插槽 (支援 x16 或 x8/x4/x4 模式)**
Intel® Z890 晶片組
1 x PCIe 4.0 x16 插槽 (支援 x4 模式)
1 x PCIe 4.0 x1 插槽
* 請查閱支援網站的 PCIe 通道拆分表 (ASUS 支援頁).
** 當 M.2_3 或 M.2_4 啟用時， PCIEX16(G5) 僅以 x8 運作.
- 為確保所安裝裝置的相容性，請參閱 ASUS 支援頁 的支援周邊設備清單。
儲存：
支援 最高 6 x M.2 插槽 與 1 x SlimSAS 連接埠 與 4 x SATA 6Gb/s 埠*
Intel® Core™ Ultra 處理器 (Series 2) *
M.2_1 插槽 (Key M), 尺寸 2242/2260/2280/22110 (支援 PCIe 5.0 x4 模式)
M.2_2 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 模式)
M.2_3 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 5.0 x4 模式)**
M.2_4 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 5.0 x4 模式)
Intel® Z890 晶片組
M.2_5 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 模式)
M.2_6 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 模式)
4 x SATA 6Gb/s 埠
SlimSAS 連接埠 支援 PCIe 4.0 x4 模式 或 最高 4 SATA 裝置（透過 轉接線. 線材需另購。
* Intel® 快速儲存技術 支援 PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 插槽 來自 CPU 僅 支援 RAID 0/1/5
** 當 M.2_3 或 M.2_4 啟用時， PCIEX16(G5) 僅以 x8 運作.
乙太網路：
1 x Intel® 2.5Gb 乙太網路
1 x Realtek 5Gb 乙太網路
ASUS LANGuard
無線網路與 Bluetooth：
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
支援 2.4/5/6GHz 頻段**
支援 Wi-Fi 7 320MHz 頻寬, 最高 5.8Gbps 傳輸速率.
Bluetooth® v5.4***
*Wi-Fi 功能依作業系統而異
在 Windows 11 上，Wi-Fi 7 完整功能需要 24H2 或更新版本；Windows 11 21H2/22H2/23H2 僅支援 Wi-Fi 6E。
Windows 10 僅支援 Wi-Fi 6。
** Wi-Fi 6GHz 頻段與頻寬規範依國家而異。
*** Bluetooth® 版本可能不同；最新規格請參閱 Wi-Fi 模組製造商網站。
USB：
背板 USB (總計 11 埠)
2 x Thunderbolt™ 4 埠 (2 x USB Type-C®)
5 x USB 10Gbps 埠 (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps 埠 (4 x Type-A)
前置 USB (總計 10 埠)
1 x USB 20Gbps 連接埠 (支援 USB Type-C® 搭配 最高 60W PD/QC4+)**
1 x USB 10Gbps 連接埠 (支援 USB Type-C®)
2 x USB 5Gbps 接頭 可額外支援 4 組 USB 5Gbps 埠
2 x USB 2.0 接頭 可額外支援 4 組 USB 2.0 埠
* USB Type-C® 供電輸出: 最高 5V/3A
** USB Type-C® 供電輸出: 5/9/15/20V 最高 3A, PPS:3.3–21V 最高 3A
音效：
ROG SupremeFX 7.1 聲道環繞高傳真音訊編解碼器 ALC4082*
- 前後耳機輸出阻抗偵測
- 支援插孔偵測、多串流及前面板麥克風插孔重新指定功能
- 高品質 120 dB SNR 立體聲播放輸出 與 110 dB SNR 錄音輸入
- 支援 最高 32-Bit/384 kHz 於前面板播放
音效功能
- SupremeFX 屏蔽技術
- ESS® ES9219 QUAD DAC
- 鍍金音訊插孔
- 背板光纖 S/PDIF 輸出埠
- 高品質音效電容
* 背板 LINE OUT 連接埠不支援空間音效；使用空間音效時，請將音訊輸出裝置接至機殼前面板音訊插孔，或使用 USB 介面音訊裝置。
背板 I/O 連接埠：
2 x Thunderbolt™ 4 USB Type-C® 埠
5 x USB 10Gbps 埠 (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps 埠 (4 x Type-A)
1 x HDMI™ 埠
1 x Wi-Fi 模組
1 x Intel® 2.5Gb 乙太網路 埠
1 x Realtek 5Gb 乙太網路 埠
2 x 鍍金音訊插孔
1 x 光纖 S/PDIF 輸出埠
1 x BIOS FlashBack™ 按鈕
1 x 清除 CMOS 按鈕
內部 I/O 接頭：
風扇與散熱相關
1 x 4-pin CPU 風扇 接頭
1 x 4-pin CPU OPT 風扇 接頭
1 x 4-pin AIO 幫浦 接頭
4 x 4-pin 機殼風扇 接頭
1 x W_PUMP+ 接頭
電源相關
1 x 24-pin 主電源 連接埠
2 x 8-pin +12V CPU 電源 連接埠
1 x 8-pin PCIe 電源 連接埠
儲存相關
6 x M.2 插槽 (Key M)
4 x SATA 6Gb/s 埠
1 x SlimSAS 連接埠
USB
1 x USB 20Gbps 連接埠 (支援 USB Type-C® )
1 x USB 10Gps 連接埠 (支援 USB Type-C® )
2 x USB 5Gbps 接頭 可額外支援 4 組 USB 5Gbps 埠
2 x USB 2.0 接頭 可額外支援 4 組 USB 2.0 埠
其他
3 x 可定址 Gen 2 接頭
1 x PCIe 模式切換開關
1 x FlexKey 按鈕
1 x 前面板音訊 接頭 (F_AUDIO)
1 x ReTry 重試按鈕
1 x 啟動按鈕
1 x 10-1 pin 系統面板 接頭
1 x 溫度感測器 接頭
1 x Thunderbolt™ (USB4®) 接頭*
* Thunderbolt™ 擴充卡僅能在安裝於 PCIEX16(G4) 插槽時使用；請確認將 Thunderbolt™ 擴充卡裝在 PCIEX16(G4) 插槽。
特色功能：
Extreme OC 超頻套件
- FlexKey 按鈕
- ReTry 重試按鈕
- 啟動按鈕
Extreme Engine Digi+
- 10K 黑金電容
- MicroFine 合金電感
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (搭配 PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [紅色], DRAM [黃色], VGA [白色], 開機裝置 [黃綠色])
- Q-Slot
ASUS 散熱方案
- M.2 散熱背板
- M.2 散熱片
- 金屬背板
- VRM 散熱片設計
ASUS EZ DIY
- 背板
- BIOS FlashBack™ 按鈕
- 清除 CMOS 按鈕
- CPU 插槽拉桿保護套
- ProCool II
- 預裝 I/O 擋板
- SafeSlot
- SafeDIMM
Aura Sync
- 可定址 Gen 2 接頭
ROG M.2 PowerBoost
前面板 USB 20Gbps 支援 Quick Charge 4+
- 支援: 最高 60W 快速充電 與 USB Wattage Watcher*
- 輸出： 5/9/15/20V 最高 3A, PPS:3.3–21V 最高 3A
- 相容於 PD3.0 與 PPS
* 若要支援 60W，請將電源線接至 8-pin PCIe 電源接頭；未接線時僅支援 27W。
軟體功能：
ROG 專屬軟體
- ROG CPU-Z
- Dolby Atmos
- Polymo Lighting II
- 網路安全軟體 (1 年完整版)
ASUS 專屬軟體
Armoury Crate
- AIDA64 Extreme (1 年完整版)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (搭配 AI Cooling II)
- GameFirst
- 節能模式
- Hwinfo
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
Thunderbolt™ Share
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (免費試用)
WinRAR (40 天免費試用)
UEFI BIOS
NPU Boost
AI 超頻指南
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
BIOS：
256 Mb Flash ROM, UEFI AMI BIOS
管理功能：
WOL by PME
配件：
線材
1 x ARGB RGB 延長線
4 x SATA 6Gb/s 線材
附加散熱套件
1 x DDR5 風扇支架
1 x M.2 導熱墊 22110
其他
1 x ASUS WiFi Q-Antenna
1 x Q-連接埠
1 x M.2 Q-Latch 配件包
3 x M.2 Q-Slide 配件包
1 x ROG 貼紙
6 x M.2 橡膠墊包
1 x ROG 感謝卡
1 x ROG 開瓶器
安裝媒體
1 x 含公用程式及驅動程式的 USB 隨身碟
文件
1 x 快速入門指南
作業系統：
Windows 11 (22H2 或更新版本)
外型規格與尺寸：
ATX 外型規格
12 吋 x 9.6 吋 ( 30.5 cm x 24.4 cm )
ROG MAXIMUS Z890 HERO combines the Intel® Z890 chipset with a ATX layout and DDR5 memory support. It offers 6 M.2 storage slots and Wi-Fi 7 connectivity; the slot and bandwidth conditions below guide component placement.
Full specifications
News & Updates:
Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
,
Please visit our GLOBAL website to check and download the latest updates.
CPU:
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to the ASUS support page for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset:
Intel® Z890 Chipset
Memory:
4 x DIMM slots, max. 256GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit the ASUS support page
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
1 x HDMI™ port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types. Please refer to the Intel website for any updates
** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
**** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots:
Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table on the support site (the ASUS support page).
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
- To ensure compatibility of the device installed, please refer to the ASUS support page for the list of supported peripherals.
Storage:
Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an adapter cable. The cable is purchased separately.
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
Ethernet:
1 x Intel® 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth:
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB:
Rear USB (Total 11 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports:
2 x Thunderbolt™ 4 USB Type-C® ports
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors:
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
1 x 8-pin PCIe Power connector
Storage Related
6 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS connector
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 10Gps connector (supports USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header*
* The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot.
Special Features:
Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
ASUS EZ DIY
- Backplate
- BIOS FlashBack™ button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
ROG M.2 PowerBoost
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features:
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Polymo Lighting II
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- Power Saving
- Hwinfo
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
Thunderbolt™ Share
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
NPU Boost
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME
Accessories:
Cables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x DDR5 fan holder
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide packages
1 x ROG stickers
6 x M.2 rubber packages
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Operating System:
Windows 11 (22H2 & later)
Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
洽詢商品 歡迎透過 LINE 或來電，與我們確認規格及供貨資訊。
