主機板

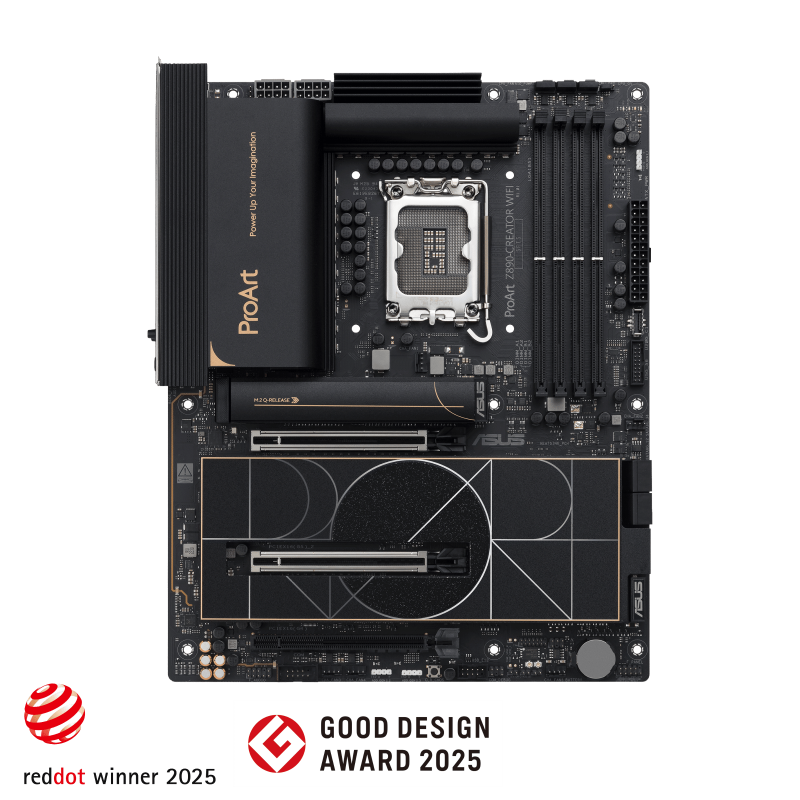

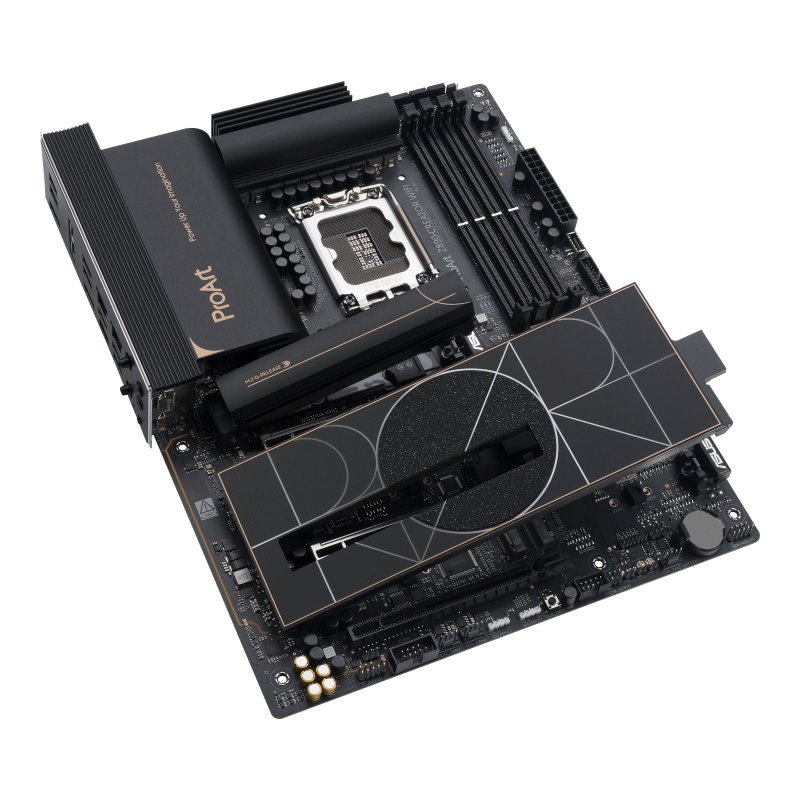

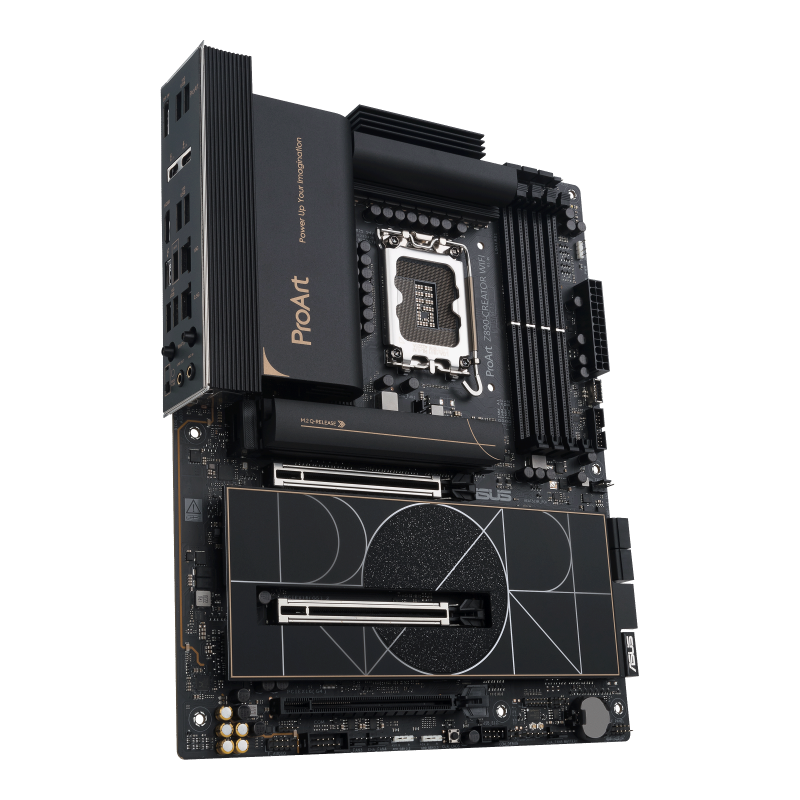

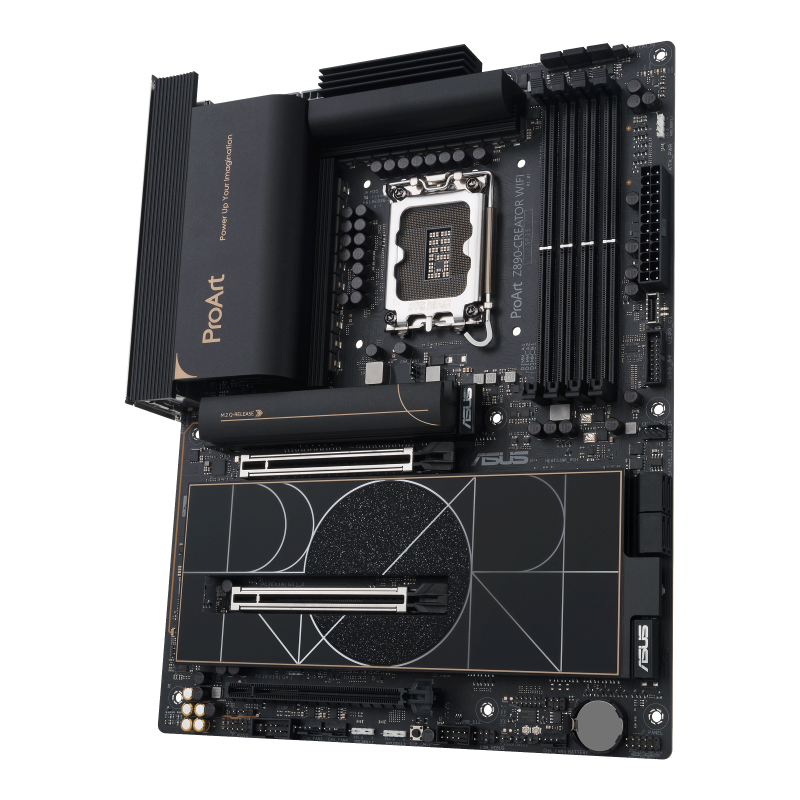

ASUS 華碩 ProArt Z890-CREATOR WIFI 主機板
ASUS ProArt Z890-CREATOR WIFI Motherboard
ProArt Z890-CREATOR WIFI 搭載 Intel® Z890 晶片組，採用 ATX 配置並支援 DDR5 記憶體。提供 5 組 M.2 儲存擴充與 Wi-Fi 7 連線，可依下列插槽及共用頻寬條件安排裝機配置。
完整規格
最新消息與更新：
Intel® Core Ultra 200S 系列更新後的作業系統支援需求如下：
•Intel® Core Ultra 200S Series: 支援 Windows 10 (版本 21H2 或更新版本) 與 Windows 11 (版本 22H2 或更新版本).
•Intel® Core Ultra 200S Plus Series: Windows 11 (版本 25H2 或更新版本) 以達完整相容性.
,
請至 ASUS 全球官網確認並下載最新更新。
本主機板的 Thunderbolt 5 功能僅支援 Windows 11；請安裝 Windows 11 並更新至最新版本，以取得最新的內建驅動程式。
CPU：
支援 Intel® Core™ Ultra 處理器 (Series 2), LGA1851
支援 Intel® Turbo Boost 技術 2.0 與 Intel® Turbo Boost Max 技術 3.0**
* 請參閱 ASUS 支援頁 以查閱 CPU 支援清單。
** Intel® Turbo Boost Max 技術 3.0 的支援取決於 CPU 型號。
晶片組：
Intel® Z890 晶片組
記憶體：
4 x DIMM 插槽, 最高 256GB, DDR5
支援 最高 9066+MT/s (OC), Non-ECC, 無緩衝 與 時脈無緩衝 DIMM (CUDIMM)*
雙通道記憶體架構
支援 Intel® Extreme Memory Profile (XMP) 記憶體模組
ASUS Enhanced Memory Profile III (AEMP III)
支援 DIMM Fit
支援 DIMM Flex
* 支援的記憶體類型、資料率（速度）及 DRAM 模組數量依 CPU 與記憶體配置而異；詳情請查閱產品資訊頁「支援」中的 CPU／記憶體支援清單，或造訪 ASUS 支援頁
** Non-ECC 無緩衝 DDR5 記憶體支援 On-Die ECC 功能。
顯示：
1 x HDMI™ 埠**
2 x Intel® Thunderbolt™ 5 埠 (USB Type-C®) 支援 DisplayPort 及 Thunderbolt™ 影像輸出***
1 x Intel® Thunderbolt™ 4 埠 (USB Type-C®) 支援 DisplayPort 及 Thunderbolt™ 影像輸出****
* 顯示規格依 CPU 型號而異；最新資訊請參閱 Intel 官網。
** 支援 4K@60Hz ，依規範： HDMI 2.1
*** 支援 最高 2 x 8K@60HZ (DSC 模式) + 1 x 4K@60HZ 螢幕 （使用 DP 輸入）.
*** 支援 最高 1 x 8K@60HZ (DSC 模式) + 1 x 4K@60HZ 螢幕 （未使用 DP 輸入）.
*** 解析度支援請查閱 DisplayPort 2.1 規範。 ThunderboltTM 5 頻寬 受限於 DisplayPort™ 2.1 搭配 最高 77.4 Gbit/s. 建議使用通過驗證的 Thunderbolt™ 線材串接螢幕。
**** 在 ThunderboltTM 4 模式下, 支援 最高 8K@60Hz x1 （使用 DSC）, 總頻寬最高 23.8Gbps, 解析度支援請查閱 DisplayPort 2.1 規範。 在 DP Alt 模式下, 支援 最高 UHBR20.使用 ThunderboltTM 5 連接埠透過內建顯示晶片輸出至兩台螢幕時，主機板的 Thunderbolt 4 連接埠將無法輸出影像。
***** 安裝作業系統時，請確認螢幕連接至背板 I/O 的 HDMI 連接埠，或連接至獨立顯示卡。
擴充插槽：
Intel® Core™ Ultra 處理器 (Series 2) *
2 x PCIe 5.0 x16 插槽 (支援 x16 或 x8/x8 模式)
Intel® Z890 晶片組
*1 x PCIe 4.0 x16 插槽 (支援 x4 模式)
* 請查閱支援網站的 PCIe 通道拆分表 (ASUS 支援頁).
- 為確保所安裝裝置的相容性，請參閱 ASUS 支援頁 的支援周邊設備清單。
儲存：
總計支援 5 x M.2 插槽 與 4 x SATA 6Gb/s 埠*
Intel® Core™ Ultra 處理器 (Series 2) *
M.2_1 插槽 (Key M), 尺寸 2242/2260/2280/22110 (支援 PCIe 5.0 x4 模式)
M.2_2 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 模式)
Intel® Z890 晶片組
M.2_3 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 模式)
M.2_4 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 模式)
M.2_5 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 & SATA 模式)**
4 x SATA 6Gb/s 埠
* Intel® 快速儲存技術 支援 PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 插槽 來自 CPU 僅 支援 RAID 0/1/5.
** M.2_5 插槽 共用頻寬，對象為 PCIe 4.0 x16 插槽. 當 M.2_5 插槽 運作時， PCIe 4.0 x16 插槽 將停用.
乙太網路：
1 x Marvell® AQtion 10Gb 乙太網路
1 x Intel® 2.5Gb 乙太網路
ASUS LANGuard
無線網路與 Bluetooth：
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
支援 2.4/5/6GHz 頻段**
支援 Wi-Fi 7 320MHz 頻寬, 最高 5.8Gbps 傳輸速率.
Bluetooth® v5.4***
*Wi-Fi 功能依作業系統而異
在 Windows 11 上，Wi-Fi 7 完整功能需要 24H2 或更新版本；Windows 11 21H2/22H2/23H2 僅支援 Wi-Fi 6E。
Windows 10 僅支援 Wi-Fi 6。
** Wi-Fi 6GHz 頻段與頻寬規範依國家而異。
*** Bluetooth® 版本可能不同；最新規格請參閱 Wi-Fi 模組製造商網站。
USB：
背板 USB (總計 10 埠)
2 x Thunderbolt™ 5 埠 (2 x USB Type-C®)
1 x USB4 / Thunderbolt™ 埠 (1 x USB Type-C®)
6 x USB 10Gbps 埠 (6 x Type-A )
1 x USB 2.0 埠 (1 x Type-A )
前置 USB (總計 5 埠)
1 x USB 20Gbps (支援 USB Type-C®)
1 x USB 5Gbps 接頭 可額外支援 2 組 USB 5Gbps 埠
1 x USB 2.0 接頭 可額外支援 2 組 USB 2.0 埠
USB Type-C® 供電輸出: 最高 5V/3A
音效：
Realtek ALC1220P 7.1 聲道環繞高傳真音訊編解碼器*
- 前後耳機輸出阻抗偵測
- 內建音訊擴大機，提升耳機及喇叭的音質
- 支援插孔偵測、多串流及前面板插孔重新指定功能
- 高品質 120 dB SNR 立體聲播放輸出 與 113 dB SNR 錄音輸入 (Line-in)
- 支援 最高 32-Bit/192 kHz 播放*音效功能
- 鍍金音訊插孔
- 高品質音效電容
- 獨立音效 PCB 分層
* 受 HDA 頻寬限制，7.1 環繞音效不支援 32-Bit/192 kHz。
** 須使用前面板具有 HD 音訊模組的機殼，才能支援 7.1 環繞音效輸出。

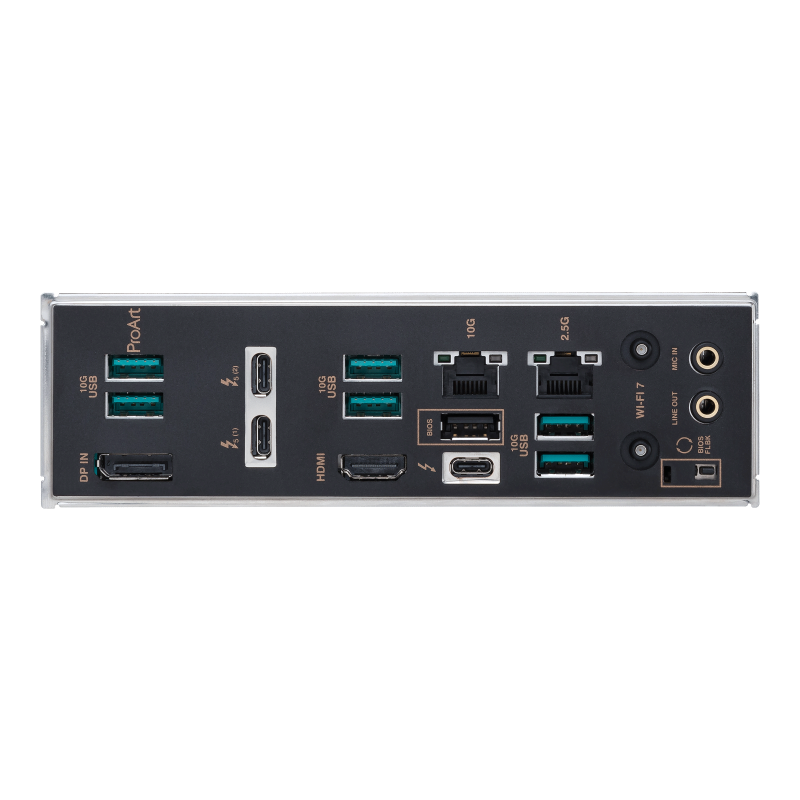

背板 I/O 連接埠：
2 x Thunderbolt™ 5 USB Type-C® 埠
1 x USB4 / Thunderbolt™ Type-C®埠
6 x USB 10Gbps 埠 (6 x Type-A)
1 x USB 2.0 埠 (1 x Type-A)
1 x DisplayPort (僅供輸入)
1 x HDMI™ 埠
1 x Wi-Fi 模組1 x Marvell® AQtion 10Gb 乙太網路 埠
1 x Intel® 2.5Gb 乙太網路 埠
2 x 鍍金音訊插孔
1 x BIOS FlashBack™ 按鈕
內部 I/O 接頭：
風扇與散熱相關
1 x 4-pin CPU 風扇 接頭
1 x 4-pin CPU OPT 風扇 接頭
1 x 4-pin AIO 幫浦 接頭
5 x 4-pin 機殼風扇 接頭
電源相關
1 x 24-pin 主電源 連接埠
2 x 8-pin +12V CPU 電源 連接埠
儲存相關
5 x M.2 插槽 (Key M)
4 x SATA 6Gb/s 埠
USB
1 x USB 20Gbps 連接埠 (支援 USB Type-C® )
1 x USB 5Gbps 接頭 可額外支援 2 組 USB 5Gbps 埠
1 x USB 2.0 接頭 可額外支援 2 組 USB 2.0 埠
其他
3 x 可定址 Gen2 接頭
1 x 清除 CMOS 按鈕
1 x COM 埠 接頭
1 x CPU 過電壓跳線
1 x 機殼入侵偵測 接頭
1 x 前面板音訊 接頭 (F_AUDIO)
1 x SPI TPM 接頭 (14-1 pin)
1 x 10-1 pin 前置系統面板 接頭
1 x 溫度感測器 接頭
特色功能：
ASUS 5X PROTECTION III /
- DIGI+ VRM (- 採用 DrMOS 的數位供電設計)
- ESD Guards
- LANGuard
- 過電壓保護
- SafeSlot
- 不鏽鋼背板 I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (搭配 PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [紅色], DRAM [黃色], VGA [白色], 開機裝置 [黃綠色])
ASUS 散熱方案
- M.2 散熱背板
- M.2 散熱片
- VRM 散熱片設計
ASUS EZ DIY
- BIOS FlashBack™ 按鈕
- BIOS FlashBack™ LED
- 有外框接頭
- 清除 CMOS 按鈕
- CPU 插槽拉桿保護套
- ProCool II
- 預裝 I/O 擋板
- SafeDIMM
Aura Sync
- 可定址 Gen2 接頭
商務主機板設計與功能
- 24/7 穩定運作設計
- 過電流保護
軟體功能：
ASUS 專屬軟體
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- 節能模式
ASUS Driver Hub
ASUS GlideX
ASUS CPU-Z
CreationFirst
ProArt Creator Hub
TurboV Core
Thunderbolt™ Share
Adobe Creative Cloud (免費試用)
Norton 360 Deluxe (60 天免費試用)
WinRAR (40 天免費試用)
UEFI BIOS
AI 超頻指南
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
遠端管理功能：
支援 IT 管理軟體
- ASUS Control Center Express(ACCE)
BIOS：
256 Mb Flash ROM, UEFI AMI BIOS
管理功能：
WOL by PME, PXE
配件：
線材
2 x SATA 6Gb/s 線材
其他
1 x ASUS WiFi Q-Antenna
1 x Q-連接埠
2 x M.2 Q-Latch 配件包
2 x M.2 橡膠墊包
1 x ProArt 配件袋
文件
1 x ACC Express 啟用序號卡
1 x 快速入門指南
作業系統：
Windows 11 (22H2 或更新版本)
外型規格與尺寸：
ATX 外型規格
12 吋 x 9.6 吋 ( 30.5 cm x 24.4 cm )
ProArt Z890-CREATOR WIFI combines the Intel® Z890 chipset with a ATX layout and DDR5 memory support. It offers 5 M.2 storage slots and Wi-Fi 7 connectivity; the slot and bandwidth conditions below guide component placement.
Full specifications
News & Updates:
Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
,
Please visit our GLOBAL website to check and download the latest updates.
The Thunderbolt 5 features on this motherboard are only supported in Windows 11. To ensure the best experience, please install Windows 11 and update to the latest version to access the latest inbox drivers.
CPU:
Support Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to the ASUS support page for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset:
Intel® Z890 Chipset
Memory:
4 x DIMM slots, max. 256GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Support DIMM Fit
Support DIMM Flex
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit the ASUS support page
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
1 x HDMI™ port**
2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to the Intel website for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1
*** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in.
*** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in.
*** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables.
**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.When the ThunderboltTM 5 port is used to output two displays via integrated graphics, the Thunderbolt 4 port on the motherboard will not be able to output any display.
***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots:
Intel® Core™ Ultra Processors (Series 2) *
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
Intel® Z890 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (the ASUS support page).
- To ensure compatibility of the device installed, please refer to the ASUS support page for the list of supported peripherals.
Storage:
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.
Ethernet:
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth:
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB:
Rear USB (Total 10 ports)
2 x Thunderbolt™ 5 ports (2 x USB Type-C®)
1 x USB4 / Thunderbolt™ port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A )
1 x USB 2.0 port (1 x Type-A )
Front USB (Total 5 ports)
1 x USB 20Gbps (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
Audio:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*Audio Features
- Gold-plated audio jacks
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports:
2 x Thunderbolt™ 5 USB Type-C® ports
1 x USB4 / Thunderbolt™ Type-C®port
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI™ port
1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors:
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over voltage jumper
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Special Features:
ASUS 5X PROTECTION III /
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Box headers
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen2 headers
Bespoke Motherboard Design & Business Focused Features
- 24/7 reliability
- Overcurrent protection
Software Features:
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
ASUS Driver Hub
ASUS GlideX
ASUS CPU-Z
CreationFirst
ProArt Creator Hub
TurboV Core
Thunderbolt™ Share
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
Remote Management Features:
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
2 x M.2 Q-Latch packages
2 x M.2 rubber packages
1 x ProArt accessory bag
Documentation
1 x ACC Express activation key card
1 x Quick start guide
Operating System:
Windows 11 (22H2 & later)
Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
洽詢商品 歡迎透過 LINE 或來電，與我們確認規格及供貨資訊。
