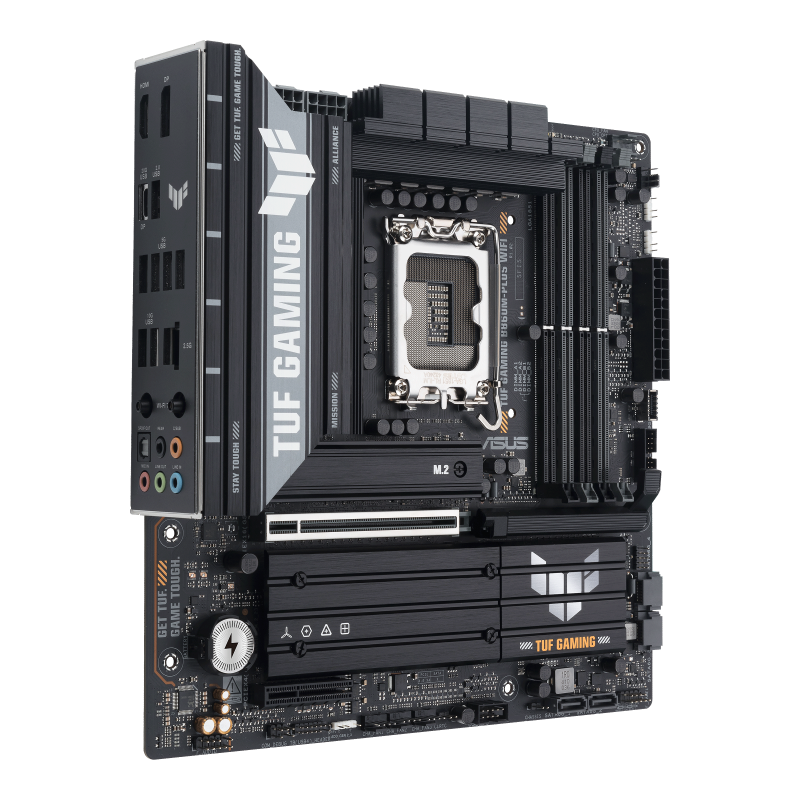

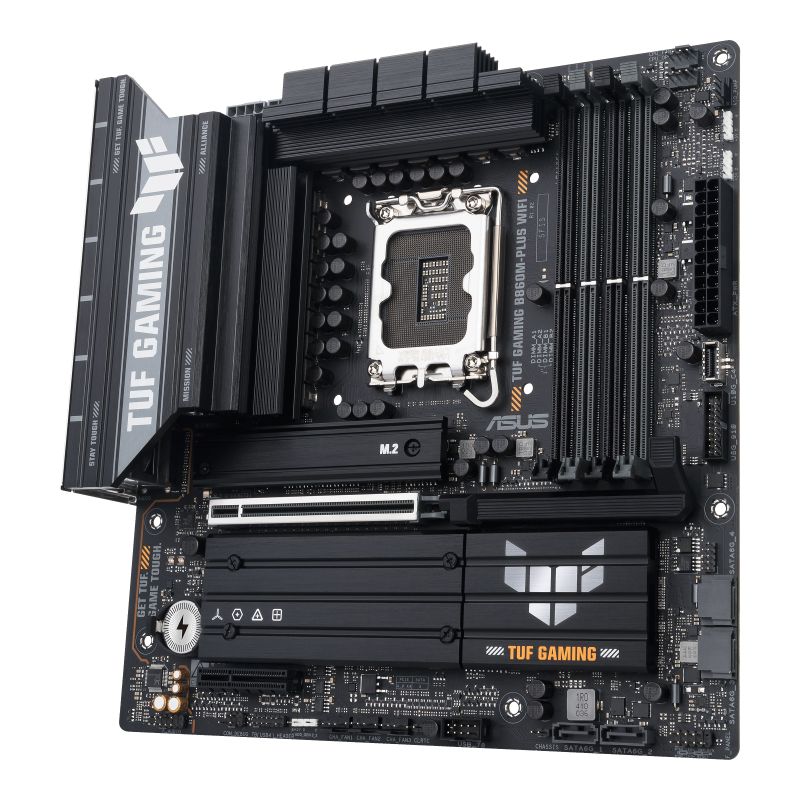

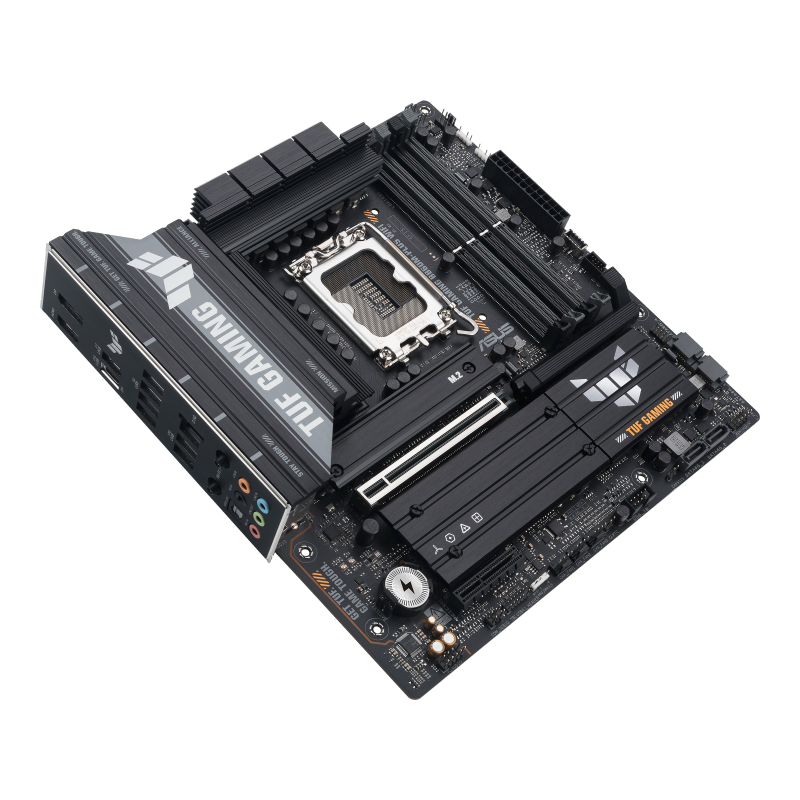

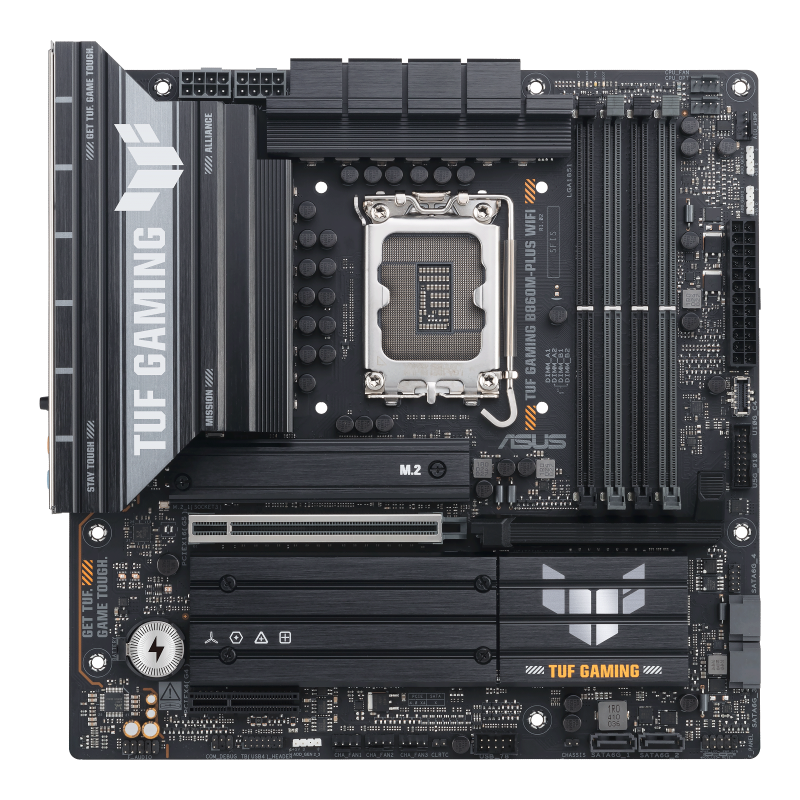

ASUS 華碩 TUF GAMING B860M-PLUS WIFI 主機板
ASUS TUF GAMING B860M-PLUS WIFI Motherboard
TUF GAMING B860M-PLUS WIFI 搭載 Intel® B860 晶片組，採用 mATX 配置並支援 DDR5 記憶體。提供 3 組 M.2 儲存擴充與 Wi-Fi 7 連線，可依下列插槽及共用頻寬條件安排裝機配置。
完整規格
最新消息與更新：
Intel® Core Ultra 200S 系列更新後的作業系統支援需求如下：
•Intel® Core Ultra 200S Series: 支援 Windows 10 (版本 21H2 或更新版本) 與 Windows 11 (版本 22H2 或更新版本).
•Intel® Core Ultra 200S Plus Series: Windows 11 (版本 25H2 或更新版本) 以達完整相容性.
,
請至 ASUS 全球官網確認並下載最新更新。
CPU：
支援 Intel® Core™ Ultra 處理器 (Series 2) ,LGA1851*
支援 Intel® Turbo Boost 技術 2.0 與 Intel® Turbo Boost Max 技術 3.0**
*請參閱 ASUS 支援頁 以查閱 CPU 支援清單。
**Intel® Turbo Boost Max 技術 3.0 的支援取決於 CPU 型號。
晶片組：
Intel® B860 晶片組
記憶體：
4 x DIMM 插槽, 最高 256GB, DDR5
支援 最高 8800+MT/s (OC), Non-ECC,無緩衝 ,時脈無緩衝 DIMM (CUDIMM)*
雙通道記憶體架構
DIMM Fit
支援 Intel® Extreme Memory Profile (XMP) 記憶體模組
ASUS Enhanced Memory Profile III(AEMPIII)
* 支援的記憶體類型、資料率（速度）及 DRAM 模組數量依 CPU 與記憶體配置而異；詳情請查閱產品資訊頁「支援」中的 CPU／記憶體支援清單，或造訪 ASUS 支援頁 支援規格會依市場上量產記憶體產品的規格調整。
* Non-ECC 無緩衝 DDR5 記憶體支援 On-Die ECC 功能。
顯示：
1 x DisplayPort**
1 x HDMI™ 埠***
1 x USB 20Gbps 埠 (USB Type-C®) 支援 DisplayPort 影像輸出**
* 顯示規格依 CPU 型號而異；最新資訊請參閱 Intel 官網。
** 支援 最高 4K@60Hz ，依規範： DisplayPort 1.4.
***支援 4K@60Hz ，依規範： HDMI 2.1.
**** VGA 解析度支援取決於處理器或顯示卡的解析度規格。
*****安裝作業系統時，請確認螢幕連接至背板 I/O 的 HDMI 連接埠，或連接至獨立顯示卡。
擴充插槽：
Intel® CoreTM Ultra 處理器(Series 2)*
1 x PCIe 5.0 x16 插槽
Intel® B860 晶片組
1 x PCIe 4.0 x4 插槽
- 為確保所安裝裝置的相容性，請參閱 ASUS 支援頁 的支援周邊設備清單。
多顯示卡支援：
儲存：
支援 3 x M.2 插槽 與 4 x SATA 6Gb/s 埠*
Intel® Core™ Ultra 處理器(Series 2)*
M.2_1 插槽 (Key M), 尺寸 2280 (支援 PCIe 5.0 x4 模式)
Intel® B860 晶片組
M.2_2 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 模式)
M.2_3 插槽 (Key M), 尺寸 2280 (支援 PCIe 4.0 x4 模式)
4 x SATA 6Gb/s 埠
*Intel® 快速儲存技術 支援 SATA RAID 0/1/5/10.
乙太網路：
1 x Realtek 2.5Gb 乙太網路
TUF LANGuard
無線網路與 Bluetooth：
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
支援 2.4/5/6GHz 頻段**
支援 Wi-Fi 7 160MHz 頻寬, 最高 2.9Gbps 傳輸速率.
Bluetooth® v5.4***
*Wi-Fi 功能依作業系統而異
在 Windows 11 上，Wi-Fi 7 完整功能需要 24H2 或更新版本；Windows 11 21H2/22H2/23H2 僅支援 Wi-Fi 6E。
** Wi-Fi 6GHz 頻段與頻寬規範依國家而異。
*** Bluetooth® 版本可能不同；最新規格請參閱 Wi-Fi 模組製造商網站。
USB：
背板 USB (總計 8 埠)
1 x USB 20Gbps 埠 (1 x USB Type-C®)
2 x USB 10Gbps 埠 (2 x Type-A)
4 x USB 5Gbps 埠 (4 x Type-A)
1 x USB 2.0 埠 (1x Type-A)
前置 USB (總計 5 埠)
1 x USB 10Gbps 連接埠 (支援 USB Type-C®)
1 x USB 5Gbps 接頭 可額外支援 2 組 USB 5Gbps 埠
1 x USB 2.0 接頭 可額外支援 2 組 USB 2.0 埠
* USB Type-C® 供電輸出: 最高 5V/3A
音效：
Realtek 7.1 聲道環繞高傳真音訊編解碼器
- 支援插孔偵測、多串流及前面板插孔重新指定功能
- 支援 最高 24-Bit/192 kHz 播放
音效功能
- 音效隔離設計
- 背板光纖 S/PDIF 輸出埠
- 高品質音效電容
- 獨立音效 PCB 分層

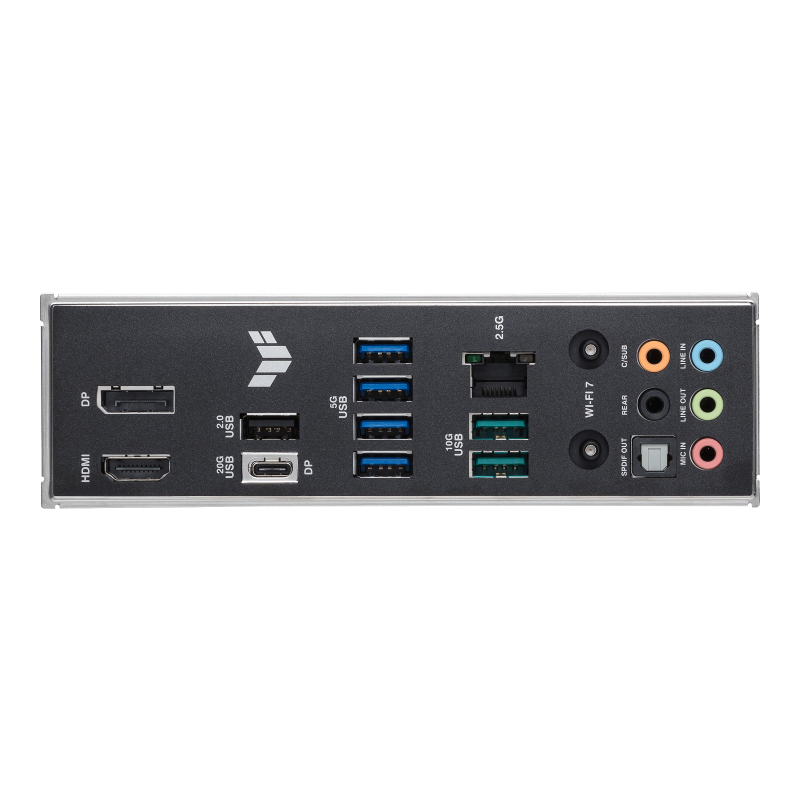

背板 I/O 連接埠：
1 x USB 20Gbps 埠 (1 x USB Type-C® 搭配 DP Alt 模式)
2 x USB 10Gbps 埠 (2 x Type-A)
4 x USB 5Gbps 埠 (4 x Type-A)
1 x USB 2.0 埠 (1 x Type-A)
1 x DisplayPort
1 x HDMI™ 埠
1 x Wi-Fi 模組
1 x Realtek 2.5Gb 乙太網路 埠
5 x 音訊插孔
1 x 光纖 S/PDIF 輸出埠
內部 I/O 接頭：
I/O 接頭 風扇與散熱相關
1 x 4-pin CPU 風扇 接頭
1 x 4-pin CPU OPT 風扇 接頭
1 x 4-pin AIO 幫浦 接頭
3 x 4-pin 機殼風扇 接頭
電源相關
1 x 24-pin 主電源 連接埠
2 x 8-pin +12V 電源 連接埠
儲存相關
3 x M.2 插槽 (Key M)
4 x SATA 6Gb/s 埠
USB
1 x USB 10Gbps 連接埠 (支援 USB Type-C® )
1 x USB 5Gbps 接頭 可額外支援 2 組 USB 5Gbps 埠
1 x USB 2.0 接頭 可額外支援 2 組 USB 2.0 埠
其他
3 x 可定址 Gen 2 接頭
1 x 清除 CMOS 接頭
1 x 機殼入侵偵測 接頭
1 x 前面板音訊 接頭 (F_AUDIO)
1 x 10-1 pin 前置系統面板 接頭
1 x Thunderbolt™ (USB4®) 接頭
特色功能：
ASUS TUF PROTECTION
- DIGI+ VRM (- 採用 DrMOS 的數位供電設計)
- ESD Guards
- TUF LANGuard
- 過電壓保護
- SafeSlot
- 不鏽鋼背板 I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [紅色], DRAM [黃色], VGA [白色], 開機裝置 [黃綠色])
ASUS 散熱方案
- M.2 散熱片
- VRM 散熱片設計
ASUS EZ DIY
- CPU 插槽拉桿保護套
- ProCool
- 預裝 I/O 擋板
- SafeDIMM
AURA Sync
- 可定址 Gen 2 接頭
軟體功能：
ASUS 專屬軟體
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- 節能模式
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 玩家版 (60 天免費試用)
WinRAR (40 天免費試用)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
BIOS：
2 x 128 Mb Flash ROM, UEFI AMI BIOS
管理功能：
WOL by PME, PXE
配件：
線材
2 x SATA 6Gb/s 線材
其他
1 x ASUS WiFi Q-Antenna
2 x M.2 橡膠墊包
1 x TUF Gaming 貼紙
1 x M.2 SSD 螺絲包
文件
1 x 快速入門指南
作業系統：
Windows 11 (22H2 或更新版本)
外型規格與尺寸：
mATX 外型規格
9.6inch x 9.6 吋 ( 24.4 cm x 24.4 cm )
TUF GAMING B860M-PLUS WIFI combines the Intel® B860 chipset with a mATX layout and DDR5 memory support. It offers 3 M.2 storage slots and Wi-Fi 7 connectivity; the slot and bandwidth conditions below guide component placement.
Full specifications
News & Updates:
Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
,
Please visit our GLOBAL website to check anddownload the latest updates.
CPU:
Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to the ASUS support page for CPU support list.
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset:
Intel® B860 Chipset
Memory:
4 x DIMM slots, max. 256GB, DDR5
Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit the ASUS support page Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
1 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**
* Graphics specifications may vary between CPU types. Please refer to the Intel website for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
*****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots:
Intel® CoreTM Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x4 slot
- To ensure compatibility of the device installed, please refer to the ASUS support page for the list of supported peripherals.
Multi-GPU Support:
Storage:
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet:
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth:
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB:
Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps port (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 ports (1x Type-A)
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 headers support 2 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
Back Panel I/O Ports:
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
2 x USB 10Gbps port (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors:
I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front panel audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Special Features:
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Addressable Gen 2 headers
Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
BIOS:
2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 Rubber Packages
1 x TUF Gaming sticker
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Operating System:
Windows 11 (22H2 & later)
Form Factor:
mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
