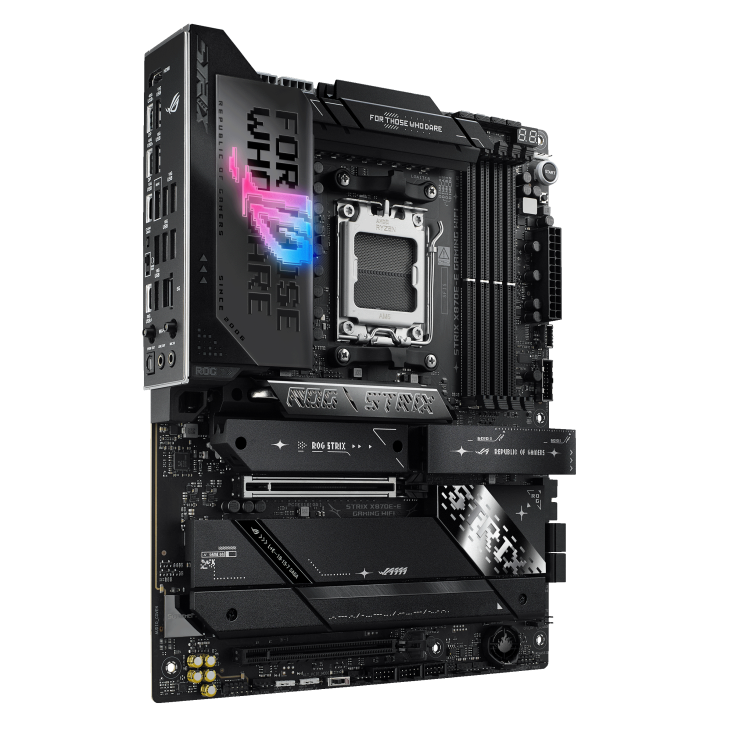

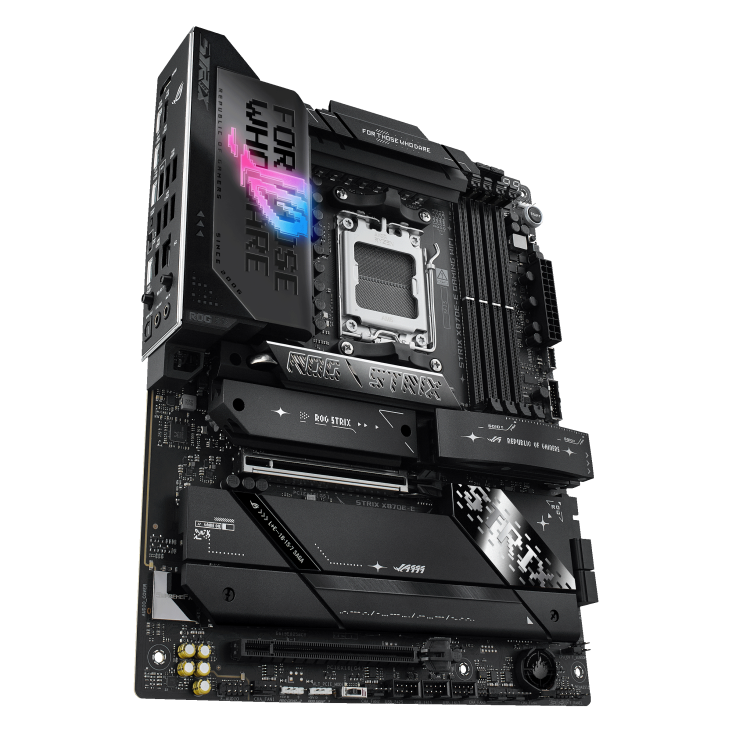

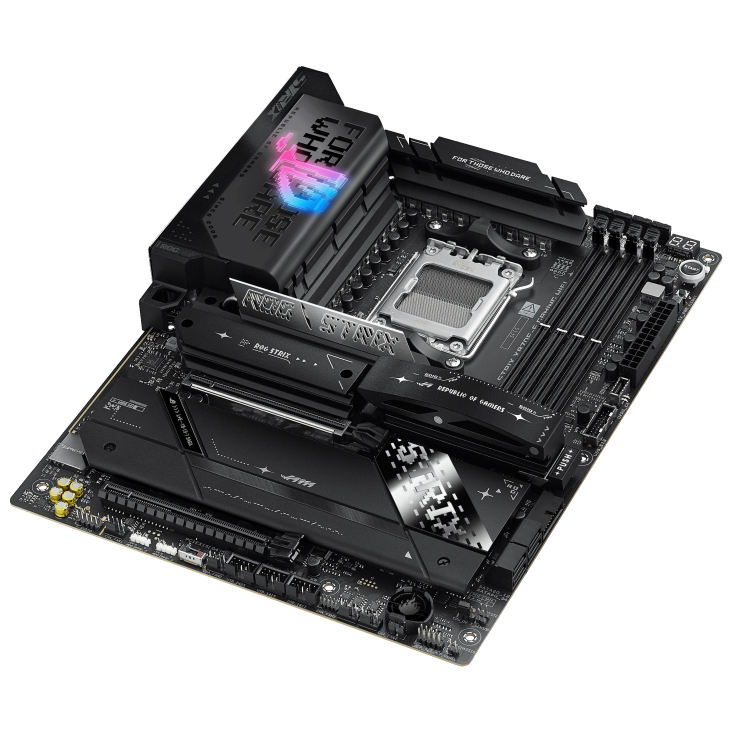

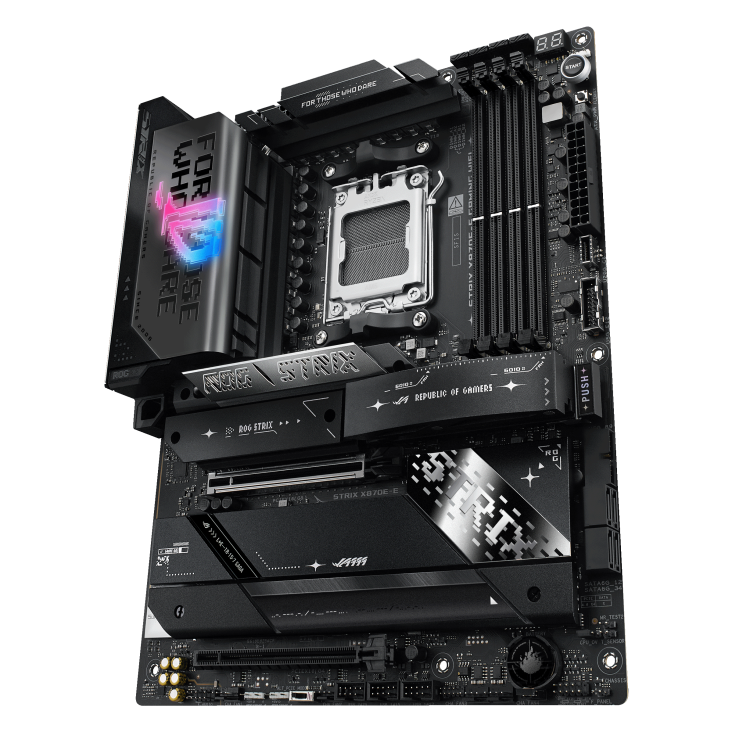

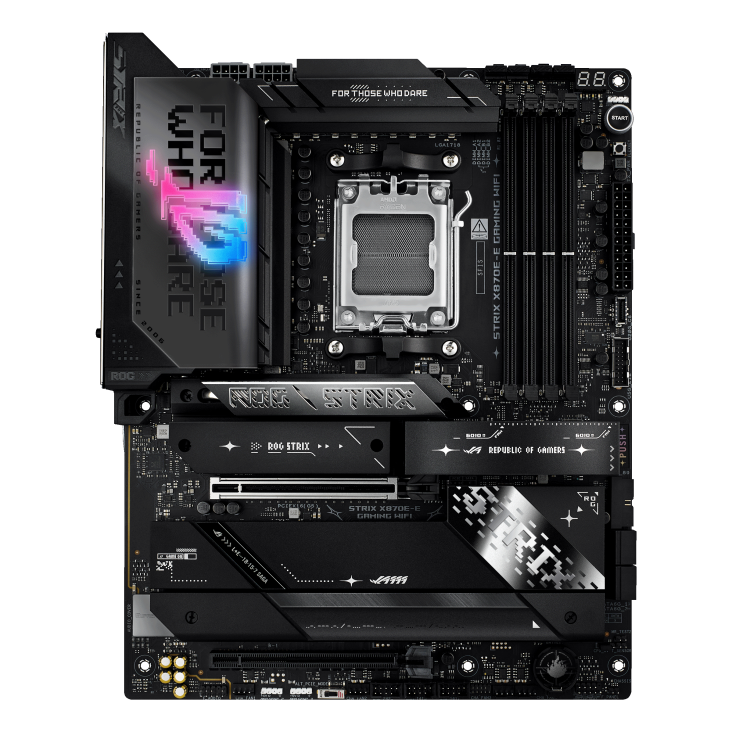

ASUS 華碩 ROG STRIX X870E-E GAMING WIFI 主機板
ASUS ROG STRIX X870E-E GAMING WIFI Motherboard
ROG STRIX X870E-E GAMING WIFI 以 AMD X870E 平台為基礎，採用 ATX 板型並支援 DDR5 記憶體。搭配 AM5 插槽處理器，擴充配置請依下列規格中的處理器條件及共享頻寬限制選擇。
技術規格
【最新更新】
插槽 AM5
【處理器】
AMD 插槽 AM5 用於 AMD Ryzen™ 9000 & 8000 & 7000 系列桌上型處理器*
* 請參閱 ASUS 支援網站 以查閱 CPU 支援清單。
【晶片組】
AMD X870E
【記憶體】
4 x DIMM 插槽, 最高 256GB, DDR5
支援 最高
8000+MT/s(OC) 搭配 Ryzen™ 9000 系列處理器,
8400+MT/s(OC) 搭配 Ryzen™ 8000 系列處理器,
8000+MT/s(OC) 搭配 Ryzen™ 7000 系列處理器,
ECC 與 Non-ECC 無緩衝 DIMM*
雙通道記憶體架構
支援 AMD 延伸超頻設定檔 (EXPO™)
NitroPath DRAM 技術
ASUS Enhanced Memory Profile (AEMP)
* 支援的記憶體類型、資料傳輸率（速度）與 DRAM 模組數量取決於 CPU 及記憶體配置；詳情請查閱 ASUS 產品支援頁的 CPU／記憶體支援清單。
* Non-ECC, 無緩衝 DDR5 記憶體 支援 On-Die ECC 功能
【顯示輸出】
1 x HDMI™ 埠**
2 x USB4® (40Gbps) 埠 支援 USB Type-C® 顯示輸出***
* 顯示規格可能因 CPU 型號而異。 請參閱 AMD CPU 規格。
** 支援 最高 4K@60Hz ，依規範： HDMI 2.1.
*** 支援 最高 4K@60Hz ，依規範： DisplayPort 1.4a
**** VGA 解析度支援取決於處理器或顯示卡的解析度規格。
【擴充插槽】
AMD Ryzen™ 9000 & 7000 系列桌上型處理器*
1 x PCIe 5.0 x16 插槽 (支援 x16 模式)
AMD Ryzen™ 8000 系列桌上型處理器*
1 x PCIe 4.0 x16 插槽 (支援 x8/x4 模式)**
AMD X870E 晶片組
1 x PCIe 4.0 x16 插槽 (支援 x4 模式)
* 請查閱 ASUS 支援頁的 PCIe 通道拆分對照表。
** 規格依 CPU 型號而異。
- 為確保安裝裝置的相容性，請查閱 ASUS 支援頁的周邊裝置支援清單。
【儲存裝置】
總計支援 5 x M.2 插槽 與 4 x SATA 6Gb/s 埠*
AMD Ryzen™ 9000 & 7000 系列桌上型處理器*
M.2_1 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 5.0 x4 模式)
M.2_2 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 5.0 x4 模式)**
M.2_3 插槽 (Key M), 尺寸 2242/2260/2280/22110 (支援 PCIe 5.0 x4 模式)**
AMD Ryzen™ 8000 系列桌上型處理器*
M.2_1 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 模式)
M.2_2 插槽 (Key M), 尺寸 2242/2260/2280 (不支援)***
M.2_3 插槽 (Key M), 尺寸 2242/2260/2280/22110 (不支援)***
AMD X870E 晶片組
M.2_4 插槽 (Key M), 尺寸 2280 (支援 PCIe 4.0 x4 模式)
M.2_5 插槽 (Key M), 尺寸 2280 (支援 PCIe 4.0 x4 模式)
4 x SATA 6Gb/s 埠
*AMD RAIDXpert2 技術同時支援 PCIe RAID 0/1/5/10 與 SATA RAID 0/1/5/10. RAID 5 功能僅支援 AMD Ryzen™ 9000 系列 CPU。
** M.2_2 & M.2_3 插槽 與下列項目共用頻寬： PCIEX16(G5). M.2_2 與 M.2_3 安裝 SSD 時，PCIEX16(G5) 以 x8 模式運作。
** 啟用 M.2_2 且未使用 M.2_3 時，PCIEX16_(G5) 以 x8 模式運作。
** 啟用 M.2_3 且未使用 M.2_2 時，PCIEX16_(G5) 以 x8 模式運作。
*** M.2_2 & M.2_3 在使用下列處理器時停用： AMD Ryzen™ 8000 系列桌上型處理器.
【有線網路】
1 x Realtek 5Gb 乙太網路
ASUS LANGuard
【無線網路與 Bluetooth】
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
支援 2.4/5/6GHz 頻段**
支援 Wi-Fi 7 320MHz 頻寬, 最高 6.5Gbps傳輸率.
Bluetooth® v5.4***
*Wi-Fi 功能依作業系統而異
Windows 11 須使用 24H2 或更新版本，才能使用 Wi-Fi 7 完整功能；Windows 11 21H2/22H2/23H2 僅支援 Wi-Fi 6E。
Windows 10 沒有可用驅動程式，詳情請查閱 Wi-Fi 晶片供應商的網站。
** Wi-Fi 6GHz 頻段與頻寬規範依國家而異。
*** Bluetooth 版本可能不同；最新規格請以 Wi-Fi 模組製造商的網站為準。
【USB】
背板 USB (總計 13 埠)
2 x USB4® (40Gbps) 埠(2 x USB Type-C®)
1 x USB 20Gbps 埠 (1 x USB Type-C® 最高支援 30W PD 快速充電)**
10 x USB 10Gbps 埠 (9 x Type-A + 1 x USB Type-C®)
前置 USB (總計 11 埠)
1 x USB 20Gbps 連接埠 (支援 USB Type-C®)
2 x USB 5Gbps 接頭 可額外支援 4 組 USB 5Gbps 埠
3 x USB 2.0 接頭 可額外支援 6 組 USB 2.0 埠
* USB Type-C® 供電輸出: 5V/3A
** USB Type-C® 供電輸出: 5V/9V 最高 3A, 12V 最高 2.5A, 15V 最高 2.0A
【音效】
ROG SupremeFX 7.1 聲道環繞音效 高傳真音效編解碼器 ALC4080*
- 前後耳機輸出阻抗偵測
- 支援: 插孔偵測, 多音訊串流, 前面板 MIC Jack-retasking
- 高品質 120 dB SNR 立體聲播放輸出與 110 dB SNR 錄音輸入
- 支援 最高 32-Bit/384 kHz 播放
音效功能
- 音效隔離設計
- Savitech SV3H712 AMP
- 鍍金音訊插孔
- 後置光纖 S/PDIF 輸出 埠
- 高品質音效電容
- 音效防護罩
* 後面板的 LINE OUT 連接埠不支援空間音效。若要使用空間音效，請將音效輸出裝置連接至機殼前面板音效插孔，或使用 USB 音效裝置。
【後面板 I/O】
2 x USB4® (40Gbps) 埠 (2 x USB Type-C®)
1 x USB 20Gbps 埠 (1 x USB Type-C® 最高支援 30W PD 快速充電)
10 x USB 10Gbps 埠 (9 x Type-A + 1 x USB Type-C®)
1 x HDMI™ 埠
1 x Wi-Fi 模組
1 x Realtek 5Gb 乙太網路
2 x 鍍金音訊插孔
1 x 光纖 S/PDIF 輸出 埠
1 x BIOS FlashBack™ 按鈕
1 x 清除 CMOS 按鈕
【內部 I/O 連接器】
風扇與散熱相關
1 x 4-pin CPU 風扇 接頭
1 x 4-pin CPU OPT 風扇 接頭
1 x 4-pin AIO 幫浦 接頭
5 x 4-pin 機殼風扇 接頭
電源相關
1 x 24-pin 主電源 連接埠
2 x 8-pin +12V CPU 電源 連接埠
儲存相關
5 x M.2 插槽 (Key M)
4 x SATA 6Gb/s 埠
USB
1 x USB 20Gbps 連接埠 (支援 USB Type-C®)
2 x USB 5Gbps 接頭 可額外支援 4 組 USB 5Gbps 埠
3 x USB 2.0 接頭 可額外支援 6 組 USB 2.0 埠
其他
3 x 可定址 Gen 2 接頭
1 x CPU 過電壓 跳線
1 x FlexKey 按鈕
1 x 前面板音效 接頭 (F_AUDIO)
1 x 啟動按鈕
1 x 10-1 pin 系統面板 接頭
1 x 溫度感測器 接頭
【特色功能】
Extreme Engine Digi+
- 5K 黑色金屬電容
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (搭配 PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [紅色], DRAM [黃色], VGA [白色], 開機裝置 [黃綠色])
- Q-Slot
ASUS 散熱方案
- M.2 散熱片
- M.2 散熱背板
- VRM 散熱片設計
ASUS EZ DIY
- BIOS FlashBack™ 按鈕
- BIOS FlashBack™ LED
- 清除 CMOS 按鈕
- ProCool II
- 預裝 I/O 擋板
- SafeSlot
- SafeDIMM
Aura Sync
- 可定址 Gen 2 接頭
【軟體功能】
ROG 專屬軟體
- ROG CPU-Z
- Dolby Atmos
ASUS 專屬軟體
Armoury Crate
- AIDA64 Extreme (60 天免費試用)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (搭配 AI Cooling II)
- GameFirst
- HWiNFO
- 節能模式
ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (免費試用)
Norton 360 玩家版 (60 天免費試用)
WinRAR (40 天免費試用)
UEFI BIOS
AI 超頻指南
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI
BIOS EZ Mode
- ASUS
MyHotkey
Dynamic OC Switcher
FlexKey
【BIOS】
256 Mb Flash ROM, UEFI AMI BIOS
【管理功能】
WOL by PME, PXE
【隨附配件】
線材
2 x SATA 6Gb/s 線材
附加散熱套件
1 x M.2 導熱墊 22110
其他
1 x ASUS Wi-Fi 可移動天線
1 x 束帶包
1 x M.2 Q-Latch 配件包
2 x M.2 Q-Slides
1 x ROG 鑰匙圈
1 x ROG Strix 貼紙
5 x M.2 橡膠墊
文件
1 x 快速入門指南
【作業系統】
Windows® 11 64-bit
【板型與尺寸】
ATX 外型規格
12 吋 x 9.6 吋 ( 30.5 cm x 24.4 cm )
The ROG STRIX X870E-E GAMING WIFI is built on the AMD X870E platform in a ATX form factor with DDR5 memory support. It uses the AM5 processor socket; check the processor compatibility and bandwidth-sharing conditions below when planning expansion.
Technical specifications
[News & Updates]
Socket AM5
[CPU]
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to ASUS support website for CPU support list.
[Chipset]
AMD X870E
[Memory]
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
8400+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit ASUS support website
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
[Graphics]
1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors' or graphic cards' resolution.
[Expansion Slots]
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check PCIe bifurcation table in support site (ASUS support website
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to ASUS support website for the list of supported peripherals.
[Storage]
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)***
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)***
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen™ 9000series CPU.
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run in x8 mode.
** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_(G5) will run in x8 mode.
** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_(G5) will run in x8 mode.
*** M.2_2 & M.2_3 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
[Ethernet]
1 x Realtek 5Gb Ethernet
ASUS LANGuard
[Wireless & Bluetooth]
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
[USB]
Rear USB (Total 13 ports)
2 x USB4® (40Gbps) ports(2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)**
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
Front USB (Total 11 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
* USB Type-C® power delivery output: 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
[Audio]
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
[Back Panel I/O Ports]
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
[Internal I/O Connectors]
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
[Special Features]
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
[Software Features]
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI
BIOS EZ Mode
- ASUS
MyHotkey
Dynamic OC Switcher
FlexKey
[BIOS]
256 Mb Flash ROM, UEFI AMI BIOS
[Manageability]
WOL by PME, PXE
[Accessories]
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 Rubbers
Documentation
1 x Quick start guide
[Operating System]
Windows® 11 64-bit
[Form Factor]
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
洽詢商品 歡迎透過 LINE 或來電，與我們確認規格及供貨資訊。
