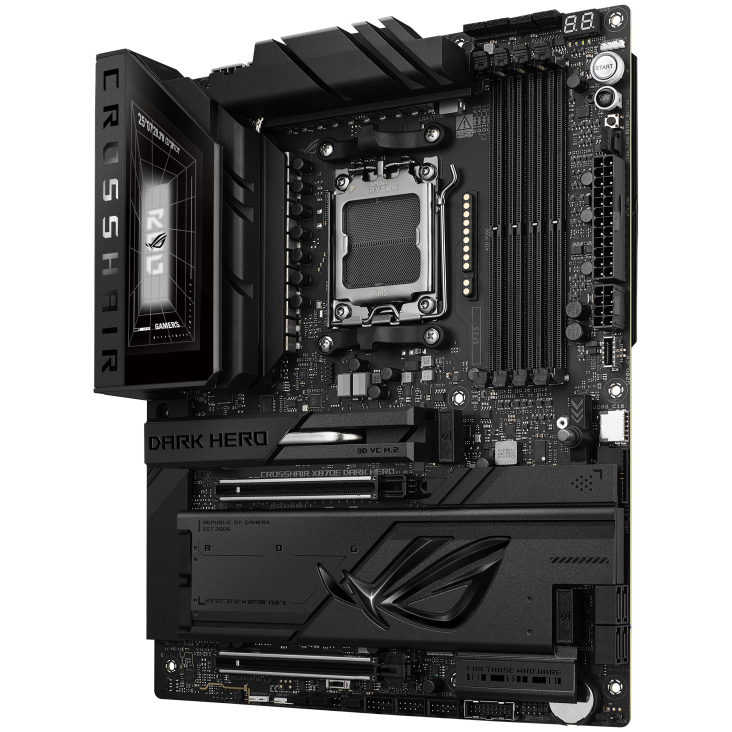

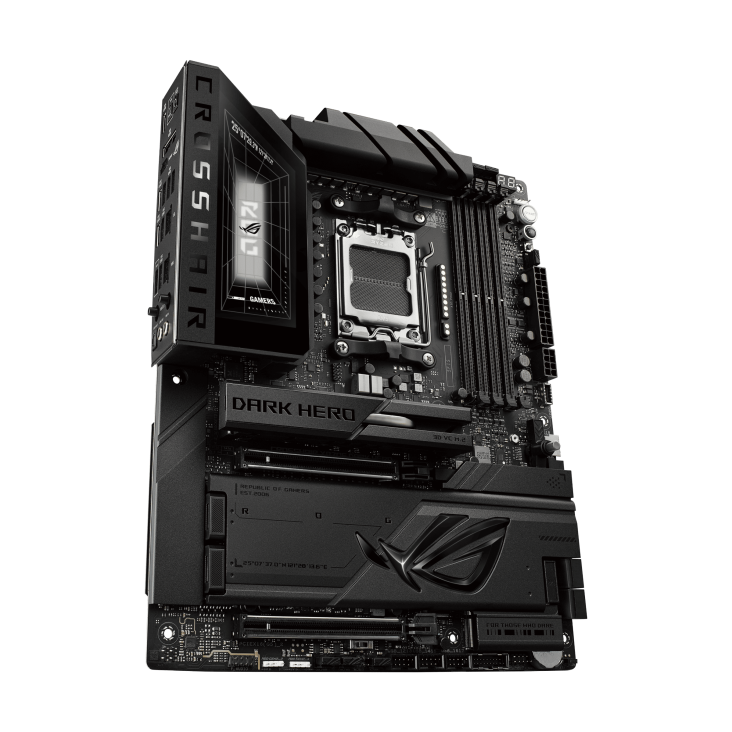

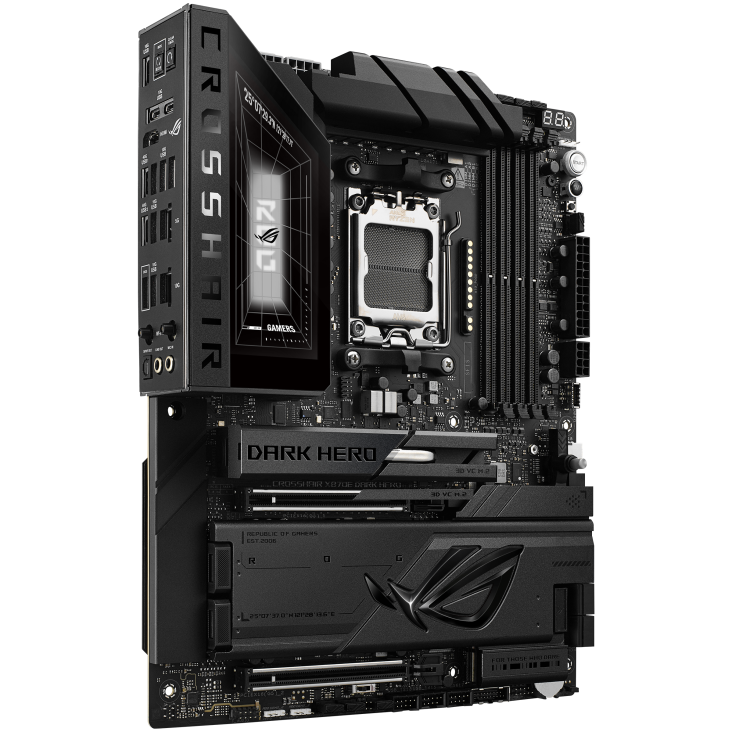

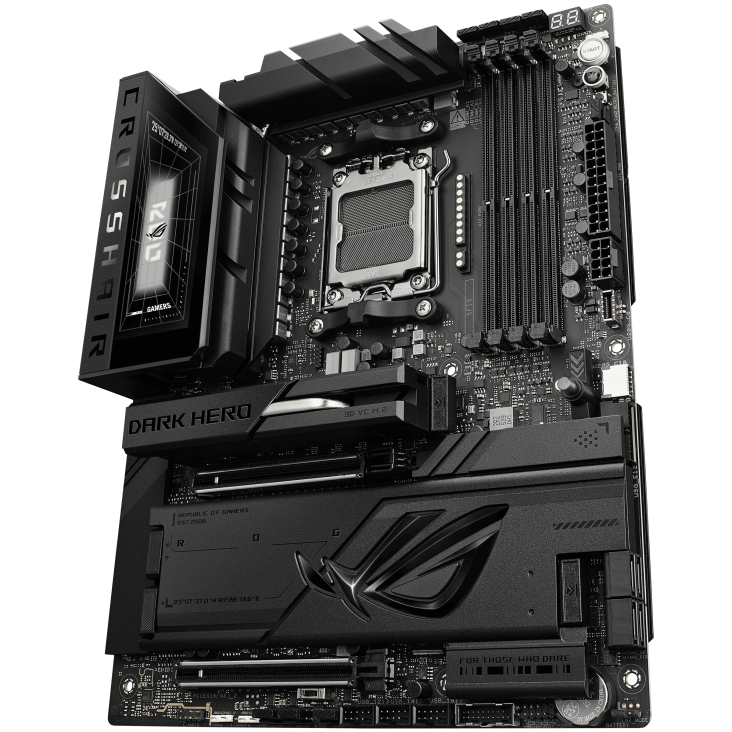

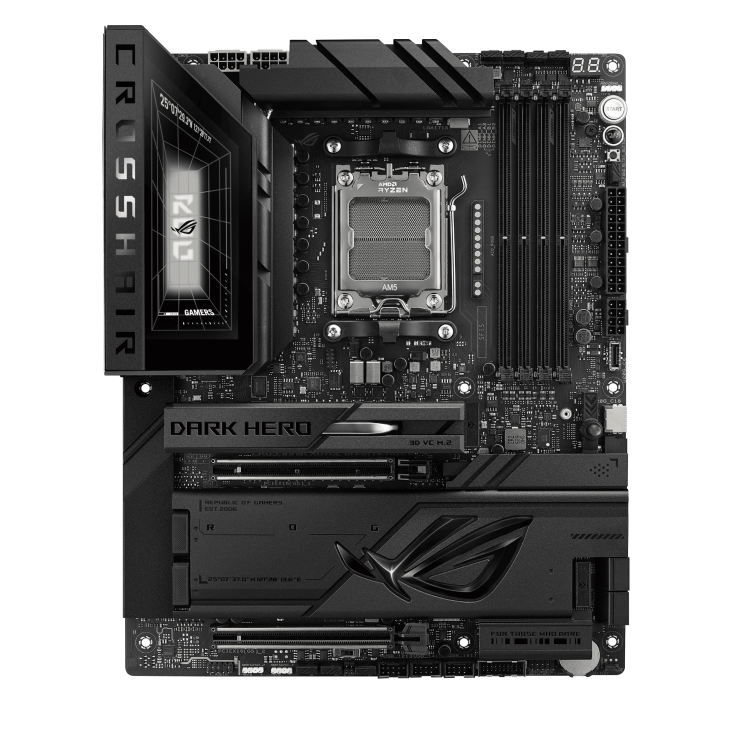

ASUS 華碩 ROG CROSSHAIR X870E DARK HERO 主機板
ASUS ROG CROSSHAIR X870E DARK HERO Motherboard
ROG CROSSHAIR X870E DARK HERO 提供AM5 處理器平台、DDR5 記憶體、ATX 板型，可用於遊戲電腦建置。儲存、顯示輸出與擴充通道的支援條件如下，組裝時請依處理器及裝置配置確認相容性。
完整規格
支援更新：插槽 AM5
處理器：AMD 插槽 AM5 用於 AMD Ryzen™ 9000 & 8000 & 7000 系列桌上型處理器*
* 請參閱 ASUS 支援頁 以查閱 CPU 支援清單。
晶片組：AMD X870E
記憶體：4 x DIMM 插槽, 最高 256GB, DDR5
支援 最高
8600+MT/s(OC)**/8200+MT/s(OC)*** 搭配 Ryzen™ 9000 系列處理器,
9600+MT/s(OC)**/9200+MT/s(OC)*** 搭配 Ryzen™ 8000 系列處理器,
8000+MT/s(OC)**/8000+MT/s(OC)*** 搭配 Ryzen™ 7000 系列處理器,
ECC 與 Non-ECC, 無緩衝 DIMM*
雙通道記憶體架構
支援 AMD Extended Profiles for Overclocking (EXPO™)
支援 DIMM Fit 與 DIMM Fit Pro
NitroPath DRAM 技術
ASUS Enhanced Memory Profile (AEMP)
* 支援的記憶體類型、資料率（速度）及 DRAM 模組數量依 CPU 與記憶體配置而異；詳情請查閱產品資訊頁「支援」中的 CPU／記憶體支援清單，或造訪 ASUS 支援頁 支援規格會依市場上量產記憶體產品的規格調整。
* Non-ECC 無緩衝 DDR5 記憶體支援 On-Die ECC 功能。
** 最高手動超頻：須透過進階 BIOS 設定及可能的特定硬體達成。已於此頻率通過 AIDA64 記憶體效能測試，驗證讀取／寫入頻寬；結果依系統組件而異。
*** XMP/EXPO/AEMP 設定檔：額定記憶體模組速度需要設定 BIOS 效能設定檔。結果依系統組件而異，使用四個 DIMM 插槽時也可能受到影響。XMP/EXPO/AEMP 設定方式請參閱 ASUS 支援頁
顯示輸出：1 x HDMI™ 埠*
2 x USB4® (40Gbps) 埠 支援 USB Type-C® 顯示輸出***
* 僅適用於具備內建顯示晶片的處理器。 顯示規格依 CPU 型號而異。 請參閱 AMD CPU 規格。
*支援 4K@60Hz ，依規範： HDMI 2.1.
**支援 最高 4K@60Hz ，依規範： DisplayPort 1.4a
***Type-C® 連接埠的顯示功能取決於處理器或顯示卡支援的解析度。 更多詳細資訊請參閱產品手冊。
擴充插槽：AMD Ryzen™ 9000 & 7000 系列桌上型處理器*
2 x PCIe 5.0 x16 插槽 (支援 x16 或 x8/x8 模式)**
AMD Ryzen™ 8700 & 8600 & 8400 系列桌上型處理器*
2 x PCIe 4.0 x16 插槽 (僅 支援 PCIEx16(G5)_1 & 總計 頻寬 用於 x8, PCIEx16(G5)_2 將運作於 PCIe 3.0 x4)
AMD Ryzen™ 8500 & 8300 系列桌上型處理器*
2 x PCIe 4.0 x16 插槽 (僅 支援 PCIEx16(G5)_1 & 總計 頻寬 用於 x4, PCIEx16(G5)_2 將運作於 PCIe 3.0 x4)
* 請查閱 PCIe 通道拆分表 於支援網站 (ASUS 支援頁).
* 規格依 CPU 型號而異。
** PCIEX16_1 以 PCIe 5.0 x16 運作時，PCIEX16_2 以 PCIe 3.0 x4 運作；可於 BIOS 調整頻寬。
- 為確保所安裝裝置的相容性，請參閱 ASUS 支援頁 的支援清單：
儲存介面：支援 5 x M.2 插槽 與 4 x SATA 6Gb/s 埠
AMD Ryzen™ 9000 & 7000 系列桌上型處理器
M.2_1 插槽 (Key M), 尺寸 2242/2260/2280/22110 (支援 PCIe 5.0 x4 模式)
M.2_2 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 5.0 x4 模式)*
AMD Ryzen™ 8700 & 8600 & 8400 系列桌上型處理器
M.2_1 插槽 (Key M), 尺寸 2242/2260/2280/22110 (支援 PCIe 4.0 x4 模式)
M.2_2 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 模式)*
AMD Ryzen™ 8500 & 8300 系列桌上型處理器
M.2_1 插槽 (Key M), 尺寸 2242/2260/2280/22110 (支援 PCIe 4.0 x4 模式)
M.2_2 插槽 (Key M), 尺寸 2242/2260/2280 (不支援)
AMD X870E 晶片組
M.2_3 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 模式)
M.2_4 插槽 (Key M), 尺寸 2242/2260/2280 (支援 PCIe 4.0 x4 模式)
M.2_5 插槽 (Key M), 尺寸 2230 (支援 PCIe 4.0 x2 模式)
2 x SATA 6Gb/s 埠
ASMedia ASM1162 控制器
2 x SATA 6Gb/s 埠
* USB4® 40Gbps 連接埠與 M.2 Socket 3 插槽 (M.2_2) 共享頻寬。M.2_2 裝有裝置時，USB4® 控制器及 M.2_2 均最高以 x2 模式運作。可於 BIOS 設定 M.2_2，讓 M.2_2 最高以 x4 模式運作，但啟用此設定將停用 USB4® 40Gbps 連接埠。
RAID 支援：AMD RAIDXpert2 技術
Ryzen™ 9000 & 8000 & 7000 系列處理器: RAID 0/1/5/10*
* SATA 埠 來自 ASM1162 can不支援 RAID
有線網路：1 x Realtek 10Gb 乙太網路
1 x Realtek 5Gb 乙太網路
ASUS LANGuard
無線網路與藍牙："Wi-Fi 7 (MediaTek MT7927)
2x2 Wi-Fi 7* (802.11be)
支援 2.4/5/6GHz 頻段**
支援 Wi-Fi 7 320MHz 頻寬
Bluetooth® v5.4 (支援 LE Audio)***
*Wi-Fi 功能依作業系統而異
在 Windows 11 上，Wi-Fi 7 完整功能需要 24H2 或更新版本；Windows 11 21H2/22H2/23H2 僅支援 Wi-Fi 6E。
Windows 10 不提供驅動程式，詳情請參閱 Wi-Fi 晶片供應商網站。
** Wi-Fi 6GHz 頻段與頻寬規範依國家而異。
*** Bluetooth® 版本可能不同；最新規格請參閱 Wi-Fi 模組製造商網站。
USB：背板 USB (總計 11 埠)
2 x USB4® (40Gbps) 埠 (2 x USB Type-C®)
9 x USB 10Gbps 連接埠 (6 x Type-A + 3 x USB Type-C®)
前置 USB (總計 12 埠)
1 x USB 20Gbps 連接埠 (支援 USB Type-C® 搭配 最高 60W PD/QC4+)**
1 x USB 20Gbps 連接埠 (支援 USB Type-C®)*
2 x USB 5Gbps 接頭 可額外支援 4 組 USB 5Gbps 埠
3 x USB 2.0 接頭 可額外支援 6 組 USB 2.0 埠
* USB Type-C® 供電輸出: 最高 5V/3A
**USB Type-C® 供電輸出: 5/9/15/20V 最高 3A, PPS:3.3–21V 最高 3A
音效：ROG SupremeFX 7.1 聲道環繞高傳真音訊編解碼器 ALC4082**
- 前後耳機輸出阻抗偵測
- 支援: Jack-detection, Multi-streaming, 前面板麥克風插孔功能重新指定
- 高品質 120 dB SNR 立體聲播放輸出 與 110 dB SNR 錄音輸入
- 支援 最高 32-Bit/384 kHz 於前面板播放
音效功能s
- SupremeFX 屏蔽技術
- ESS® ES9219 QUAD DAC
- 鍍金音訊插孔
- 背板光纖 S/PDIF 輸出埠
- 高品質音效電容
* 須使用前面板具有 HD 音訊模組的機殼，才能支援 7.1 環繞音效輸出。
** 背板 Line-out 連接埠不支援空間音效；使用空間音效時，請將音訊輸出裝置接至機殼前面板音訊插孔，或使用 USB 介面音訊裝置。
背板 I/O 連接埠：2 x USB4® (40Gbps) 埠 (2 x USB Type-C®)
9 x USB 10Gbps 連接埠 (6 x Type-A + 3 x USB Type-C®)
1 x HDMI™ 埠
1 x Wi-Fi 模組
1 x Realtek 10Gb 乙太網路 埠
1 x Realtek 5Gb 乙太網路 埠
2 x 鍍金音訊插孔
1 x 光纖 S/PDIF 輸出埠
1 x BIOS FlashBack™ 按鈕
1 x 清除 CMOS 按鈕
內部 I/O 接頭：風扇與散熱相關
1 x 4-pin CPU 風扇 接頭
1 x 4-pin CPU OPT 風扇 接頭
1 x 4-pin AIO 幫浦 接頭
4 x 4-pin 機殼風扇 接頭
1 x W_PUMP+ 接頭
1 x AIO Q-Connector
電源相關
1 x 24-pin 主電源 連接埠
2 x 8-pin +12V CPU 電源 連接埠
1 x 8-pin PCIe 電源 連接埠
儲存相關
5 x M.2 插槽 (Key M)
4 x SATA 6Gb/s 埠
USB
2 x USB 20Gbps 連接埠 (支援 USB Type-C® )
2 x USB 5Gbps 接頭 可額外支援 4 組 USB 5Gbps 埠
3 x USB 2.0 接頭 可額外支援 6 組 USB 2.0 埠
其他
3 x 可定址 Gen2 接頭
1 x PCIe 模式切換開關
1 x FlexKey 按鈕
1 x 前面板音訊 接頭 (F_AUDIO)
1 x ReTry 重試按鈕
1 x 啟動按鈕
1 x 10-1 pin 系統面板 接頭
1 x 溫度感測器 接頭
1 x LN2 模式跳線
特殊功能：非同步時脈
Extreme OC 超頻套件
- FlexKey 按鈕
- LN2 模式
- ReTry 重試按鈕
- 啟動按鈕
Extreme Engine Digi+
- 10K 黑金電容
- MicroFine 合金電感
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release (搭配 PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [紅], DRAM [黃], VGA [白], 開機裝置 [黃綠])
- Q-Slot
ASUS 散熱方案
- 1 x DDR5 風扇支架
- 1 x ROG 輔助風扇 (60mm)
- 3D VC M.2 散熱片
- M.2 散熱背板
- M.2 散熱片
- VRM 散熱片設計
- 金屬背板
ASUS EZ DIY
- 背板
- BIOS FlashBack™ 按鈕
- 清除 CMOS 按鈕
- ProCool II
- 預裝 I/O 擋板
- SafeSlot
- SafeDIMM
Aura Sync
- 可定址 Gen 2 接頭
前面板 USB 20Gbps 支援 Quick Charge 4+
- 支援: 最高 60W 快速充電 與 USB Wattage Watcher*
- 輸出： 5/9/15/20V 最高 3A, PPS:3.3–21V 最高 3A
- 相容於 PD3.0 與 PPS
* 若要支援 60W，請將電源線接至 8-pin PCIe 電源接頭，否則僅支援 27W。
軟體功能：ROG 專屬軟體
- ROG CPU-Z
- Dolby Atmos
- 網路安全軟體 (1 年完整版)
- Polymo Lighting II
ASUS 專屬軟體
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (搭配 AI Cooling II)
- GameFirst
- WiFi Q-Antenna
- MLO Wizard
ASUS DriverHub
- ASUS MB Manager
- HWiNFO
- ASUS AI Advisor
- AIDA64 Extreme (1 年完整版)
- ASUS GlideX
- USB Wattage Watcher
- Turbo Vcore
WinRAR (40 天免費試用)
Adobe Creative Cloud (免費試用)**
UEFI BIOS
AI 超頻指南
Integrated WiFi Driver 支援
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
* 更多軟體功能請參閱 ASUS 支援網站或 ASUS 支援頁。
** 本兌換優惠的適用型號及地區限制，請參閱 ASUS 支援頁
BIOS：64 MB (512Mb)
Flash ROM, UEFI AMI BIOS
管理功能：WOL by PME
配件：線材
4 x SATA 6Gb/s 線材
附加散熱套件
1 x DDR5 風扇支架
1 x ROG 輔助風扇 (60mm)
1 x 散熱套件螺絲包
1 x 導熱墊 用於 M.2 22110
其他
1 x ASUS WiFi Q-Antenna
1 x Q-連接埠
3 x M.2 Q-Slide 配件包
5 x M.2 背板橡膠墊包
1 x ROG 貼紙
1 x ROG VIP 卡
1 x ROG 開瓶器
文件
1 x 快速入門指南
作業系統：Windows 11
尺寸與外型：ATX 外型規格
12 吋 x 9.6 吋 ( 30.5 cm x 24.4 cm )
ROG CROSSHAIR X870E DARK HERO offers the AM5 processor platform, DDR5 memory, a ATX form factor for gaming builds. Storage, display output and expansion support depend on the processor and device configuration; the detailed limits and compatibility requirements are listed below.
Full specifications
News & Updates: Socket AM5
CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to the ASUS support page for CPU support list.
Chipset: AMD X870E
Memory: 4 x DIMM slots, max. 256GB, DDR5
Supports up to
8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors,
9600+MT/s(OC)**/9200+MT/s(OC)*** with Ryzen™ 8000 Series Processors,
8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM*"
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
Supports DIMM Fit and DIMM Fit Pro
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit the ASUS support page Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
*** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit the ASUS support page
Graphics: 1 x HDMI™ port*
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
*Supports 4K@60Hz as specified in HDMI 2.1.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4a
***The display function of the Type-C® port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual.
Expansion Slots: AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
* Please check the PCIe bifurcation table on the support site (the ASUS support page).
* Specifications vary by CPU types.
** When PCIEX16_1 runs at PCIe 5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS.
- To ensure compatibility of the device installed, please refer to the ASUS support page for the list of supported
Storage: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
AMD Ryzen™ 8500 & 8300 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2230 (supports PCIe 4.0 x2 mode)
2 x SATA 6Gb/s ports
ASMedia ASM1162 Controller
2 x SATA 6Gb/s ports
* The USB4® 40Gbps ports and the M.2 Socket 3 slot (M.2_2) share the available bandwidth. When a device is installed in the M.2_2 slot, both the USB4® controller and the M.2_2 slot operate at up to x2 mode. By configuring the M.2_2 slot in the BIOS, the M.2_2 slot can operate at up to x4 mode. However, enabling this setting will disable the USB4® 40Gbps ports.
RAID Support: AMD RAIDXpert2 Technology
Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10*
* SATA ports from ASM1162 cannot support RAID
Ethernet: 1 x Realtek 10Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth: "Wi-Fi 7 (MediaTek MT7927)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth
Bluetooth® v5.4 (support LE Audio)***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
USB: Rear USB (Total 11 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C®)
Front USB (Total 12 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**
1 x USB 20Gbps connector (supports USB Type-C®)*
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
**USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports: 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C®)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 10Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors: Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x AIO Q-Connector
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 20Gbps connectors (support USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumper
Special Features: Asynchronous Clock
Extreme OC Kit
- FlexKey button
- LN2 Mode
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- 1 x DDR5 fan holder
- 1 x ROG assistant fan (60mm)
- 3D VC M.2 Heatsink
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Metal backplate
ASUS EZ DIY
- Backplate
- BIOS FlashBack™ button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features: ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
- Polymo Lighting II
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- WiFi Q-Antenna
- MLO Wizard
ASUS DriverHub
- ASUS MB Manager
- HWiNFO
- ASUS AI Advisor
- AIDA64 Extreme (1 year full version)
- ASUS GlideX
- USB Wattage Watcher
- Turbo Vcore
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)**
UEFI BIOS
AI Overclocking Guide
Integrated WiFi Driver Support
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
* For more software features, please visit the asus support site or refer to the ASUS support page for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer, please refer to the ASUS support page
BIOS: 64 MB (512Mb)
Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME
Accessories: Cables
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x DDR5 fan holder
1 x ROG assistant fan (60mm)
1 x Screw package for cooling kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
3 x M.2 Q-Slide package
5 x M.2 backplate rubber packages
1 x ROG stickers
1 x ROG VIP card
1 x ROG Bottle Opener
Documentation
1 x Quick start guide
Operating System: Windows 11
Form Factor: ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
洽詢商品 歡迎透過 LINE 或來電，與我們確認規格及供貨資訊。
