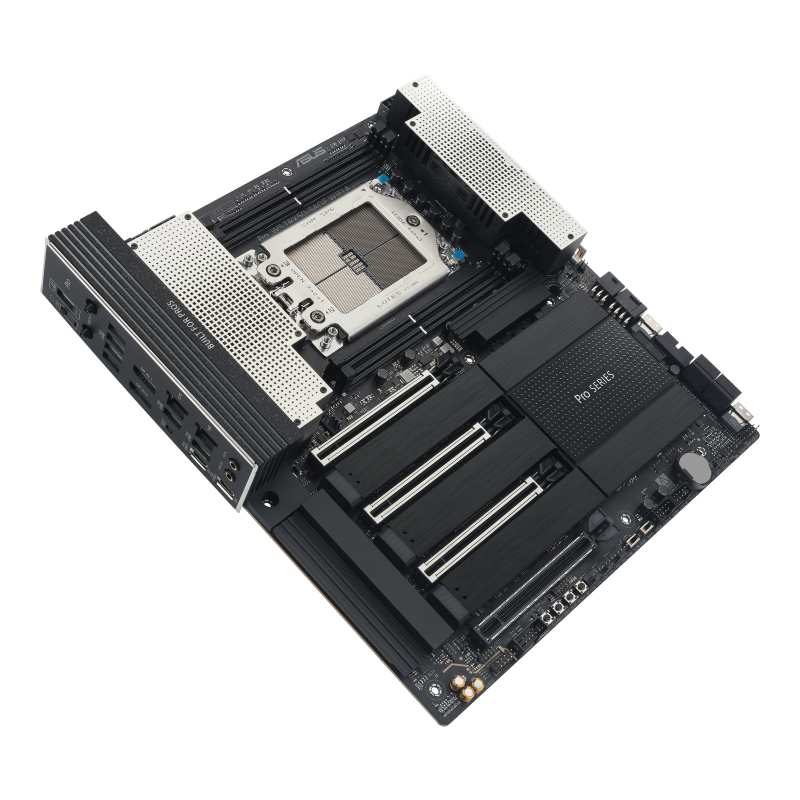

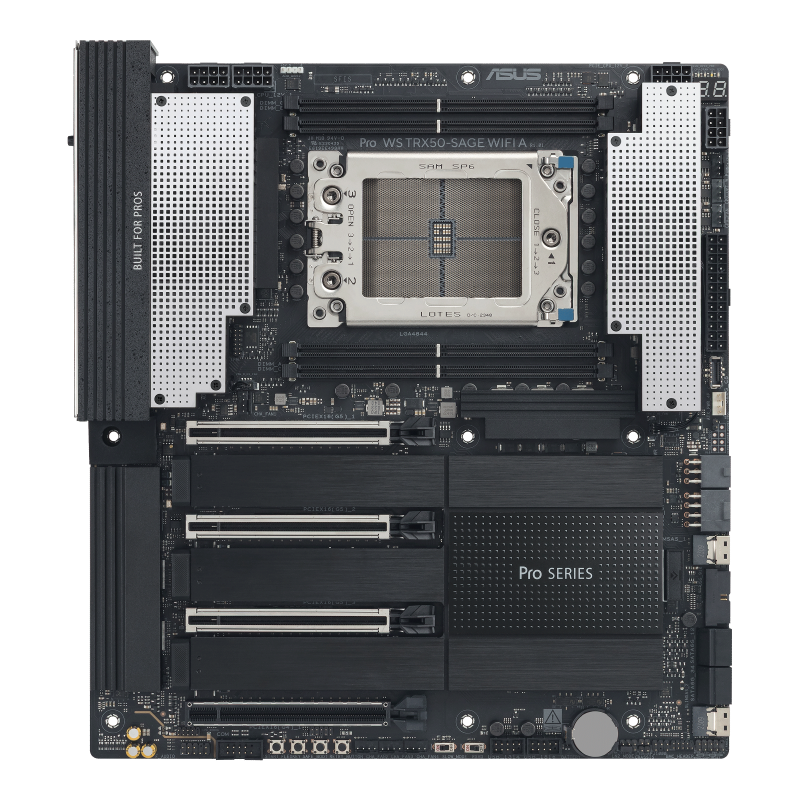

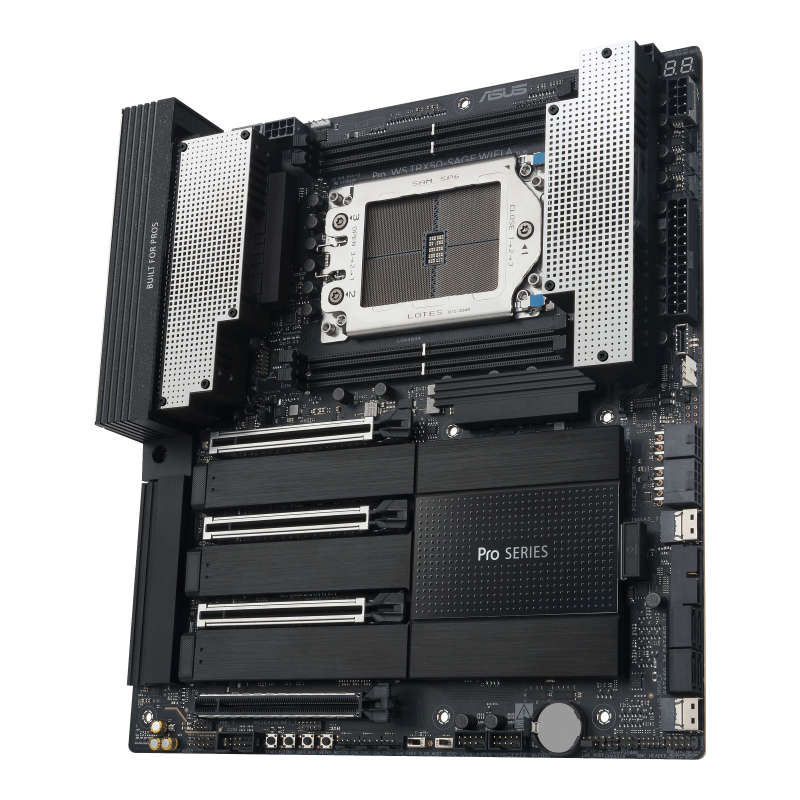

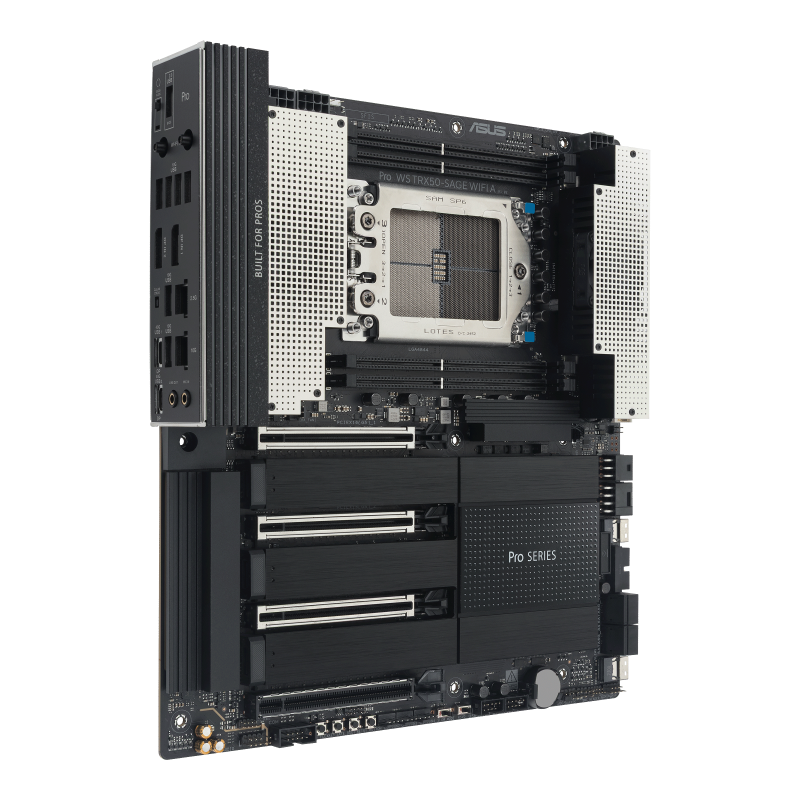

ASUS 華碩 Pro WS TRX50-SAGE WIFI A 主機板

Pro WS TRX50-SAGE WIFI A offers the sTR5 processor platform, DDR5 memory, a CEB form factor for workstation builds. Storage, display output and expansion support depend on the processor and device configuration; the detailed limits and compatibility requirements are listed below. Full specifications News & Updates: Please visit our GLOBAL website to check and download the latest updates. CPU: AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors ** *Refer to the ASUS support page for CPU support list. **System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete. Chipset: AMD TRX50 Chipset Memory: 4 x DIMM slots, DDR5, ECC Registered Memory* 4 Channel Memory Architecture * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit the ASUS support page Graphics: Expansion Slots: AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors 3 x PCIe 5.0 x16 slots 1 x PCIe 4.0 x16 slot * Please check the PCIe bifurcation table on the support site (the ASUS support page) Storage: Total supports 4 x M.2 slots, 4 x SATA 6Gb/s ports , 2 x SlimSAS ports AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and AMD Ryzen™ Threadripper™ 9000 & 7000 Series Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** AMD TRX50 Chipset M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2*** 4 x SATA 6Gb/s ports SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3*** AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**** SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device**** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. ** M.2_1 & M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs *** M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa. **** Supported when the Threadripper™ PRO series CPU is installed RAID Support: AMD RAIDXpert2 Technology PCIe RAID 0/1/5/10 SATA RAID 0/1/5/10 Ethernet: 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® I226-LM 2.5Gb Ethernet Wireless & Bluetooth: "Wi-Fi 7 (Realtek® RTL8922AE) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications." USB: Rear USB (Total 9 ports) 2 x USB4® (40Gbps) (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A ) 1 x USB 2.0 ports (1 x Type-A ) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD)* 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports * USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A Audio: Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers - Unique de-pop circuit * A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output. * This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard. Back Panel I/O Ports: 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 2 x DisplayPort IN 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 4 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) Power related 1 x 24-pin Main Power connectors 1 x 4-pin to 24-pin Main Power connectors 2 x 8-pin +12V CPU Power connector 2 x 8-pin PCIe to CPU power connectors 1 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable RGB Gen 2 header 1 x BMC header 1 x COM Port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x Safe boot button 1 x ReTry button 1 x LN2 mode jumper 1 x Slow mode switch 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header 1 x Chassis intrusion header 1 x Thermal Sensor header 7 x ProbeIt Measurement Points Special Features: ASUS Q-Design - Q-Code - M.2 Q-Latch - M.2 Q-Release - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink and onboard thermal pads - M.2 heatsink backplate - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - Dual DIMM clips - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable RGB Gen 2 header Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Software Features: ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Aura Sync ASUS CPU-Z ASUS DriverHub IT Management software supported - ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey * For more software features, please visit the asus support site or refer to the ASUS support page for additional information. ** For detailed information on the supported models and restricted regions for this redemption offer, please refer to the ASUS support page Remote Management Features: IT Management software supported - ASUS Control Center Express(ACCE) Ready for IPMI Expansion Card* 1 x BMC header * IPMI Expansion Card is sold separately. BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE (UEFI mode) Accessories: Cables 2 x SATA 6Gb/s cables 1 x Thermistor cable pack 1 x DisplayPort cable 1 x 4pin to 24-pin ATX power connector Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 Q-Latch package(2 in 1) 2 x M.2 Q-Slide package 2 x M.2 Rubber Packages 1 x Fan bracket 1 x Q-connector Documentation 1 x ACC Express Activation Key Card 1 x QSG Operating System: Windows® 11 Form Factor: CEB 12 inch x 11 inch (30.5 cm x 28.0 cm)
