ASUS 華碩 ExpertCenter PN55 AI 迷你電腦
ASUS ExpertCenter PN55
PN55 將 AMD Ryzen AI 400 系列處理器與最高 55 TOPS 的 NPU 放進精巧機身,支援多螢幕工作及地端 AI 應用,適合需要節省桌面空間的商務部署。
以下為此型號官方列出的規格與配置選項,各選項不代表同時搭載;處理器、記憶體、儲存、顯示卡、作業系統與配件依實際配置而異。
完整規格
作業系統
Windows 11 Pro Copilot+PC
處理器
AMD Ryzen AI R9 HX 470, 55 TOPS, cTDP 45W
AMD Ryzen AI R7 450, 50 TOPS, cTDP 45W
晶片組
Integrated
顯示晶片
AMD Radeon™ 860M Graphics
記憶體
內含:32GB DDR5-5600 SO-DIMM x 2
內含: 16GB DDR5-5600 SO-DIMM
最高容量: 48GB DDR5-5600 SO-DIMM x 2
儲存裝置
內含:512GB M.2 NVMe™ PCIe® 4.0 SSD storage
內含:1TB M.2 NVMe™ PCIe® 4.0 SSD storage
支援:
256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD
無線網路
Wi-Fi 7(Gig+), Bluetooth® 5.4
* Bluetooth version support may vary from OS.
Bluetooth v5.2 function will be ready in in Windows 11 or later.
有線網路
2 x 10/100/1000/2500 Mbps, 2.5G LAN
音效
Realtek® ALC3251 HD Audio CODEC

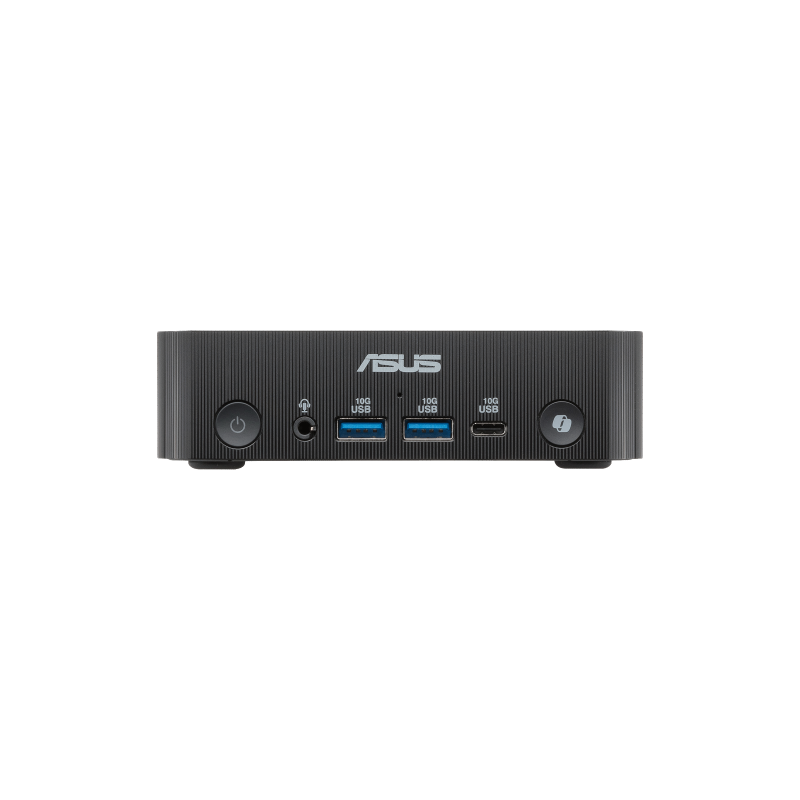

前方/側面連接埠
1 x Power Button
1 x Copilot Button
1 x USB 3.2 Gen2 Type-C (5V/3A, 10Gbps)
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x Audio Jack (Line out/Mic in/Headphone out)
1 x Kensington lock slot (Side)
1 x Fingerprint Reader (Top)

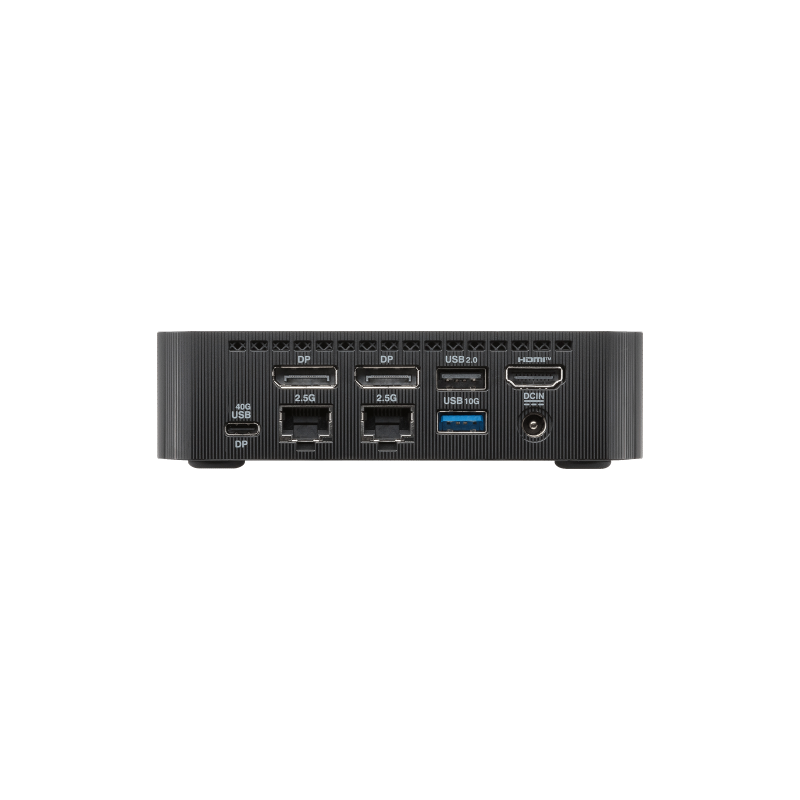

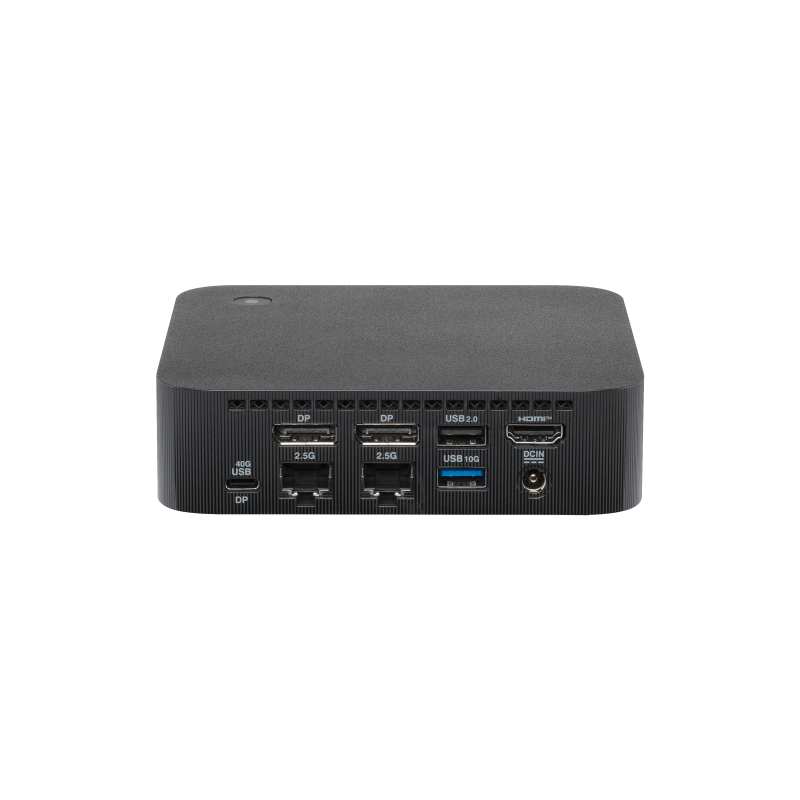

背面連接埠
1 x USB 4.0 Type-C (with DP2.1/PD-in*, 5V/3A, 40Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 (5V/0.5A)
1 x HDMI 2.1 (FRL8)
2 x DisplayPort 1.4
2 x 2.5G RJ45 LAN
1 x DC-in
Speaker
Internal mono speaker / 1W 8ohm
電源供應器
只附電源線
19Vdc, 6.32A, 120W 電源變壓器
尺寸(寬×深×高)
130 x 130 x 34 mm (5.12 x 5.12 x 1.34 inch)
重量
0.62 kg (1.37 lb)
顏色
ECO Black
配件
電源變壓器
電源線
Screw Pack
使用手冊
保固卡
Keyboard & Mouse (optional)
VESA Mount (optional)
認證
BSMI/CB/CE/FCC/UL/CCC/能源之星/C-Tick/WiFi/RF/VCCI
PN55 combines AMD Ryzen AI 400 Series processors and an NPU rated at up to 55 TOPS in a compact chassis for local AI workloads and multi-display business setups.
The specifications below list official configuration options for this model, not a single combined configuration. Processor, memory, storage, graphics, operating system and accessories vary by configuration.
Full specifications
Operating System
Windows 11 Pro Copilot+PC
CPU
AMD Ryzen AI R9 HX 470, 55 TOPS, cTDP 45W
AMD Ryzen AI R7 450, 50 TOPS, cTDP 45W
Chipset
Integrated
Graphics
AMD Radeon™ 860M Graphics
Memory
Included:32GB DDR5-5600 SO-DIMM x 2
Included: 16GB DDR5-5600 SO-DIMM
Max Capacity: 48GB DDR5-5600 SO-DIMM x 2
Storage
Included:512GB M.2 NVMe™ PCIe® 4.0 SSD storage
Included:1TB M.2 NVMe™ PCIe® 4.0 SSD storage
Support:
256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD
Wireless Data Network
Wi-Fi 7(Gig+), Bluetooth® 5.4
* Bluetooth version support may vary from OS.
Bluetooth v5.2 function will be ready in in Windows 11 or later.
LAN
2 x 10/100/1000/2500 Mbps, 2.5G LAN
Audio
Realtek® ALC3251 HD Audio CODEC
Front(Side) I/O Ports
1 x Power Button
1 x Copilot Button
1 x USB 3.2 Gen2 Type-C (5V/3A, 10Gbps)
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x Audio Jack (Line out/Mic in/Headphone out)
1 x Kensington lock slot (Side)
1 x Fingerprint Reader (Top)
Back I/O Ports
1 x USB 4.0 Type-C (with DP2.1/PD-in*, 5V/3A, 40Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 (5V/0.5A)
1 x HDMI 2.1 (FRL8)
2 x DisplayPort 1.4
2 x 2.5G RJ45 LAN
1 x DC-in
Speaker
Internal mono speaker / 1W 8ohm
Power Supply
Power cord only
19Vdc, 6.32A, 120W Power Adapter
Dimensions (W x D x H)
130 x 130 x 34 mm (5.12 x 5.12 x 1.34 inch)
Weight
0.62 kg (1.37 lb)
Color
ECO Black
Accessories
AC Adapter
Power Cord
Screw Pack
User Manual
Warranty Card
Keyboard & Mouse (optional)
VESA Mount (optional)
Certificates
BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
