品牌桌機

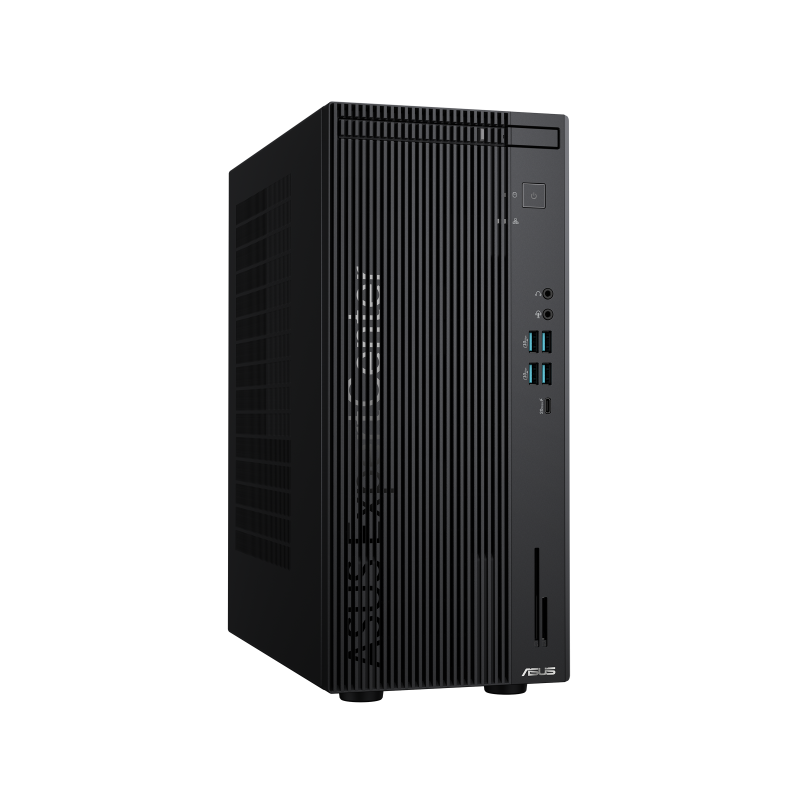

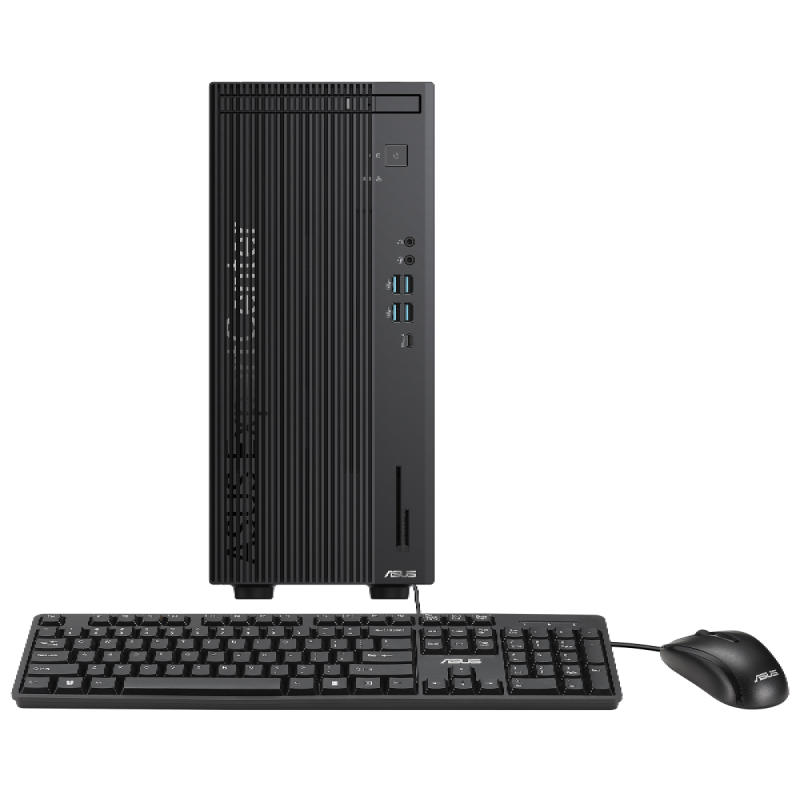

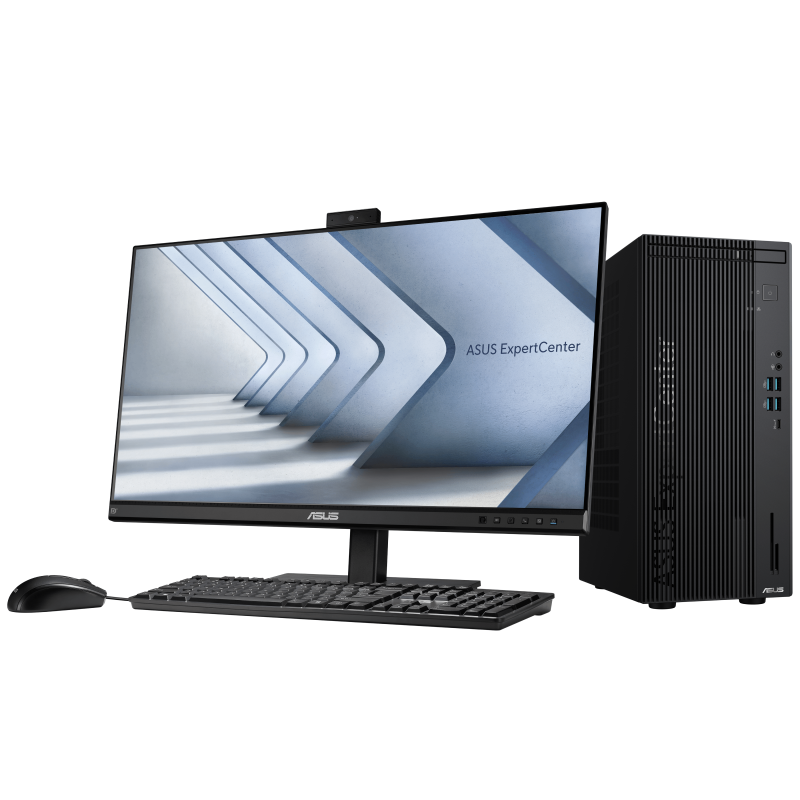

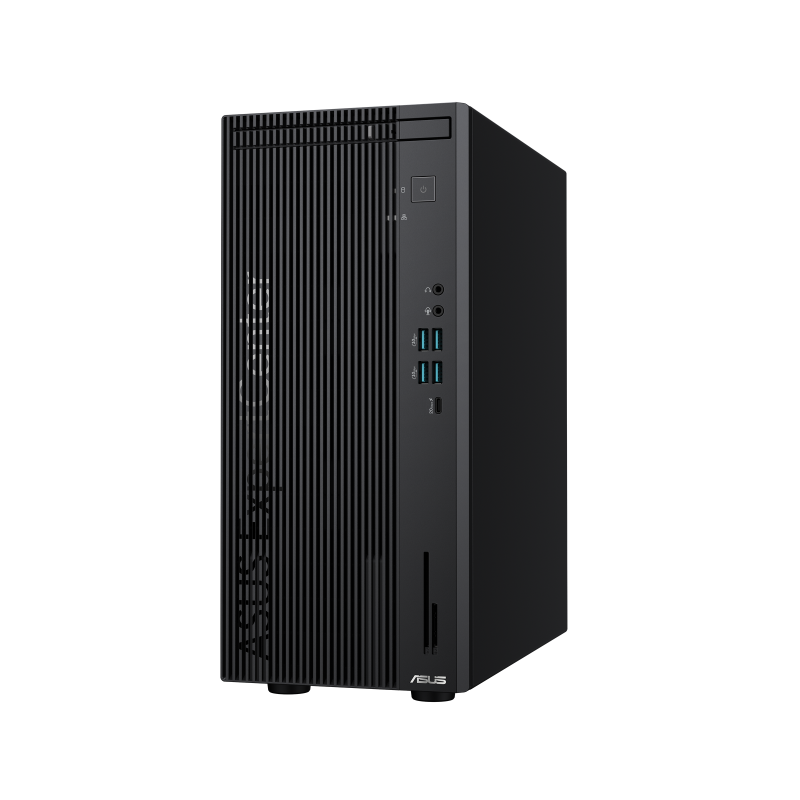

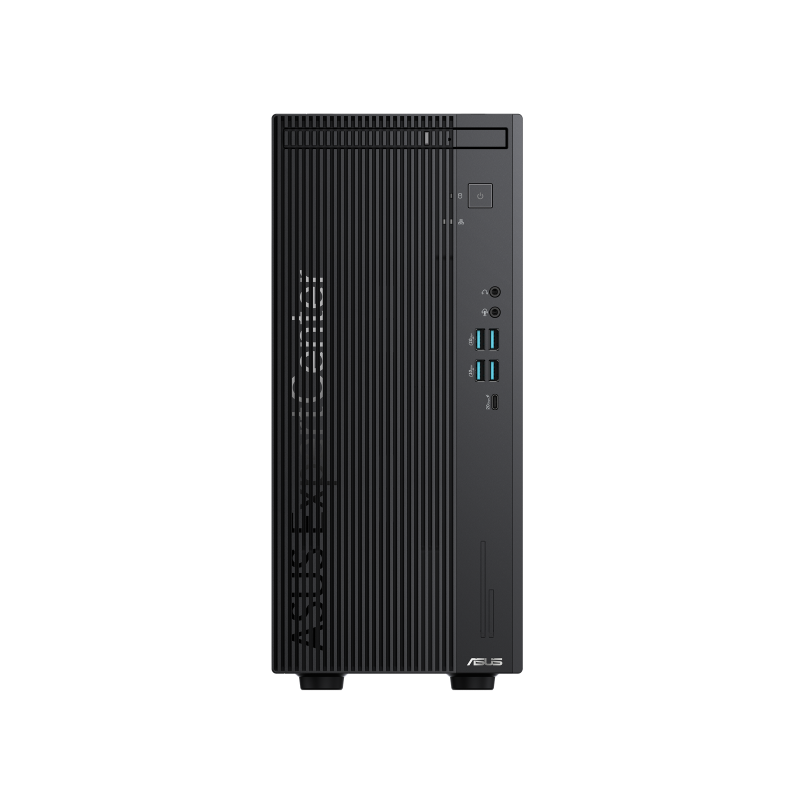

ASUS 華碩 ExpertCenter D900 Mini Tower (D900MF) AI 桌上型電腦
ASUS ExpertCenter D900 Mini Tower (D900MF)
D900MF 是具備 Intel Core Ultra 與 AI Boost NPU 的商用 AI 桌機,結合企業管理、安全功能與可擴充直立式機身,支援日常辦公及專業工作流程。
以下為此型號官方列出的規格與配置選項,各選項不代表同時搭載;處理器、記憶體、儲存、顯示卡、作業系統與配件依實際配置而異。
完整規格
材質 / 顏色
夜木灰
作業系統
Windows 11 Pro - ASUS 推薦商務用 Windows 11 Pro
處理器
Intel® Core™ Ultra 9 Processor 285 2.5GHz (36MB Cache, up to 5.6GHz, 24 cores, 24 Threads), vPro®
Intel® Core™ Ultra 7 Processor 265 2.4GHz (30MB Cache, up to 5.3GHz, 20 cores, 20 Threads), vPro®
晶片組
Intel® Q870 Chipset
Neural processor
Intel® AI Boost NPU
記憶體
4x DDR5 U-DIMM slot, 16GB DDR5 U-DIMM, 記憶體最高128GB
4x DDR5 U-DIMM slot, 16GB DDR5 U-DIMM x 2, 記憶體最高128GB
SATA
4 x SATA 6.0Gb/s 連接埠
資料儲存應用
512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
2TB SATA 7200RPM 3.5 吋 HDD, 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
1TB SATA 7200RPM 3.5 吋 HDD, 1TB M.2 2280 NVMe™ PCIe® 4.0 SSD
光學設備
DVD 燒錄機 8X
前面板輸出端子
1x 智慧卡讀卡機
1x 2 合 1 SD / MMC 讀卡機, 1x USB 3.2 Gen 2*2 Type-C
4x USB 3.2 Gen 2 Type-A
1 x 3.5mm 複合音源線插孔
1x 耳機
後面板輸出端子
4x USB 3.2 Gen 1 Type-A
2x USB 2.0 Type-A
1x 掛鎖環
1x Kensington 鎖
1 x 7.1 聲道音效 (麥克風、音訊輸出、音訊輸入)
1 x Display port 1.4
1x VGA 連接埠
1x HDMI 1.4
1x RJ45 GB 乙太網路
擴充槽(包含已使用)
4x DDR5 U-DIMM slot
2x M.2 2280 connector for storage
1 x WiFi ( M.2 插孔 )
2x PCIe® 3.0 x 1
1 x PCIe® 4.0 x 16
音訊
高傳真 7.1 聲道音效
區域網路
Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (Vpro)
電源規格
500W power supply (80+ Platinum)
330W 電源供應器 (80+ Platinum)
重量
06.00 kg (13.23 lbs)
產品尺寸 (寬x長x高)
15.50 x 29.60 x 34.70 cm (6.10" x 11.65" x 13.66")
MyASUS Features
Link to MyASUS
法規遵循
REACH
RoHS
Energy star 9.0
Energy star 8.0
EPEAT Silver with Climate+
EPEAT Silver
Front bezel_PCR recycled plastic: 65% PCR recycled plastic front bezel
I/O bezel_PCR recycled plastic: 65% PCR recycled plastic I/O bezel
安全性
獨立TPM 模組(TPM) 2.0
Trusted Platform Module (Firmware TPM)
Padlock loop
Microsoft Security Level 3
Microsoft Secured-core PC
Kensington 防盜鎖插槽
HDD User Password Protection and Security
包裝盒內容
有線光學滑鼠 (USB), 有線鍵盤 (USB), 3.5 吋 HDD 裝配組合
1 x COM 通訊埠, *包裝盒內容: 所有配件並非標準配備,需依照訂單需求購買。
Air Cooler
免責聲明
*實際規格仍以合約或報價單為主。
*實際重量依配置而有所不同。
D900MF is a business AI desktop with Intel Core Ultra processing and an AI Boost NPU, combining enterprise management and security with an expandable tower chassis for office and professional workflows.
The specifications below list official configuration options for this model, not a single combined configuration. Processor, memory, storage, graphics, operating system and accessories vary by configuration.
Full specifications
Material / Color
Dark Wood
Operating System
Windows 11 Pro - ASUS recommends Windows 11 Pro for business
Processor
Intel® Core™ Ultra 9 Processor 285 2.5GHz (36MB Cache, up to 5.6GHz, 24 cores, 24 Threads), vPro®
Intel® Core™ Ultra 7 Processor 265 2.4GHz (30MB Cache, up to 5.3GHz, 20 cores, 20 Threads), vPro®
Chipset
Intel® Q870 Chipset
Neural processor
Intel® AI Boost NPU
Memory
4x DDR5 U-DIMM slot, 16GB DDR5 U-DIMM, Maximum Memory: 128GB
4x DDR5 U-DIMM slot, 16GB DDR5 U-DIMM x 2, Maximum Memory: 128GB
SATA
4 x SATA 6.0Gb/s Ports
Storage
512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
2TB SATA 7200RPM 3.5 -inch HDD, 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
1TB SATA 7200RPM 3.5 -inch HDD, 1TB M.2 2280 NVMe™ PCIe® 4.0 SSD
Optical Drive
DVD Writer 8X
Front I/O Ports
1x Smart Card Reader
1x 2 -in-1 SD / MMC Card Reader, 1x USB 3.2 Gen 2*2 Type-C
4x USB 3.2 Gen 2 Type-A
1 x 3.5mm Combo Audio Jack
1x Headphone
Rear I/O Ports
4x USB 3.2 Gen 1 Type-A
2x USB 2.0 Type-A
1x Padlock Loop
1x Kensington Lock
1 x 7.1 -Channel Audio (Microphone, Line Out, Line In)
1 x Display port 1.4
1x VGA Ports
1x HDMI 1.4
1x RJ45 GB Ethernet
Expansion Slots (Including Used Slots)
4x DDR5 U-DIMM slot
2x M.2 2280 connector for storage
1 x WiFi ( M.2 Jack )
2x PCIe® 3.0 x 1
1 x PCIe® 4.0 x 16
Audio
High Definition 7.1 -Channel Audio
LAN
Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (Vpro)
Power Supply
500W power supply (80+ Platinum)
330W Power Supply (80+ Platinum)
Weight
06.00 kg (13.23 lbs)
Dimensions (W x D x H)
15.50 x 29.60 x 34.70 cm (6.10" x 11.65" x 13.66")
MyASUS Features
Link to MyASUS
Regulatory Compliance
REACH
RoHS
Energy star 9.0
Energy star 8.0
EPEAT Silver with Climate+
EPEAT Silver
Front bezel_PCR recycled plastic: 65% PCR recycled plastic front bezel
I/O bezel_PCR recycled plastic: 65% PCR recycled plastic I/O bezel
Security
Discrete TPM Module (TPM) 2.0
Trusted Platform Module (Firmware TPM)
Padlock loop
Microsoft Security Level 3
Microsoft Secured-core PC
Kensington Security Slot
HDD User Password Protection and Security
In the Box
Wired Optical Mouse (USB), Wired Keyboard (USB), 3.5 -inch HDD Assembly Kit
1 x COM Port, *In the Box: Accessories are not all included as standard; availability depends on the order.
Air Cooler
Disclaimer
*Actual specifications are governed by the contract or quotation.
*Actual weight varies by configuration.
