品牌桌機

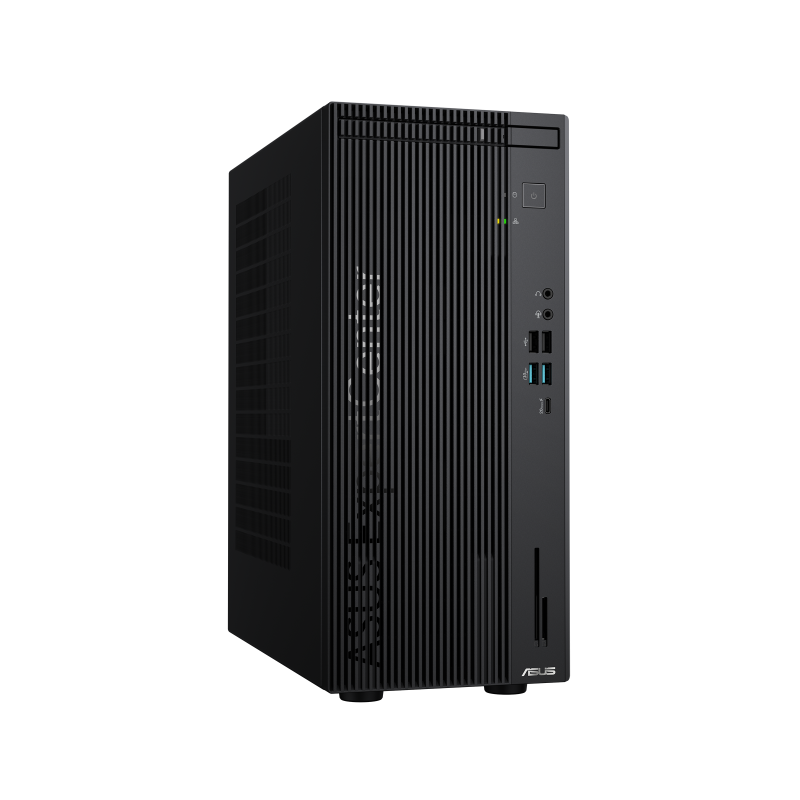

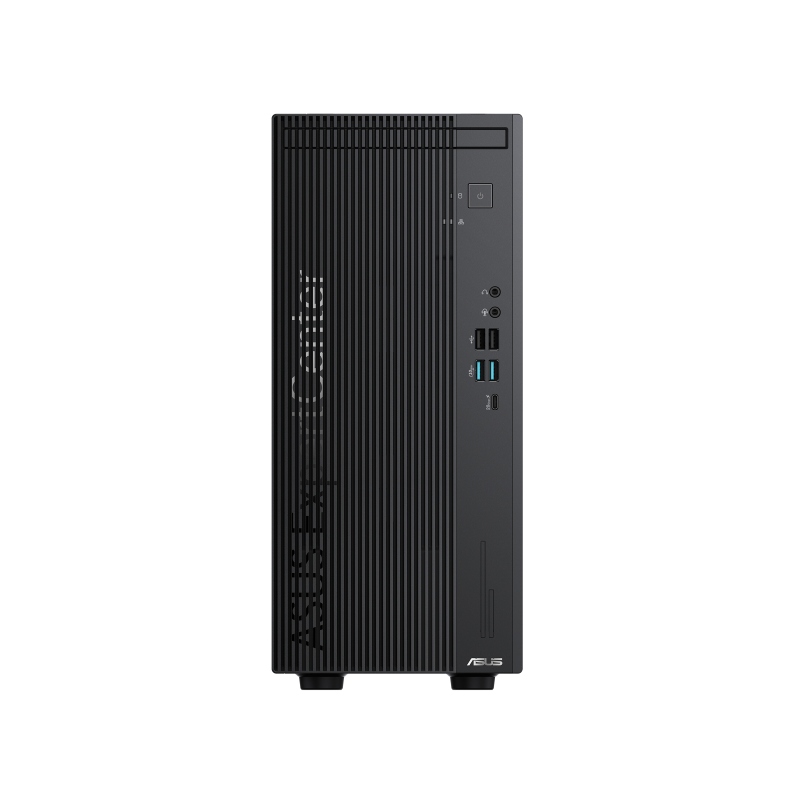

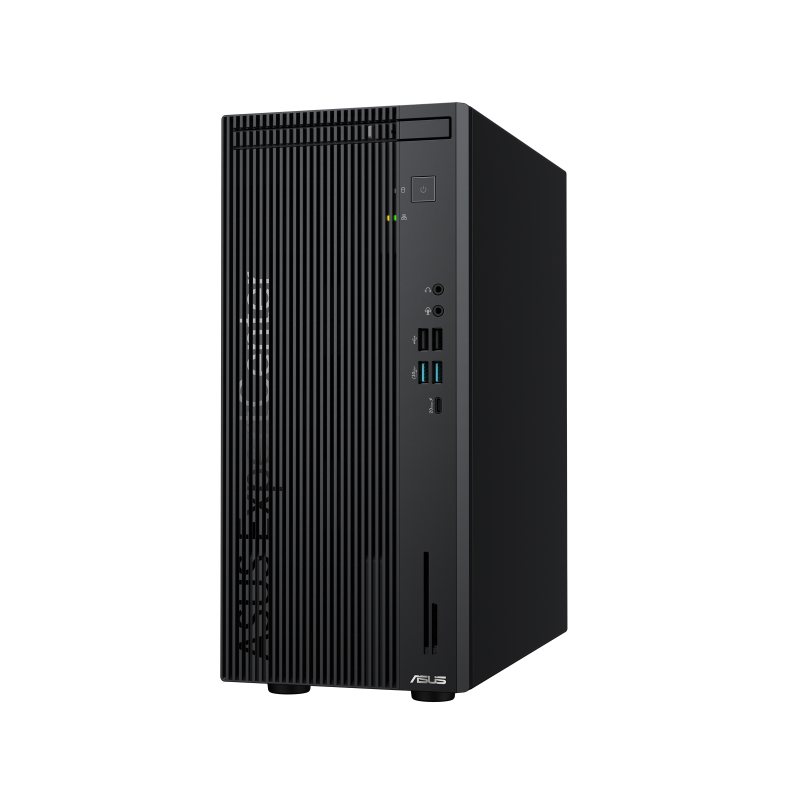

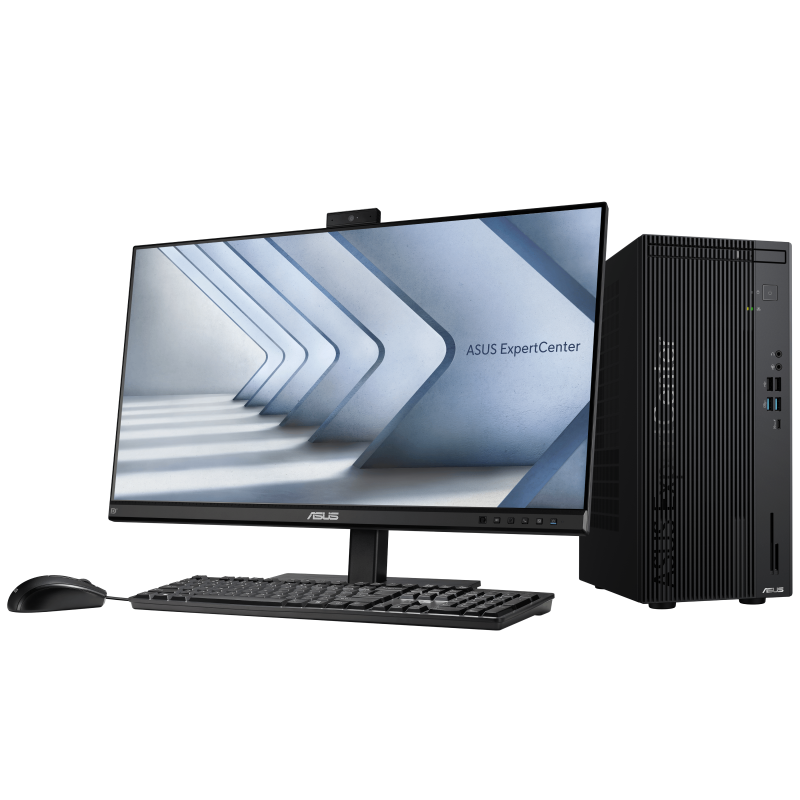

ASUS 華碩 ExpertCenter D700 Mini Tower (D700MF) AI 桌上型電腦
ASUS ExpertCenter D700 Mini Tower (D700MF)
D700MF 以 Intel Core Ultra 平台和整合式 NPU 支援 AI 生產力,15.9 公升免工具機身便於維護與擴充,可搭配多種商務周邊設備。
以下為此型號官方列出的規格與配置選項,各選項不代表同時搭載;處理器、記憶體、儲存、顯示卡、作業系統與配件依實際配置而異。
完整規格
材質 / 顏色
夜木灰
作業系統
Windows 11 Pro - ASUS 推薦商務用 Windows 11 Pro
處理器
Intel® Core™ Ultra 7 Processor 265 2.4GHz (30MB Cache, up to 5.3GHz, 20 cores, 20 Threads)
Intel® Core™ Ultra 5 Processor 225 3.3 GHz (20MB Cache, up to 4.9GHz, 10 cores, 10 Threads)
晶片組
Intel® B860 Chipset
Neural processor
Intel® AI Boost NPU
記憶體
4x DDR5 U-DIMM slot, 16GB DDR5 U-DIMM, 記憶體最高128GB
SATA
4 x SATA 6.0Gb/s 連接埠
資料儲存應用
1TB M.2 2280 NVMe™ PCIe® 4.0 SSD
2TB SATA 7200RPM 3.5 吋 HDD, 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
1TB SATA 7200RPM 3.5 吋 HDD, 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
光學設備
DVD 燒錄機 8X
前面板輸出端子
1x 智慧卡讀卡機
1x 2 合 1 SD / MMC 讀卡機, 1x USB 3.2 Gen 2*2 Type-C
2x USB 3.2 Gen 2 Type-A
2x USB 2.0 Type-A
1 x 3.5mm 複合音源線插孔
1x 耳機
後面板輸出端子
2x USB 3.2 Gen 1 Type-A
3x USB 2.0 Type-A
1x 掛鎖環
1x Kensington 鎖
1 x 7.1 聲道音效 (麥克風、音訊輸出、音訊輸入)
1 x Display port 1.4
1x VGA 連接埠
1x HDMI 1.4
1x RJ45 GB 乙太網路
擴充槽(包含已使用)
4x DDR5 U-DIMM slot
1 x WiFi ( M.2 插孔 )
1x M.2 2280/2230 connector for storage
1x M.2 2280 connector for storage
1x PCIe® 3.0 x 1
1 x PCIe® 4.0 x 16
音訊
高傳真 7.1 聲道音效
電源規格
330W 電源供應器 (80+ Platinum)
重量
06.00 kg (13.23 lbs)
產品尺寸 (寬x長x高)
15.50 x 29.60 x 34.70 cm (6.10" x 11.65" x 13.66")
Built-in Apps
AI ExpertMeet (AI features need devices with 12GB RAM or more)
MyASUS Features
Link to MyASUS
法規遵循
REACH
RoHS
Energy star 9.0
EPEAT Silver
Front bezel_PCR recycled plastic: 65% PCR recycled plastic front bezel
I/O bezel_PCR recycled plastic: 65% PCR recycled plastic I/O bezel
安全性
獨立TPM 模組(TPM) 2.0
Padlock loop
Kensington 防盜鎖插槽
HDD User Password Protection and Security
包裝盒內容
有線光學滑鼠 (USB), 有線鍵盤 (USB), 1 x COM 通訊埠, *包裝盒內容: 所有配件並非標準配備,需依照訂單需求購買。
Air Cooler
免責聲明
*實際規格仍以合約或報價單為主。
*實際重量依配置而有所不同。
D700MF supports AI productivity through Intel Core Ultra processing and an integrated NPU. Its 15.9-liter tool-free chassis simplifies maintenance and expansion while accommodating business peripherals.
The specifications below list official configuration options for this model, not a single combined configuration. Processor, memory, storage, graphics, operating system and accessories vary by configuration.
Full specifications
Material / Color
Dark Wood
Operating System
Windows 11 Pro - ASUS recommends Windows 11 Pro for business
Processor
Intel® Core™ Ultra 7 Processor 265 2.4GHz (30MB Cache, up to 5.3GHz, 20 cores, 20 Threads)
Intel® Core™ Ultra 5 Processor 225 3.3 GHz (20MB Cache, up to 4.9GHz, 10 cores, 10 Threads)
Chipset
Intel® B860 Chipset
Neural processor
Intel® AI Boost NPU
Memory
4x DDR5 U-DIMM slot, 16GB DDR5 U-DIMM, Maximum Memory: 128GB
SATA
4 x SATA 6.0Gb/s Ports
Storage
1TB M.2 2280 NVMe™ PCIe® 4.0 SSD
2TB SATA 7200RPM 3.5 -inch HDD, 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
1TB SATA 7200RPM 3.5 -inch HDD, 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
Optical Drive
DVD Writer 8X
Front I/O Ports
1x Smart Card Reader
1x 2 -in-1 SD / MMC Card Reader, 1x USB 3.2 Gen 2*2 Type-C
2x USB 3.2 Gen 2 Type-A
2x USB 2.0 Type-A
1 x 3.5mm Combo Audio Jack
1x Headphone
Rear I/O Ports
2x USB 3.2 Gen 1 Type-A
3x USB 2.0 Type-A
1x Padlock Loop
1x Kensington Lock
1 x 7.1 -Channel Audio (Microphone, Line Out, Line In)
1 x Display port 1.4
1x VGA Ports
1x HDMI 1.4
1x RJ45 GB Ethernet
Expansion Slots (Including Used Slots)
4x DDR5 U-DIMM slot
1 x WiFi ( M.2 Jack )
1x M.2 2280/2230 connector for storage
1x M.2 2280 connector for storage
1x PCIe® 3.0 x 1
1 x PCIe® 4.0 x 16
Audio
High Definition 7.1 -Channel Audio
Power Supply
330W Power Supply (80+ Platinum)
Weight
06.00 kg (13.23 lbs)
Dimensions (W x D x H)
15.50 x 29.60 x 34.70 cm (6.10" x 11.65" x 13.66")
Built-in Apps
AI ExpertMeet (AI features need devices with 12GB RAM or more)
MyASUS Features
Link to MyASUS
Regulatory Compliance
REACH
RoHS
Energy star 9.0
EPEAT Silver
Front bezel_PCR recycled plastic: 65% PCR recycled plastic front bezel
I/O bezel_PCR recycled plastic: 65% PCR recycled plastic I/O bezel
Security
Discrete TPM Module (TPM) 2.0
Padlock loop
Kensington Security Slot
HDD User Password Protection and Security
In the Box

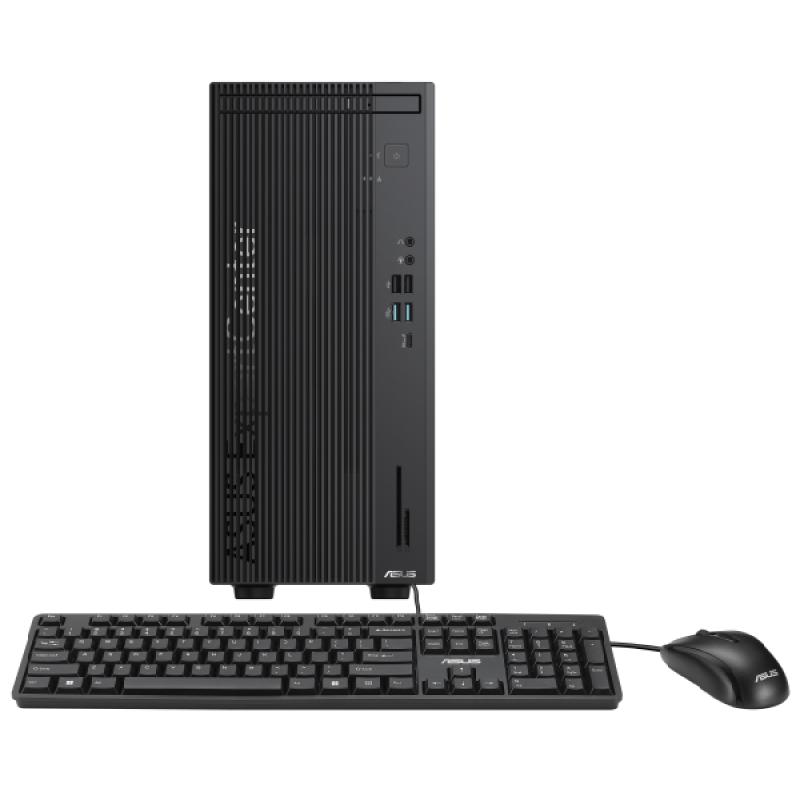

Wired Optical Mouse (USB), Wired Keyboard (USB), 1 x COM Port, *In the Box: Accessories are not all included as standard; availability depends on the order.
Air Cooler
Disclaimer
*Actual specifications are governed by the contract or quotation.
*Actual weight varies by configuration.
洽詢商品 歡迎透過 LINE 或來電,與我們確認規格及供貨資訊。
