ASUS 華碩 NUC 16 Pro 迷你電腦
ASUS NUC 16 Pro
NUC 16 Pro 以 Intel Core Ultra Series 3 平台整合 CPU、GPU 與 NPU 運算,適合精巧 AI 開發、邊緣運算及商務多工環境。不同處理器配置對應不同記憶體規格。
以下為此型號官方列出的規格與配置選項,各選項不代表同時搭載;處理器、記憶體、儲存、顯示卡、作業系統與配件依實際配置而異。
完整規格
Form Factor
Mini PC
作業系統
Windows 11 Home Copilot+PC
Windows 11 Pro Copilot+PC
處理器
Intel® Core™ Ultra X7 358H, cTDP 65W
晶片組
Integrated
顯示晶片
Intel® Arc™ Graphics
記憶體
LPDDR5x-8533 64G
儲存裝置
內含:1TB M.2 2280 NVMe™ PCIe® 5.0 SSD, 支援:
128GB~8TB M.2 2280 NVMe™ PCIe® 4.0x4 SSD or
128GB~8TB M.2 2280 NVMe™ PCIe® 5.0x4 SSD
無線網路
Intel® Wi-Fi 7 BE211 (Gig+), Bluetooth 6.0
有線網路
Dual Intel® Ethernet Controller I226-V, 2.5G
音效
不支援 Analog Audio Support - Digital Audio
前方/側面連接埠
1 x USB 3.2 Gen2x1 Type-C
2 x USB 3.2 Gen2 Type-A
1 x Kensington Lock (Side)
背面連接埠
2 x Thunderbolt 4 Type-C w/ DisplayPort 2.1
2 x USB 3.2 Gen2 Type-A
2 x HDMI 2.1 (TMDS Compatible)
2 x RJ45 LAN
1 x DC-in
電源供應器
19.5VDC, 7.7A, 150W 電源變壓器
尺寸(寬×深×高)
144 x 117 x 42 mm (5.67 x 4.61 x 1.65 inch)
重量
LPDDR : 0.75 kg (1.65 lb)
CSODIMM : 0.91 kg (2.01 lb)
ID
Black, With ASUS LOGO
配件
電源變壓器+電源線
VESA Bracket and Screws
Cable Clip
Safety/Caution/Regulatory Insert
保固卡
*Power cord included is region specific, and some SKUs do not include the power cord
NUC 16 Pro brings CPU, GPU and NPU computing together on the Intel Core Ultra Series 3 platform for compact AI development, edge computing and business multitasking. Memory specifications vary by processor configuration.
The specifications below list official configuration options for this model, not a single combined configuration. Processor, memory, storage, graphics, operating system and accessories vary by configuration.
Full specifications
Form Factor
Mini PC
Operating System
Windows 11 Home Copilot+PC
Windows 11 Pro Copilot+PC
CPU
Intel® Core™ Ultra X7 358H, cTDP 65W
Chipset
Integrated
Graphics
Intel® Arc™ Graphics
Memory
LPDDR5x-8533 64G
Storage
Included:1TB M.2 2280 NVMe™ PCIe® 5.0 SSD, Support:
128GB~8TB M.2 2280 NVMe™ PCIe® 4.0x4 SSD or
128GB~8TB M.2 2280 NVMe™ PCIe® 5.0x4 SSD
Wireless Data Network
Intel® Wi-Fi 7 BE211 (Gig+), Bluetooth 6.0
LAN
Dual Intel® Ethernet Controller I226-V, 2.5G
Audio
No Analog Audio Support - Digital Audio

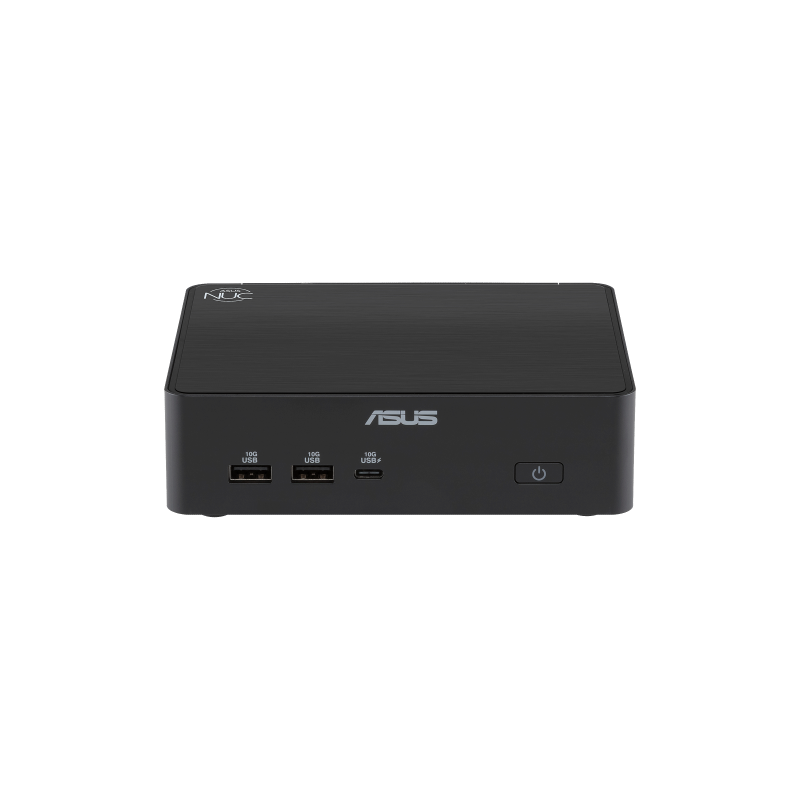

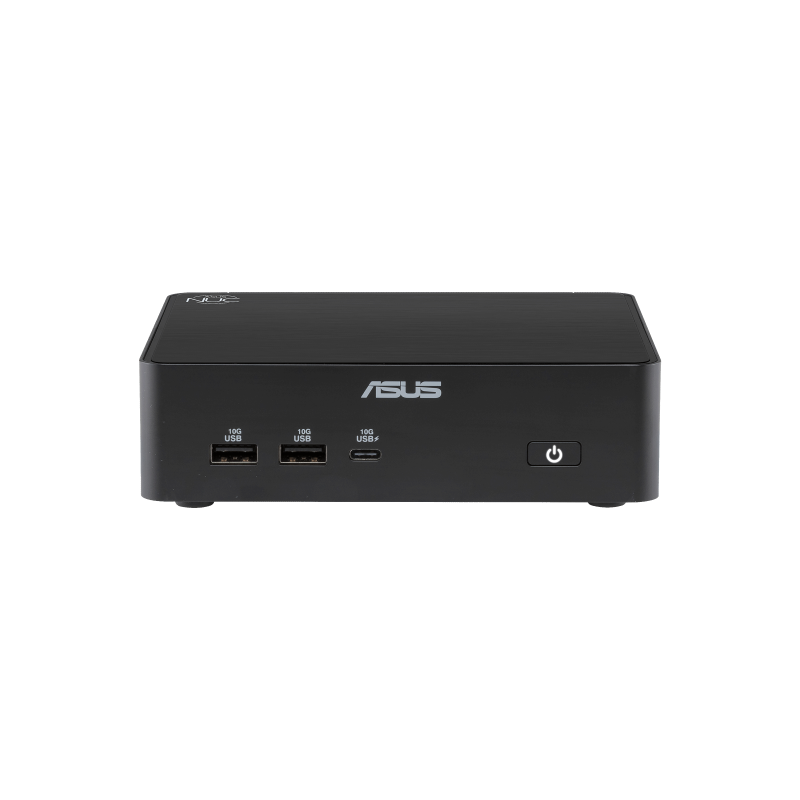

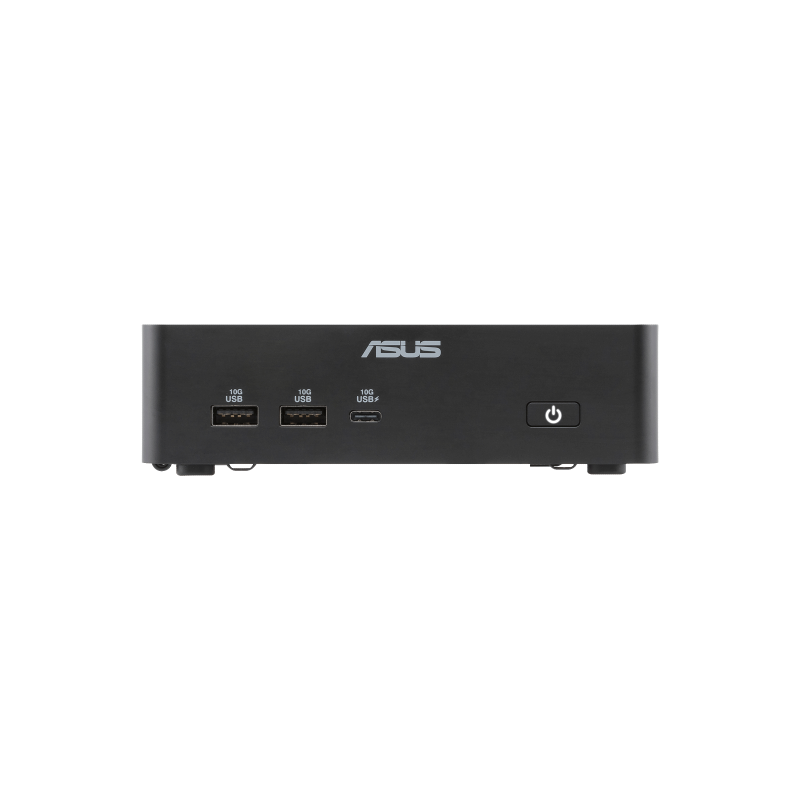

Front(Side) I/O Ports
1 x USB 3.2 Gen2x1 Type-C
2 x USB 3.2 Gen2 Type-A
1 x Kensington Lock (Side)

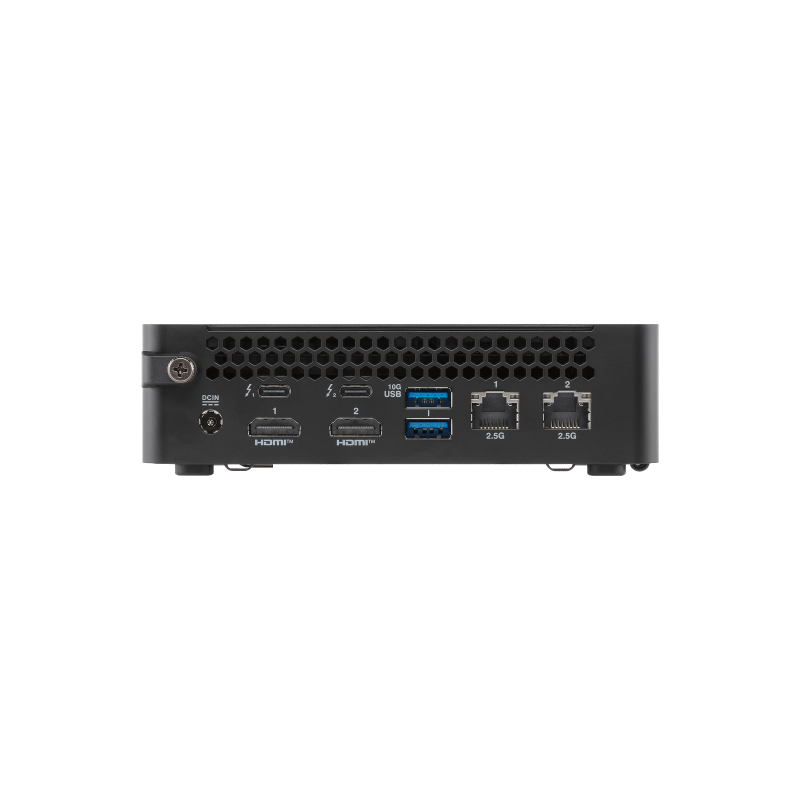

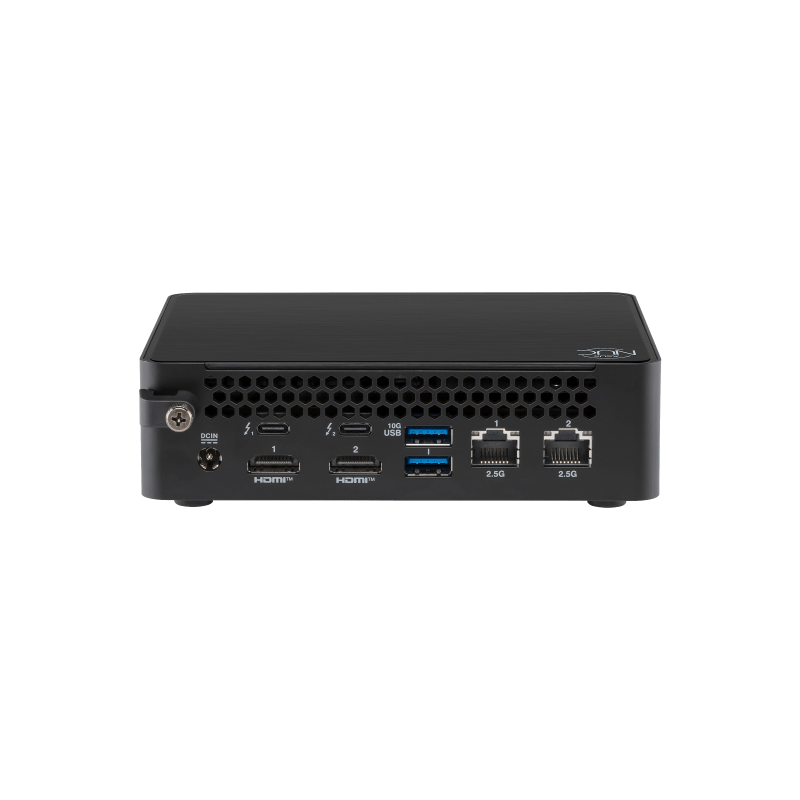

Back I/O Ports
2 x Thunderbolt 4 Type-C w/ DisplayPort 2.1
2 x USB 3.2 Gen2 Type-A
2 x HDMI 2.1 (TMDS Compatible)
2 x RJ45 LAN
1 x DC-in
Power Supply
19.5VDC, 7.7A, 150W Power Adapter
Dimensions (W x D x H)
144 x 117 x 42 mm (5.67 x 4.61 x 1.65 inch)
Weight
LPDDR : 0.75 kg (1.65 lb)
CSODIMM : 0.91 kg (2.01 lb)
ID
Black, With ASUS LOGO
Accessories
AC Adapter+Power Cord
VESA Bracket and Screws
Cable Clip
Safety/Caution/Regulatory Insert
Warranty Card
*Power cord included is region specific, and some SKUs do not include the power cord
