ASUS 華碩 ROG NUC 16 Edition 20 電競迷你電腦

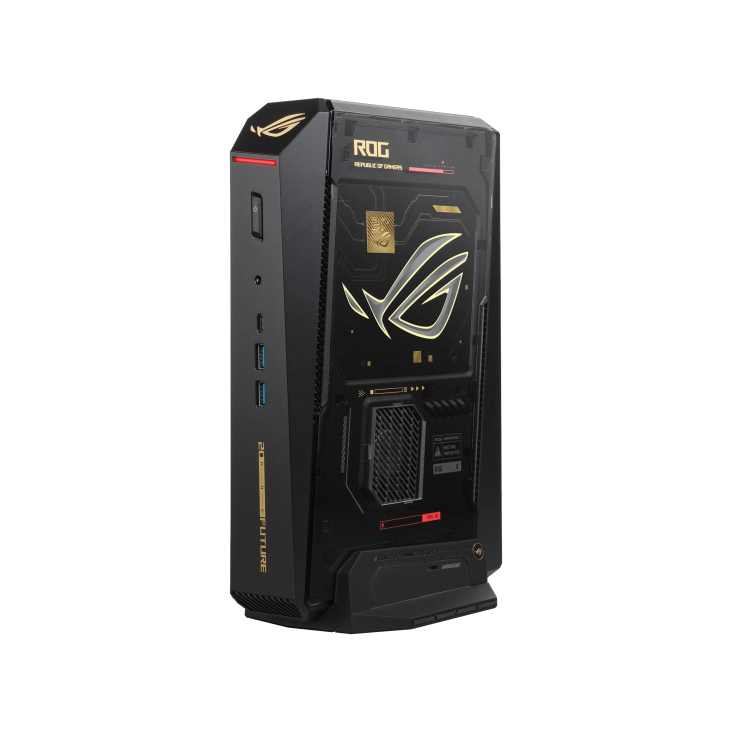

ASUS ROG NUC 16 Edition 20
ROG NUC 16 Edition 20 以周年紀念外觀結合 Intel Core Ultra 平台、GeForce RTX 筆電 GPU 與可擴充記憶體,適合遊戲、創作及地端 AI 工作。
以下為此型號官方列出的規格與配置選項,各選項不代表同時搭載;處理器、記憶體、儲存、顯示卡、作業系統與配件依實際配置而異。
完整規格
作業系統
Windows 11 Home
處理器
Intel® Core™ Ultra 9 Processor 290HX Plus ,cTDP 45-160W
晶片組
Intel Chipset HM870
顯示晶片
Discrete -NVIDIA GeForce RTX 5090 Laptop GPU
24GB GDDR7
記憶體
最高容量: 64GB DDR5-5600 SO-DIMM x 2
or
64GB DDR5-6400 CSO-DIMM x 2, 內含: 32GB DDR5-6400 CSO-DIMM x 2
儲存裝置
內含:2TB M.2 2280 NVMe™ PCIe® 5.0 SSD, 支援:
1TB~4TB M.2 2280 NVMe™ PCIe® 4.0x4 SSD and
1TB~4TB M.2 2280 NVMe™ PCIe® 5.0x4 SSD
無線網路
Intel® Killer™ Wi-Fi 7 BE1750x (Gig+), Bluetooth® 5.4 wireless card\n*Bluetooth® version may change with different OS version.
有線網路
Realtek RTL8125D, 2.5G
音效
ALC3342-CG
前方/側面連接埠
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
1x 3.5mm Combo Audio Jack
背面連接埠
1 x Thunderbolt 4 Type-C w/ DisplayPortTM 2.1
4 x USB 3.2 Gen 2 Type-A
2 x HDMI 2.1 FRL
2 x DP 2.1
1 x RJ45 LAN
1 x DC Input (ASUS rectangle jack)
1 x Kensington Lock
電源供應器
20VDC, 19A, 380W 電源變壓器
尺寸(寬×深×高)
282.5 x 189.5 x 56.5 mm (11.12 x 7.46 x 2.22 inch)
重量
3.2 kg (7.05 lb)
顏色
Black, With ROG LOGO
配件
電源變壓器+電源線
Safety Information
Regulatory Insert
保固卡"\n*Power cord included is region specific, and some SKUs do not include the power cord
ROG NUC 16 Edition 20 combines an anniversary design with Intel Core Ultra processing, GeForce RTX Laptop graphics and expandable memory for gaming, creation and local AI work.
The specifications below list official configuration options for this model, not a single combined configuration. Processor, memory, storage, graphics, operating system and accessories vary by configuration.
Full specifications
Operating System
Windows 11 Home
CPU
Intel® Core™ Ultra 9 Processor 290HX Plus ,cTDP 45-160W
Chipset
Intel Chipset HM870
Graphics
Discrete -NVIDIA GeForce RTX 5090 Laptop GPU
24GB GDDR7
Memory
Max Capacity: 64GB DDR5-5600 SO-DIMM x 2
or
64GB DDR5-6400 CSO-DIMM x 2, Included: 32GB DDR5-6400 CSO-DIMM x 2
Storage
Included:2TB M.2 2280 NVMe™ PCIe® 5.0 SSD, Support:
1TB~4TB M.2 2280 NVMe™ PCIe® 4.0x4 SSD and
1TB~4TB M.2 2280 NVMe™ PCIe® 5.0x4 SSD
Wireless Data Network
Intel® Killer™ Wi-Fi 7 BE1750x (Gig+), Bluetooth® 5.4 wireless card\n*Bluetooth® version may change with different OS version.
LAN
Realtek RTL8125D, 2.5G
Audio
ALC3342-CG

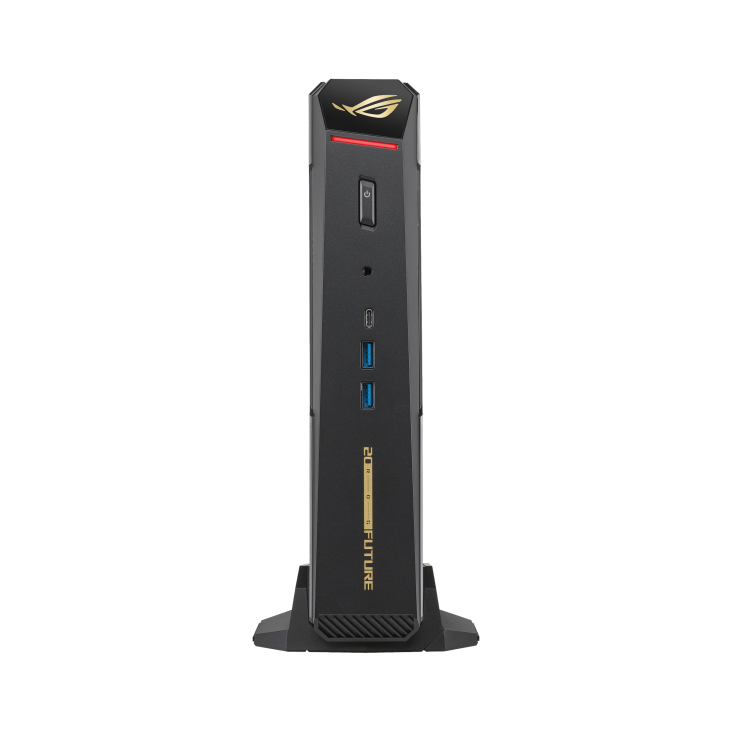

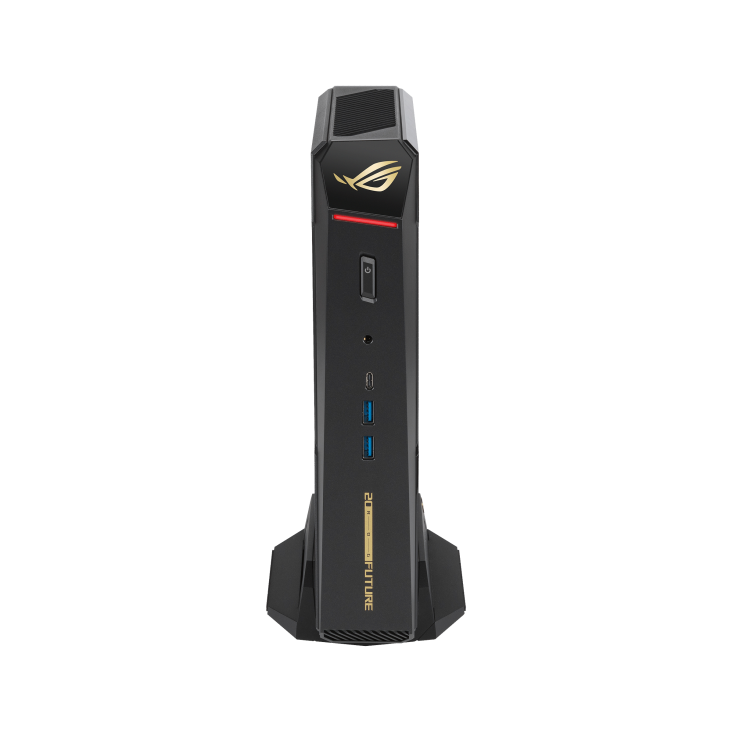

Front(Side) I/O Ports
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
1x 3.5mm Combo Audio Jack

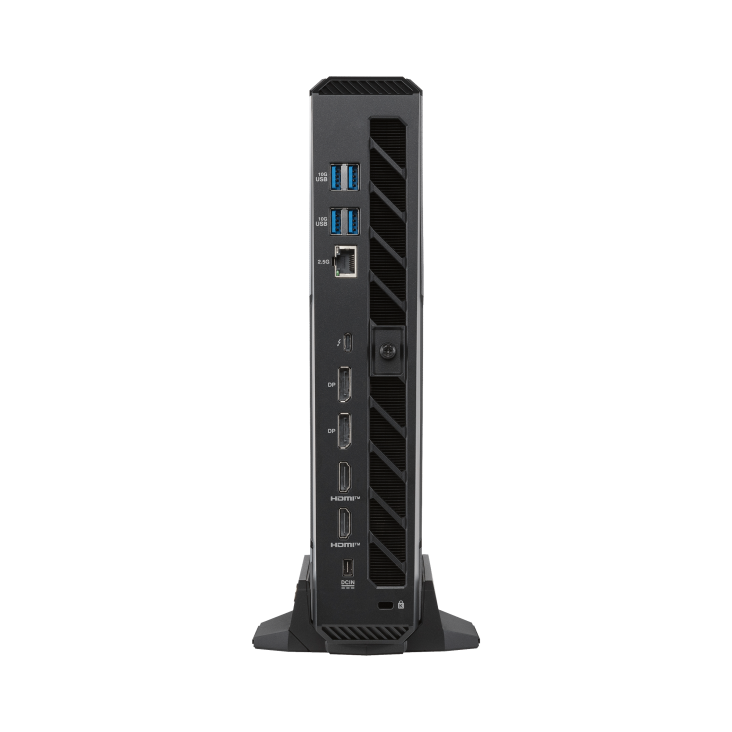

Back I/O Ports
1 x Thunderbolt 4 Type-C w/ DisplayPortTM 2.1
4 x USB 3.2 Gen 2 Type-A
2 x HDMI 2.1 FRL
2 x DP 2.1
1 x RJ45 LAN
1 x DC Input (ASUS rectangle jack)
1 x Kensington Lock
Power Supply
20VDC, 19A, 380W Power Adapter
Dimensions (W x D x H)
282.5 x 189.5 x 56.5 mm (11.12 x 7.46 x 2.22 inch)
Weight
3.2 kg (7.05 lb)
Color
Black, With ROG LOGO
Accessories
AC Adapter+Power Cord
Safety Information
Regulatory Insert
Warranty Card"\n*Power cord included is region specific, and some SKUs do not include the power cord
