ASUS 華碩 NUC 14 Pro AI 迷你電腦
ASUS NUC 14 Pro AI
NUC 14 Pro AI 是以 Intel Core Ultra Series 2 平台打造的迷你 Copilot+ PC,最高 48 NPU TOPS 支援地端 AI 運算,並提供指紋辨識和語音操作所需硬體。
以下為此型號官方列出的規格與配置選項,各選項不代表同時搭載;處理器、記憶體、儲存、顯示卡、作業系統與配件依實際配置而異。
完整規格
Form Factor
Mini PC
/其他配置選項:
Kit
作業系統
*Pre-configured Windows OS version may differ by country inquire with local sales
Windows 11 Home Copilot+PC
Windows 11 Pro Copilot+PC
/其他配置選項:
不支援 preinstalled OS
支援:
Windows 11 Pro
Windows 11 Home
處理器
Intel® Core™ Ultra 5 Processor 228V, cTDP 30W
Intel® Core™ Ultra 5 Processor 226V, cTDP 30W
Intel® Core™ Ultra 7 Processor 258V, cTDP 30W
Intel® Core™ Ultra 7 Processor 256V, cTDP 30W
Intel® Core™ Ultra 9 Processor 288V, cTDP 30W
/其他配置選項:
Intel® Core™ Ultra 9 Processor 288V, cTDP 30W
Intel® Core™ Ultra 7 Processor 258V, cTDP 30W
Intel® Core™ Ultra 7 Processor 256V, cTDP 30W
Intel® Core™ Ultra 5 Processor 226V, cTDP 30W
晶片組
Integrated
顯示晶片
Intel® Arc™ Graphics 140V(U7/U9)
Intel® Arc™ Graphics 130V(U5)
記憶體
內含: 32GB LPDDR5x-8533 2ch memory
內含: 16GB LPDDR5x-8533 2ch memory
儲存裝置
內含:512G M.2 2280 NVMe™ PCIe® 4.0 SSD
內含:2TB M.2 2280 NVMe™ PCIe® 4.0 SSD
內含:1TB M.2 2280 NVMe™ PCIe® 4.0 SSD, 支援:
256GB~4TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD
/其他配置選項:
不支援 storage included at shipment
支援:
256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD
無線網路
Intel® Wi-Fi 7 BE201, Bluetooth 5.4
有線網路
Intel® Ethernet Controller I226-V, 2.5G
音效
Realtek ALC3288
前方/側面連接埠

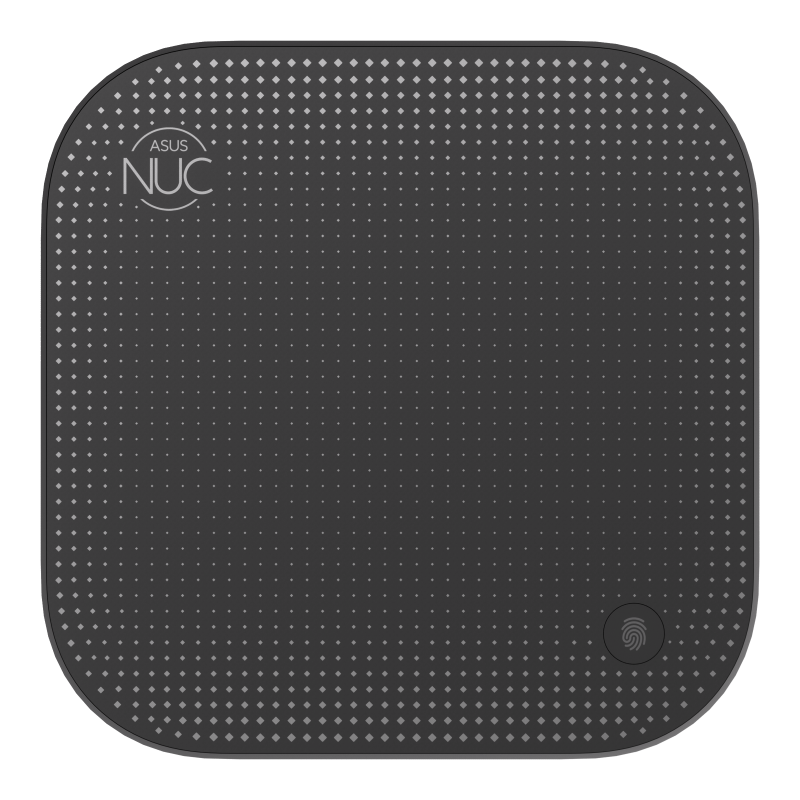

(Top)
1 x Finger Print module

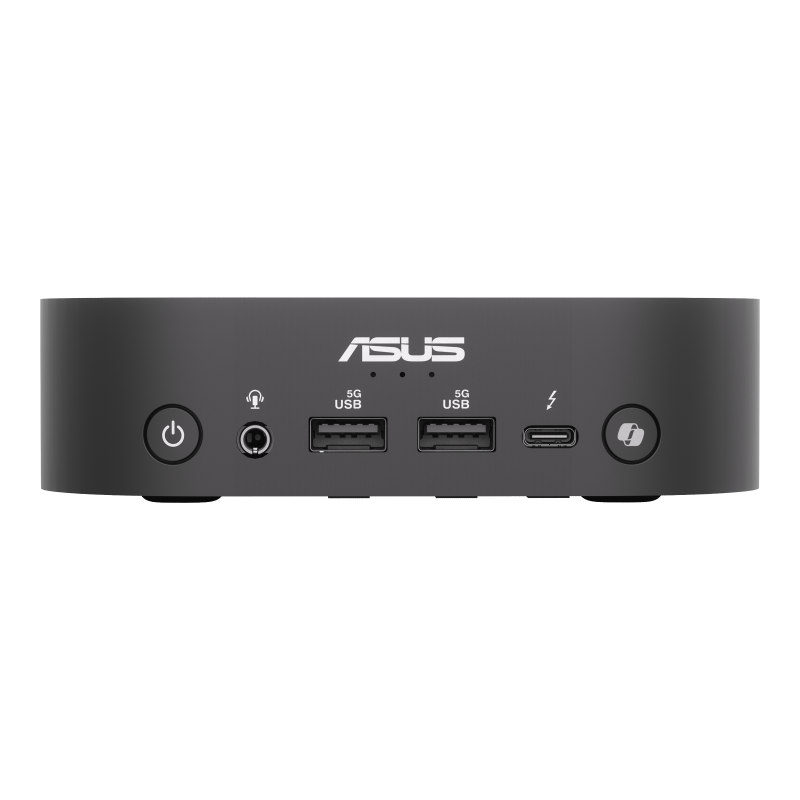

(Front)
1 x Power button
1 x Copilot button
1 x Thunderbolt™ 4 Type-C w/ DisplayPort 2.1
2 x USB 3.2 Gen1 Type-A
1x 3.5mm Headset Jack
(Side)
1 x Kensington Lock slot

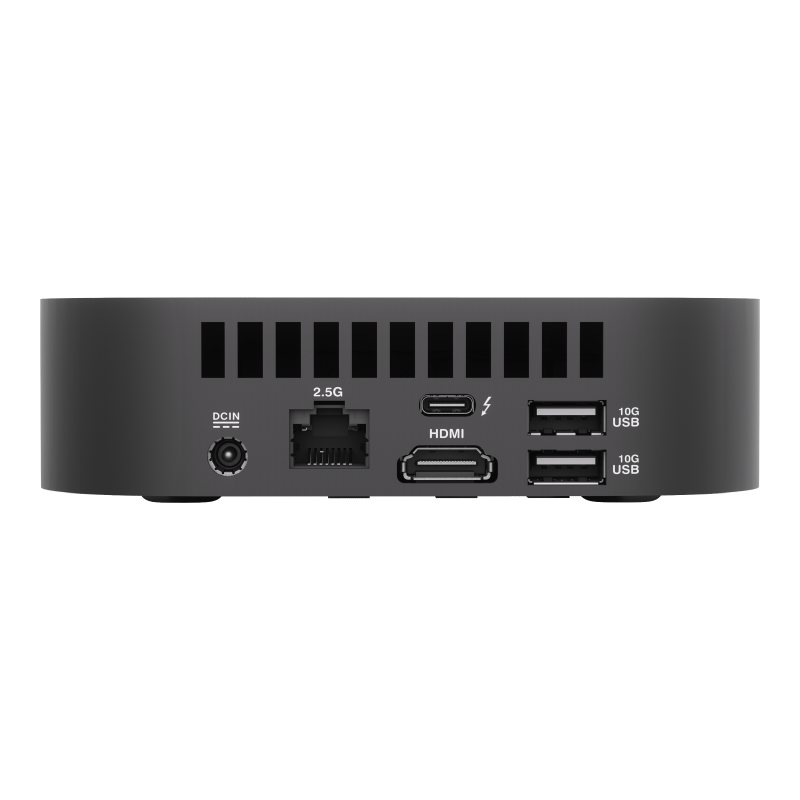

背面連接埠
1 x Thunderbolt™ 4 Type-C w/ DisplayPort 2.1
2 x USB 3.2 Gen2 Type-A
1 x HDMI 2.1 (TMDS)
1 x 2.5G RJ45 LAN
1 x DC-in
/其他配置選項:
1 x Thunderbolt™ 4 Type-C w/ DisplayPort 2.1
2 x USB 3.2 Gen2 Type-A
1 x HDMI 2.1 (TMDS)
1 x 2.5G RJ45 LAN
1 x DC-in
電源供應器
20VDC/19VDC, 6.0A/6.32A 120W 電源變壓器
尺寸(寬×深×高)
130 x 130 x 34 mm (5.12 x 5.12 x 1.34 inch)
重量
0.58 kg (1.28 lb)
ID
Black, With ASUS LOGO
/其他配置選項:
Black, Without ASUS LOGO
配件
電源變壓器+電源線*
VESA Bracket and Screws
Safety/Caution/Regulatory Insert
保固卡
/其他配置選項:
電源變壓器+電源線
VESA Bracket and Screws
Safety/Caution/Regulatory Insert
保固卡
NUC 14 Pro AI is a mini Copilot+ PC built on the Intel Core Ultra Series 2 platform, with up to 48 NPU TOPS for local AI computing plus fingerprint authentication and hardware for voice interaction.
The specifications below list official configuration options for this model, not a single combined configuration. Processor, memory, storage, graphics, operating system and accessories vary by configuration.
Full specifications
Form Factor
Mini PC
/ Alternative configuration:
Kit
Operating System
*Pre-configured Windows OS version may differ by country inquire with local sales
Windows 11 Home Copilot+PC
Windows 11 Pro Copilot+PC
/ Alternative configuration:
No preinstalled OS
Support:
Windows 11 Pro
Windows 11 Home
CPU
Intel® Core™ Ultra 5 Processor 228V, cTDP 30W
Intel® Core™ Ultra 5 Processor 226V, cTDP 30W
Intel® Core™ Ultra 7 Processor 258V, cTDP 30W
Intel® Core™ Ultra 7 Processor 256V, cTDP 30W
Intel® Core™ Ultra 9 Processor 288V, cTDP 30W
/ Alternative configuration:
Intel® Core™ Ultra 9 Processor 288V, cTDP 30W
Intel® Core™ Ultra 7 Processor 258V, cTDP 30W
Intel® Core™ Ultra 7 Processor 256V, cTDP 30W
Intel® Core™ Ultra 5 Processor 226V, cTDP 30W
Chipset
Integrated
Graphics
Intel® Arc™ Graphics 140V(U7/U9)
Intel® Arc™ Graphics 130V(U5)
Memory
Included: 32GB LPDDR5x-8533 2ch memory
Included: 16GB LPDDR5x-8533 2ch memory
Storage
Included:512G M.2 2280 NVMe™ PCIe® 4.0 SSD
Included:2TB M.2 2280 NVMe™ PCIe® 4.0 SSD
Included:1TB M.2 2280 NVMe™ PCIe® 4.0 SSD, Support:
256GB~4TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD
/ Alternative configuration:
No storage included at shipment
Support:
256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD
Wireless Data Network
Intel® Wi-Fi 7 BE201, Bluetooth 5.4
LAN
Intel® Ethernet Controller I226-V, 2.5G
Audio
Realtek ALC3288
Front(Side) I/O Ports
(Top)
1 x Finger Print module
(Front)
1 x Power button
1 x Copilot button
1 x Thunderbolt™ 4 Type-C w/ DisplayPort 2.1
2 x USB 3.2 Gen1 Type-A
1x 3.5mm Headset Jack
(Side)
1 x Kensington Lock slot
Back I/O Ports
1 x Thunderbolt™ 4 Type-C w/ DisplayPort 2.1
2 x USB 3.2 Gen2 Type-A
1 x HDMI 2.1 (TMDS)
1 x 2.5G RJ45 LAN
1 x DC-in
/ Alternative configuration:
1 x Thunderbolt™ 4 Type-C w/ DisplayPort 2.1
2 x USB 3.2 Gen2 Type-A
1 x HDMI 2.1 (TMDS)
1 x 2.5G RJ45 LAN
1 x DC-in
Power Supply
20VDC/19VDC, 6.0A/6.32A 120W Power Adapter
Dimensions (W x D x H)
130 x 130 x 34 mm (5.12 x 5.12 x 1.34 inch)
Weight
0.58 kg (1.28 lb)
ID
Black, With ASUS LOGO
/ Alternative configuration:
Black, Without ASUS LOGO
Accessories
AC Adapter+Power Cord*
VESA Bracket and Screws
Safety/Caution/Regulatory Insert
Warranty Card
/ Alternative configuration:
AC Adapter+Power Cord
VESA Bracket and Screws
Safety/Caution/Regulatory Insert
Warranty Card
