品牌桌機
ASUS 華碩 NUC 15 Pro Plus AI 迷你電腦
ASUS NUC 15 Pro Plus
NUC 15 Pro+ 以 Intel Core Ultra Series 2 平台和 Intel Arc 顯示運算支援 AI 與多工作業,0.7 公升機身兼顧外觀、散熱與免工具維護。
以下為此型號官方列出的規格與配置選項,各選項不代表同時搭載;處理器、記憶體、儲存、顯示卡、作業系統與配件依實際配置而異。
完整規格
Form Factor
Mini PC
/其他配置選項:
Kit
作業系統
Windows 11 Home
Windows 11 Pro
W/O OS
/其他配置選項:
不支援 preinstalled OS
支援:
Windows 11
RedHat Enterprise Linux
Ubuntu 24.04 LTS
處理器
Intel® Core™ Ultra 5 235H w/ vPro, cTDP 40W
Intel® Core™ Ultra 5 225H, cTDP 40W
Intel® Core™ Ultra 7 265H w/ vPro, cTDP 40W
Intel® Core™ Ultra 7 255H, cTDP 40W
Intel® Core™ Ultra 9 285H, cTDP 65W
/其他配置選項:
Intel® Core™ Ultra 5 225H, cTDP 40W
Intel® Core™ Ultra 7 255H, cTDP 40W
Intel® Core™ Ultra 9 285H, cTDP 65W
晶片組
Integrated
顯示晶片
Intel® Arc™ GPU (Core Ultra)
/其他配置選項:
*Intel® Arc™ GPU requires using 2 x SO-DIMM
Intel® Arc™ GPU (Core Ultra)
記憶體
最高容量: 48GB DDR5-5600 SO-DIMM x 2
or
48GB DDR5-6400 CSO-DIMM x 2, 內含: 8GB DDR5-6400 CSO-DIMM x 2
內含: 16GB DDR5-6400 CSO-DIMM x 2
內含: 16GB DDR5-6400 CSO-DIMM
/其他配置選項:
不支援 memory included at shipment
最高容量:
48GB DDR5-5600 SO-DIMM x 2
or
48GB DDR5-6400 CSO-DIMM x 2
儲存裝置
內含:512G M.2 2280 NVMe™ PCIe® 4.0 SSD
內含:1TB M.2 2280 NVMe™ PCIe® 4.0 SSD, 支援:
Slot 1: 128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD
Slot 2: 128GB~2TB M.2 2242 NVMe™ PCIe® 4.0 x 4 SSD
/其他配置選項:
不支援 storage included at shipment
支援:
Slot 1: 128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD
Slot 2: 128GB~2TB M.2 2242 NVMe™ PCIe® 4.0 x 4 SSD
無線網路
*Bluetooth® version may change with different OS version.
Intel® Wi-Fi 7 BE201, Bluetooth 5.4
有線網路
Intel® Ethernet Controller I226-V, 2.5G
Intel® Ethernet Controller I226-LM, 2.5G
/其他配置選項:
Intel® Ethernet Controller I226-V, 2.5G
前方/側面連接埠
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
背面連接埠
2 x HDMI 2.1 TMDS Compatible (4K@60Hz)
2 x Thunderbolt™ 4 ports (incl. DP 2.1 and USB4)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
1 x RJ45 LAN
1 x DC-in
1 x Kensington Lock
/其他配置選項:
2 x HDMI 2.1 TMDS Compatible (4K@60Hz)
2 x Thunderbolt™ 4 ports (incl. DP 2.1 and USB4)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
1 x RJ45 LAN
1 x DC-in
1 x Kensington Lock
電源供應器
19VDC, 6.32A, 120W 電源變壓器
19.5VDC, 7.69A, 150W 電源變壓器 (Core Ultra 9)
/其他配置選項:
19.5VDC, 7.69A, 150W 電源變壓器 (Core Ultra 9)
19VDC, 6.32A, 120W 電源變壓器
尺寸(寬×深×高)
144 x 112 x 41.8 mm (5.67 x 4.41 x 1.65 inch)
重量
0.68 kg (1.50 lb)
/其他配置選項:
0.66 kg (1.45 lb)
ID
Silver, With ASUS LOGO
/其他配置選項:
Silver, Without ASUS LOGO
配件
*Power cord included is region specific, and some SKUs do not include the power cord
電源變壓器+電源線*
VESA Bracket and Screws
Safety/Regulatory Insert
保固卡
/其他配置選項:
*Power cord included is region specific, and some SKUs do not include the power cord
電源變壓器+電源線*
VESA Bracket and Screws
Safety/Caution/Regulatory Insert
保固卡
NUC 15 Pro+ combines Intel Core Ultra Series 2 processing and Intel Arc graphics for AI and multitasking in a 0.7-liter chassis designed for cooling and tool-free maintenance.
The specifications below list official configuration options for this model, not a single combined configuration. Processor, memory, storage, graphics, operating system and accessories vary by configuration.
Full specifications
Form Factor
Mini PC
/ Alternative configuration:
Kit
Operating System
Windows 11 Home
Windows 11 Pro
W/O OS
/ Alternative configuration:
No preinstalled OS
Support:
Windows 11
RedHat Enterprise Linux
Ubuntu 24.04 LTS
CPU
Intel® Core™ Ultra 5 235H w/ vPro, cTDP 40W
Intel® Core™ Ultra 5 225H, cTDP 40W
Intel® Core™ Ultra 7 265H w/ vPro, cTDP 40W
Intel® Core™ Ultra 7 255H, cTDP 40W
Intel® Core™ Ultra 9 285H, cTDP 65W
/ Alternative configuration:
Intel® Core™ Ultra 5 225H, cTDP 40W
Intel® Core™ Ultra 7 255H, cTDP 40W
Intel® Core™ Ultra 9 285H, cTDP 65W
Chipset
Integrated
Graphics
Intel® Arc™ GPU (Core Ultra)
/ Alternative configuration:
*Intel® Arc™ GPU requires using 2 x SO-DIMM
Intel® Arc™ GPU (Core Ultra)
Memory
Max Capacity: 48GB DDR5-5600 SO-DIMM x 2
or
48GB DDR5-6400 CSO-DIMM x 2, Included: 8GB DDR5-6400 CSO-DIMM x 2
Included: 16GB DDR5-6400 CSO-DIMM x 2
Included: 16GB DDR5-6400 CSO-DIMM
/ Alternative configuration:
No memory included at shipment
Max Capacity:
48GB DDR5-5600 SO-DIMM x 2
or
48GB DDR5-6400 CSO-DIMM x 2
Storage
Included:512G M.2 2280 NVMe™ PCIe® 4.0 SSD
Included:1TB M.2 2280 NVMe™ PCIe® 4.0 SSD, Support:
Slot 1: 128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD
Slot 2: 128GB~2TB M.2 2242 NVMe™ PCIe® 4.0 x 4 SSD
/ Alternative configuration:
No storage included at shipment
Support:
Slot 1: 128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD
Slot 2: 128GB~2TB M.2 2242 NVMe™ PCIe® 4.0 x 4 SSD
Wireless Data Network
*Bluetooth® version may change with different OS version.
Intel® Wi-Fi 7 BE201, Bluetooth 5.4
LAN
Intel® Ethernet Controller I226-V, 2.5G
Intel® Ethernet Controller I226-LM, 2.5G
/ Alternative configuration:
Intel® Ethernet Controller I226-V, 2.5G

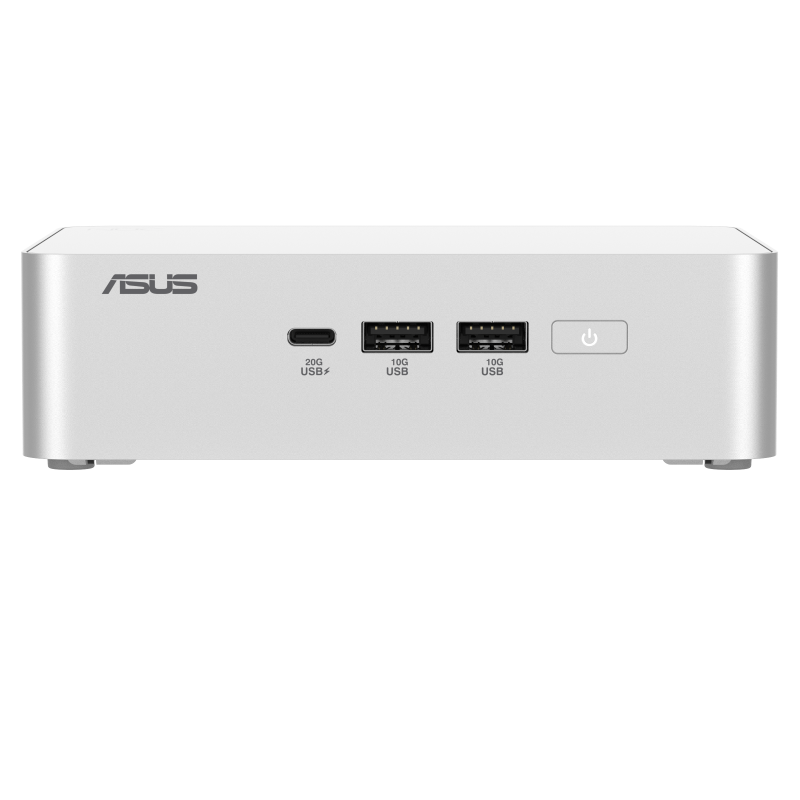

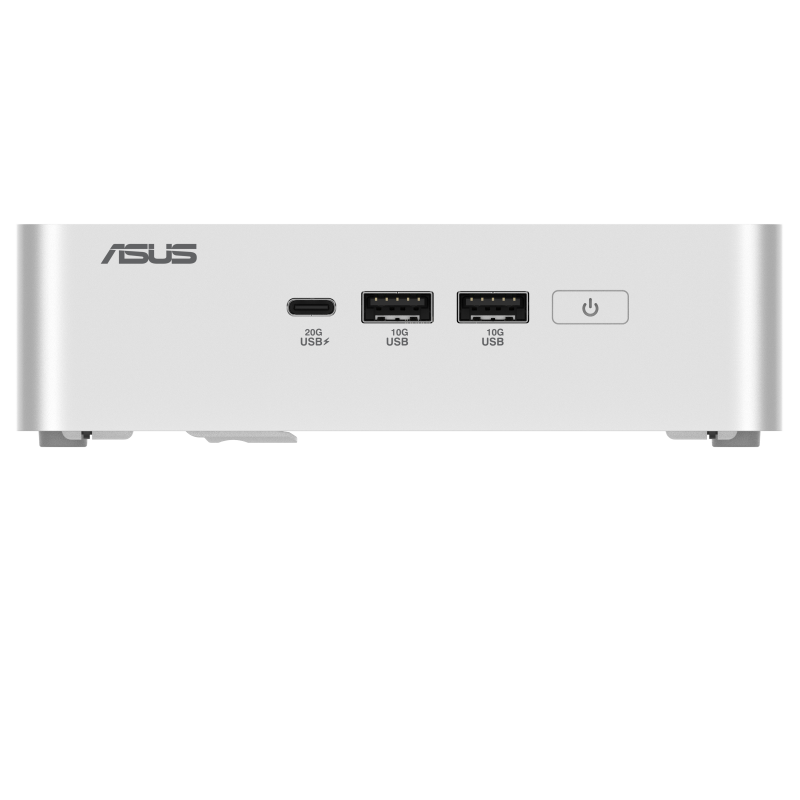

Front(Side) I/O Ports
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A

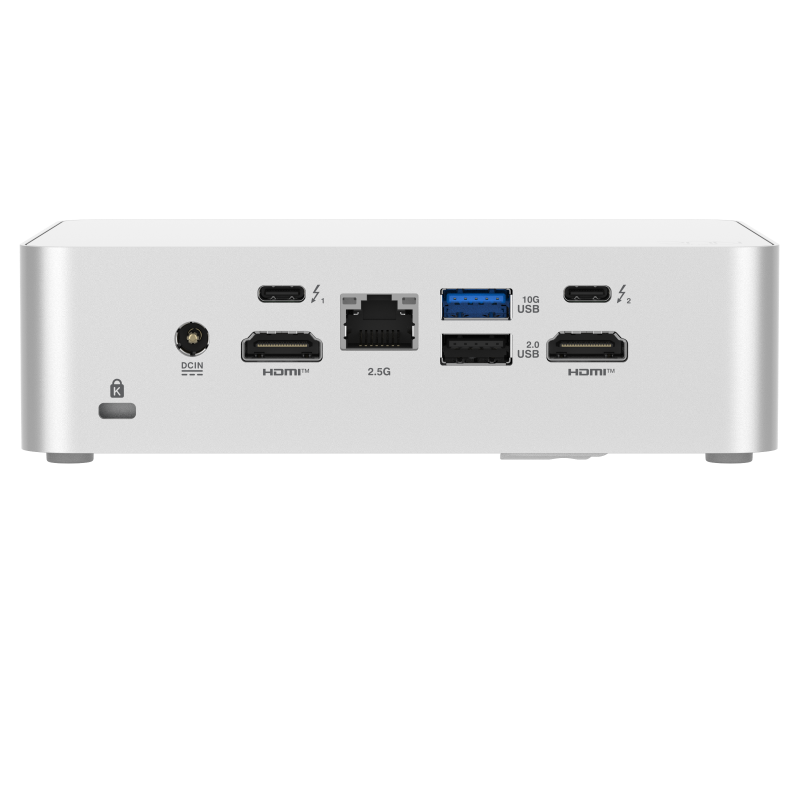

Back I/O Ports
2 x HDMI 2.1 TMDS Compatible (4K@60Hz)
2 x Thunderbolt™ 4 ports (incl. DP 2.1 and USB4)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
1 x RJ45 LAN
1 x DC-in
1 x Kensington Lock
/ Alternative configuration:
2 x HDMI 2.1 TMDS Compatible (4K@60Hz)
2 x Thunderbolt™ 4 ports (incl. DP 2.1 and USB4)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
1 x RJ45 LAN
1 x DC-in
1 x Kensington Lock
Power Supply
19VDC, 6.32A, 120W Power Adapter
19.5VDC, 7.69A, 150W Power Adapter (Core Ultra 9)
/ Alternative configuration:
19.5VDC, 7.69A, 150W Power Adapter (Core Ultra 9)
19VDC, 6.32A, 120W Power Adapter
Dimensions (W x D x H)
144 x 112 x 41.8 mm (5.67 x 4.41 x 1.65 inch)
Weight
0.68 kg (1.50 lb)
/ Alternative configuration:
0.66 kg (1.45 lb)
ID
Silver, With ASUS LOGO
/ Alternative configuration:
Silver, Without ASUS LOGO
Accessories
*Power cord included is region specific, and some SKUs do not include the power cord
AC Adapter+Power Cord*
VESA Bracket and Screws
Safety/Regulatory Insert
Warranty Card
/ Alternative configuration:
*Power cord included is region specific, and some SKUs do not include the power cord
AC Adapter+Power Cord*
VESA Bracket and Screws
Safety/Caution/Regulatory Insert
Warranty Card
