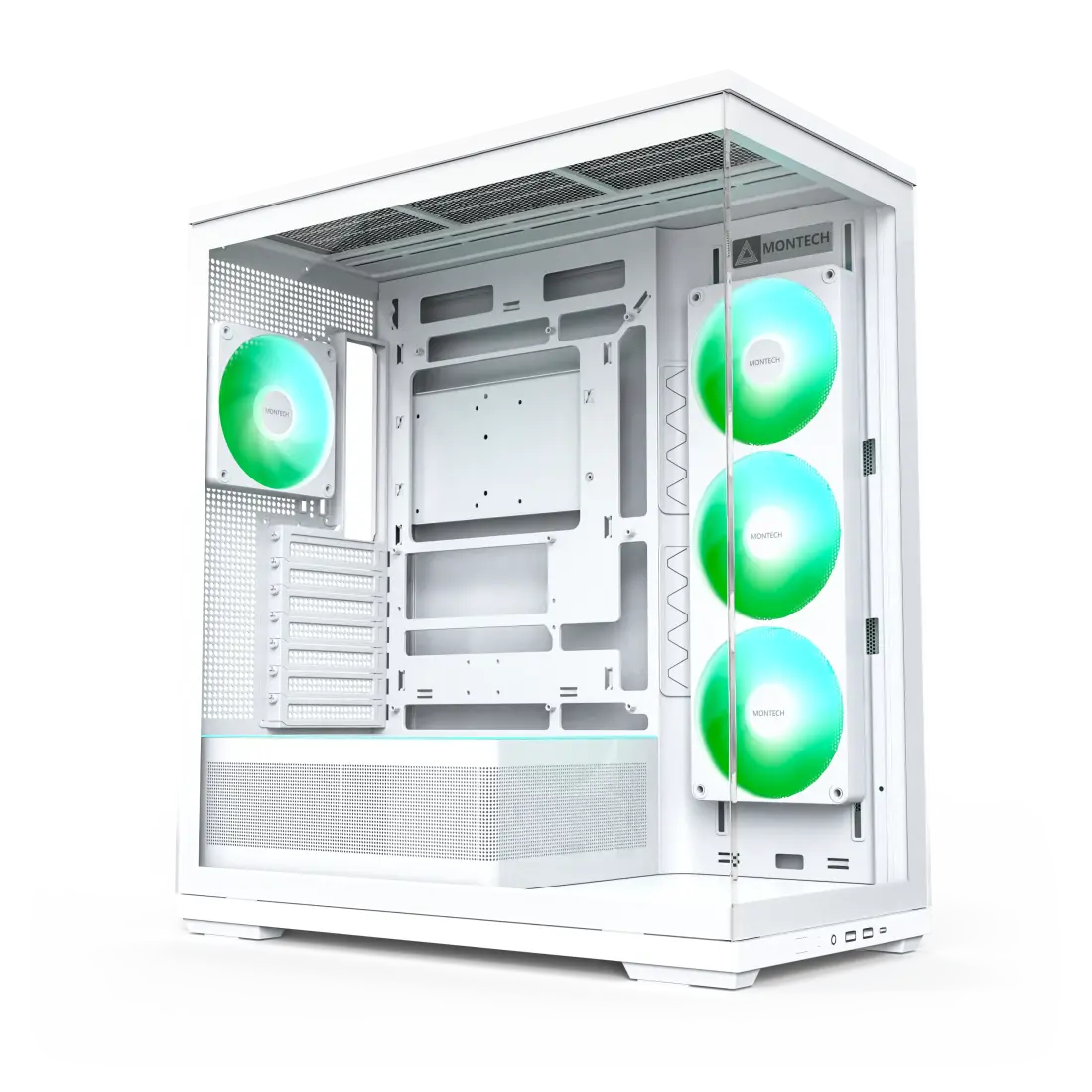

MONTECH 君主 TG3 白色 機殼

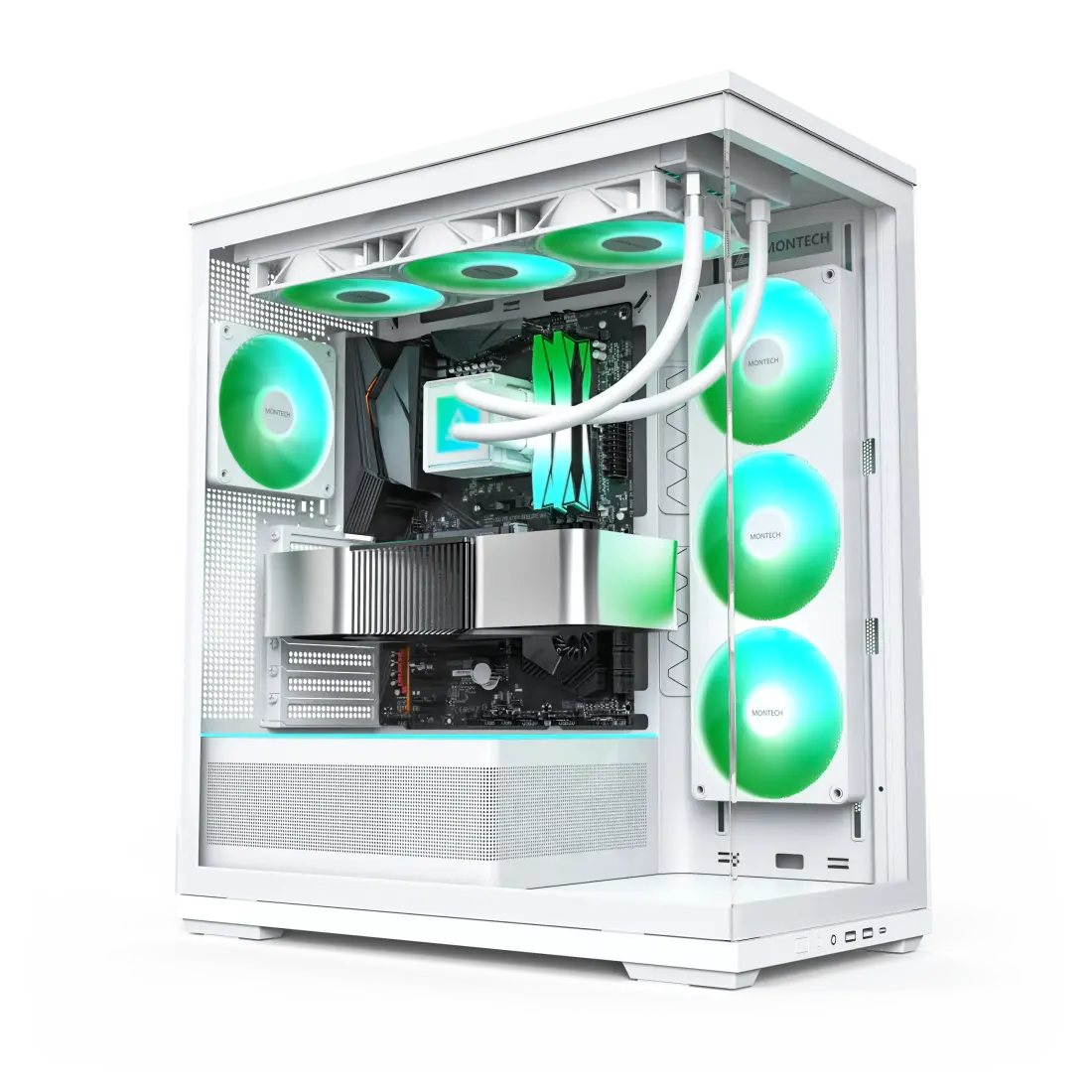

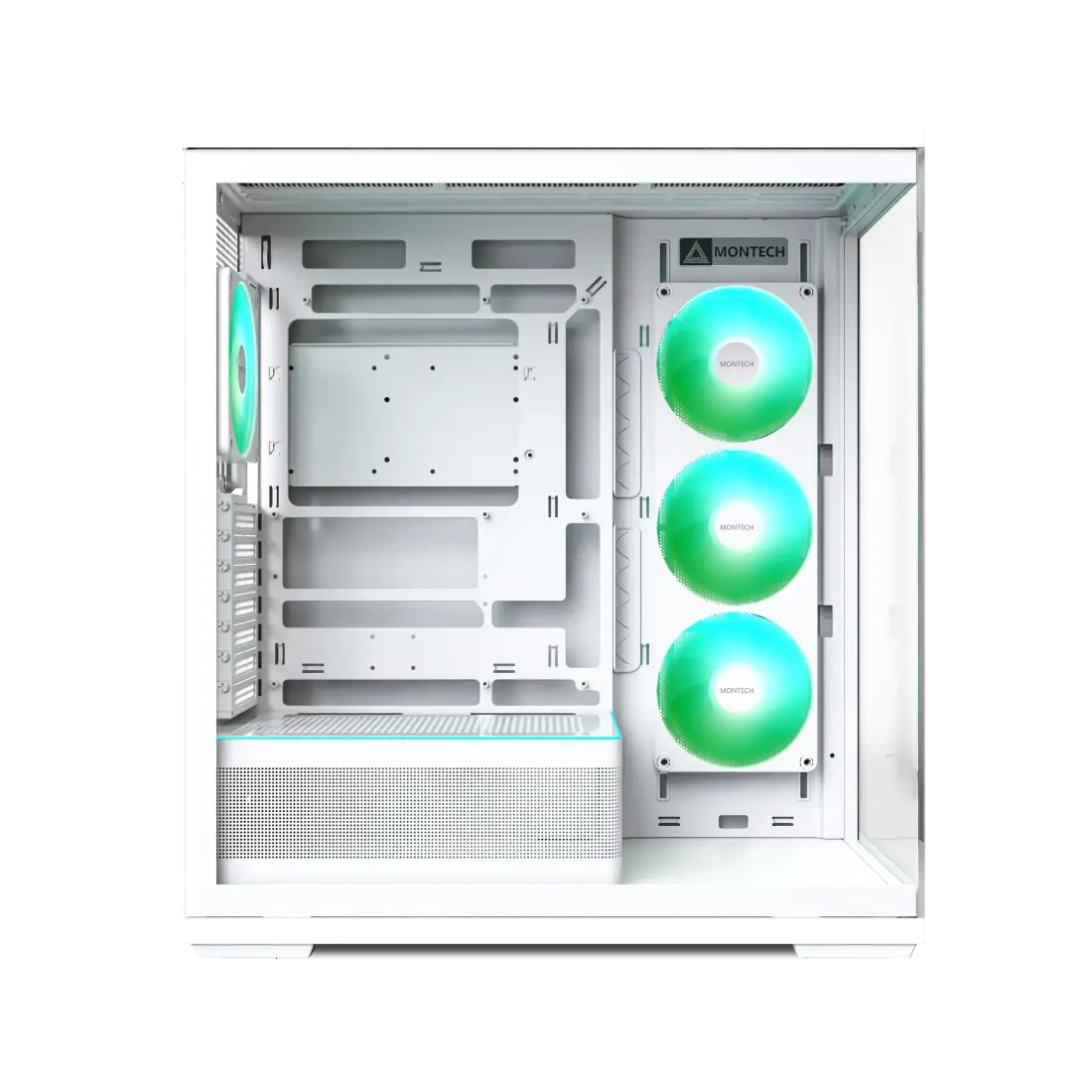

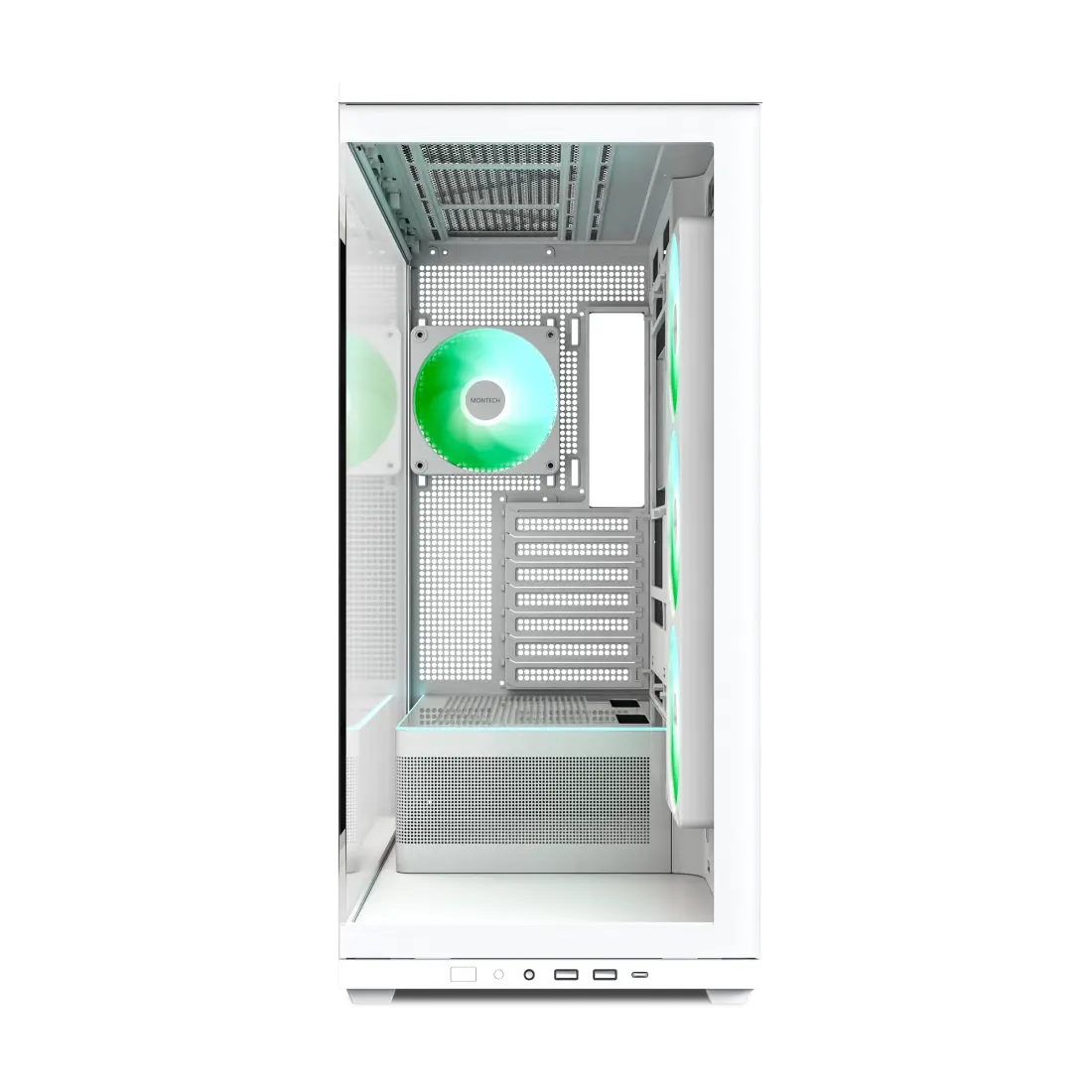

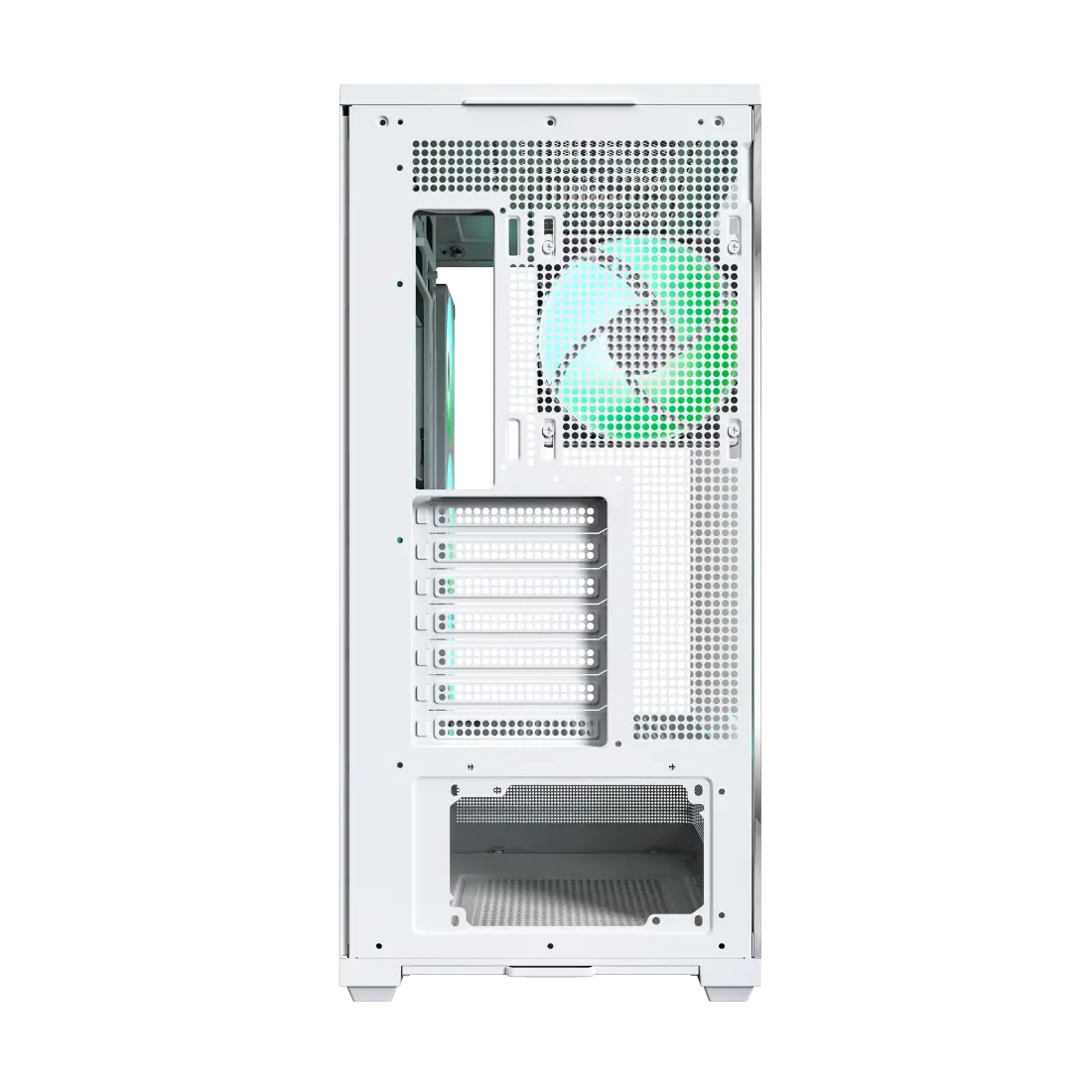

TG3 combines a tempered-glass side panel with a stepped base and illuminated PSU shroud. A preinstalled GF360 U REV integrated reverse-blade intake assembly at the side works with a GF120 U rear exhaust fan, establishing airflow while simplifying wiring. Ventilation openings and fan positions above the PSU shroud provide expansion options, and the lower section offers room for a personalized display. The case supports standard and back-connect motherboards, including the ASUS BTF, MSI Project Zero and GIGABYTE Project STEALTH platforms named by the manufacturer. Check the dimensions and connector layout of the selected board. Dimensions (L × W × H): 465*239*523mm (case) / 590*300*556mm (carton) Motherboard support: ATX / Micro-ATX / Mini-ITX (back-connect supported) I/O: power button / LED button / USB3.0*2 / Type-C*1 / combined headset jack*1 PCIe expansion slots: 7 Clearance / CPU cooler: 180mm Clearance / Graphics card: 430mm Clearance / Power supply: 250mm ATX Drive support (individual maximum) / 3.5” HDD: 1 Drive support (individual maximum) / 2.5” SSD: 2 Preinstalled fans / Side: 360mm*1 (GF360 U REV) Preinstalled fans / Rear: 120mm*1 (GF120 U) Fan support / Top: 120mm*3 / 140mm*3 Fan support / Side: 120mm*3 Fan support / Above PSU shroud: 120mm*2 Fan support / Rear: 120mm*1 / 140mm*1 Radiator support / Top: 120 / 140 / 240 / 280 / 360mm Radiator support / Side: 120 / 240mm Radiator support / Rear: 120mm Dust filters: Top / Bottom Warranty: 1 year Notes: Listed fan, radiator and drive capacities are configuration limits and may share mounting space; the individual maxima do not imply simultaneous installation. GF360 U REV is the integrated side fan assembly listed as 360mm × 1, not a single fan with a 360mm diameter. This listing: White. Motherboards, graphics cards and other build components shown in photos are for illustration; included fans are specified above.
